Advantage:
1.The machine is made of stainless steel. It can achieve de-alkalization, dehydration function according to user needs. It can also fulfill oil bleaching.
2.It is the miniaturization of large scale oil refinery and it is the most economical device.The oil temperature can be controlled and all displayed by the meters.
3.The operation is easy and safe.
4.One process will take about 2.5-3 hours.
Main Data:

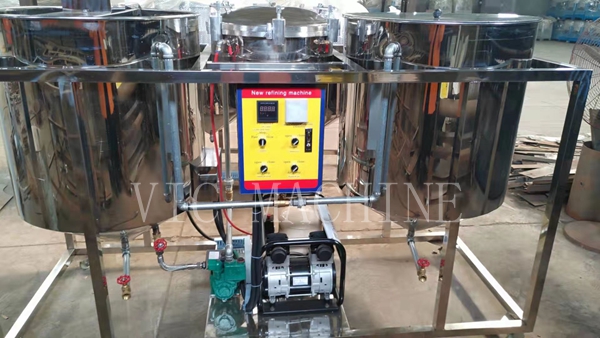

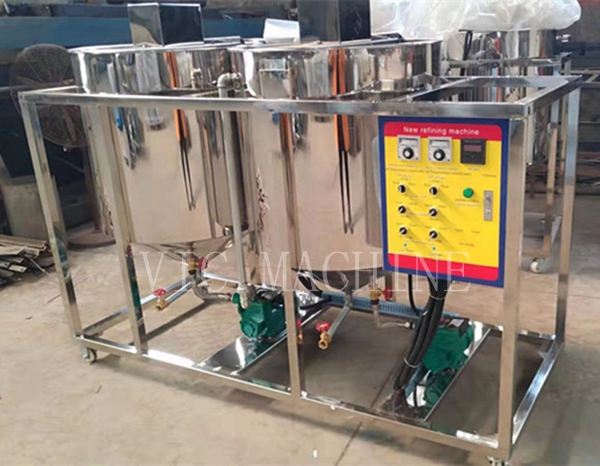

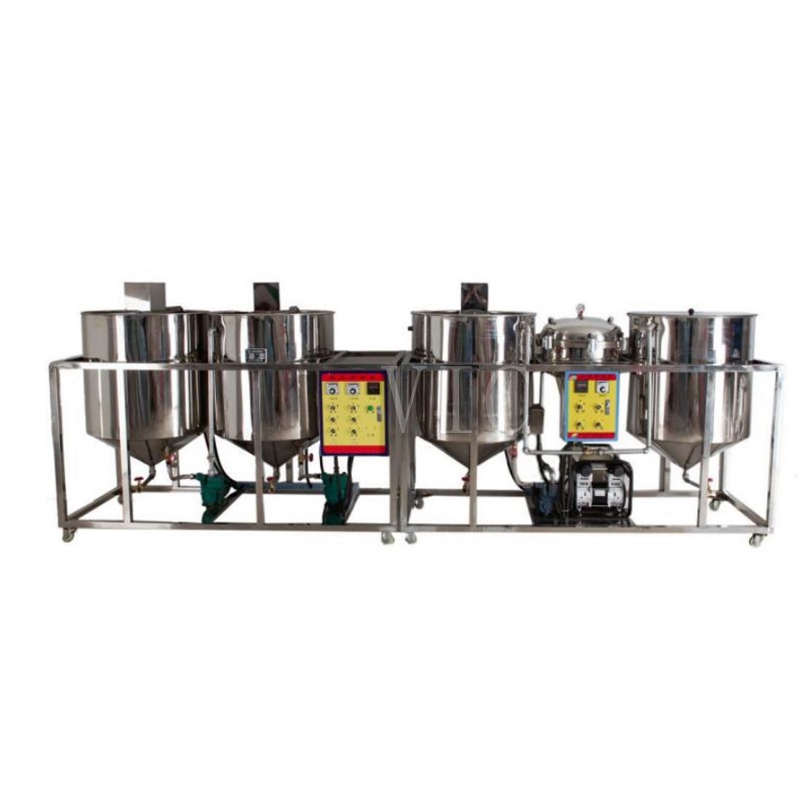

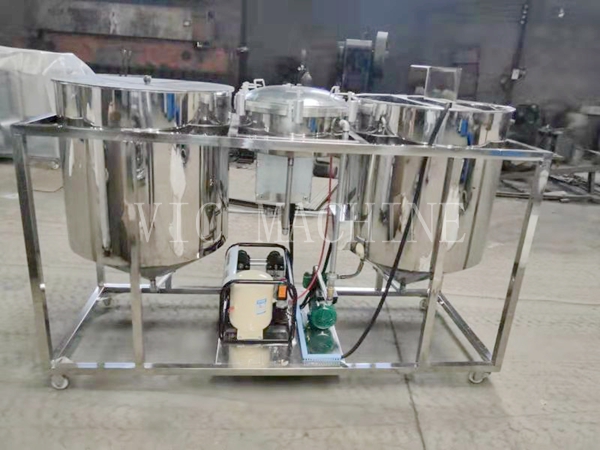

More photos
1.The machine is made of stainless steel. It can achieve de-alkalization, dehydration function according to user needs. It can also fulfill oil bleaching.
2.It is the miniaturization of large scale oil refinery and it is the most economical device.The oil temperature can be controlled and all displayed by the meters.
3.The operation is easy and safe.
4.One process will take about 2.5-3 hours.
Main Data:
| Model | VIC-50A | VIC-75B | VIC-75C |
| Capacity/ time | 80kg | 200kg | 200kg |
| Required time/batch | 3.5hours | 3hours | 2.5hours |
| Heating Power | 2kwX3/6kw | 3kwX6/18kw | 3kwx9/27kw |
| Size | 1.5x0.58x1.35m | 3.12x0.83x1.55m | 3.9x0.83x1.550m |
| Weight | 140kg | 300kg | 350kg |
| Gas pump power | 1.1kw | 1.1kw | 1.1kw |
| Mixer power | 0.25X1/0.25kw | 0.25X2/0.5kw | 0.25X3/0.75kw |
| Oil pump power | 0.37kw | 0.75kwx2 | 0.75kwx3 |
