400kg/day Deodorizing pot with steam generator is finished

15/11/2020

Application:
This deodorizer is mainly through high temperature to remove the odor of the oil.
Features:
1. Food grade stainless steel material is used and polished; it meets national food machinery standards and can be processed for QS certification.
2. Simple design and exquisite appearance, improve customer satisfaction.
3. All the operation data is displayed by the meter, which is simple in operation and safe in operation; ordinary staff can work on the machine after training by telephone.
4. It can realize the functions of deodorization of oil products.
Main data:

No. Equipment name Spec Quantity Power
(KW)		 Materials Remark
1 Deodorization tank LYXC80 1 0 SS304 With steam heating coil + electric heating.
Diameter 800mm
2 Gas collection device BJQ30 1 SS304
3 Water ring vacuum pump SHB40 1 1.5
4 Water tank 50x50 1 SS304
5 Steam generator DL-0.7 1 12
6 Oil pump KCB55.5 1 0.55
7 Distribution Cabinet 1
8 Installation material Pipes, valves, fittings and other materials are all 304 stainless steel
Total power 14.05kw
Total installation size 2.3x1.4x1.9m 400kgs

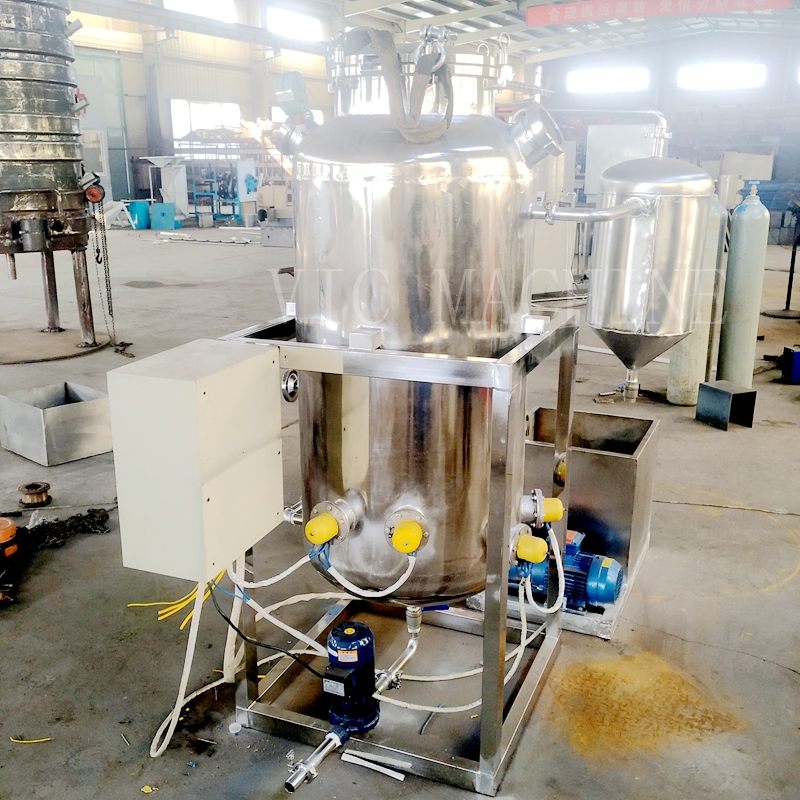

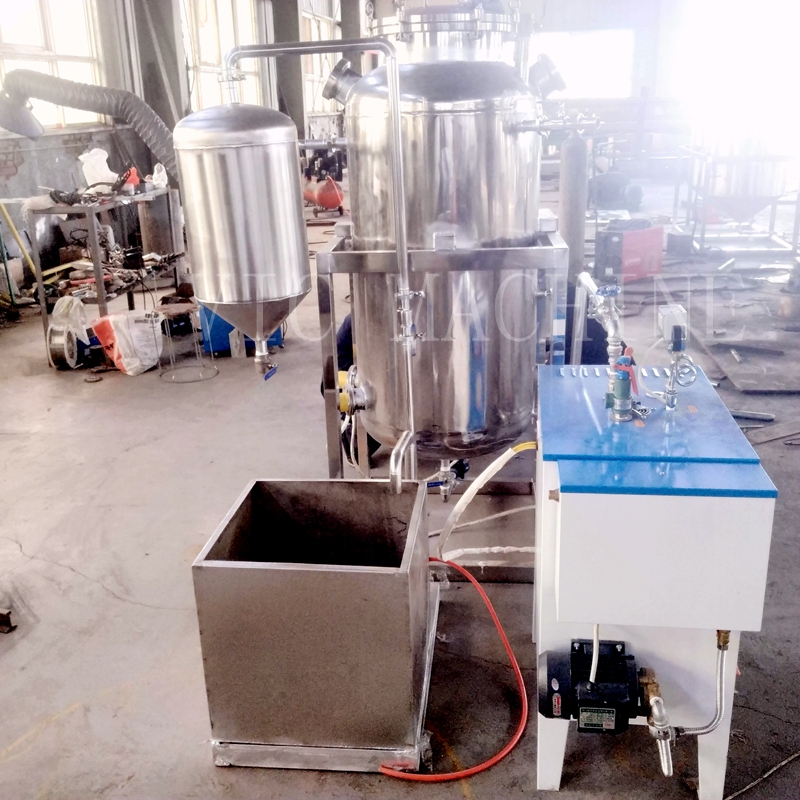

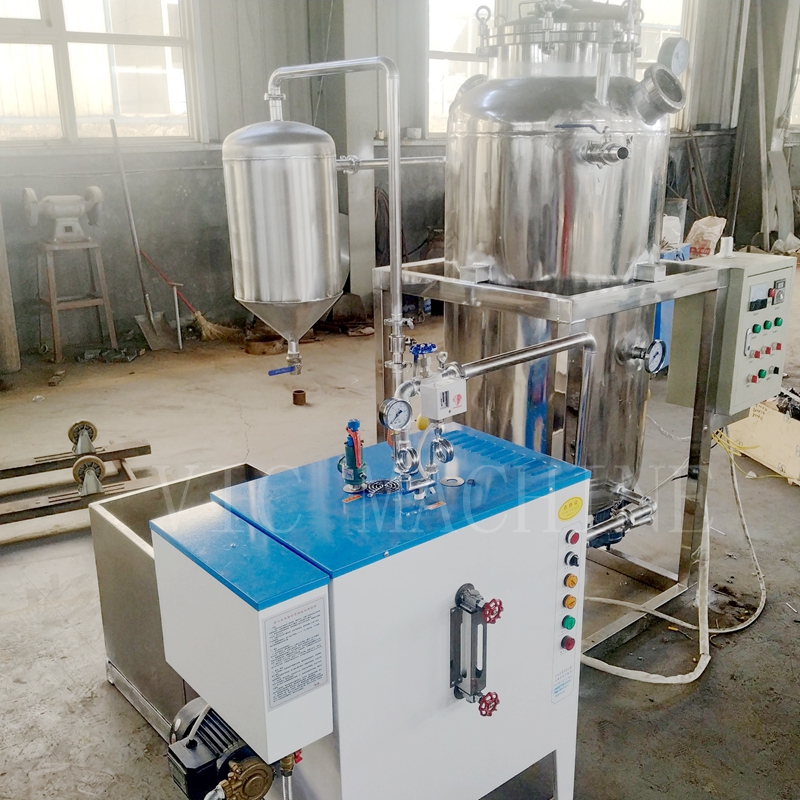

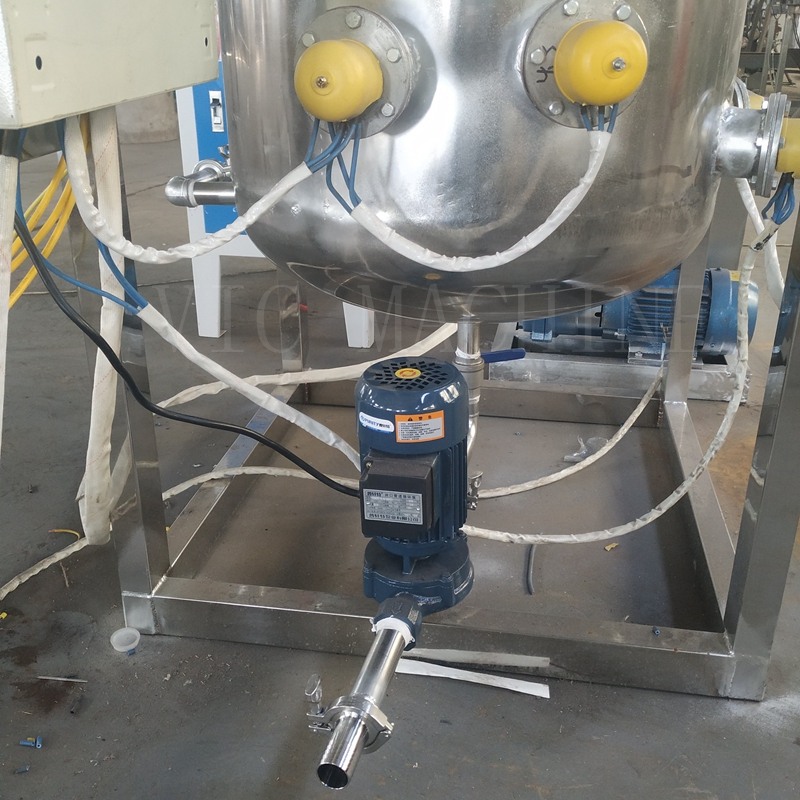

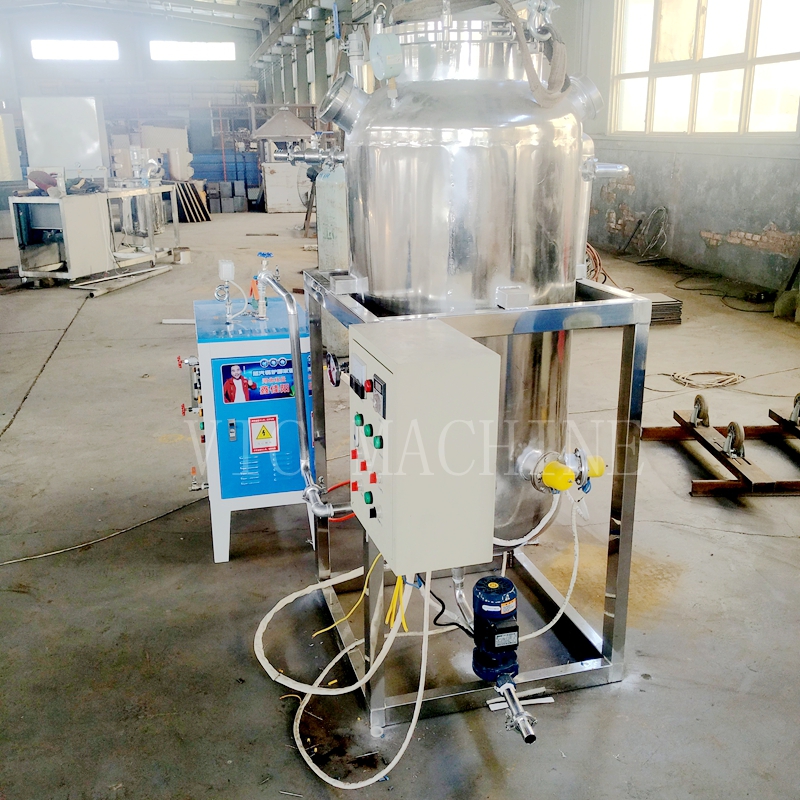

More picture
