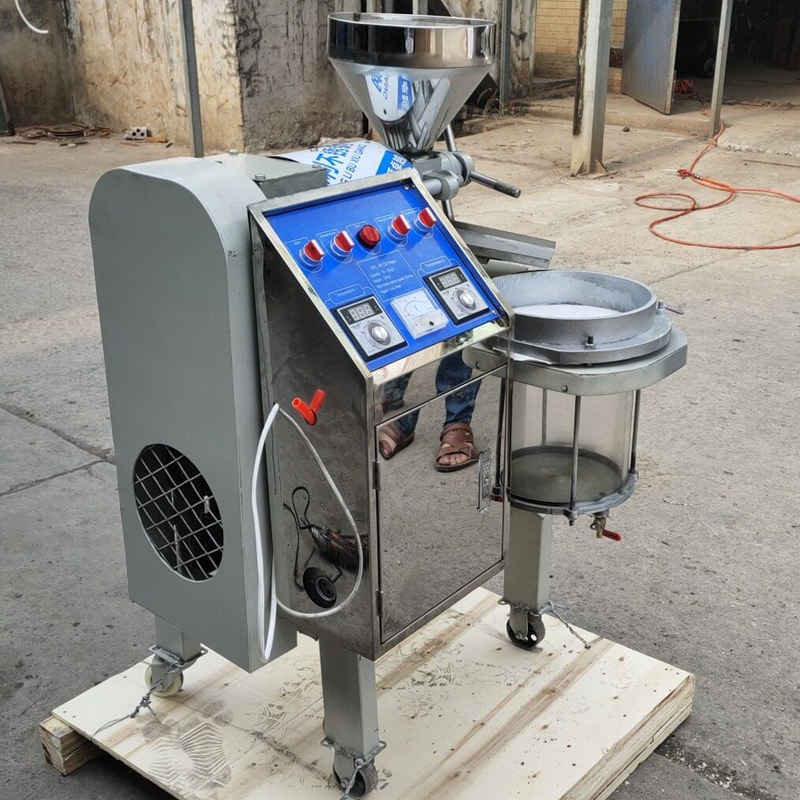

1. 6YL-30A is a small family use combined oil press with single vacuum filter
2. It can be applied to press Rape seed, Tea seed, Soybean, Peanut, Pepper seed, Sunflower seed, Cotton seed, Tung tree seed, Sesame, Jatropha etc.
3. This machine is with automatic operation and need small space, only one people can operate the machine.
4. The final oil is widely used for home use edible oil, industry, cosmetics and other field.
Main data:
Model: 6YL-30A home use mini oil press
Capacity: 10-20kg/h for oil seeds
Oil output rate: 42-50% (different according to materials)
Power: 1.5kw (220v/50hz/single phase)
Vacuum pump: 180w/1.5L
Pressing screw dia: 37mm
Shaft speed: 60-70r/min
Residue oil in cake: less than 3%
Outer size: 700x700x900mm
Net Weight: 126kgs
Oil capacity ref.:
| Oil seeds | Oil ouptput rate(%) | Thickness of oil cake(mm) | Remarks |
| Rapeseeds | 33-42% | 0.4-1 | ---------- |
| Tea seeds | 30-36% | 0.8-1.5 | 20-26% with shell |
| Soybean | 8-12% | 0.6-0.8 | ---------- |
|
Peanut |
35-40% | 0.3-0.6 |
28-32% with shell |
| Sesame | 38-50% | 0.4-0.6 | ---------- |
| Cottonseeds | 10-15% | 0.4-0.6 | ---------- |
| Tung seeds | 45-52% | 0.6-0.8 | ---------- |
| Sunflower seeds | 45-50% | 0.3-0.6 | ----------- |
Note: The above technical parameter is for normal operation of cleaning, crushing and pressing process.
