Application:
This is mini oil refinery have the decolorizing port,refinery port,refined oil pot,with the auto temperature equipment,can achieve crude oil degumming, deacidification, drying and decolorization function.
The final oil reach national edible oil standard, directly filling to sale for small-scale processing and oil processing plant.
Refining crude oil : soybean oil, mustard seed oil, cottonseed oil, sunflower seed oil,peanut oil, rice bran oil, safflower seed oil, corn germ oil, camellia seed oil, etc.
Technical data:
|
Model |
VIC-50A |
VIC-75B |
VIC-75C |
|
Heating Power |
2kwX3/6kw |
3kwX6/18kw |
3kwx9/27kw |
|
Size |
1.5x0.58x1.35m |
3.15x0.83x1.65m |
3.95x0.83x1.650m |
|
Weight |
140kg |
300kg |
350kg |
|
Air pump power |
1.1kw |
1.1kw |
1.1kw |
|
Mixer power |
0.25kw |
0.5kw |
0.75kw |
|
Oil pump power |
0.37kw |
0.75kwx2 |
0.75kwx3 |
More picture

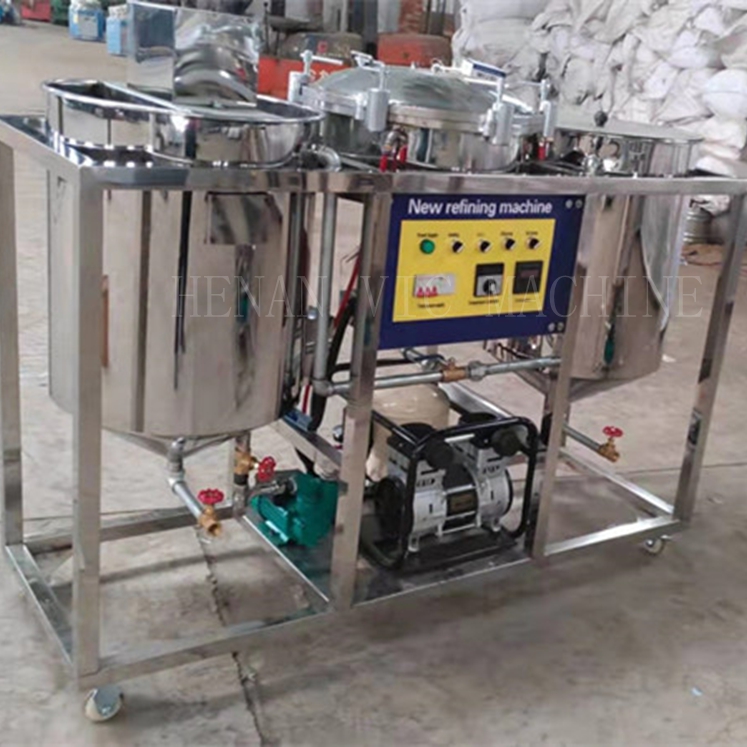

VIC-50A
1, stirring Motor, 2, stirring tank, 3, frame, 4, oil pump inlet valve 5, dumping valves, 6, moving wheel,
7, filtering tank return pipe, 8, gear oil pump, 9, 3-way valve, 10, air pump, 11, refined oil inlet pipe,
12, refined oil outlet valve, 13, refined oil tank, 14, control panel 15, exhaust valve,16, filtering tank,
17, pressure gauge 18, inlet air valve, 19, safety relief valve, 20, product identification
