- Place of Origin:CN;HEN
- Condition:New
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Construction works
- Warranty:5 years
- After-sales Service Provided:Online support
- Brand Name:VIC
- Voltage:380V/220V
- Power(W):90KW
- Dimension(L*W*H):2600*1300*2300mm
- Weight:2.0T
- Certification:CE,SGS
Application

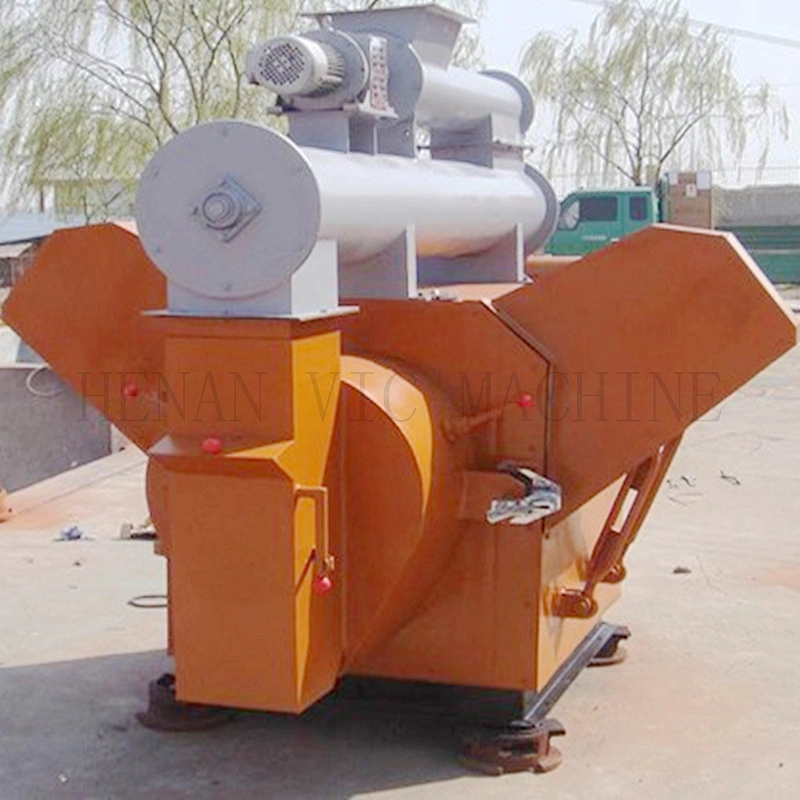

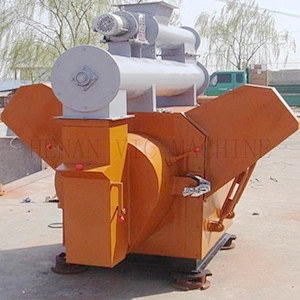

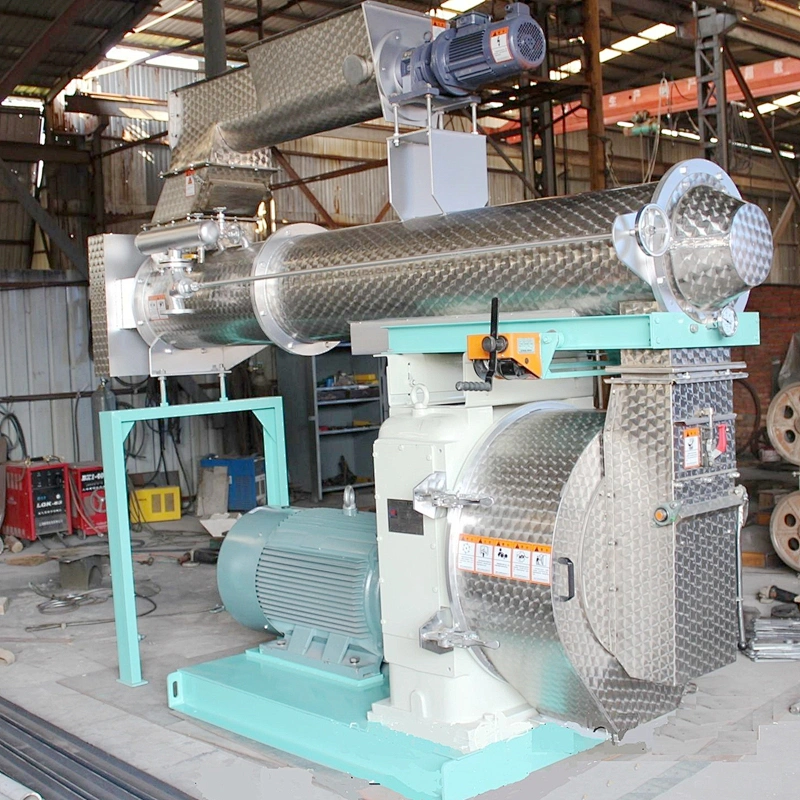

1.It 's one ring mould pellet mill which is suitable for making the biomass, sawdust pellet, rice husk pellet.
2. It is also suitable for making the oil cake for animal feedstuff, which could be granule for the fish, chicken, animal and so on.
3.This system wood pellet machine is specially assembled one feeder for forcing feeding into more raw materials, to improve the capacity and its efficiency;
4.Also it is assembled one conditioner for mixing to make the raw materials be better water moisture and pellet better quality.
Advantages
1.It is adopt high-precision gear driven and super quality oil seal to ensure high efficiency,stability and low noise;
2.Adopt high-precision gear driven , advanced flexible coupling, for high productive efficiency .
3..Main driving adopt imported SKF ( NSK) bearing and NAK oil seal ,Siemens Motor.
4. Frequency converter control feeder flow, full stainless steel feeder, cover and chute .
5. Full stainless steel lengthened conditioner. Both paddle and shaft are made of stainless steel.
Raw material size and moisture:
1.Raw material size can be 4-12mm, orelse, it will can not make good pellets
2.Raw material moisture is best 13%-22% according to different material
Main data
| Item | Capacity(kgs) | Power(KW) |
| SZLH32 | 200-300(sawdust) ,3000(feedstuff) | 37 |
| SZLH35 | 600-800(sawdust),6000(feedstuff) | 55 |
| SZLH400 | 800-1000(sawdust) ,8000(feedstuff) | 90 |
| SZLH420 | 1200-1500(sawdust),14000(feedstuff) | 110 |
| SZLH508 | 1600-2000(sawdust),15000(feedstuff) | 132 |

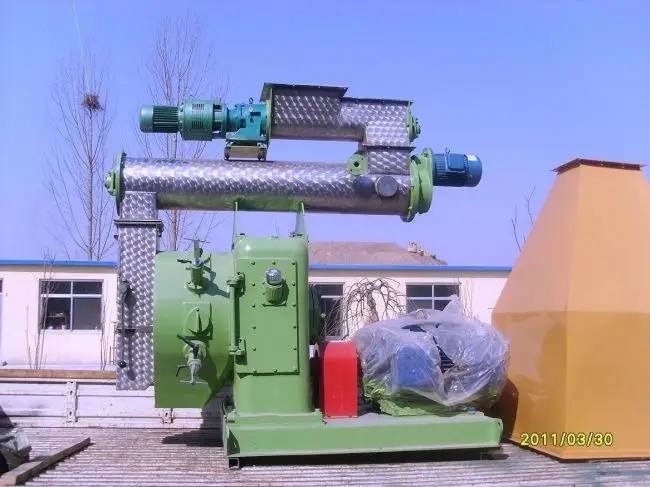

More picture

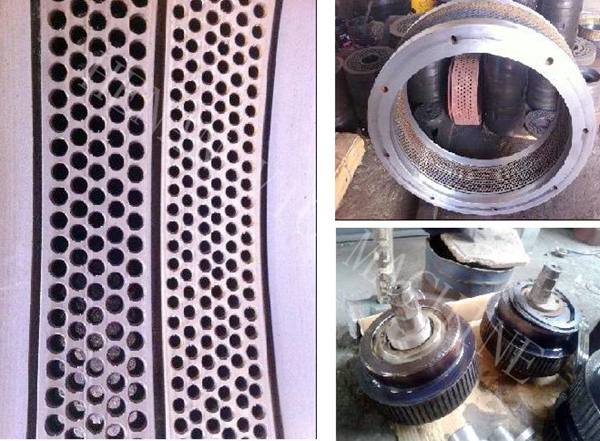

Parts
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Shipping:
Machine usually transport by sea,we also can transport it by air andrailway.
Delivery time: Within 15 workdays after receipt of the pre-payment.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
