- Applicable Industries:Energy & Mining
- Condition:New
- Place of Origin:CN;HEN
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Online support
- Brand Name:VIC
- Voltage:380V
- Weight:1000kg
- Dimension(L*W*H):1300*1220*1730mm
- Certification:CE ISO
- Applicable Industries:Hotels
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food & Beverage Shops

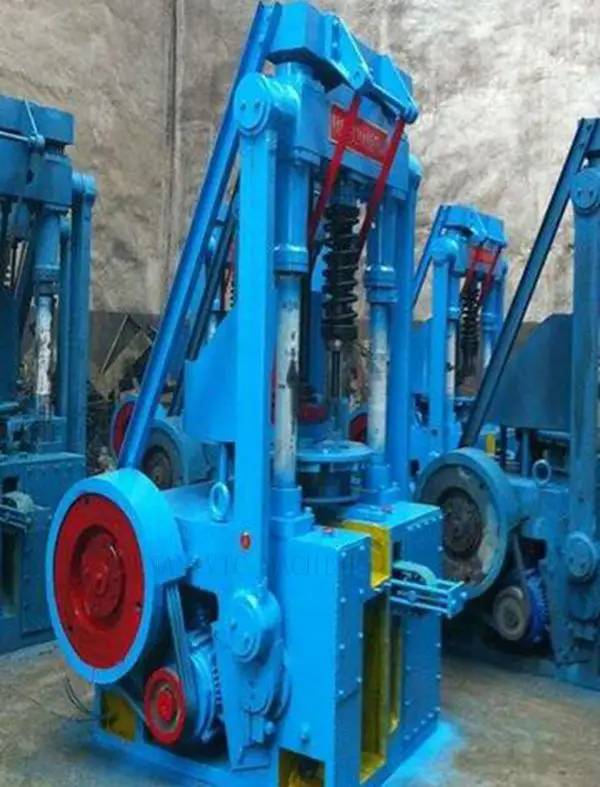

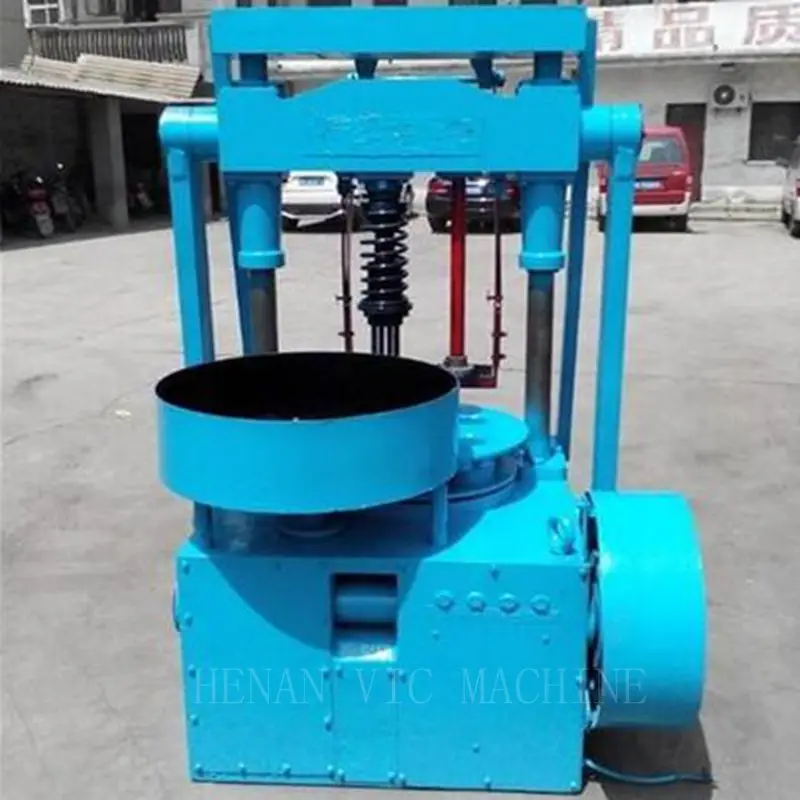

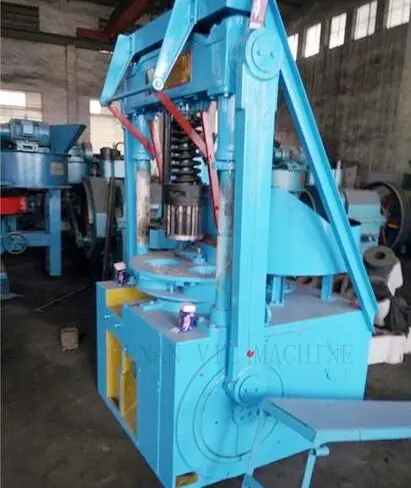

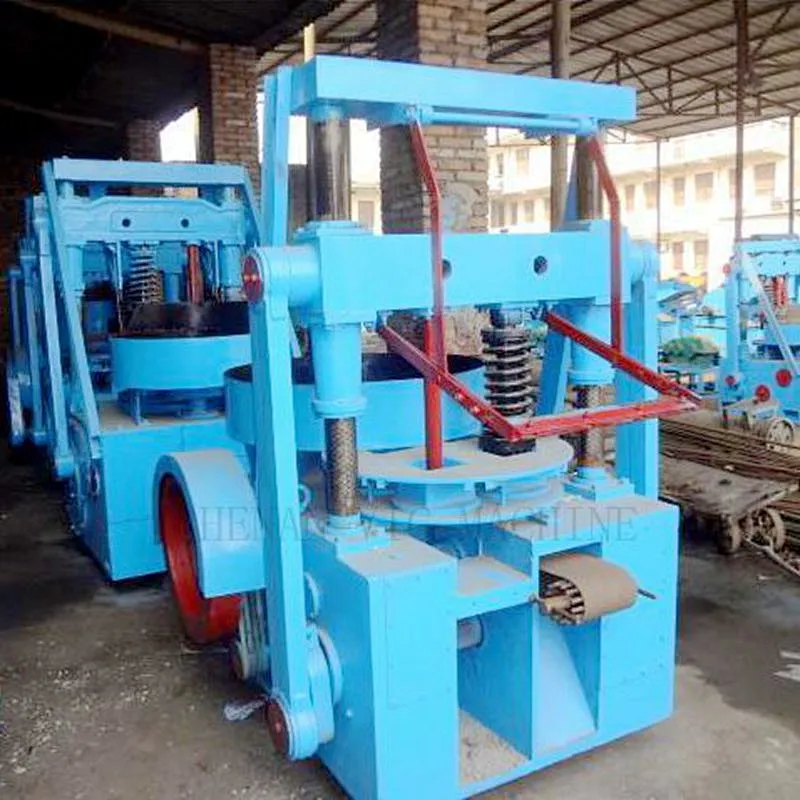

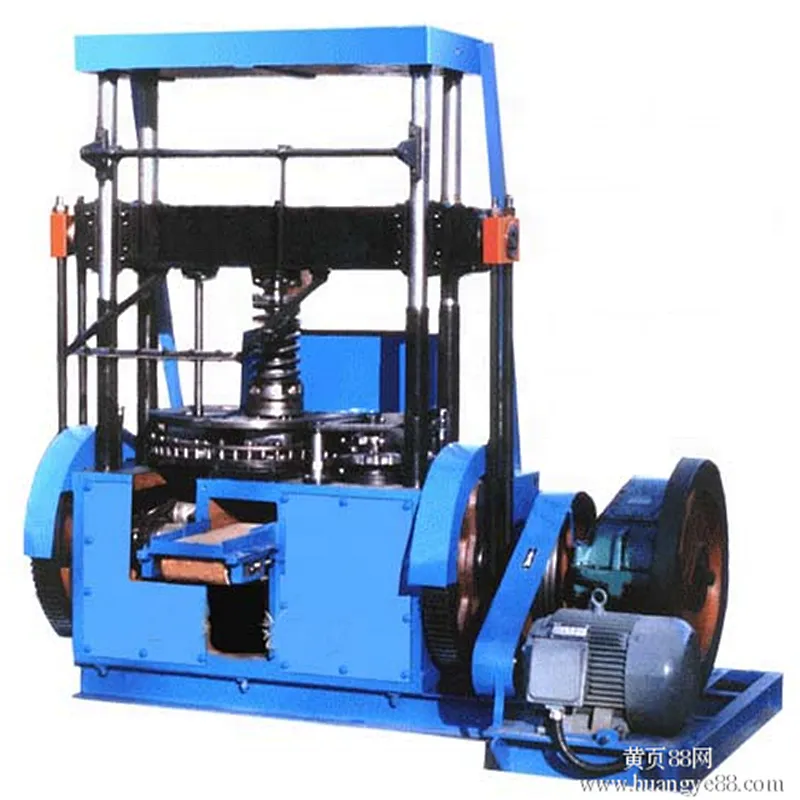

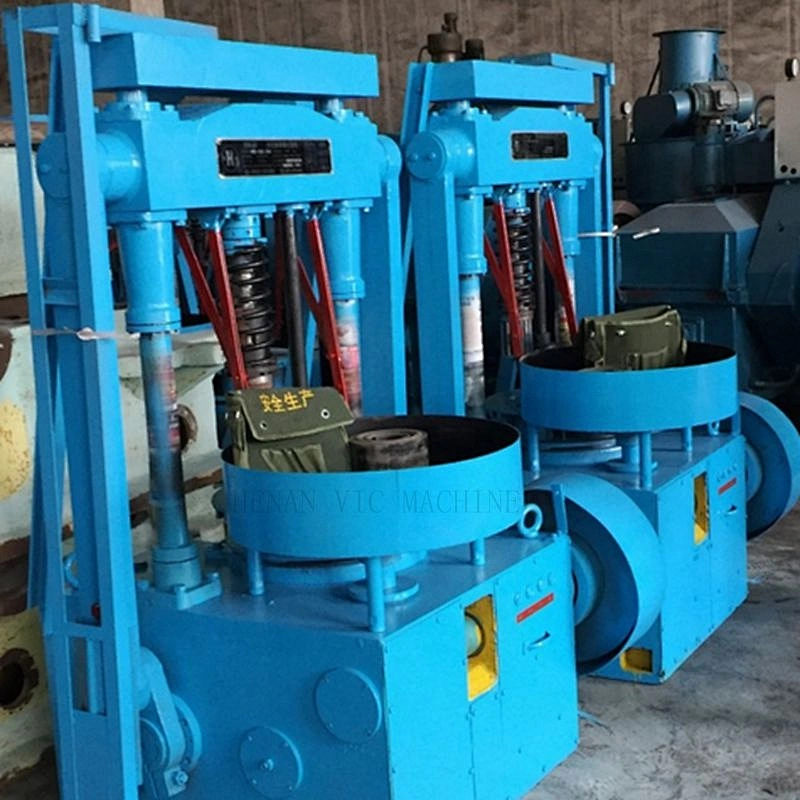

(1) Main body: it consists of bedplate and engine base, which are the frame of the machine.
(2) Rotating system: It is composed of motor, belt pulley, gear and tranmission shaft.(3) Feeding system: It is made up of rotating shaft, hopper and stirrer. The axial gear drive the stirrer, mixing the coal evenly and sending the coal into the former.
(4) Pressing system: it consists of 4 pcs slide bar, slide beam, punch, punch holder, punch head, pressrue plate, mould end and spring. When the machine working, the slide bar will drive the slide beam, punch head goes down and pressure plate will go up, then the spring retrench, then press the coal into briquettes.
(5) Discharging system: it consist of transmission rack, belt pulley, holder and conveyor belt. The conveyor betl driving and bring the shaped briquettes out of the machine. There is some roses on the transmission holder to adjust the tightness of conveyor belt.

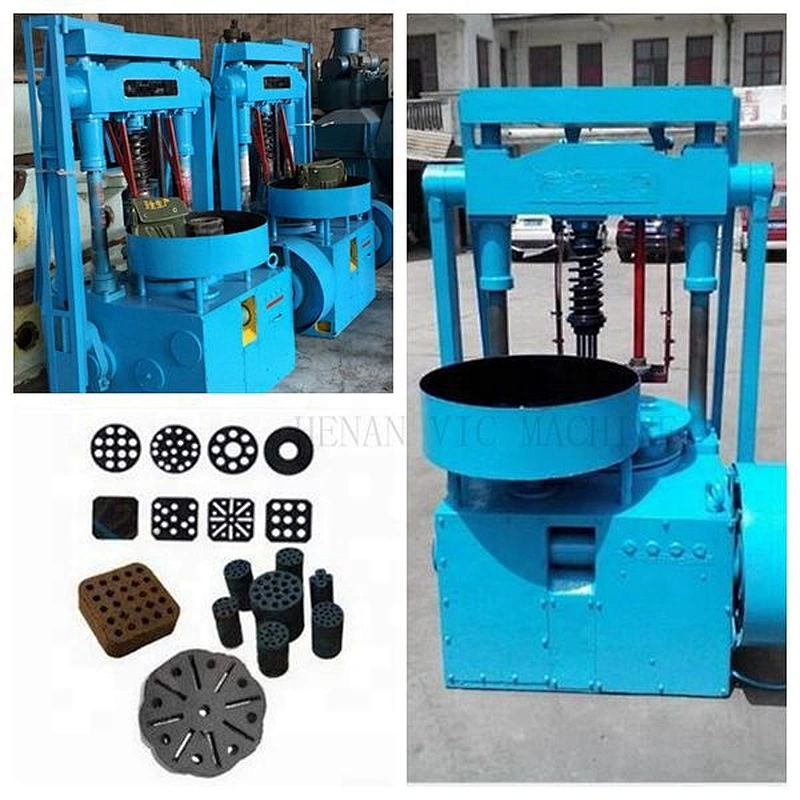

Final briquette :
Charcoal briquettes' shape: Round shape briquette with several holes(Diameter between
140-300mm) Cylinder shape with a hole( diameter 50mm with a 15mm hole is the most popular
size) Plum-blossom shape with hole, square shape with several holes( the length are
customized),hexagonalshape with a hole, rectangle shape, etc.
Charcoal briquettes' size: The diameter or length is 45mm-300mm.
Charcoal briquettes' density: The density of briquettes can be adjusted according your
demandsbychanging the upper punching part.
Charcoal briquettes' burning time: The burning time is about 4-5 hours per small piece.
Features:
1) All spare parts of punch type coal briquette machine are made by ourselves.
2) All connecting parts we use cooper spirals instead of iron spirals to make the whole
honeycomb coal briquette machine has longer service time.
3) All spart parts made by advanced technology, we use wire-cutting technology rather than
normal cutting technology.
4) Our punch type coal briquette machine has position-guide angle to protect punching
parts.
5) Shaping mold can be customized according to your demands.
Models and parameters:
| model | power | weight | size | final product shape |
| VIC-140 | 7.5KW | 1000kg | 1300*1220*1730mm | custom-made |
| VIC-150 | 11KW | 1500kg | 1260*1150*1820mm | custom-made |
photos and details:

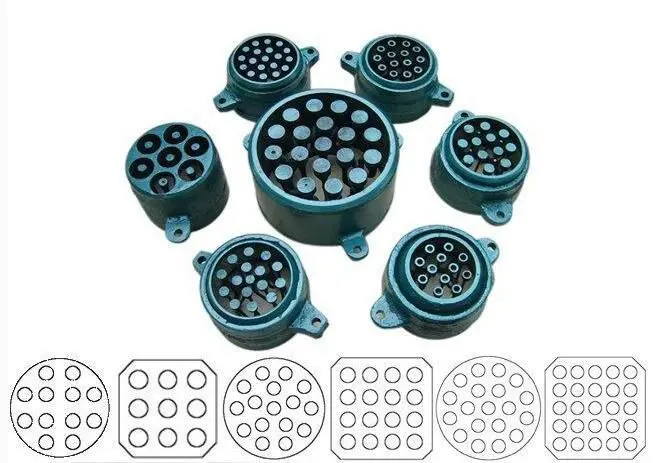

Mould
Package

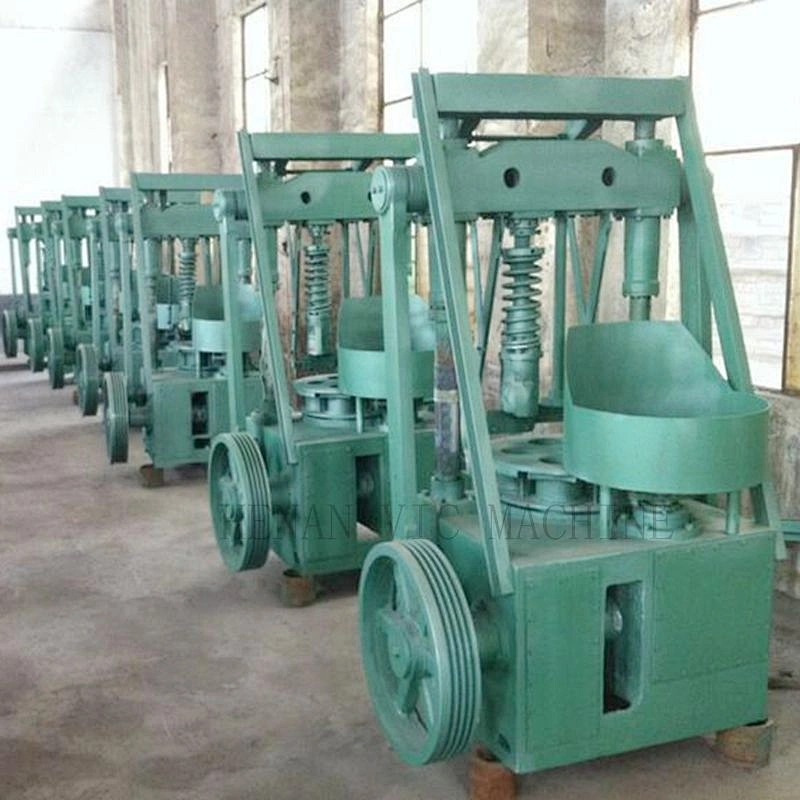

Our factory
