- Place of Origin:CN;HEN
- Condition:New
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food & Beverage Shops
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Application:wood shaving
- Brand Name:VIC
- Voltage:380V
- Power(W):7500
- Dimension(L*W*H):1200*500*700mm
- Weight:250kg
- Certification:CE
9BH System Wood Shaving Machine/Dura Wood Shaving Machine
1. Introduction:
1.1. Wood shaving machines can make the logs, tree branch, edge processed wood into wood shavings.
1.2. The shaving is the same as that produced from the fumitory factory and is uniform.
1.3. They are mainly used as the bed of the horse or chicken or other animals by farm or horse club. stable bedding, poultry, animals farms.
2. The advantages:
2.1. Easy to use,
2.2. Easy to maintain,
2.3. No limitation on the place.
3. Main data:
| Model | 9BH-420 | 9BH-600 | 9BH-800 | 9BH-1200 | 9BH-1500 |
| Motor | 7.5 kw | 15 kw | 30 kw | 55 kw | 75 kw |
| Voltage | 380V | 380V | 380V | 380V | 380V |
| Capacity | 300 kg/h | 500 kg/h | 1000 kg/h | 1500 kg/h | 2500 kg/h |
| Speed of main-shaft | 700 min/h | 600 min/h | 560 min/h | 560 min/h | 560 min/h |
| Blade quantity | 4PCS | 4PCS | 8PCS | 9PCS | 12PCS |
| Cutter diameter | 420 mm | 610 mm | 750 mm | 1000 mm | 1150 mm |
| Size of blade(mm) | 90×60×8 | 150×70×8 | 150×100×10 | 150×120×10 | 150×120×10 |
| Size of feeding inlet | 140×100mm | 190×150mm | 140×220mm | 220×300mm | 320×420mm |

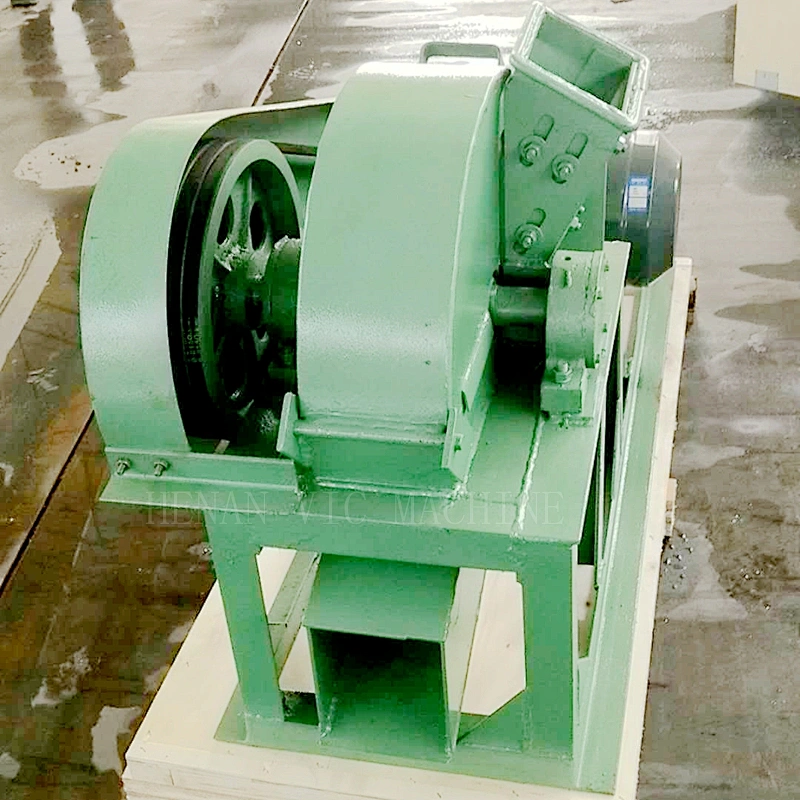

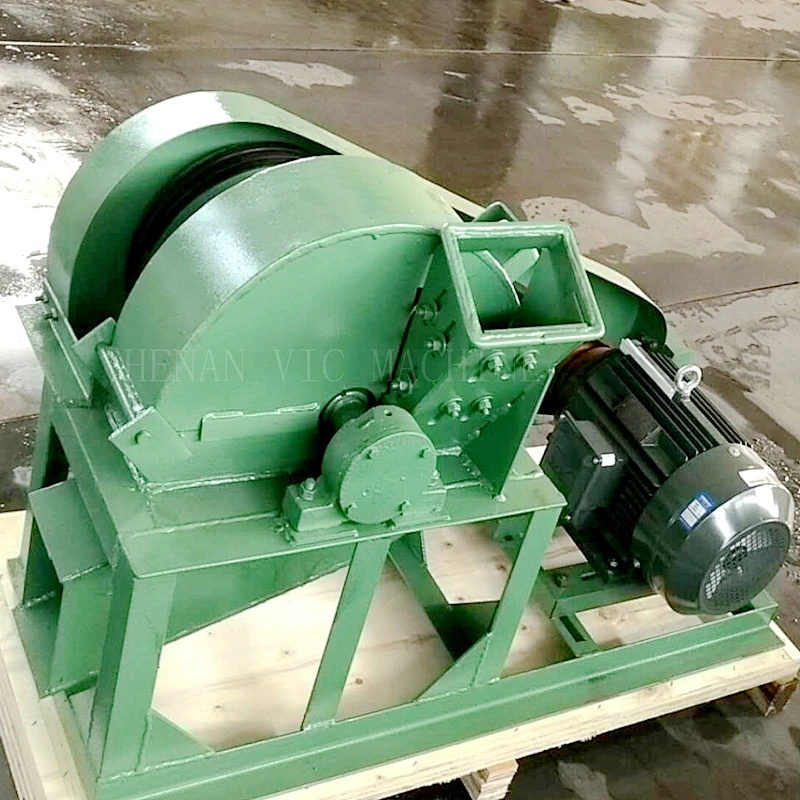

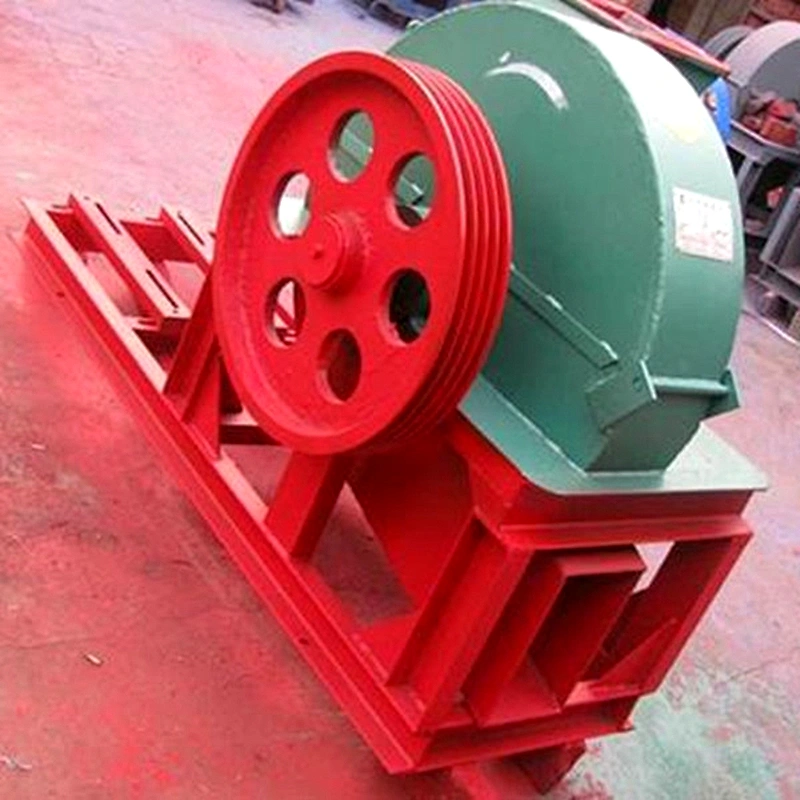

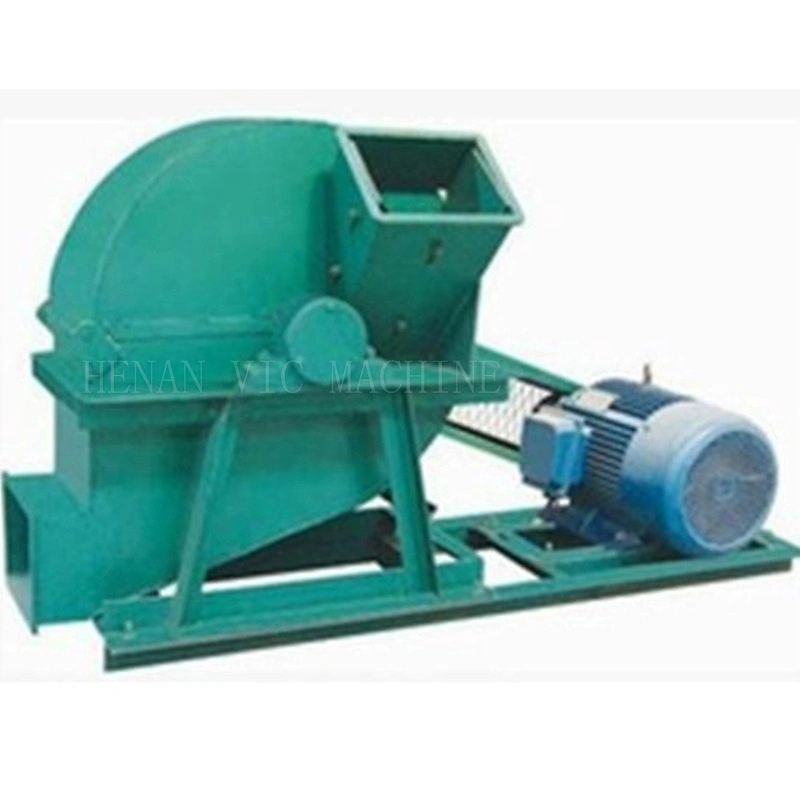

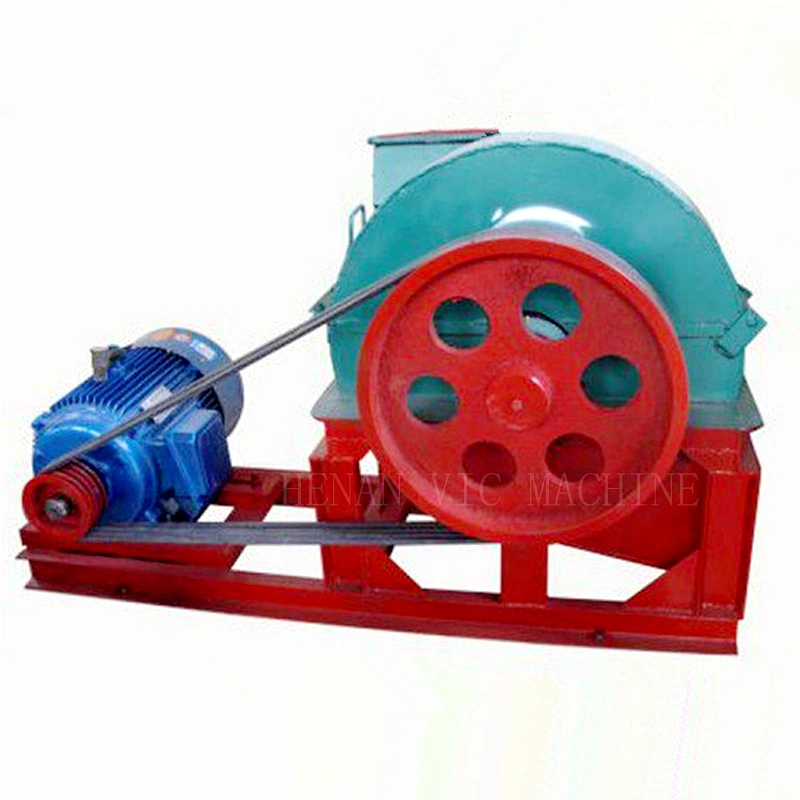

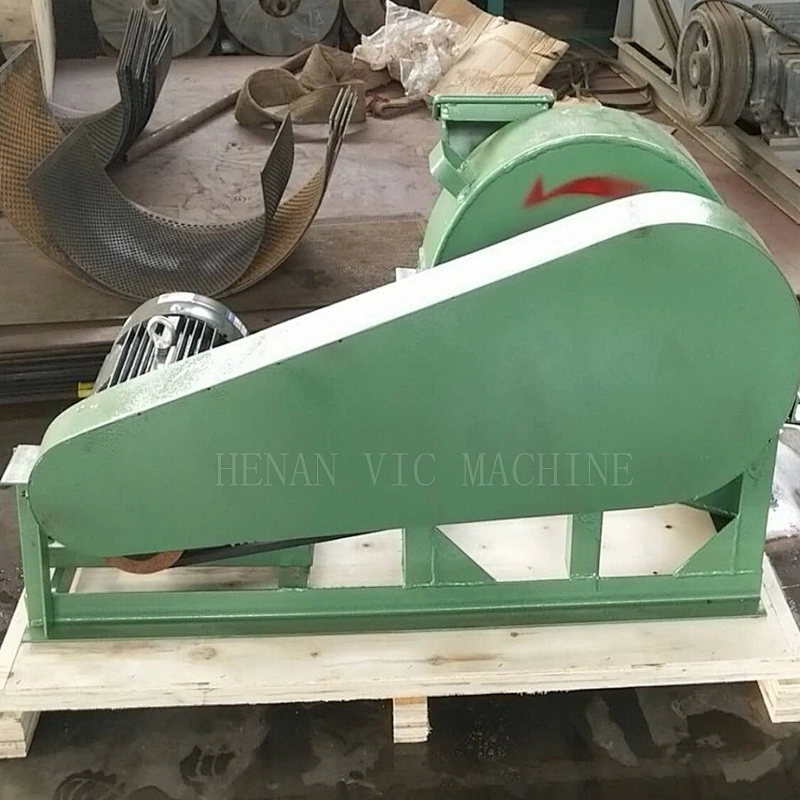

4. Machine photos :

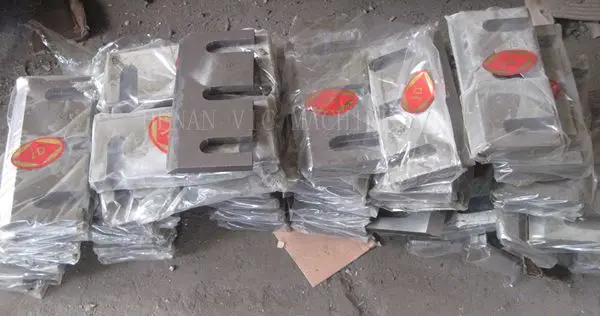

Spare parts :
End sample:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
