- Place of Origin:CN
- Condition:New
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Brand Name:VIC
- Model Number:CT-C-O
- Type:Dehydrater
- Voltage:380V
- Power(W):9kw
- Weight:200kg
- Dimension(L*W*H):1380*1200*2000mm
- Certification:CE
- Year:the latest
CT Series Vegetable And Fruit Dehydrate Machine
Introduction:
The hot air circulation oven for heat curing of the materials and products in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry, and desiccation. Such as Raw material drug, Crude drug, Chinese Herbal Medicine, Extract, Album dose, Grain, Granules, Water pills, Packaging bottle, pigment, dyestuff, dehydration vegetable, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.
Features:
1Heating source: Steam, electricity, electricity steam dual-use.
2. Temperature: Steam heating 50-140 ° C, up to 150 ° C; Electric heating to 50-300 ° C

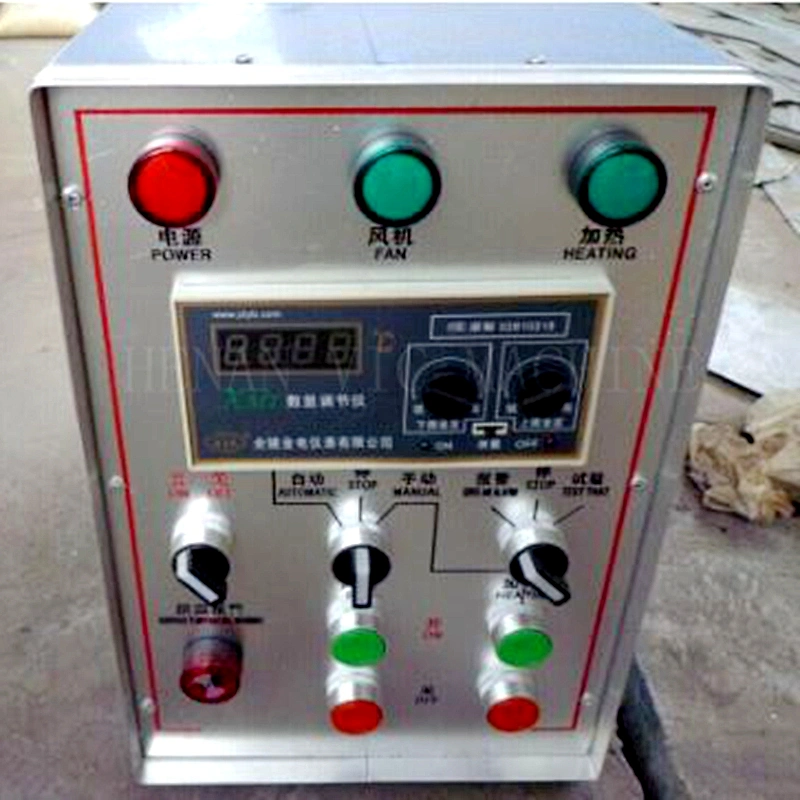

3. The temperature can be controlled automatically and automatic alarm.
4. Full welding of Box inner wall, the transition at the arc transition, no dead ends
5. The unique rail sealing device ensures the tightness of the machine.
6. With Air inlet filter; The dehumidifying mouth filters.
7. Double-door oven double door mechanical interlock
Various parts of the oven can be assembled and disassembled quickly installed to facilitate cleaning
Main data
Model | Capacity of each batch (kg) | Electrical power (KW) | Air volume (m3/h) | Number of plates | Machine size (mm) | Number of Trolley |
CT-C-O | 50-60 | 9 | 3450 | 24 | 1380*1200*2000 | 1 |
CT-C-I | 100-120 | 15 | 3450 | 48 | 2300*2200*2300 | 2 |
CT-C-II | 200-240 | 30 | 9020 | 96 | 2300*2200*2300 | 4 |
CT-C-N | 300-360 | 45 | 13800 | 144 | 2600*2100*2300 | 6 |
CT-C-IB | 400-480 | 60 | 6900 | 192 | 4000*2000*2300 | 8 |

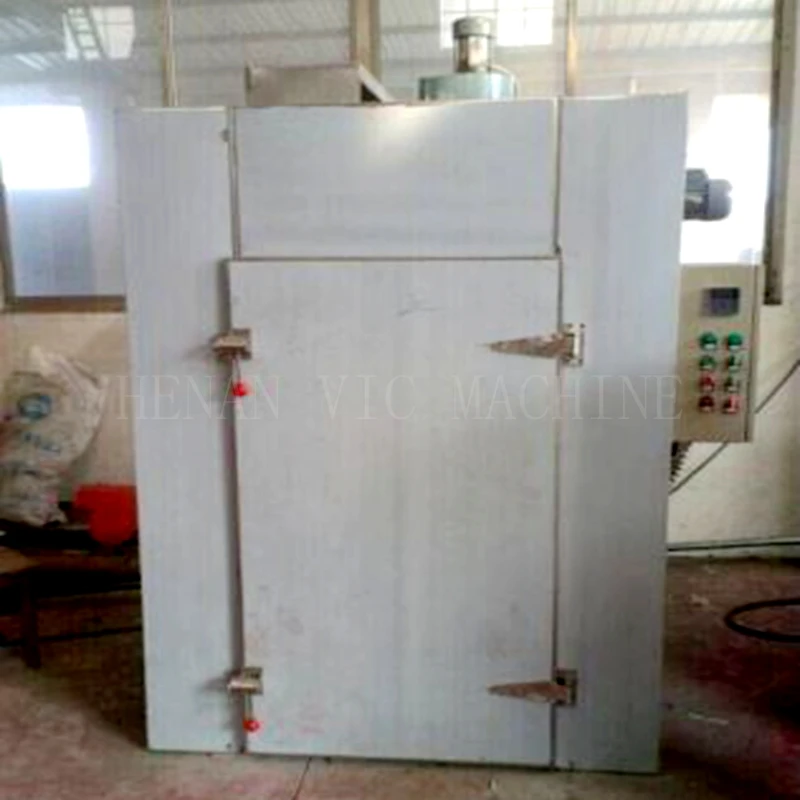

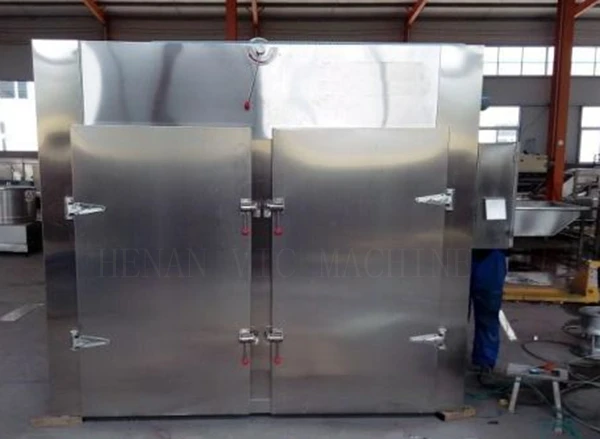

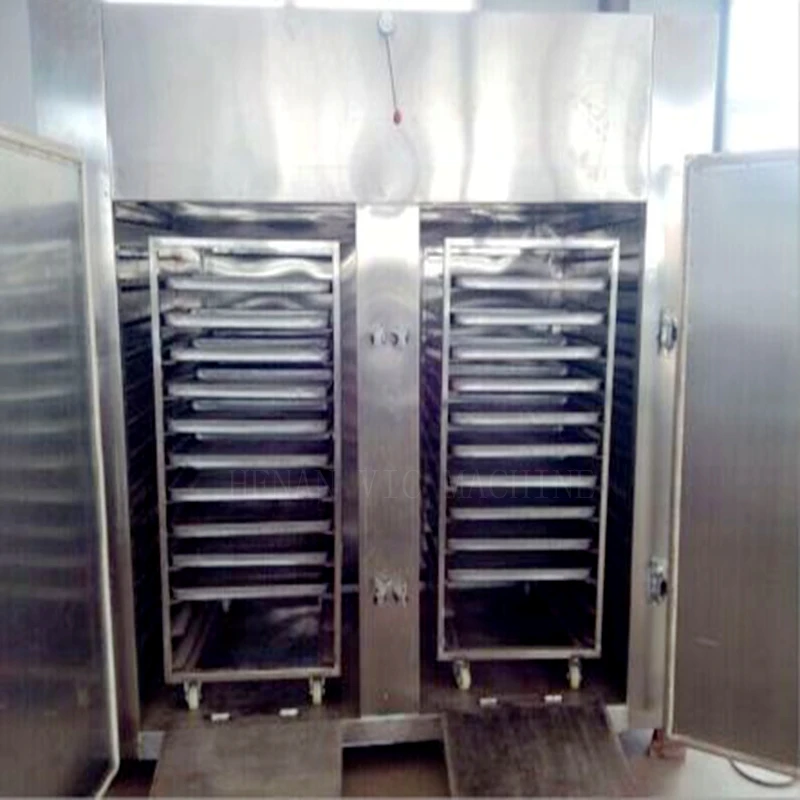

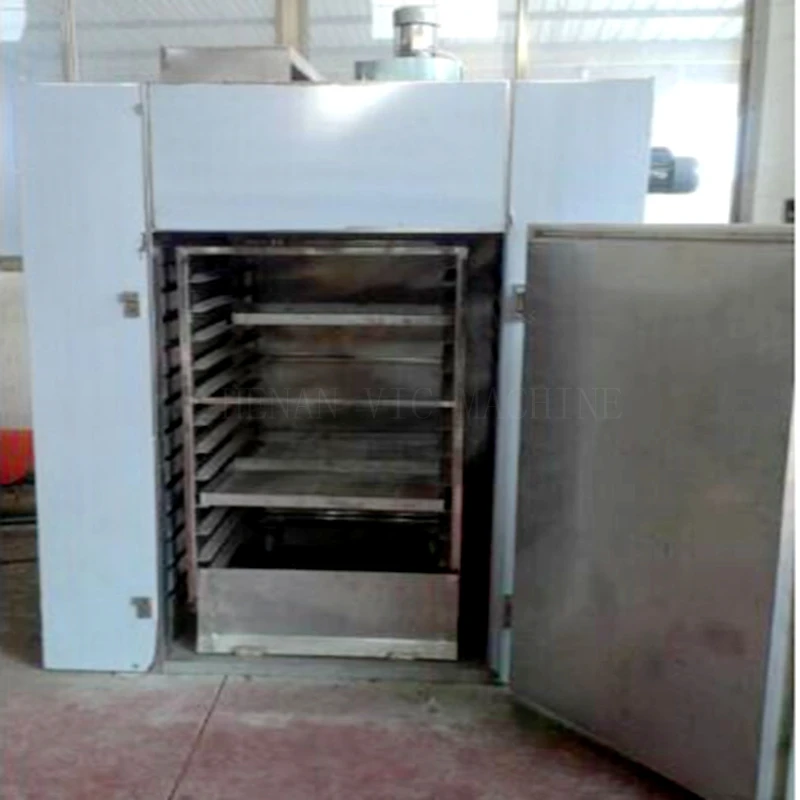

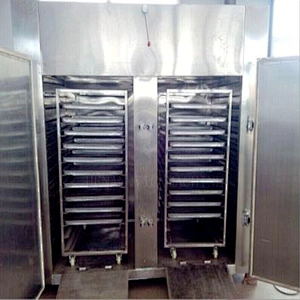

Machine photos:

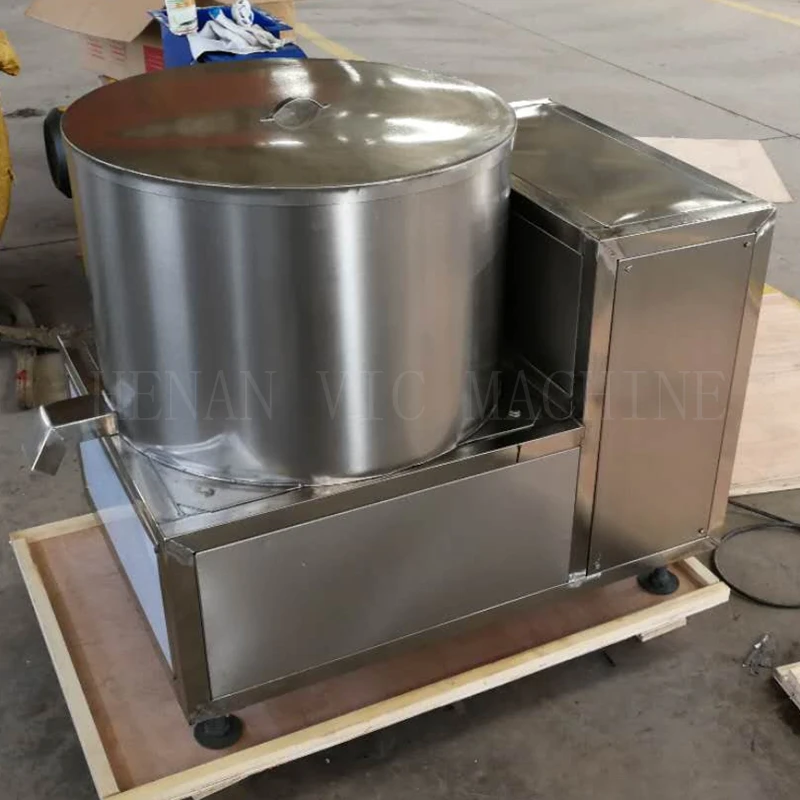

Other Vegetable And Fruit Dehydrate Machine
Packaging:
Package: In wooden Box
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
