Grass Carp Floating Fish Feed Pellet Machine

Grass Carp Floating Fish Feed Pellet Machine

Model NO.: DGP60-C
Price:: USD 1900.00-1980.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Year
Country of Origin: Shanghai/Qingdao/Tianjin/Guangzhou port

Quantity:

Product Description

Place of Origin:CN;HEN
Condition:New
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Home Use
Applicable Industries:Food Shop
Applicable Industries:Food & Beverage Shops
Warranty:1 Year
After-sales Service Provided:Video technical support
Application:animal feed
Brand Name:VIC
Voltage:380V,50HZ, 3 Phase
Power(W):11KW
Weight:360KG
Dimension(L*W*H):1100*750*980mm
Certification:CE, SGS

Floating Fish Pellet Machine

Application:

The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.

Features:

(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.

(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it’s with wear-resisting and long life.

(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.

(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.

(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

Main data:

Model	Capacity(t/h)	Main power(KW)	Feeder power(KW)	Screw diameter(mm)	Cutting power(KW)	Packing weight(kg)
DGP40-C	0.03-0.04	5.5	0.4	Φ40	0.4	280
DGP50-C	0.06-0.08	7.5-11	0.4	Φ50	0.4	360
DGP60-C	0.12-0.15	15	0.4	φ60	0.4	386

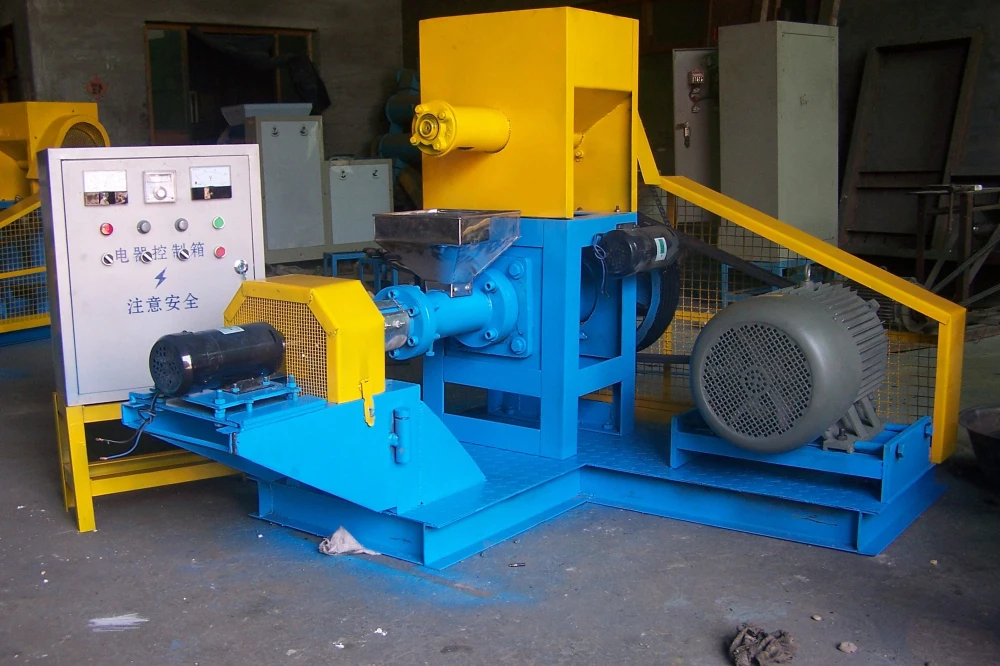

DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4	640
DGP80-B	0.2-0.25	22	0.4	φ80	0.6	750
DGP90-B	0.32-0.35	37	0.6	φ90	0.8	1050
DGP120-B	0.5-0.6	55	1.1	φ120	2.2	1880
DGP135-B	0.7-0.8	75	1.1	φ133	2.2	2100
DGP160-B	1-1.2	90	1.5	φ155	2.2	2500
DGP200-B	1.8-2.0	132	1.5	φ195	3.0	3000

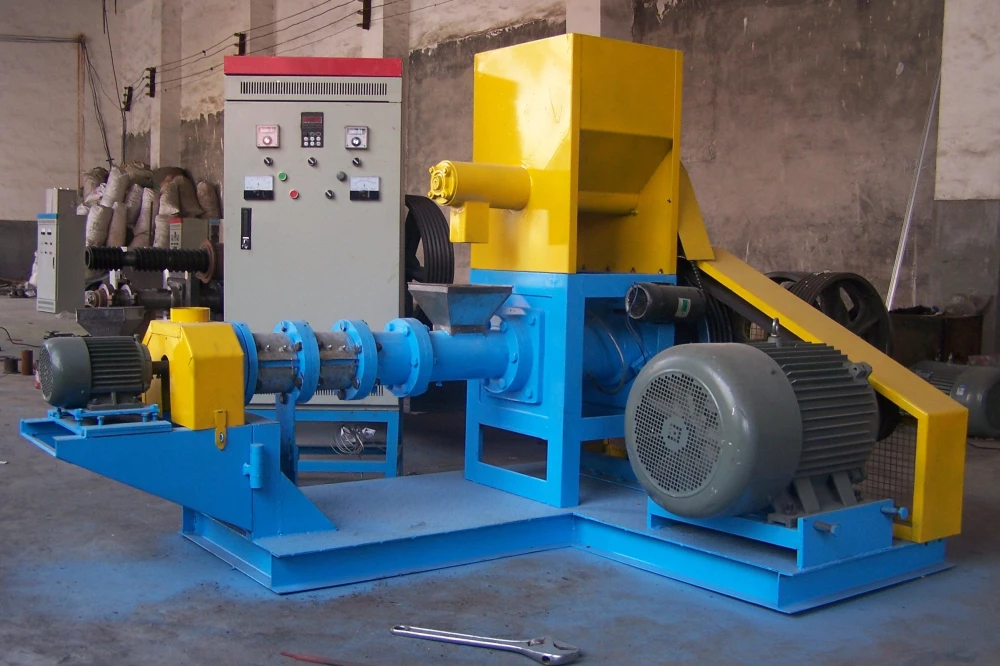

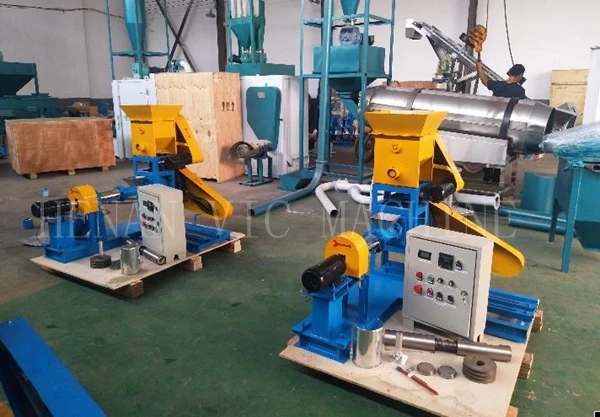

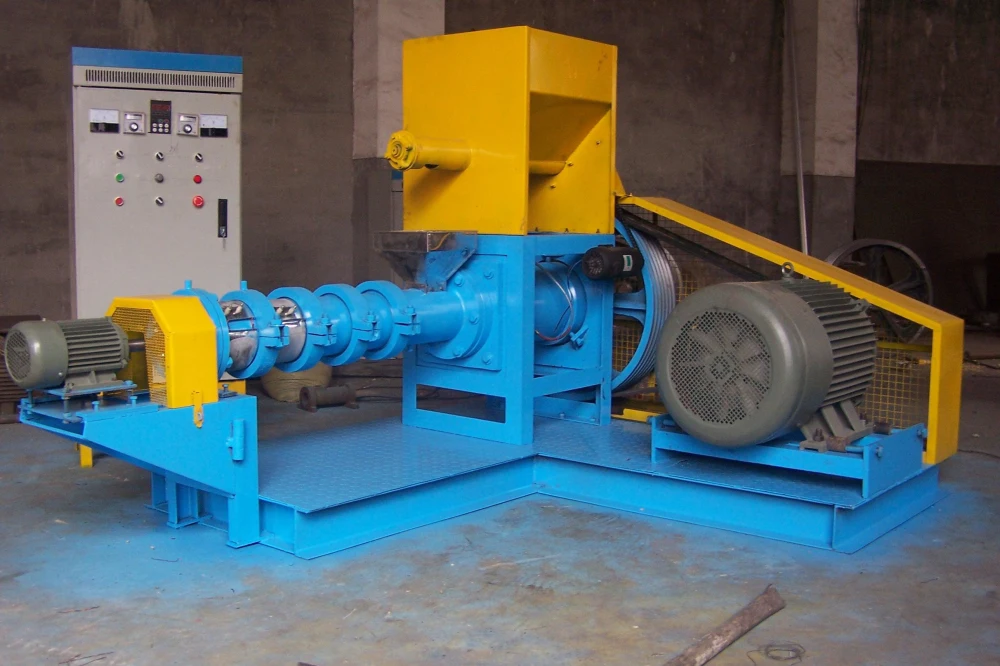

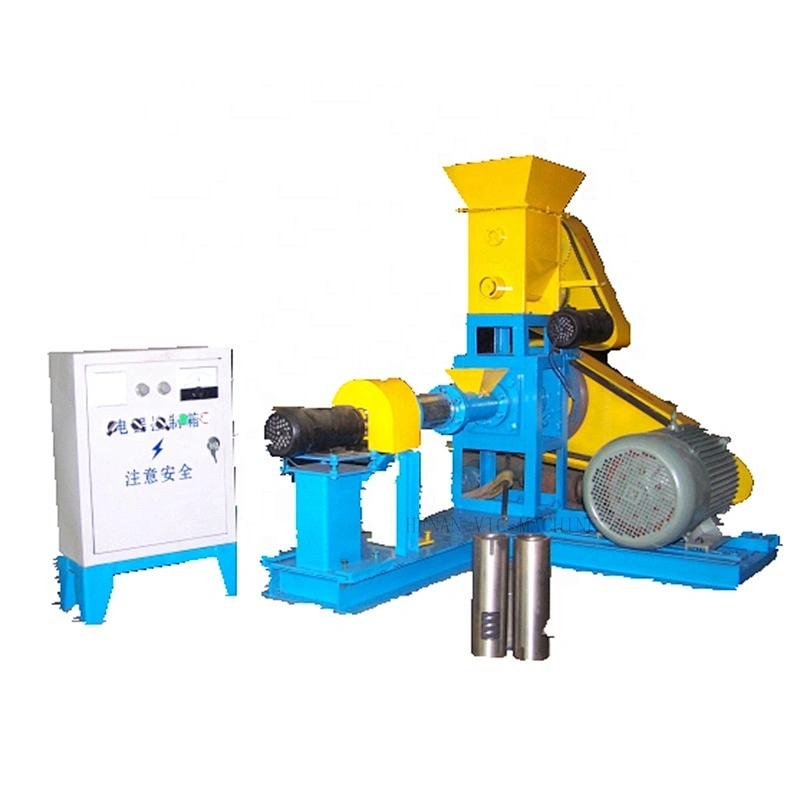

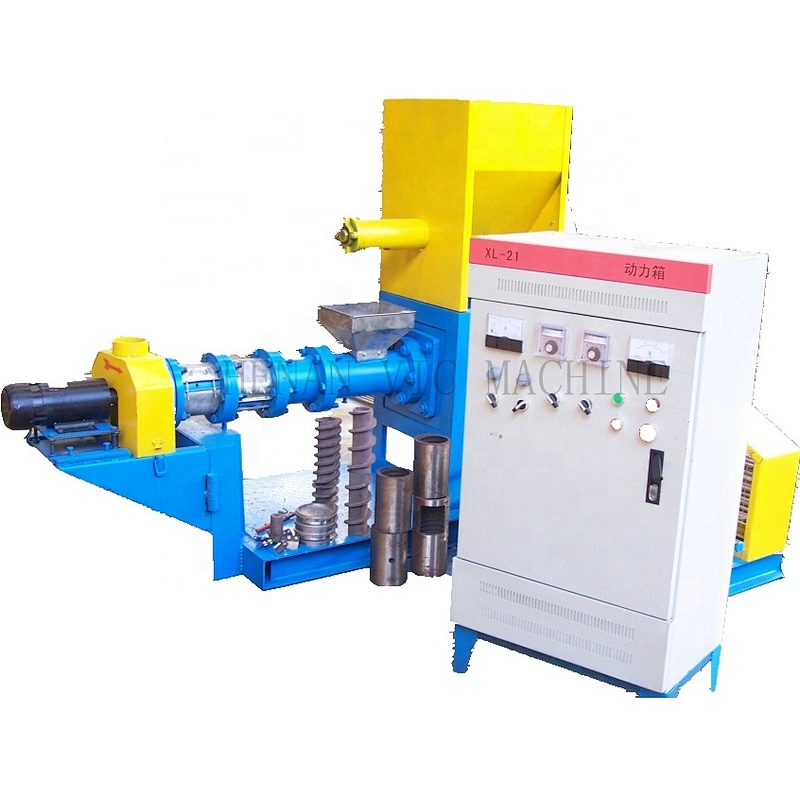

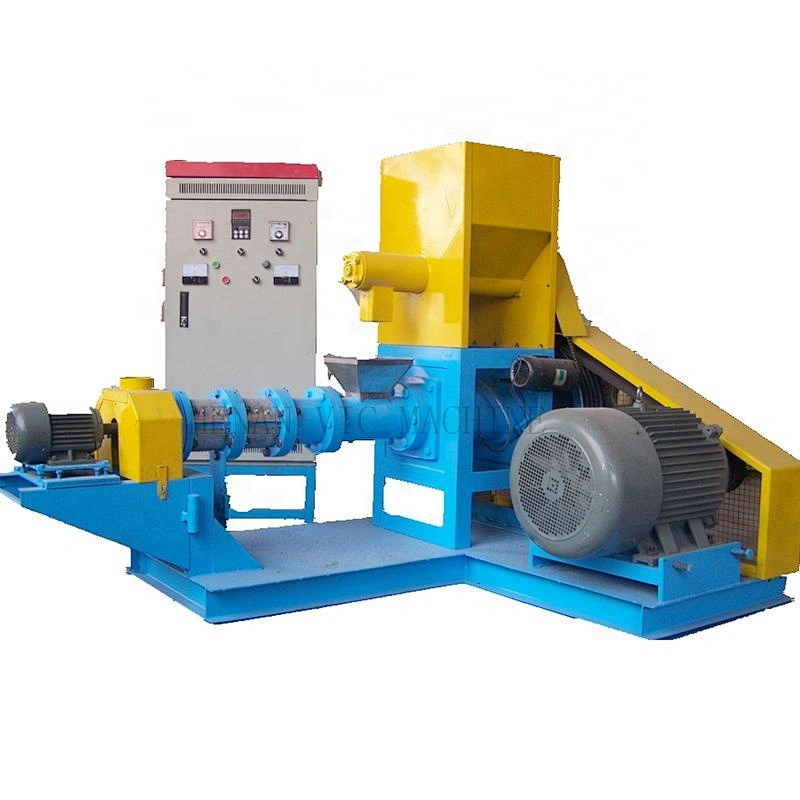

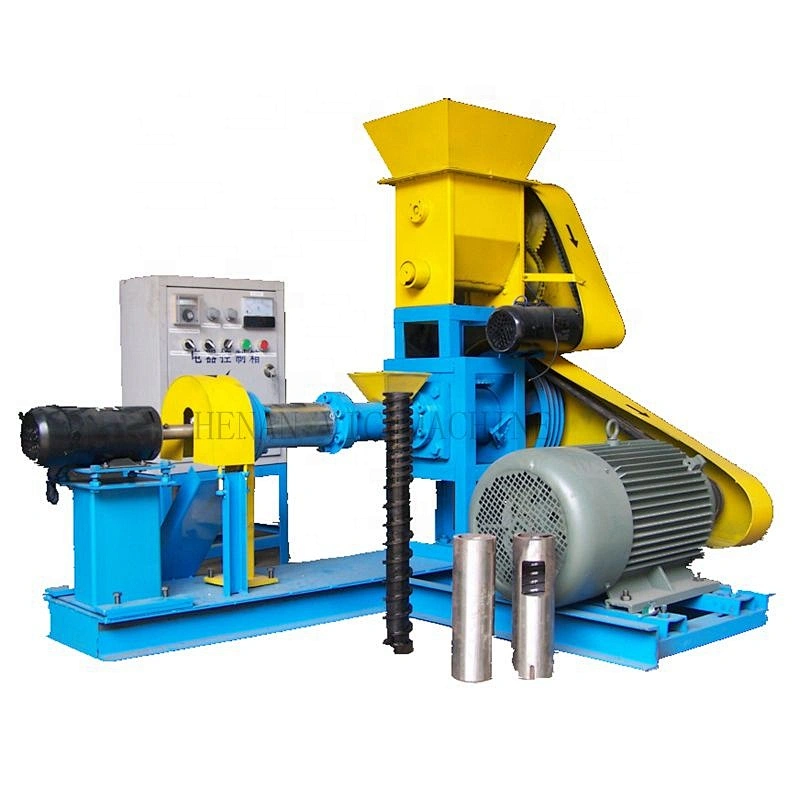

Machine photos :

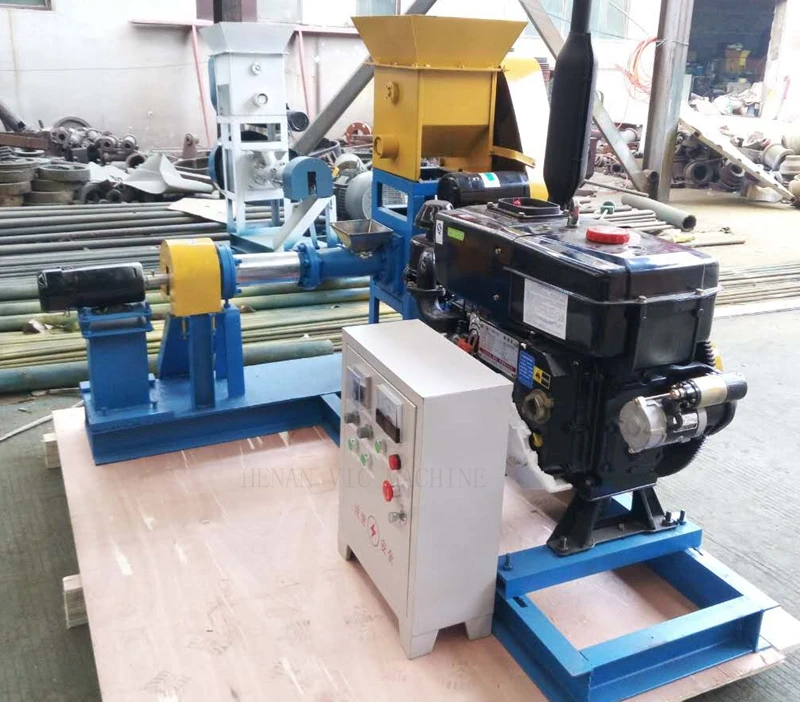

DGP-60C with diesel engine

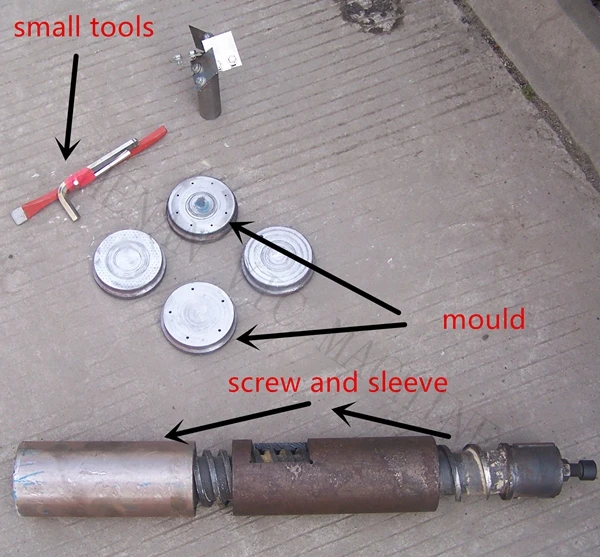

Spare parts:

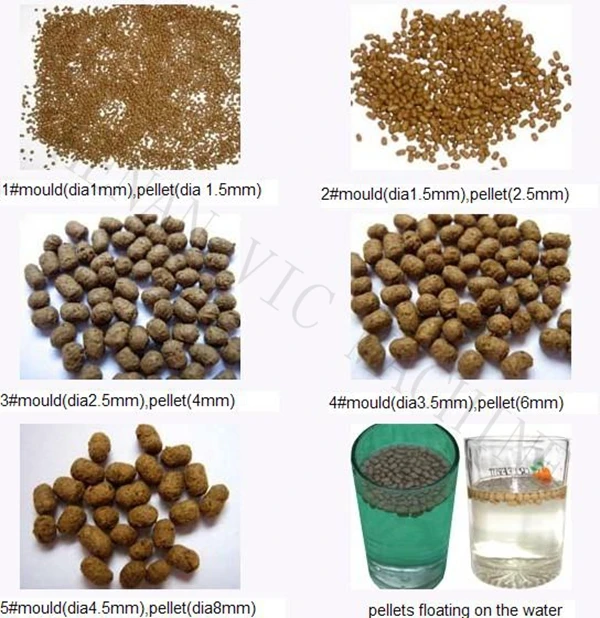

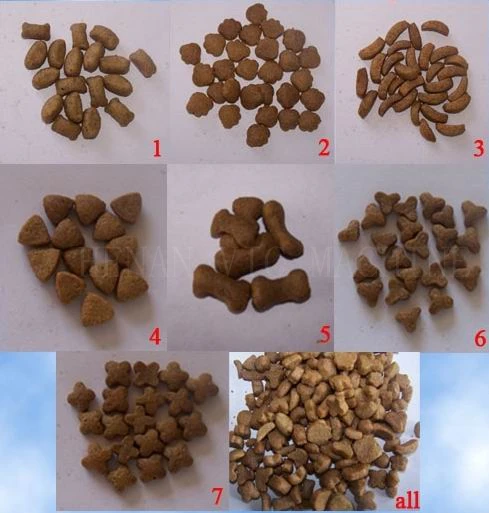

End products:

Packaging & Shipping

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Our Services

Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
