- Place of Origin:CN;HEN
- Condition:New
- Power Type:Electric
- Type:Wood Chipper
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Use:Make wood chipper
- Brand Name:VIC
- Dimension(L*W*H):2000*800*800mm
- Weight:800KG
- Certification:CE, SGS

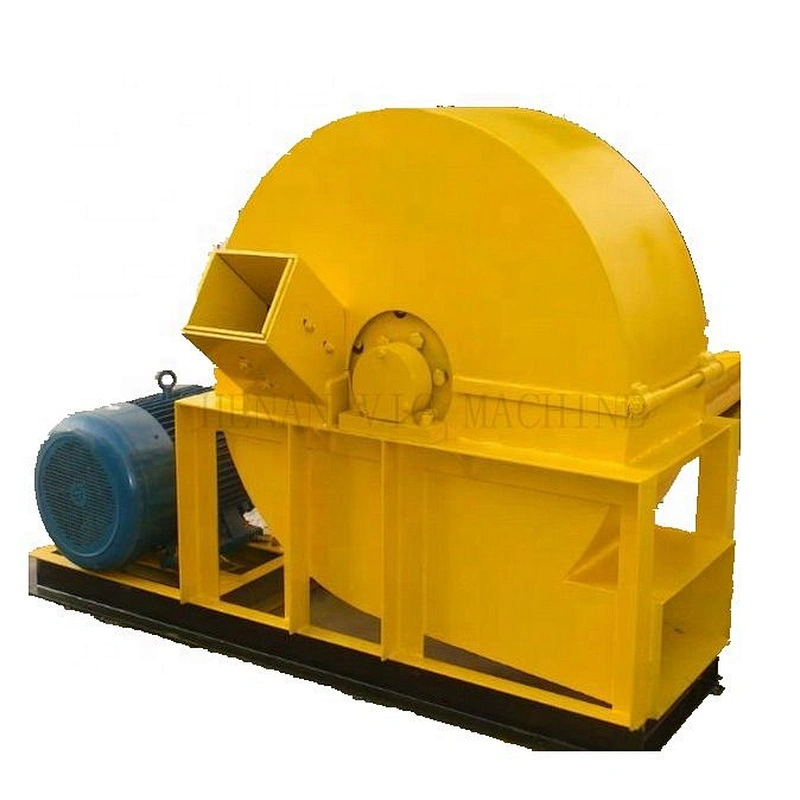

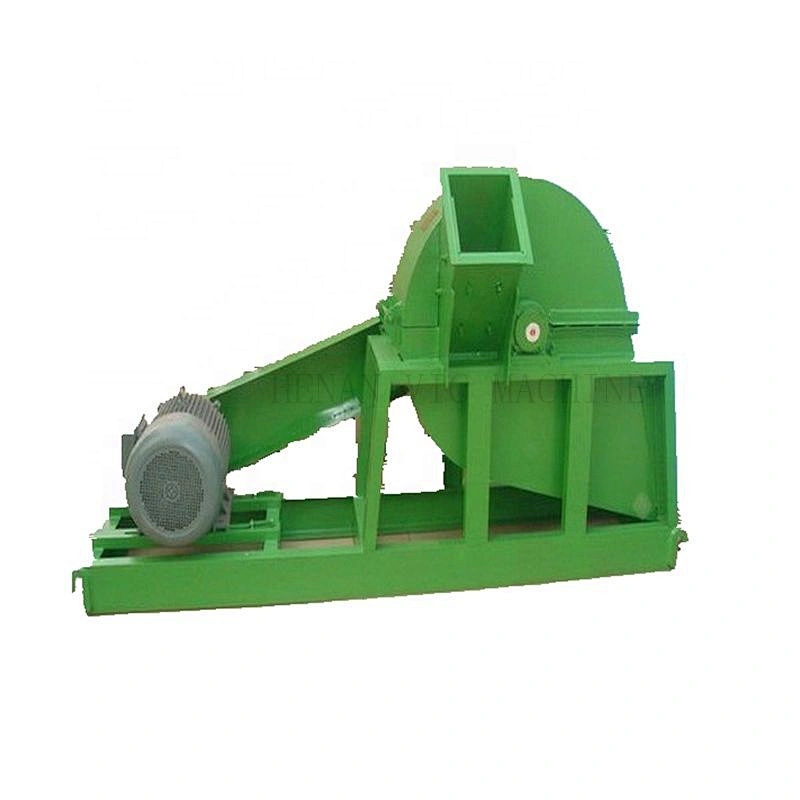

Disk Wood Chipper/Wood Chipper Machine
Introduction:
1.This wood chipper is one special equipment for making wood chips.
2. This wood chipper machine is used in stock workshop section of industrial manufacture, for example,papermaking, the flakeboard,fibre board, building board, straw power plant.
3. The wood chipper has high quality, and the length can be adjusted according to need .
Raw material scope :
All kind of logs, leaving thing of wood cutting(branchs ,wattle) and process leaving thing of the wood raw materials(board skin, board bar, log core,waste veneer) and so on. It also can cut the non-wood materias, like sugar cane, bulrush,gross bamboo and so on. The wood chipper has high quality, and the length can be adjusted according to need .
Main data :
Model | Capacity(t/h) | Blade diameter(mm) | Blade pieces | Feeding size(mm) | Main shaft speed | Power(KW) | Weight (kg) |
PX-420 | 1-2 | 420 | 4 | 180*150 | 600 | 7.5 | 120 |
PX-500 | 2-3 | 500 | 4 | 180*150 | 600 | 11 | 280 |
PX-600 | 3-4 | 600 | 4 | 200*200 | 650 | 15 | 380 |
PX-700 | 4-5 | 700 | 4 | 250*250 | 600 | 22 | 480 |
PX-800 | 5-6 | 800 | 4 | 260*260 | 480 | 30 | 550 |
PX-950 | 6-8 | 950 | 4 | 260*260 | 550 | 37 | 550 |
PX1100 | 8-10 | 1100 | 4 | 300*300 | 600 | 45 | 1650 |
PX1410 | 12-15 | 1410 | 4 | 450*400 | 600 | 75 | 2800 |

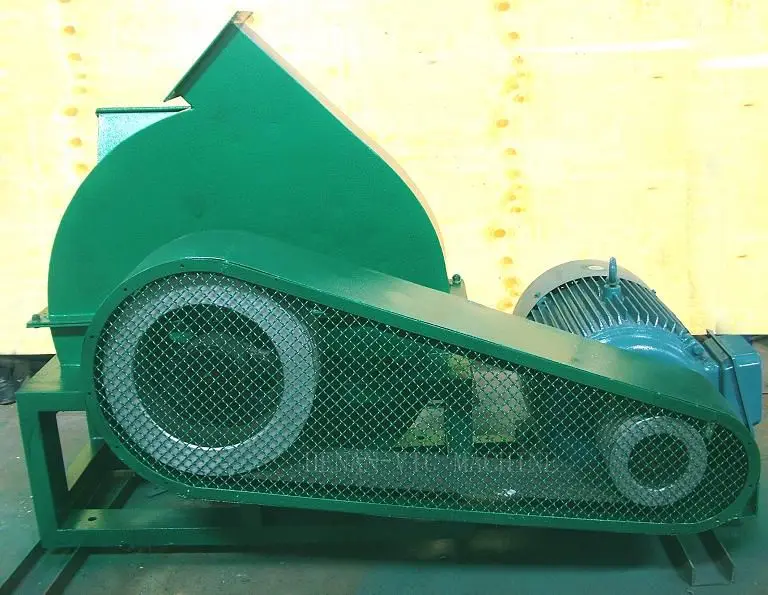

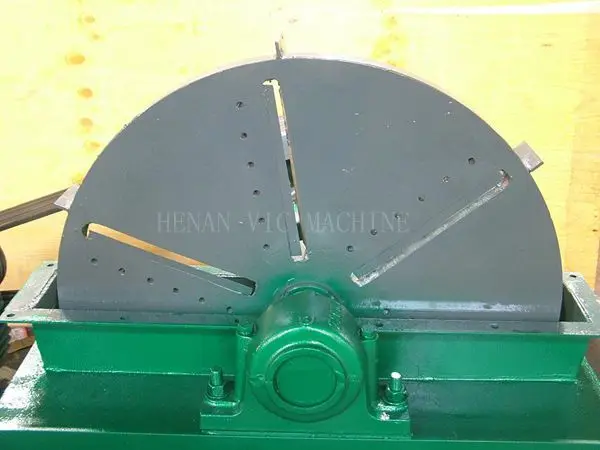

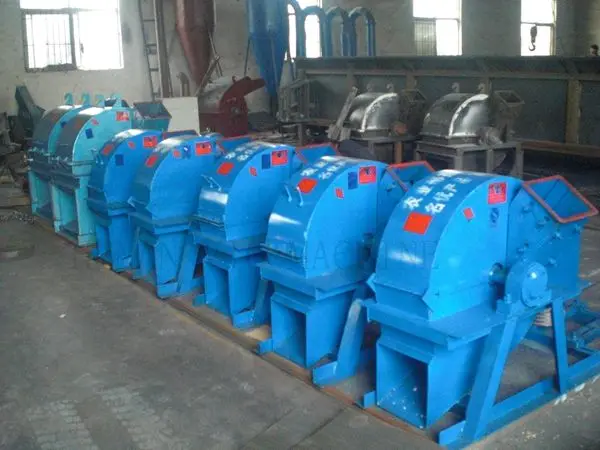

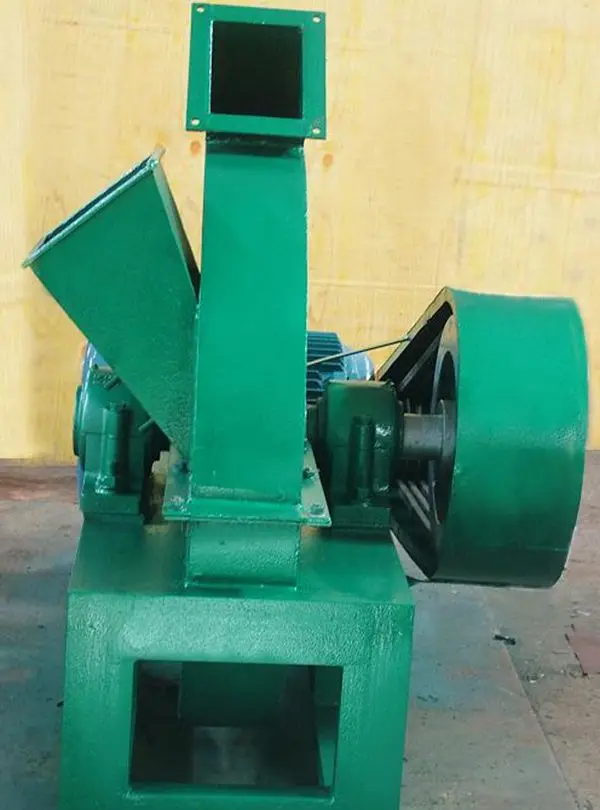

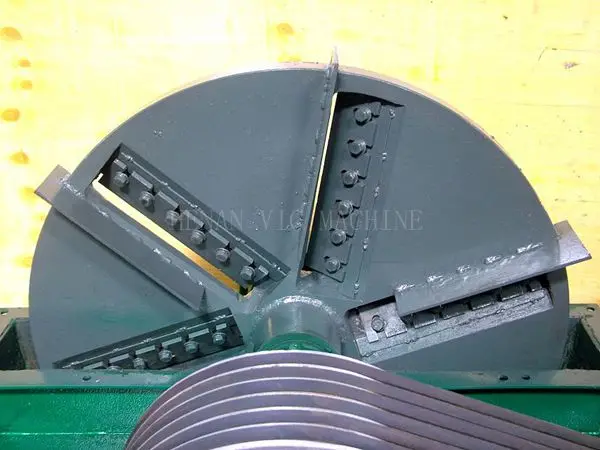

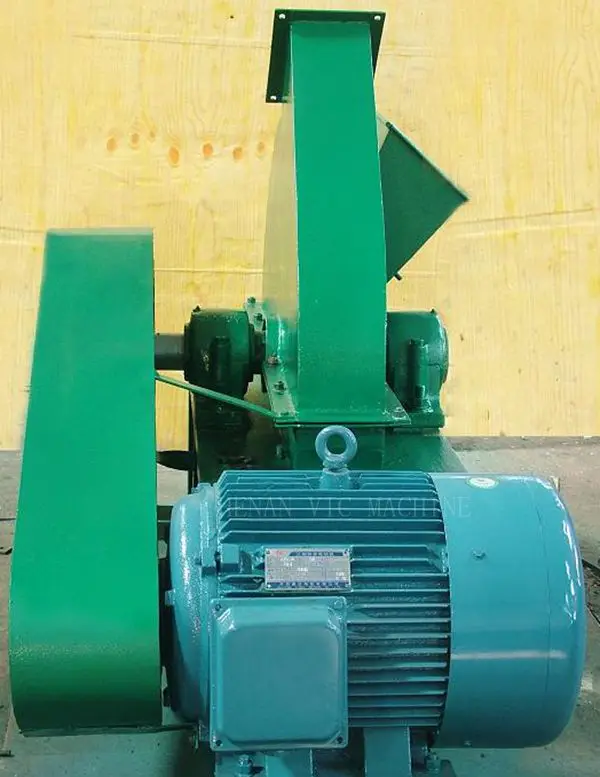

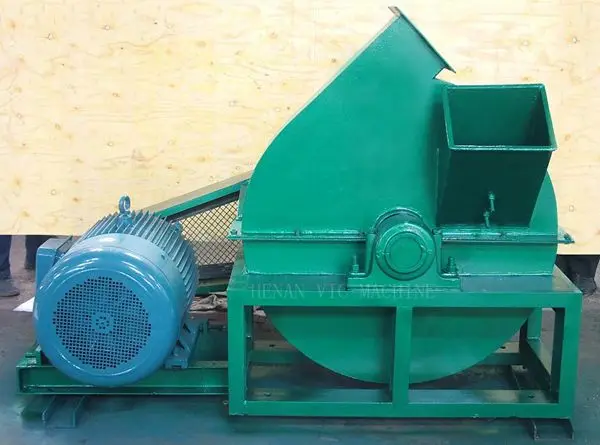

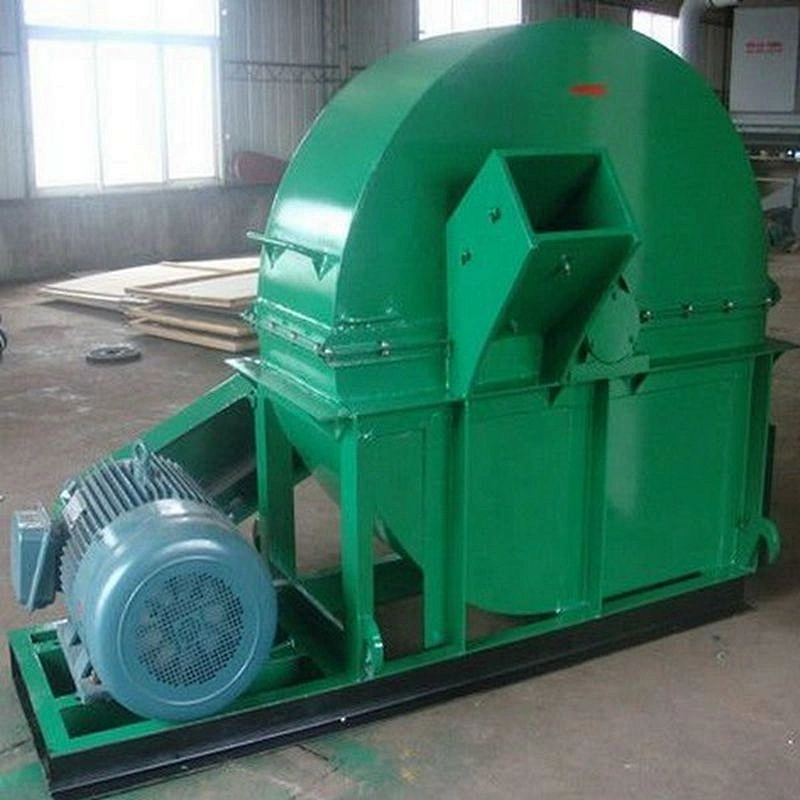

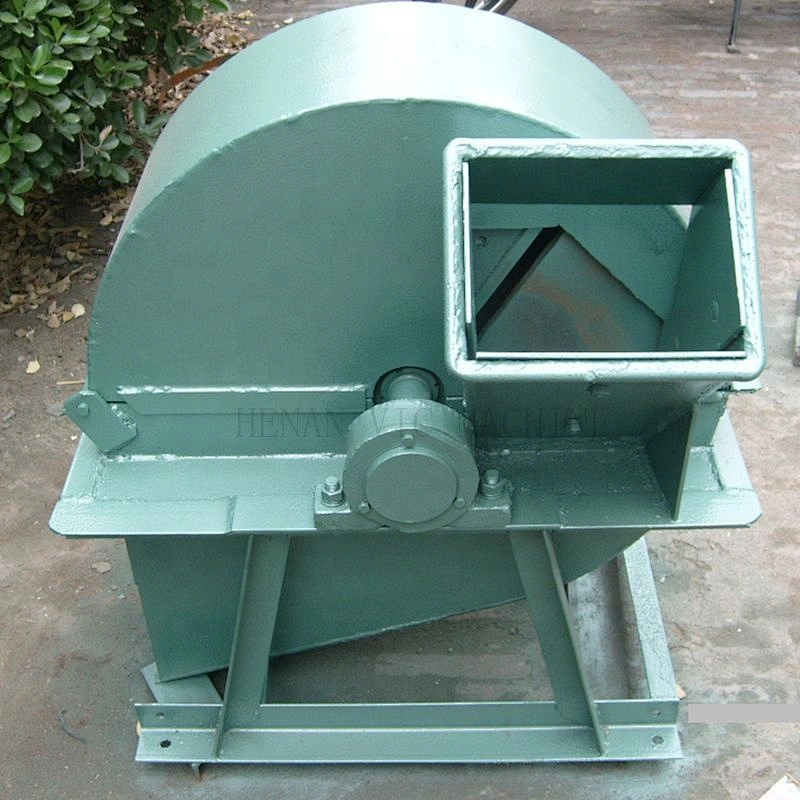

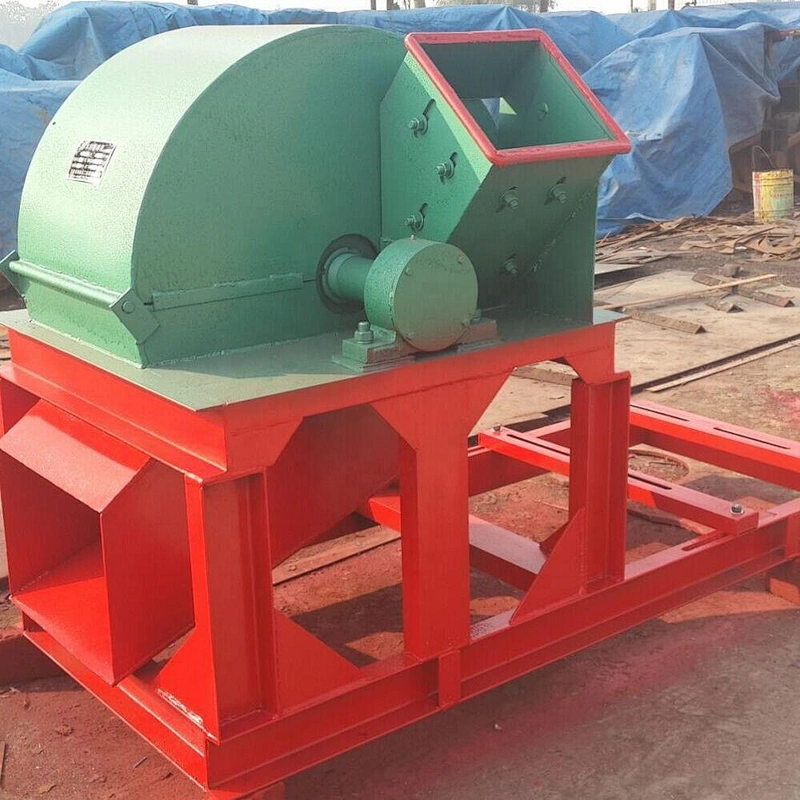

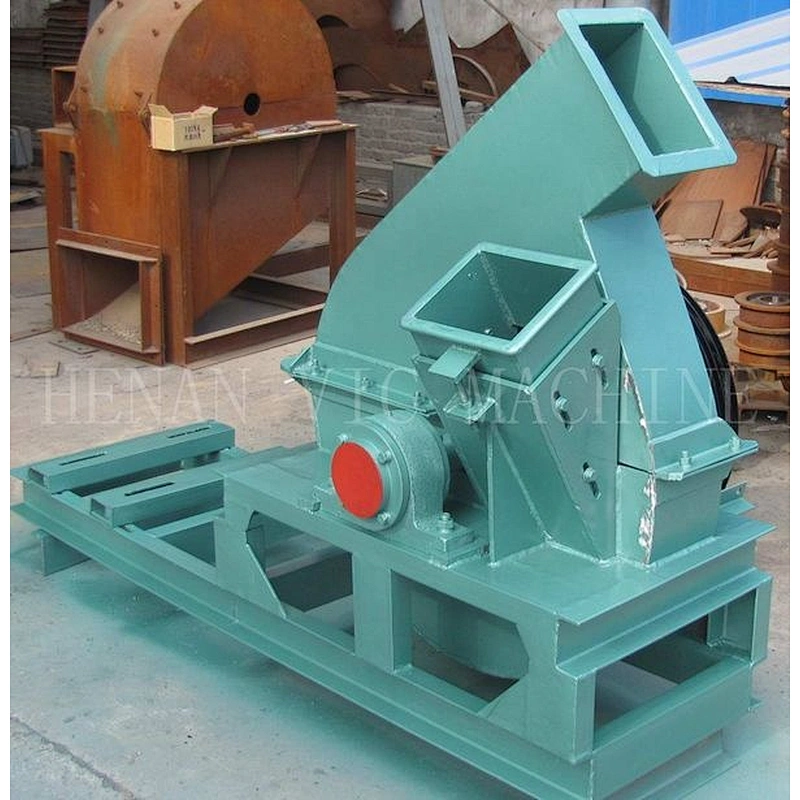

Machine Photos :
End Products:
