High efficient charcoal briquette making plant with 9T/D

• Applicable Industries:Manufacturing Plant
• Applicable Industries:Energy & Mining
• Place of Origin:CN
• Warranty:1 Year
• After-sales Service Provided:Video technical support
• Brand Name:VIC
• Voltage:380V
• Power(W):15KW
• Weight:5t
• Condition:New
• Certification:ce
• Dimension(L*W*H):20*6*5m

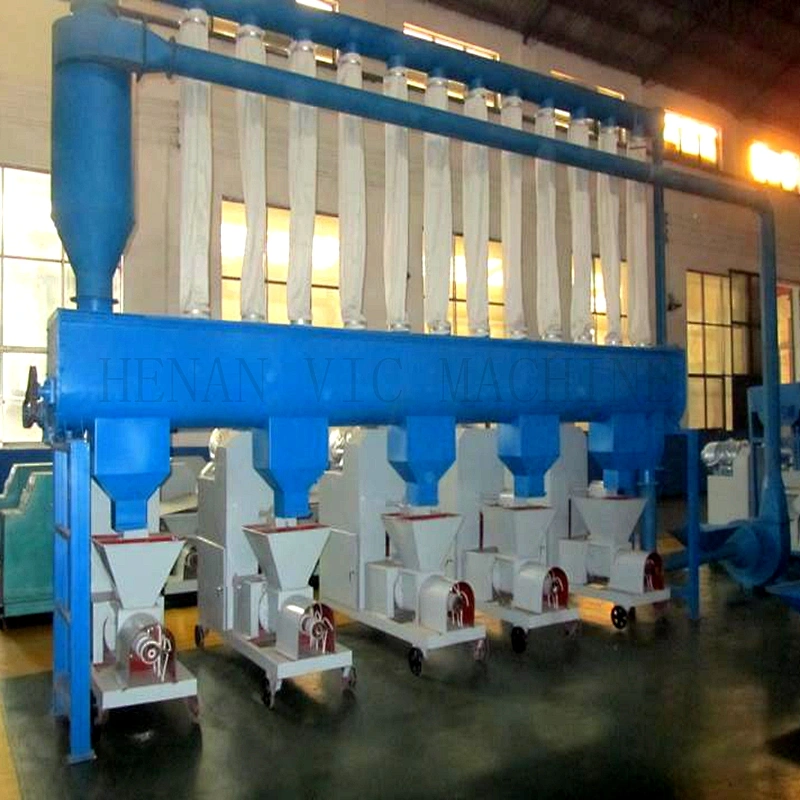

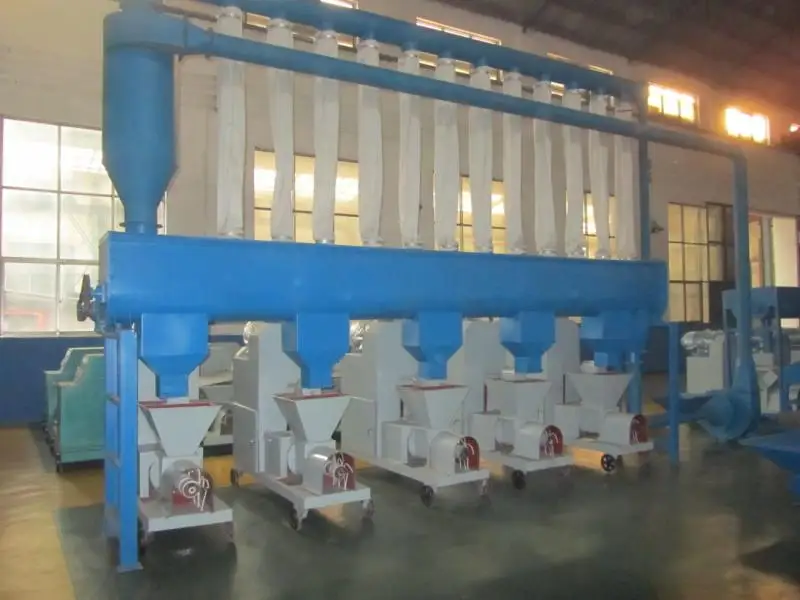

High efficient charcoal briquette making plant with 9T/D

Introduction for the line

1.The briquette making plant is widely used for making charcoal briquette with agricultural and industrial wastes.

2.The raw material can be sawdust, rice husk, sugarcane trash, stalk, coffee husk, paddy straw, sunflower stalk, cotton stalk,bamboo dust, wheat straw, forestry wastes, wood chips and other Agro wastes.

3.The finished briquette has good featured with long buring time, great firepower, smokeless , suitable for as fuel for boiler, stove , family and industrial use.

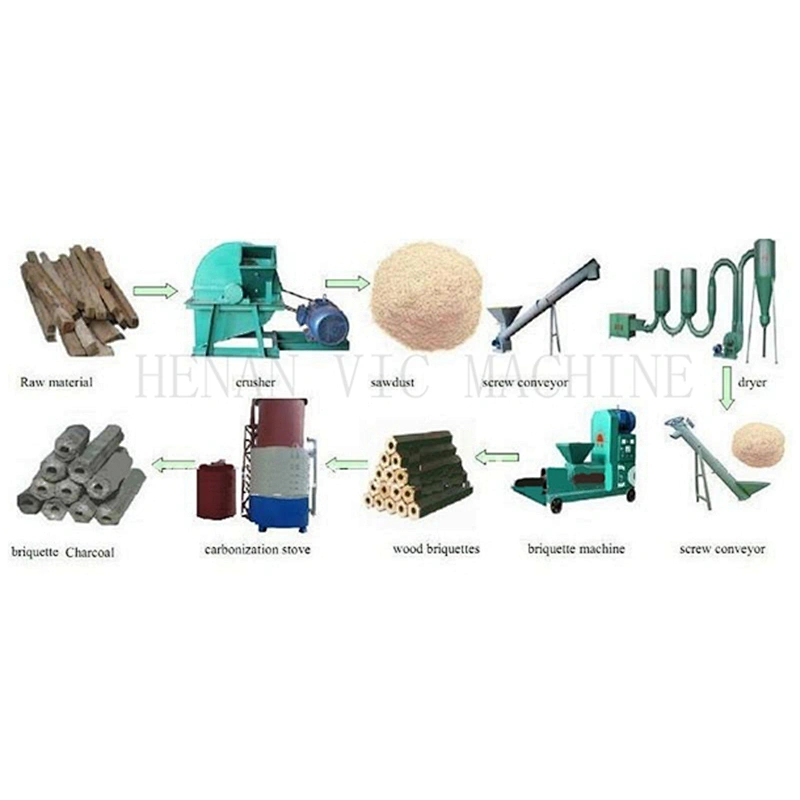

Process

1.crush raw material into pieces not extend 5mm

2.If moisture is extend 20%, should use dryer to dry material to 12%-15%

3.Making briquette stick

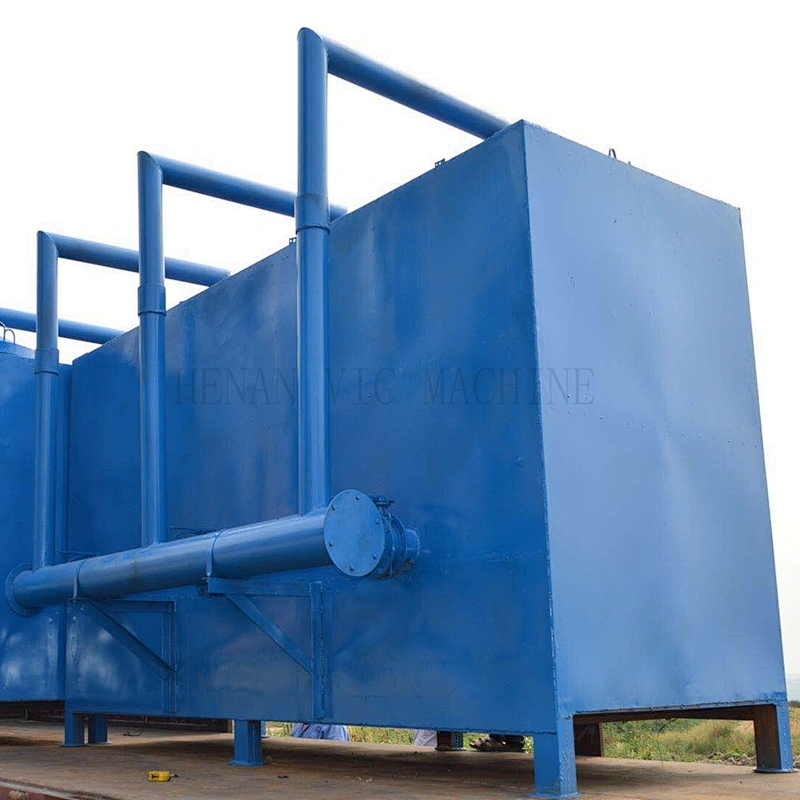

4.Put briquette stick into charcoal stove

5.Finished product and packaged.

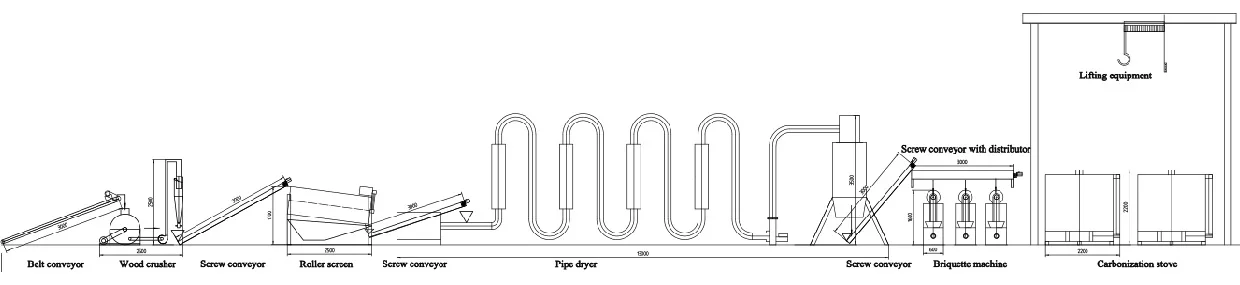

Main machine and date(9T/D briquette):

Machine details

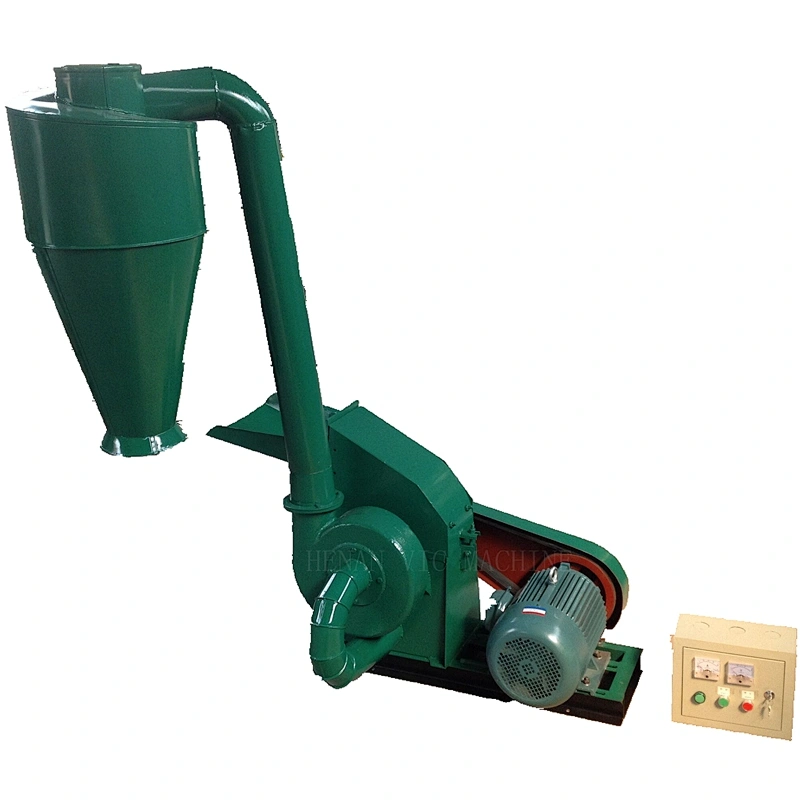

Wood crusher

(1) This system wood crush can crush the big diameter tree branch such as pine, poplar wood, filed mushroom, fresh wood, wood branch, wood chip, all kinds of straws into pieces like sawdust one time. It is also good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.

(2) The machine is simple structure, compact, space-saving footprint, good crushing quality.

(3) Adopt belt transmit, blade cutting and hammer crushing together, crush raw material into sawdust directly, the granularity size can be adjusted by changing the sieve.

(4) It is not only be driven by motor, but also can be diesel engine according to the need of client.

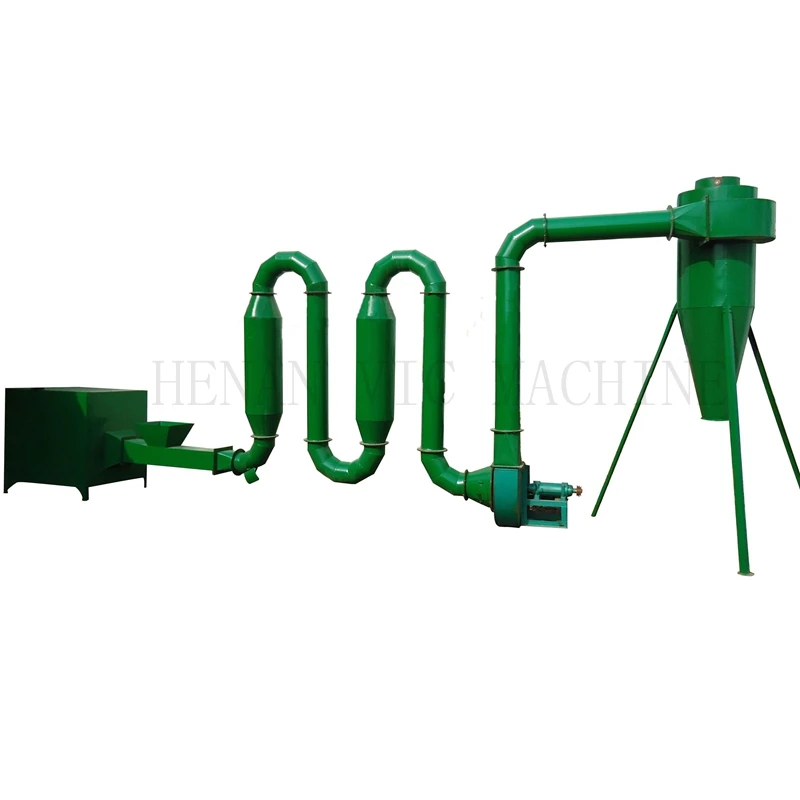

Dryer

Working principle: In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large, so the heat transfer rate is high.

It is special suitable for drying heat sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on. It also can be used for drying the grain better.

The HGJ SERIES dryer has the feature of low cost and high efficient. It can reduce moisture from 40-45% to 8-12%.

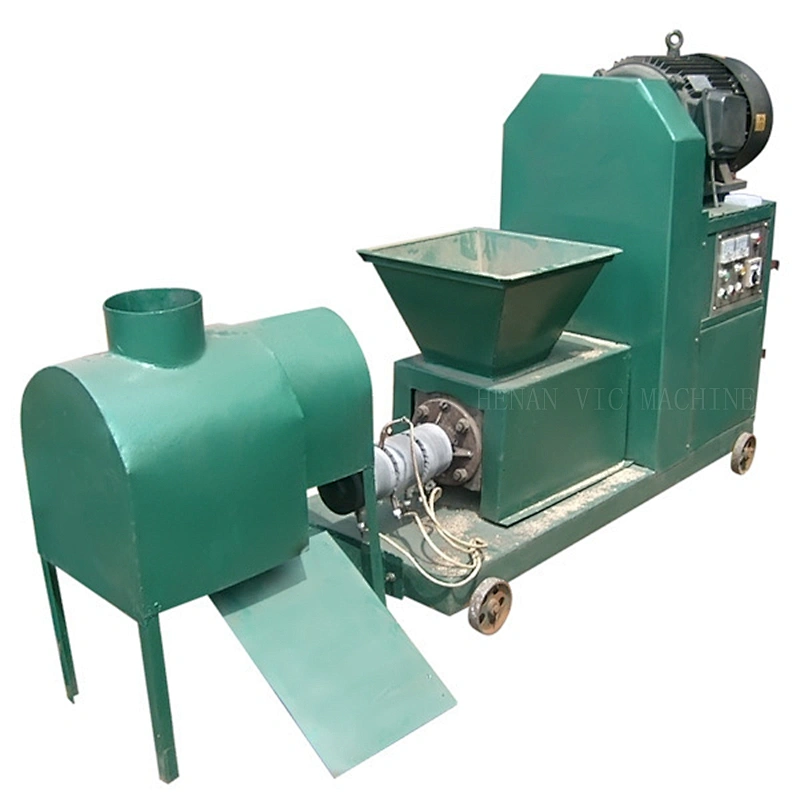

Briquette machine

This machine can make sawdust, wood, rice husk, coconut shell & other wood materials into briquette which can be used in boiler, heating & warming. After carbonization, the briquette will become charcoal, used in BBQ.
Sawdust briquette press machine Working principle:

It is used a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.

Packaging

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Shipping:

Machine usually transport by sea,we also can transport it by air andrailway.

Delivery time: Within 15 workdays after receipt of the pre-payment.

Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.

We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
