- Applicable Industries:Manufacturing Plant
- Condition:New
- Product Type:Perfume
- Application:Powder
- Place of Origin:CN;HEN
- Warranty:1 Year
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- Application:mixer processing
- Key Selling Points:rotating Mixer
- Barrel Volume (L):180
- Max. Loading Volume (L):8000
- Max. Loading Capacity:8000L
- Weight (KG):340
- Brand Name:VIC
- Voltage:380V
- Dimension(L*W*H):2555*4305*3390 mm
- Certification:Ce
- Power (kW):30

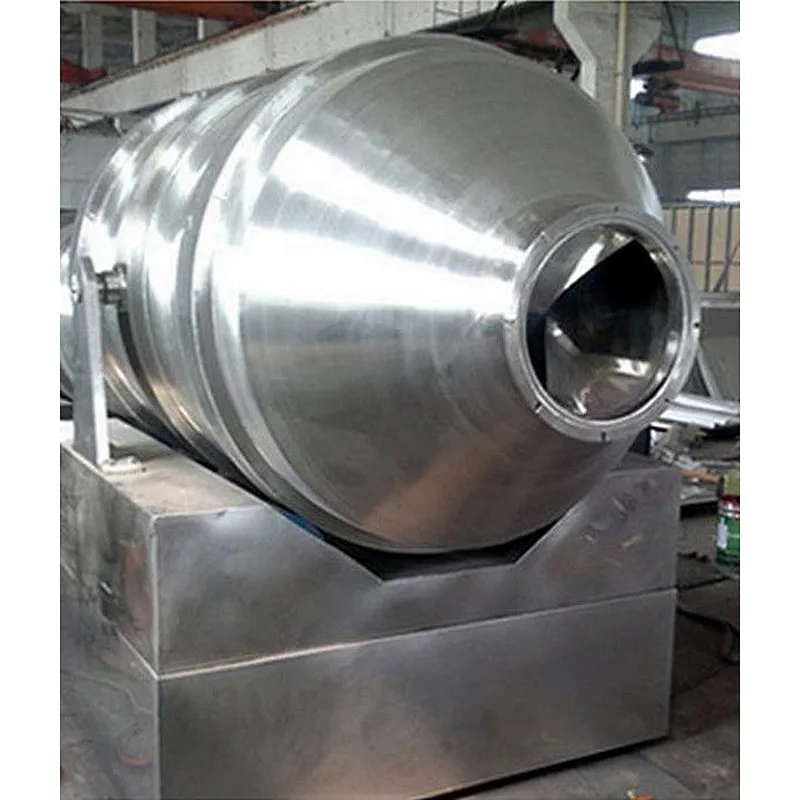

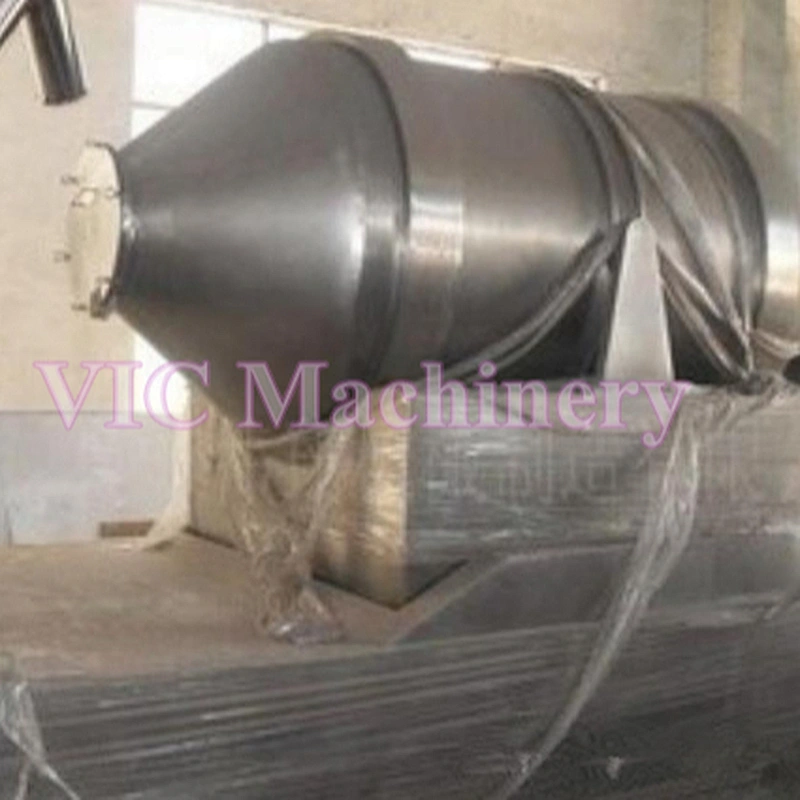

EYH-8000A Two Dimensional Mixer
1. Characteristics:
1.1) The rotating cylinder of EYH Two Dimensions Mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.
1.2) Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice verso when the cylinder is swinging. As the result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
2. Working Principle:
2.1) EYH Series Two Dimensions Mixer mainly consists of three big parts, rotating cylinder, swinging rack and frame.
2.2) The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate.
2.3) The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
3. Technical Parameters:

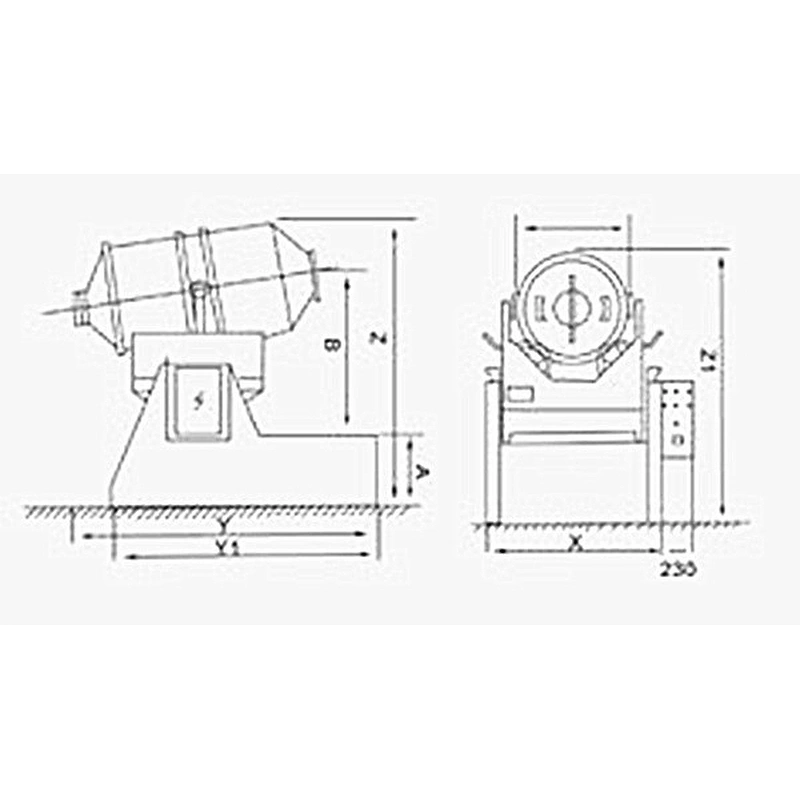

| Model | Power (kw) | Feed barrel volume(L) | Max loading volume(L) | Max charge(kg) | Rotation speed / oscillation speed(r/min) | Dimension(X*Y*H1)(mm) | Gross weight(kg) |
| EYH300 | 1.3 | 300 | 180 | 90 | 18 / 11 | 925*905*1360 | 340 |
| EYH600 | 2.2 | 600 | 360 | 180 | 16 / 9 | 1145*1105*1600 | 1150 |
| EYH800 | 3 | 800 | 480 | 240 | 10 / 6 | 1305*1255*1790 | 1600 |
| EYH1000A | 3 | 1000 | 600 | 300 | 8 / 6 | 1375*2255*1770 | 1700 |
| EYH1500A | 4.4 | 1500 | 900 | 450 | 9 / 5 | 1505*2445*2100 | 2000 |
| EYH2000A | 5.2 | 2000 | 1200 | 600 | 8.5 / 5 | 1635*2445*2120 | 2600 |
| EYH3000A | 7 | 3000 | 1800 | 900 | 7 / 4.5 | 1905*2755*2420 | 3500 |
| EYH4000A | 9.5 | 4000 | 2400 | 1200 | 7.8/5 | 2035*3205*2550 | 4100 |
| EYH6000A | 13 | 6000 | 3600 | 1800 | 7 / 4 | 2265*3805*3960 | 6100 |
| EYH8000A | 13 | 8000 | 4800 | 2400 | 6.7 / 4.5 | 2555*4305*3390 | 7900 |
| EYH10000A | 18.5 | 10000 | 6000 | 3000 | 6 / 4.2 | 2665*4355*3420 | 10000 |
| EYH12000A | 18.5 | 12000 | 7200 | 3600 | 6 / 4 | 2765*4985*3760 | 13000 |
| EYH15000A | 22 | 15000 | 9000 | 4500 | 6 / 4 | 3035*5055*4150 | 15000 |
| EYH20000A | 30 | 20000 | 12000 | 6000 | 5 / 3.5 | 3295*5155*4500 | 18000 |
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts please notify when place order.
Quality guarantee terms: Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in the responsible of buyers and we will help to solve by video ASAP, if big problem we will send engineer to working site within 1 week.
