- Place of Origin:CN;HEN
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Application fields:Flour mill
- Application fields:Fruit processing plant
- Application fields:Meat processing plants
- Raw material:Vegetables
- Raw material:Fruit
- Raw material:Milk
- Raw material:Flour
- Raw material:peanut
- Brand Name:VIC
- Voltage:220/380v
- Power(W):18500
- Dimension(L*W*H):981x476x1124
- Weight:420kg
- Certification:ce
- Machinery Function:mill
- Output product name:peanut butter
2.Technology:The main technology is up to international standard.

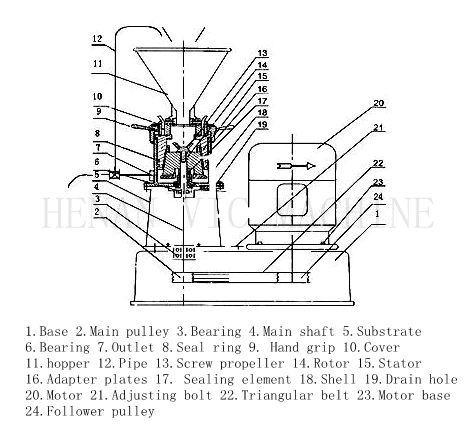

3.Main structure:
1).Main parts adopt high quality stainless steel, with corrosion resisting and no poison.
2).Main parts stator, rotor adopt specific processing and heating processing technology, with long life and high precision.
3).Stator, rotor and choose different materials, matched with grinding and cutting etc different structure and teeth type for choice, the processing gap can be adjusted and with dial, easy to control and ensure the processing quality.
4)Matched with cooling system to ensure the processing materials’ structure.
5).Main shaft and motor separate design and the user can choose different rpm according to demand.
4.Scope of AppIication:
1).Food processing industry: juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
2).Chemical industry concerned with products for daily use: grease,water quality,powder cream high-level
cosmetics; shoe polish, tooth paste, soap, cleaning detergent, bath extract.
3).Chemical industry: lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
4).Other industries: plastic industry, pharmaceutical industry, textile industry, construction industry and coinage.
Main data:

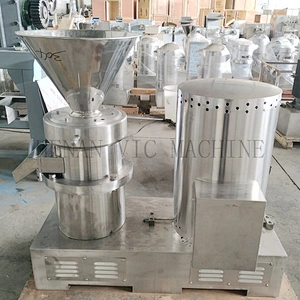

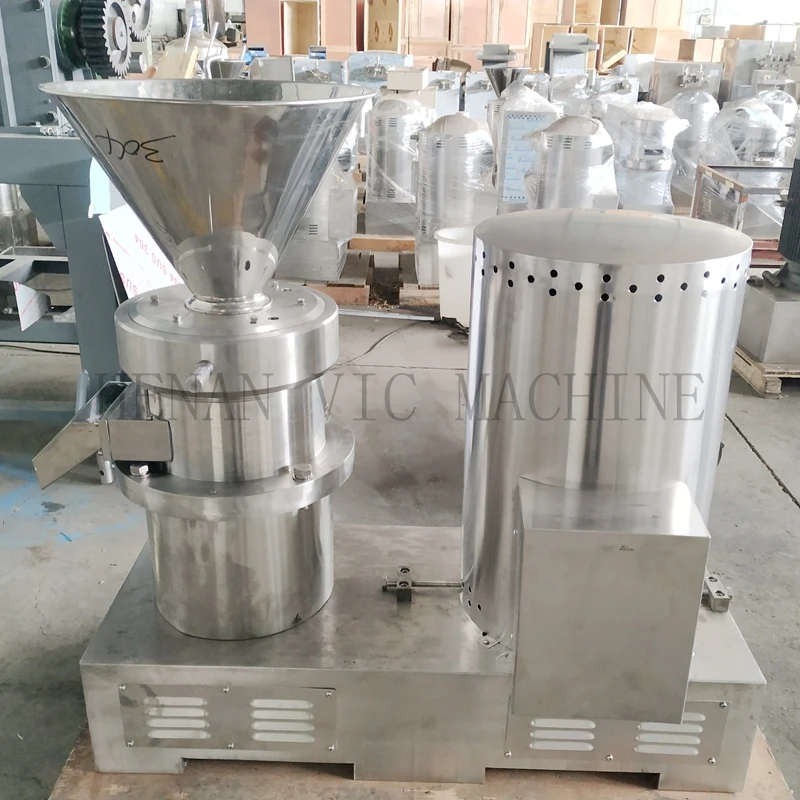

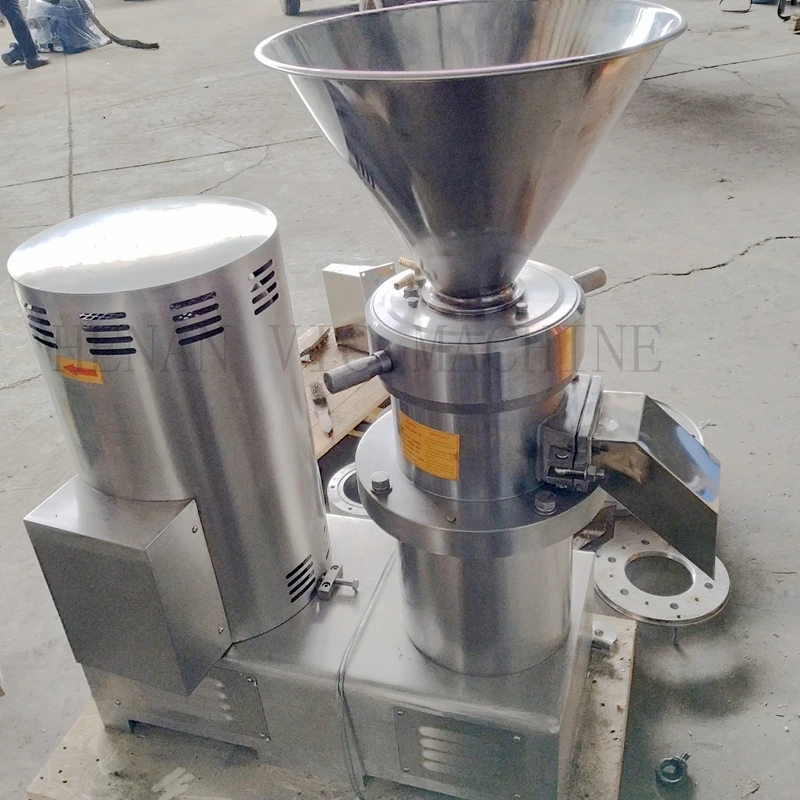

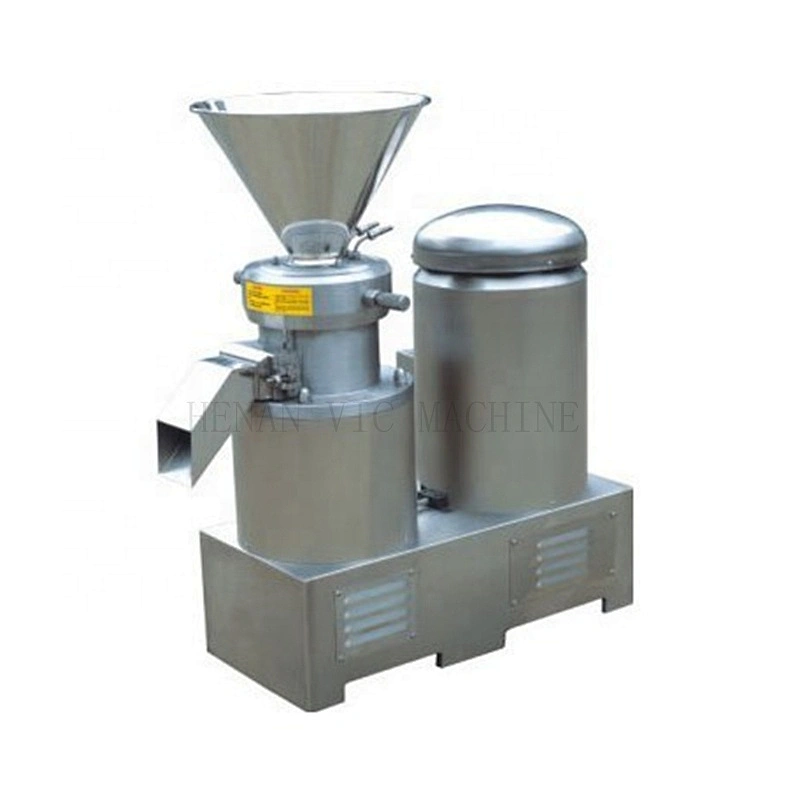

Model: JTM-180 butter mill
Materials processing fineness (micron)(single circle or multipal circle):2-50
Processing capacity (different according to different materials):800-6000kg/h
Power: 18.5kw
Motor speed: 2930rpm
Size:981x476x1124mm
Weight:420kg

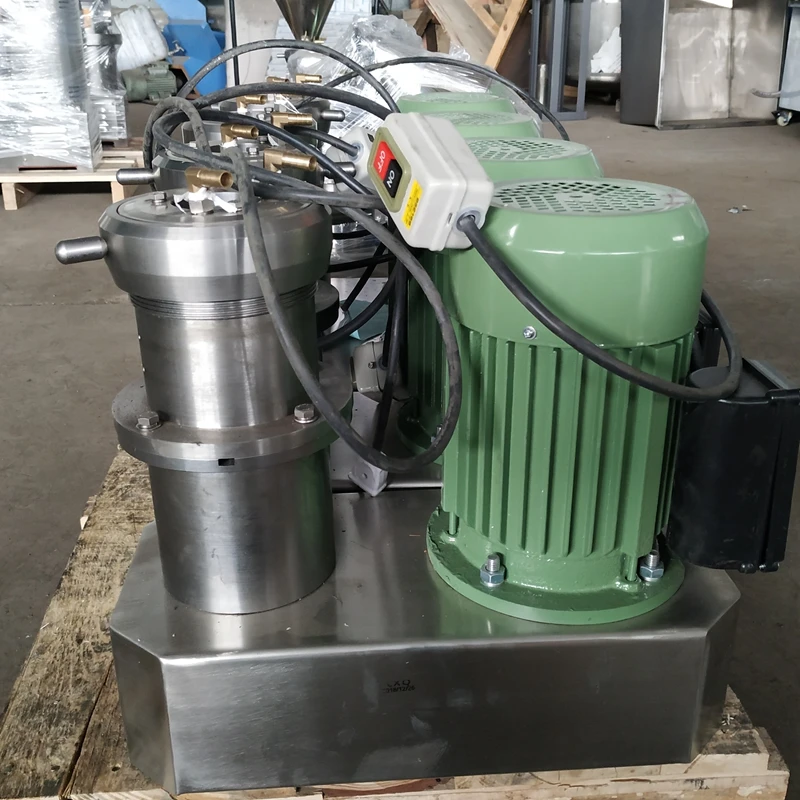

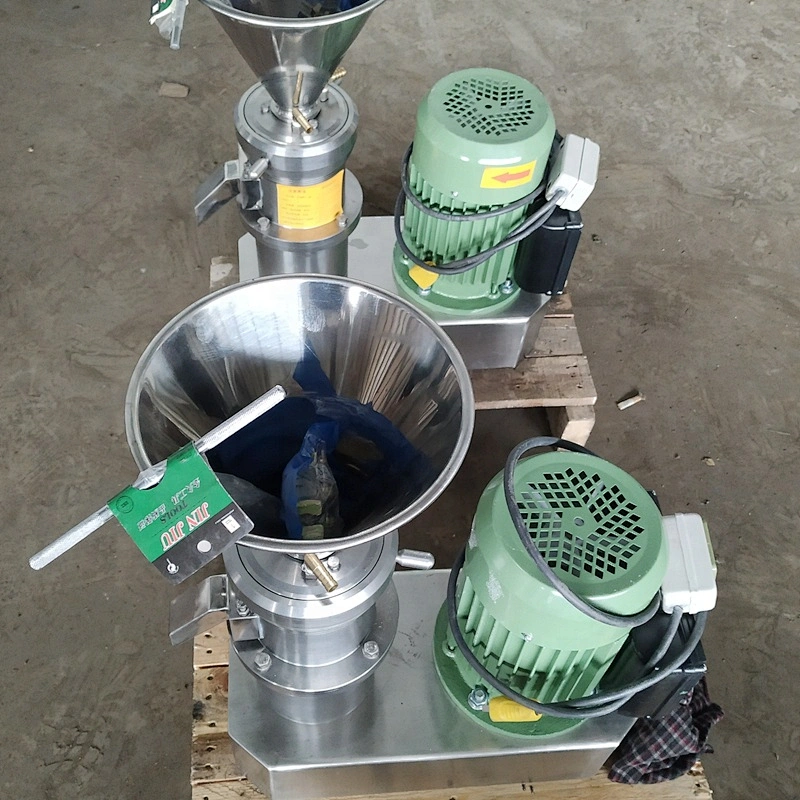

JTM system butter mill models:
Model | JTM-50 | JTM-80 | JTM-130 | JTM-180 | JTM-240 | |
Final size of products | 2-50 | |||||
Capacity ( t/h) | 0.005-0.03 | 0.1-0.5 | 0.4-2.0 | 0.8-6.0 | 1.0-8.0 | |
motor | Motor power (kw) | 1.1 | 4 | 11 | 18.5/22 | 37/45 |
Voltage(v) | 220/380 | 380 | 380 | 380 | 380 | |
Rotary speed( r/min) | 2820 | 2890 | 2930 | 2930 | 2970 | |
Rotor diameter(mm) | 50 | 80 | 130 | 180 | 240 | |
Dimension | Length mm | 520 | 685 | 975 | 981 | 1319 |
Width mm | 250 | 335 | 456 | 476 | 500 | |
Height mm | 555 | 928 | 1054 | 1124 | 1276 | |
Weight (kg) | 70 | 210 | 400 | 420 | 1000 | |
PS: usually is the standard motor, if the client need special requirements should note in the contract.

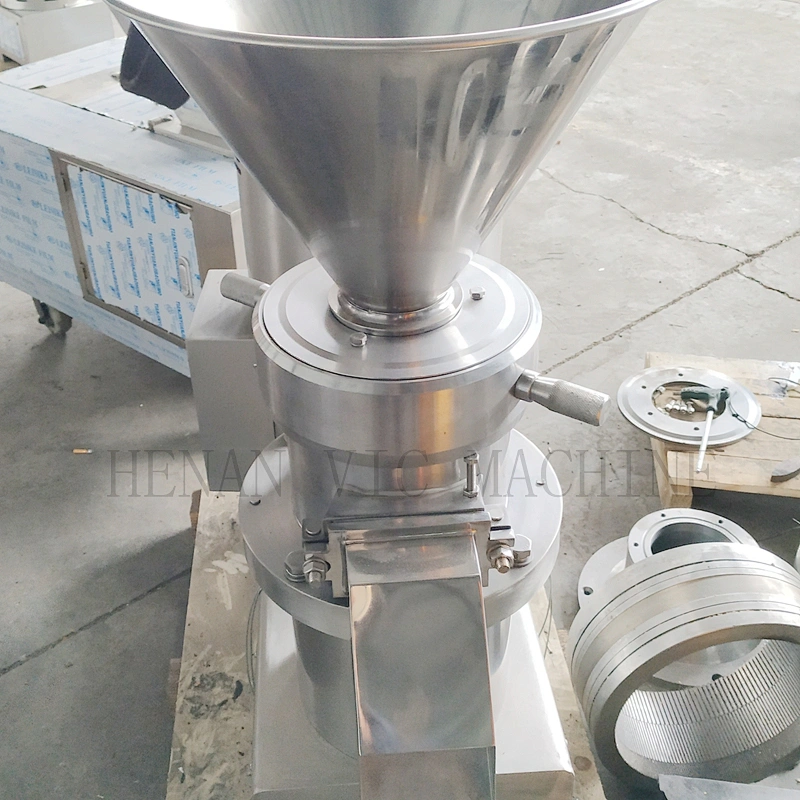

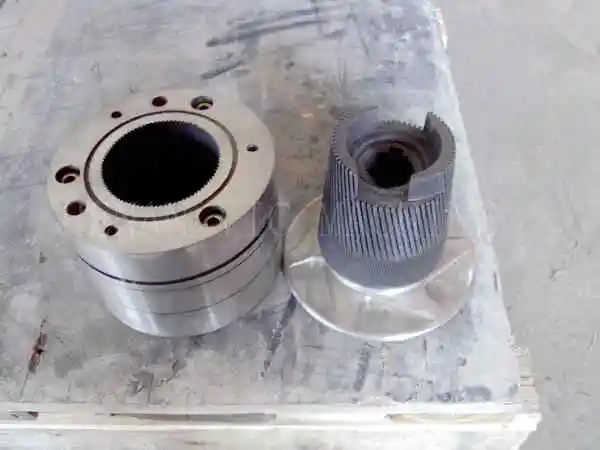

Stators

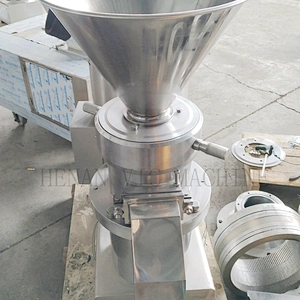

Butter mill product
Shipping:
Delivery time: In 15 days after paid deposit.
Packing: wooden case package.
Partial shipment:not allowed
Transshipment:allowed
For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
