- Condition:New
- Key Selling Points:Long Service Life
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Local Service Location:None
- Showroom Location:None
- Marketing Type:Hot Product 2019
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 YEAR
- Core Components:Gear
- Core Components:Motor
- Place of Origin:CN;HEN
- Type:Pipe dryer
- Brand Name:VIC
- Voltage:380V
- Power(W):7.5kw
- Dimension(L*W*H):10000x950x2700mm
- Certification:CE
- Weight (KG):4500
- Application:industry processing
- English user manual:Yes
- Delivery Time:Within 10 days after the paid deposit
- Certification of Origin:Yes
- is_customized:Yes
- Color:As client required
- Working video:Yes, supplied
- Weight:4500kg
- Name:pipe dryer
- Material:Q235 Steel
- Heating source:Hot Air

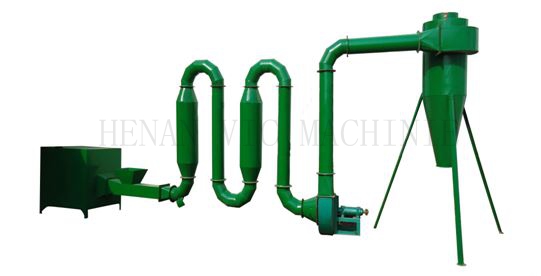

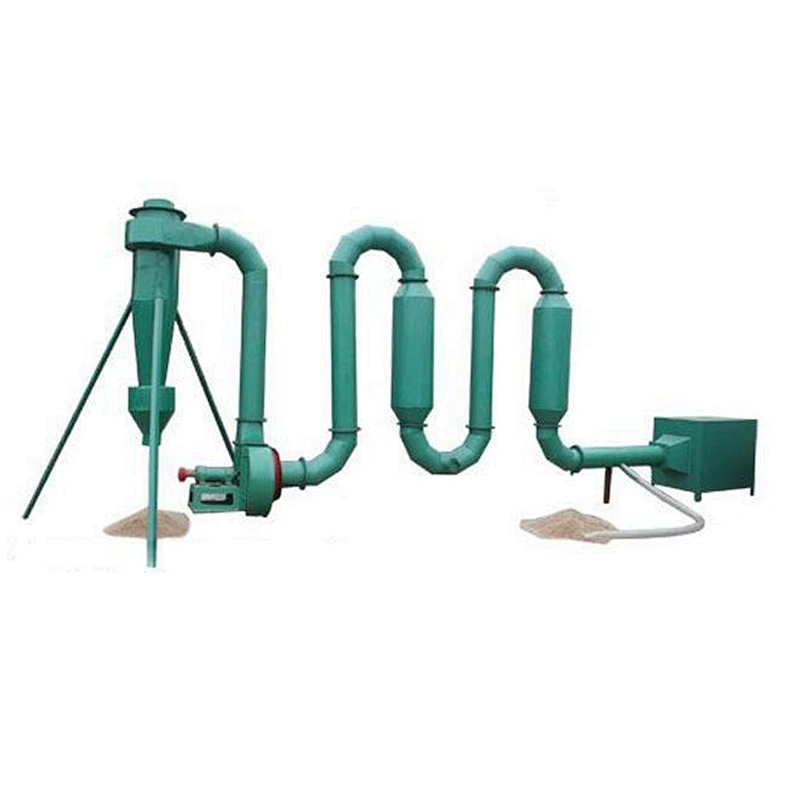

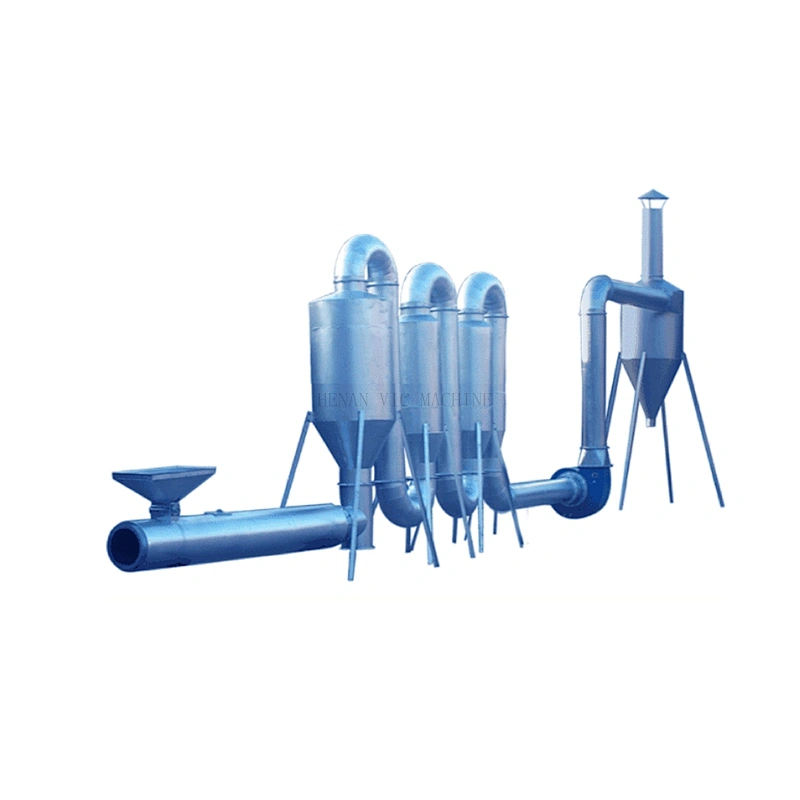

HGJ-III Pipe airflow dryer
1. Introduction:
1.1. This pipe dryer is special suitable for drying heat sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on. It also can be used for drying the grain better;
1.2. Low cost and high efficient , reduce moisture from 40-45% to 8-12%;
1.3. Fuel for furnace: wood waste, waste oil, coal and other burnable fuel.
2. Working principle:
In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and mateirls suspending in air stream, the heat transfter surface between air and raw mateiral is large, so the heat transfer rate is high.
3. Main data for HGJ-III:
| Model | HGJ-III |
| Capacity | 800-1000 kg/h |
| Diameter of raw | < 3mm & < 5mm |
| Air temperature | 180°C~250°C |
| Centrifugal power-Airlock power | 7.5 kw |
| Material in feed | 20 mm |
| Consumption-kg/h | 25-30 kg/h |
| Weight | 4500 kg |
| Moisture-max | 35-45°C |
| Dried-max | 8-12°C |
4. Related Models:
| Model | HGJ-I | HGJ-II | HGJ-III |
| Capacity | 300-400kg/h | 600-700kg/h | 800-1000kg/h |
| Centrifugal power-Airlock power | 4 kw | 5.5 kw | 7.5 kw |
| Consumption | 10 kg/h | 20 kg/h | 25-30 kg/h |
| Weight | 2000 kg | 3000 kg | 4500 kg |

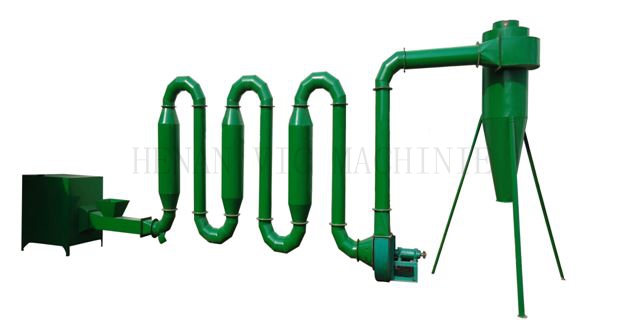

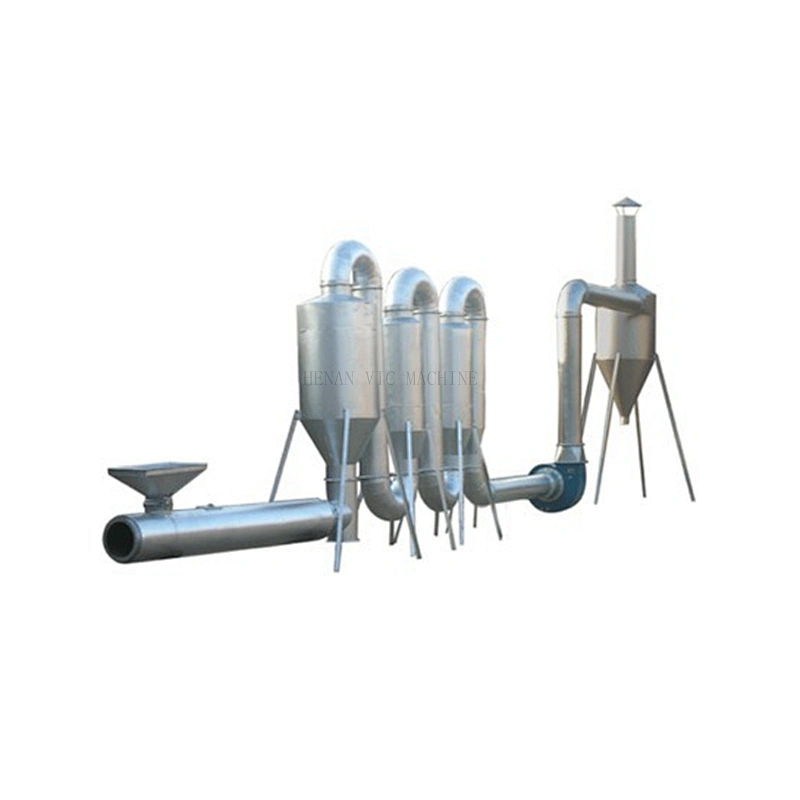

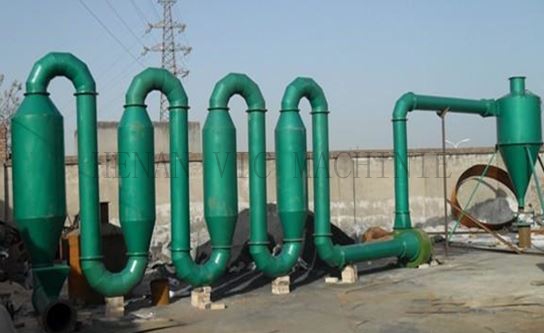

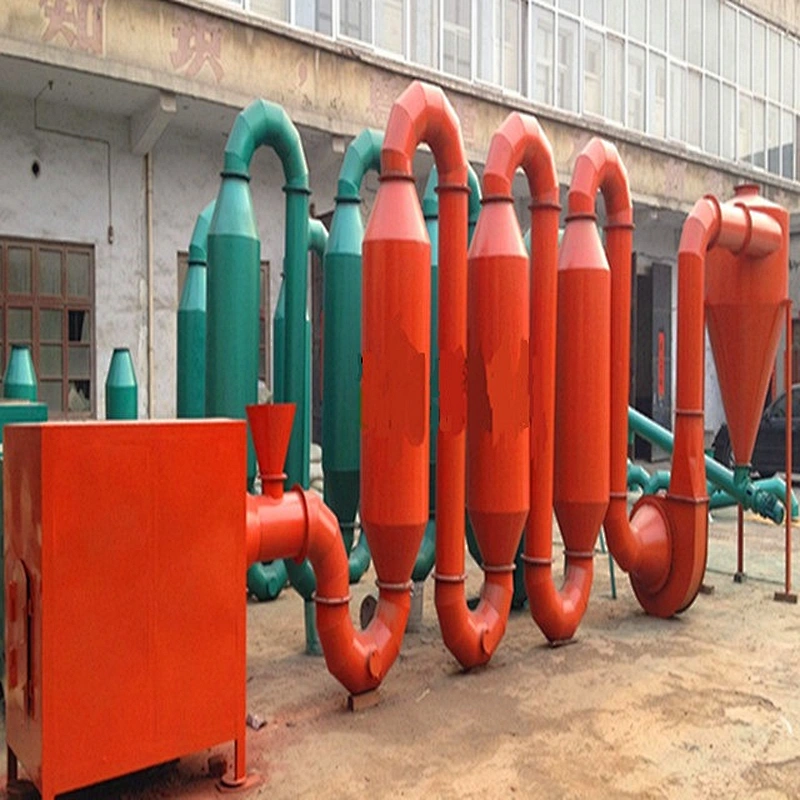

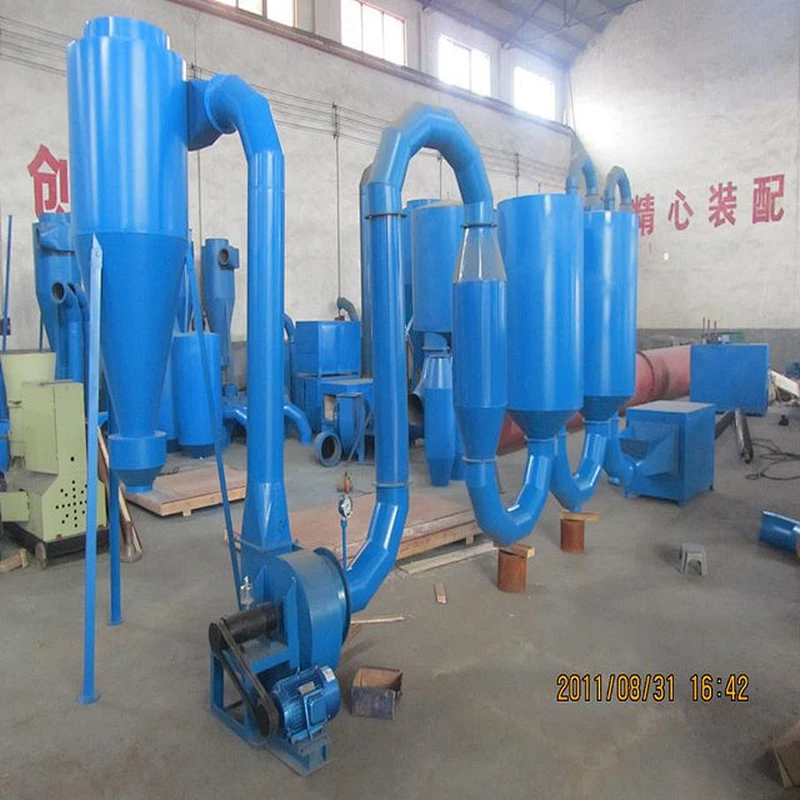

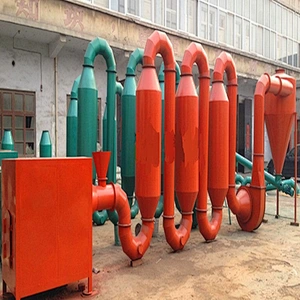

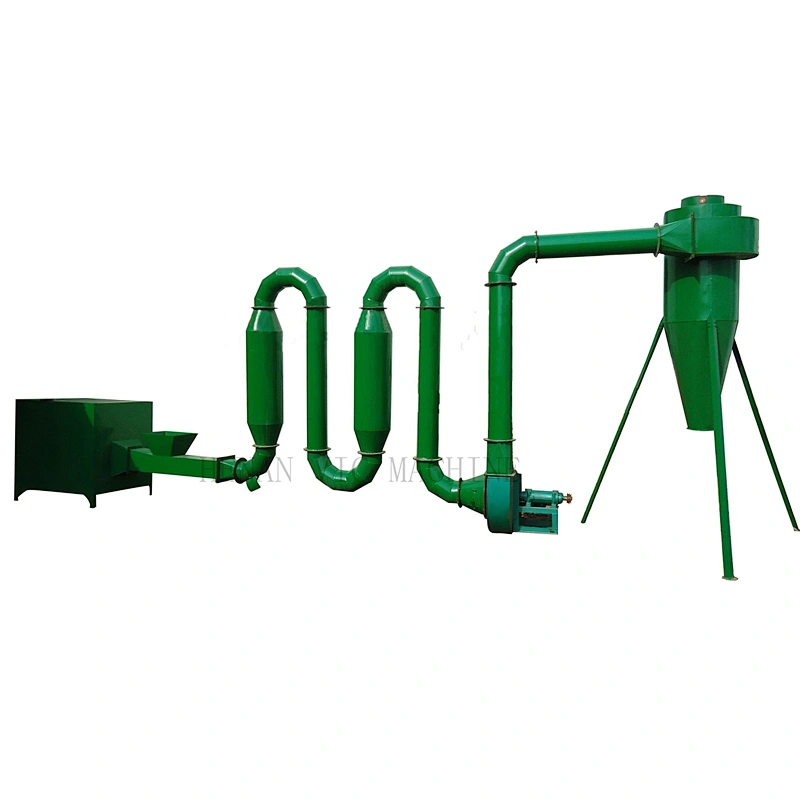

More picture
HGJ-I
HGJ-II
HGJ-III

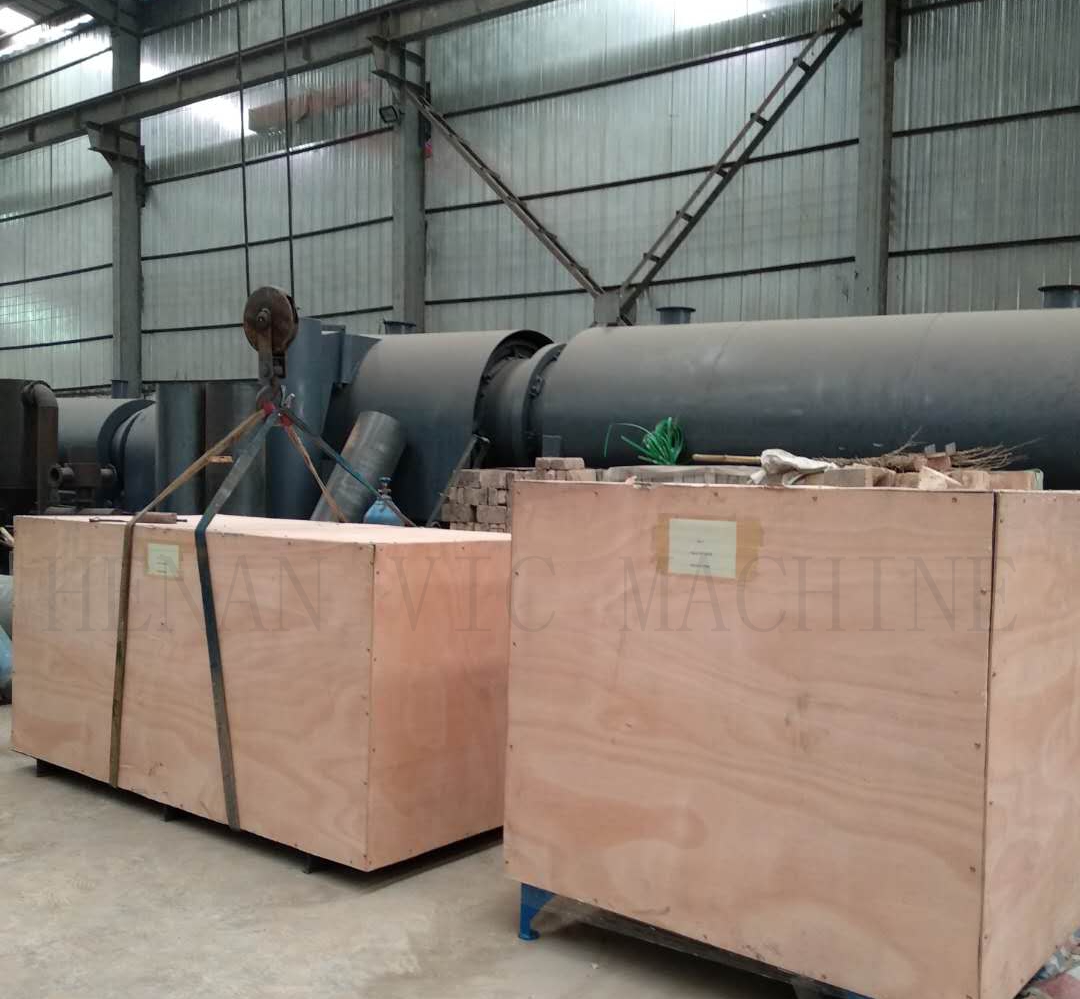

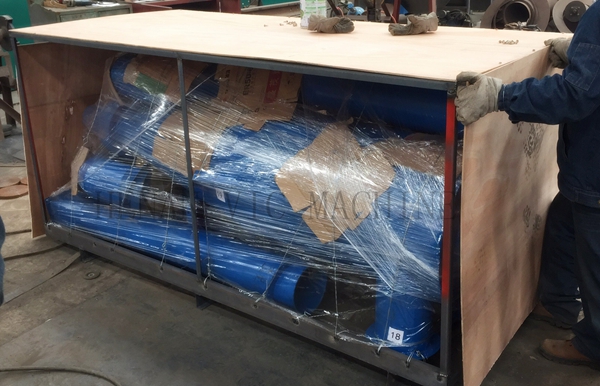

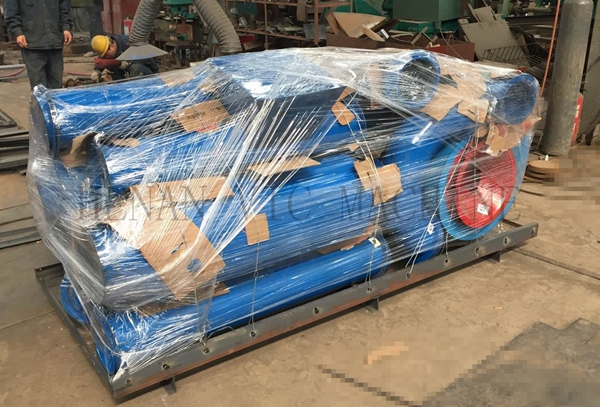

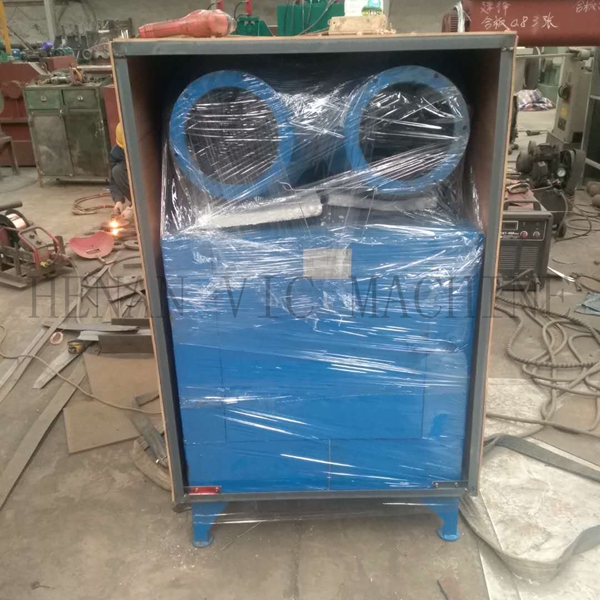

Package
| Model: | HGJ-II |
| Packing material: | Wooden box |
| Packing Dimension: | -- |
| Gross Weight: | 4500kg |
| 20' Container: | 5 Sets |
| 40' Container: | 12 sets |
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
