- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food & Beverage Shops
- Place of Origin:CN;HEN
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Application fields:Snack food factory
- Application fields:Fruit processing plant
- Application fields:Bakery
- Application fields:Vegetable processing plant
- Raw material:Fruit
- Raw material:Vegetables
- Raw material:potato
- Brand Name:VIC
- Voltage:220V
- Power(W):1100
- Dimension(L*W*H):690x410x800mm
- Weight:75kg
- Certification:CE
- Machinery Function:peeler
- Output product name:potato

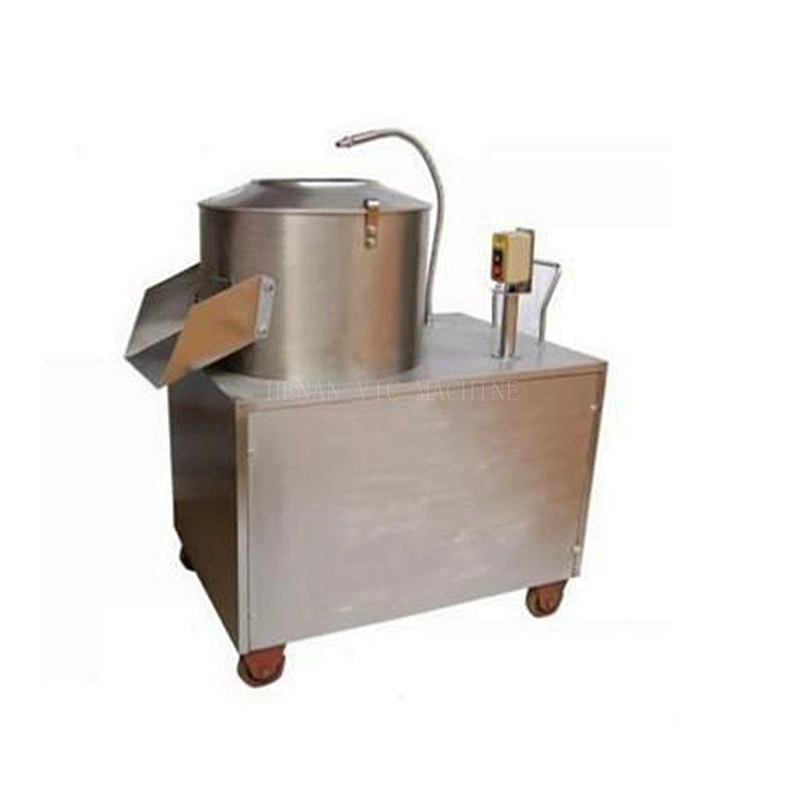

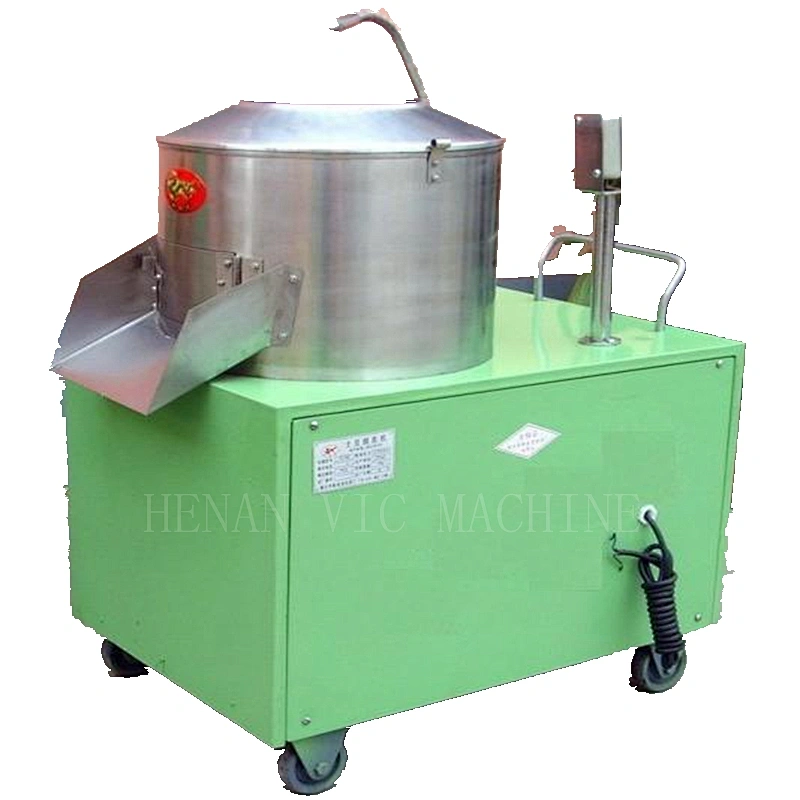

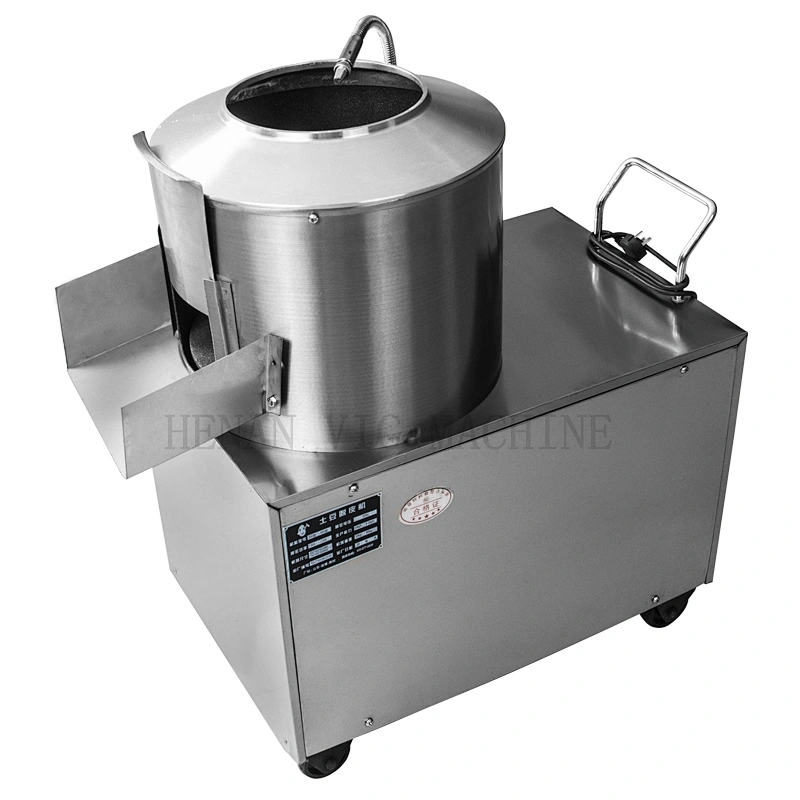

TP-35 Vegetable Peeling Machine
Introduction:
Potato peeling machine can be applied to peel all kinds of oval vegetable skin, such as carrot, ginger, sweet potato, Chinese gooseberry and so on.
Can be mixed together to peel quickly. The peeling is fast, save labor, and clean without crushing or crack, it’s a perfect machine for peeling and cleaning.
Working principle:
(1)This potato peeling machine is combined by main body, hopper, feeding etc.
(2)The feeding hopper chooses stainless steel to ensure long-term use without rusting and no harm. (3)When the potatoes put into the hopper, the rotating feeding plate rotate potatoes and friction between each other, the peeling rate is higher because of the potato crushing the feeding hopper continuously; meanwhile with wash pipe to clean the peeled potato, the skins will be expelled from water.
Main data
Model | TP-35 | TP-45 |
Production capacity | 240kg/h | 750kg/h |
Power | 0.75kw(380v/50hz) 1.1kw( 220v/50hz) | 1.1kw(380v/50hz) 1.5kw(220v/50hz) |
Rotating plate dia | 350mm | 450mm |
Main shaft speed | 260rpm | 260rpm |
Size | 780mmx510mmx1000mm | 850mmx600mmx1100mm |
Weight | 75kg | 110kg |
Picture:

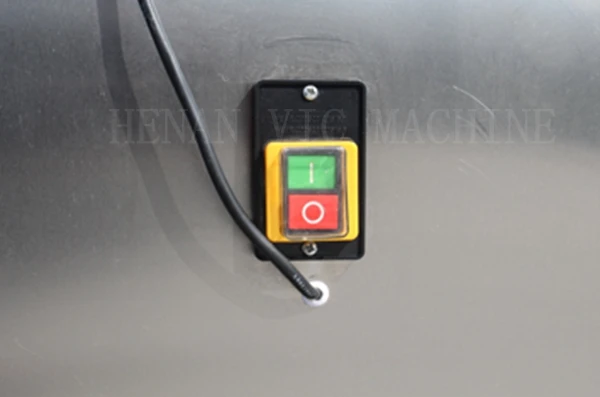

Built-in waterproof switch is more safe

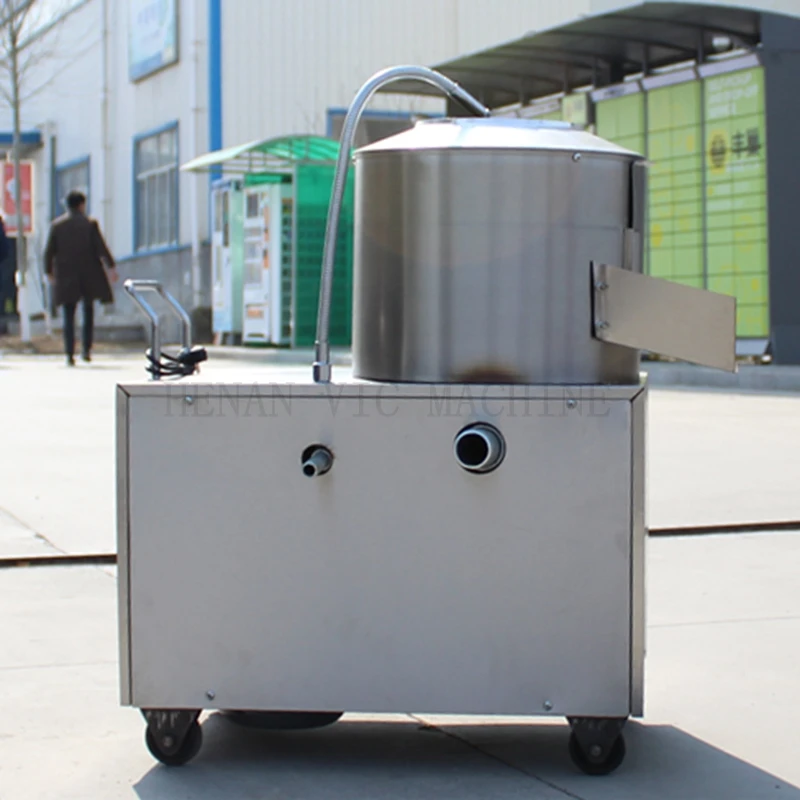

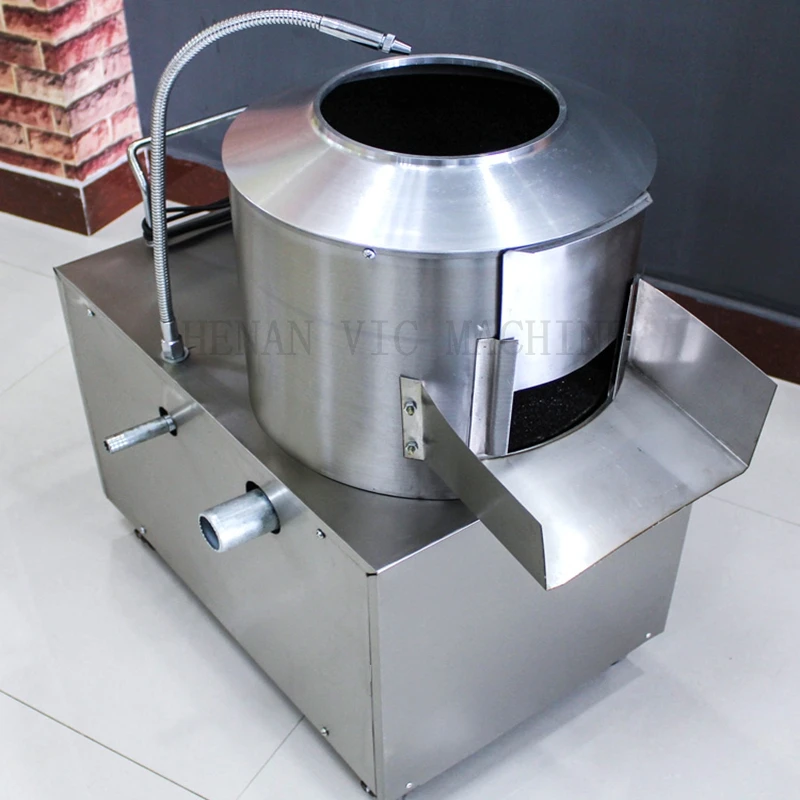

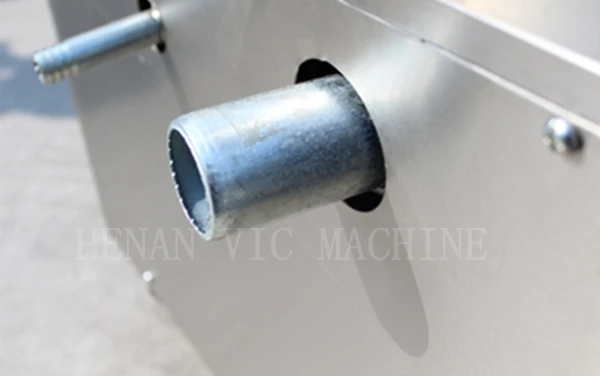

The thickened outlet is convenient for discharging

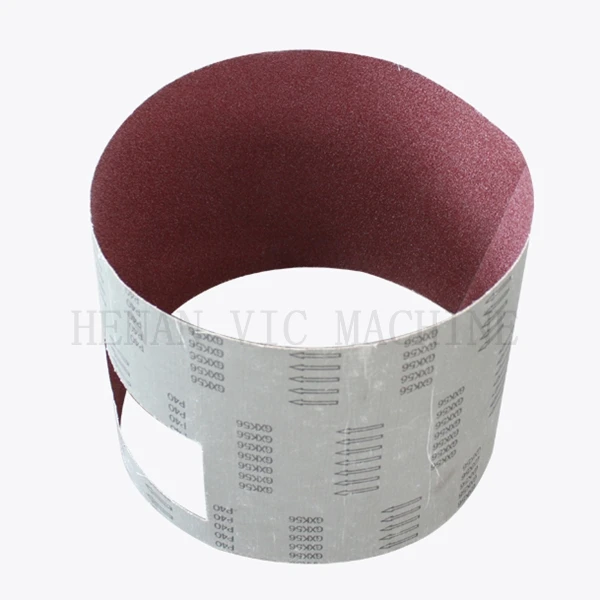

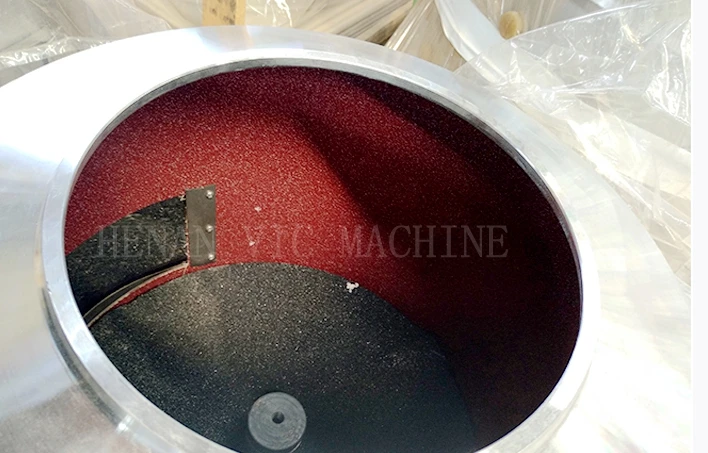

Ordinary sandpaper liner

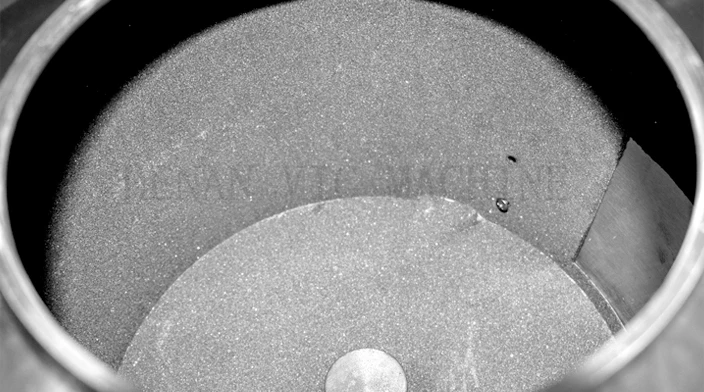

Durable sandpaper liner
Abrasive abrasive paper

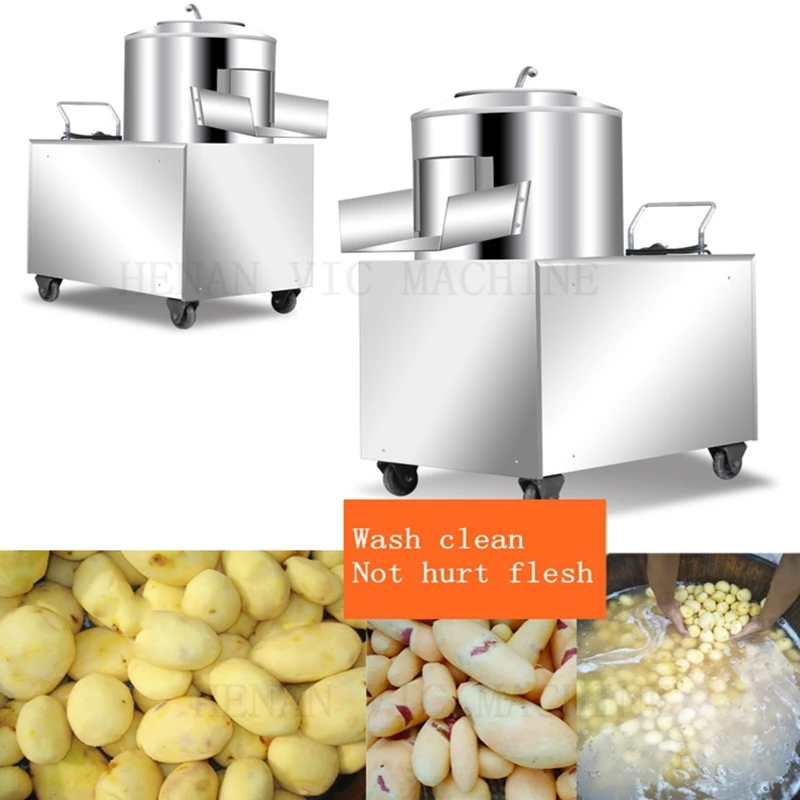

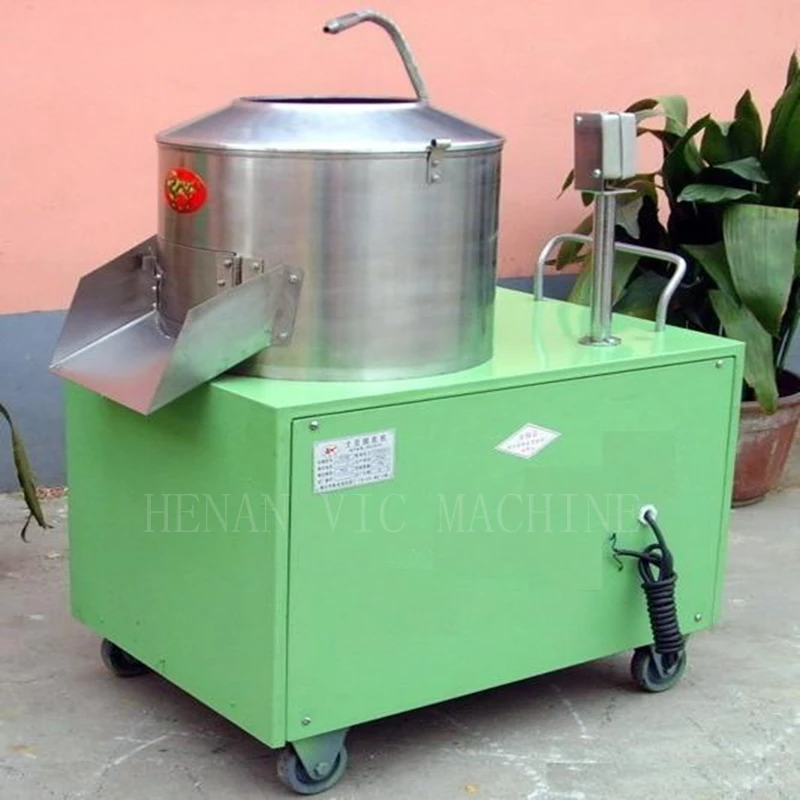

Different model
Packaging:
Package: In wooden Box
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.

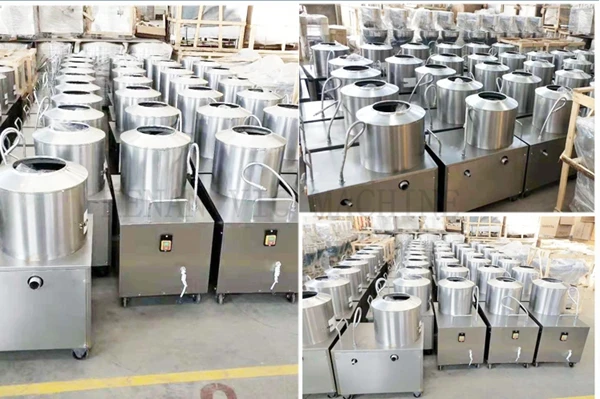

Our factory
