- Place of Origin:CN;HEN
- Condition:New
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- Brand Name:VIC
- Voltage:380V,50Hz, 3Phase
- Power(W):80-120KW
- Dimension(L*W*H):8000*1500*1500mm
- Weight:15t
- Certification:CE, SGS

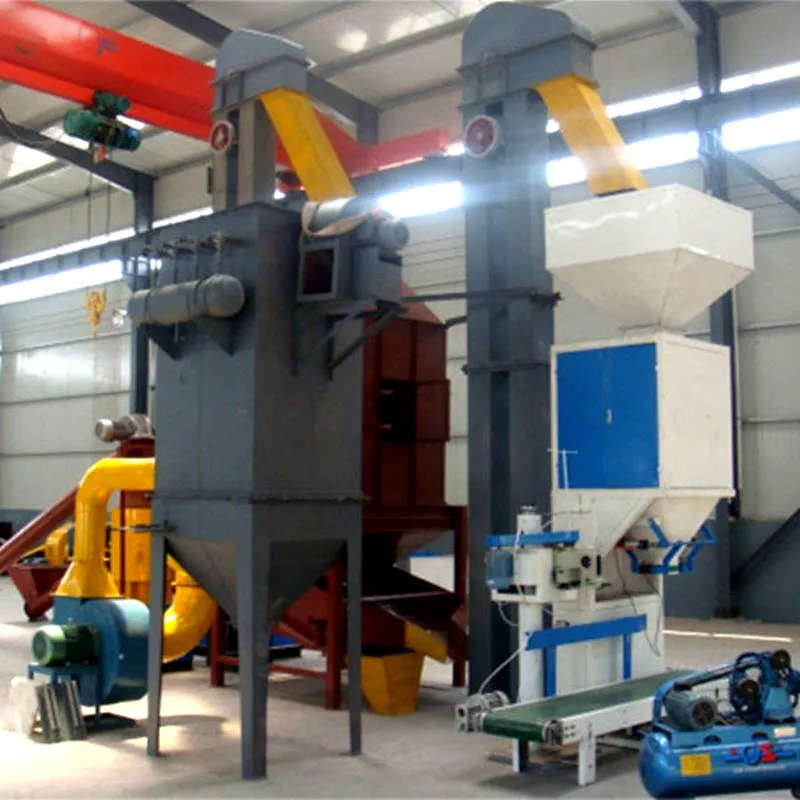

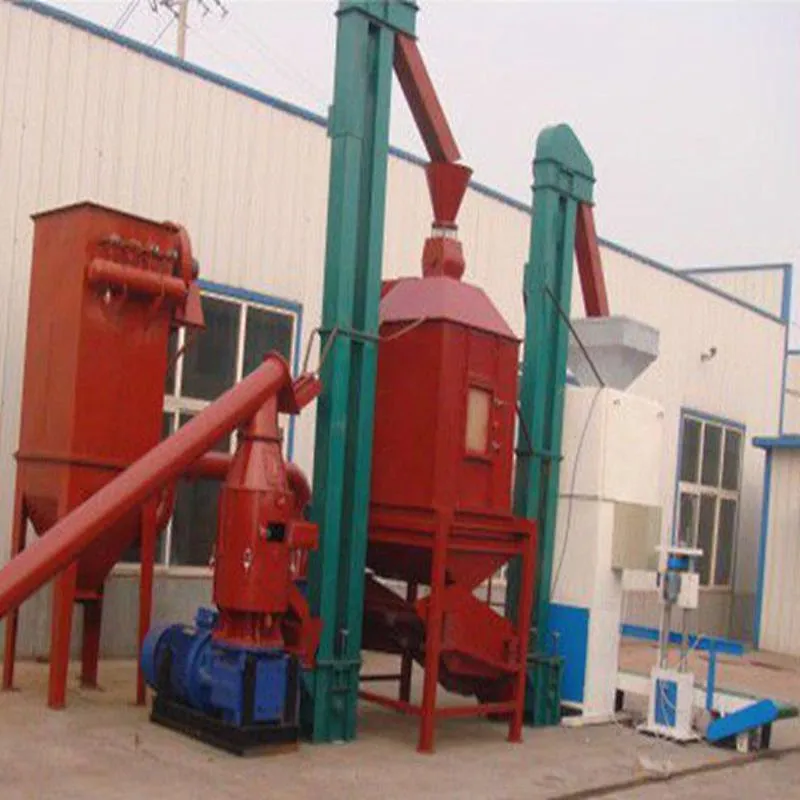

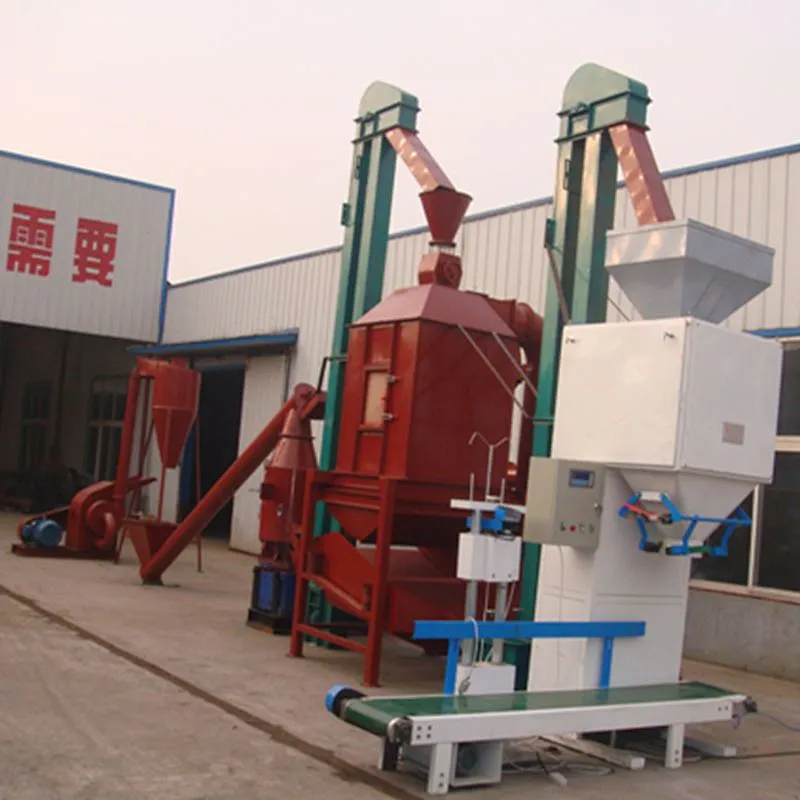

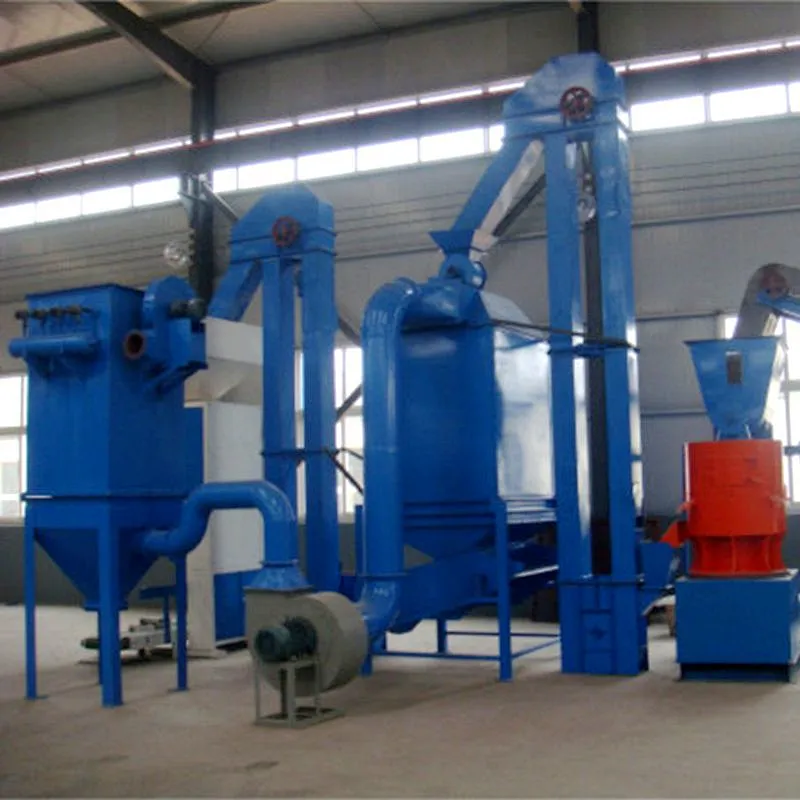

400-600kg/h Wood Pellet Making Plant /Wood Pellet Making Line
Brief introduction:
We can make pellet making line from 500kg/hto12t/hwhich is included crusher, dryer, pellet maker , cooling , packing and other auxiliary equipments. The whole line is compact structure, small occupation, low consumption and high effenciency.
The raw material :
Any type of wood, straw waste, forestry wastes, lumber leftover, sawdust, wood chips, wood bark and all type of agriculture stuff, such as bamboo dust, sugarcane, coffe husk , paddy straws, sunflower/cotton/corn stalks and so on.
The finished pellets diameter can be 6mm, 8mm, 10mm, 12mm according to clent’s need .

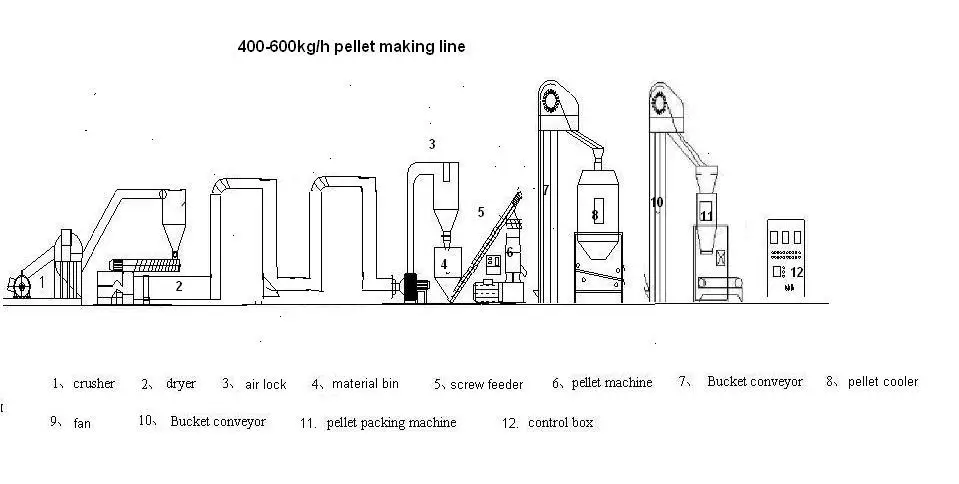

The main process of the line includes:
(1)wood crusher( crush the big wood into small pieces like sawdust)
(2)dryer ( dry the raw material to proper moisture before making pellets)
(3)Pellet making( press raw material into pellets)
(4)Cooler( cool down pellets and remove some moisture)
(5)sieve(remove dust, and broken pellets)
(6)Package (pack pellets into bags of required weight)
The above is standard pellet making line process, some processes are alternative and adjustable according to different raw material and requirement of clients.
1. Crush system :
According to different raw material, we matched proper crush machine for you.
The 9FH wood crusher can crush raw material into sawdust directly.

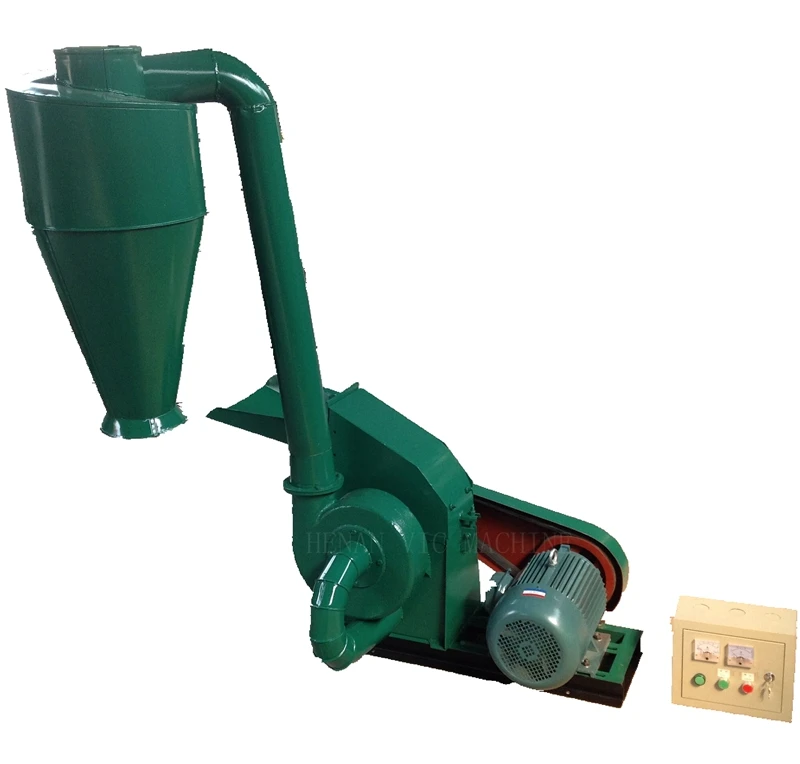

The Hammer Mill can crush all kinds of straws , wood chipper into small size not extend 2mm.

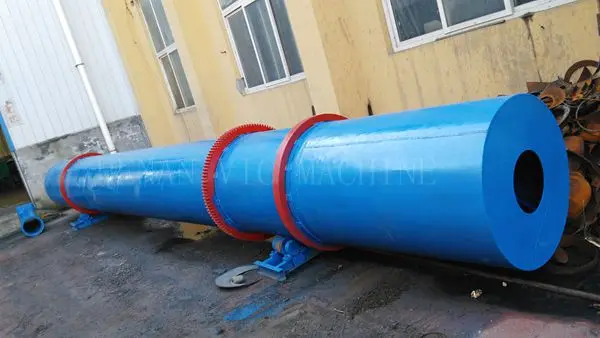

2.Drying system :
If you want to make good pellets, the raw material moisture content is around 14-20%, The rollr dryer can dry sawdust, and other wood materials from 60% to 14% .

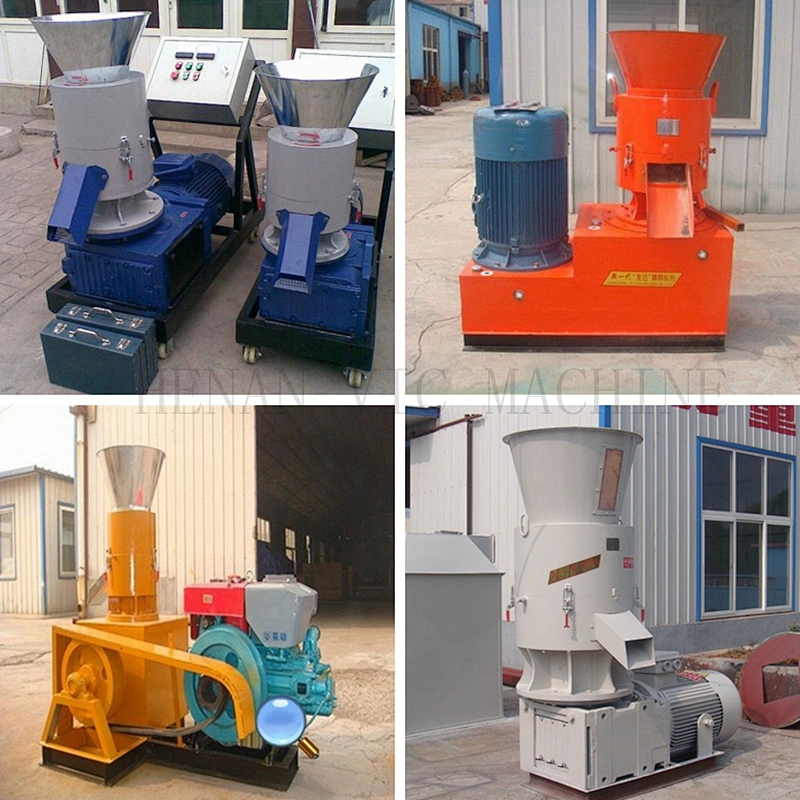

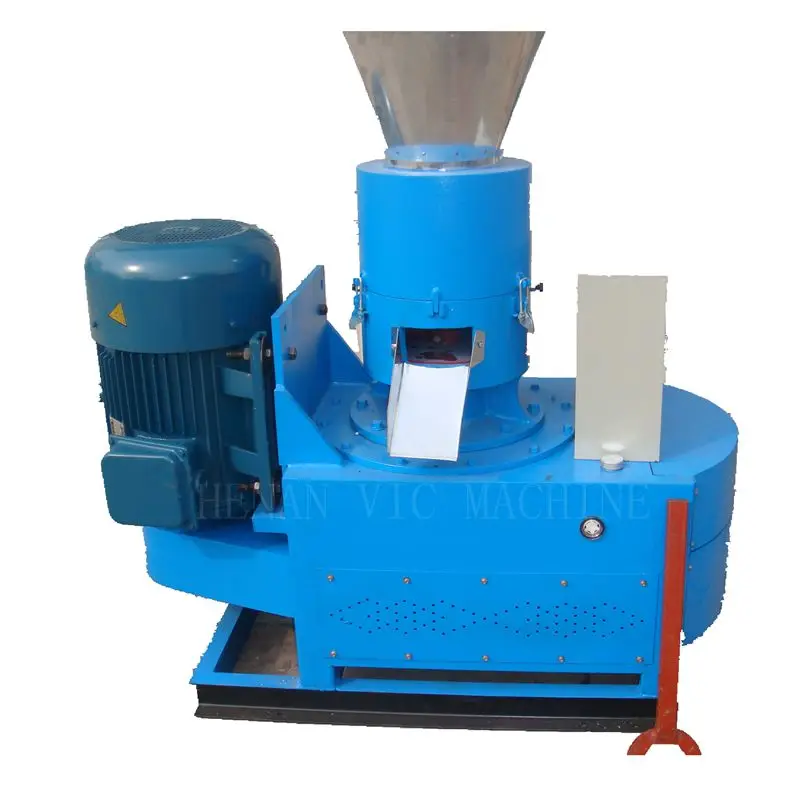

3. Pelleting system :
The pellet machine /wood pellet machine is most important equipment of the line, it can make biomass, sawdust pellet from corn straw,green waste,bamboo powder,grazing,straw,rice hull,all kinds of wood and so on.

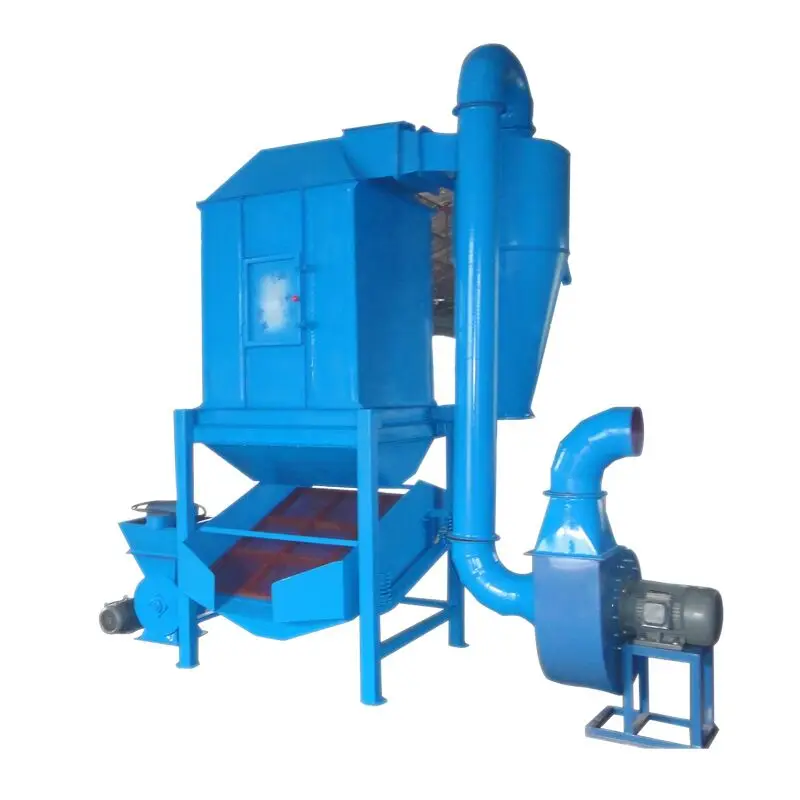

4. Cooling system
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the wood pellet is easy to store.

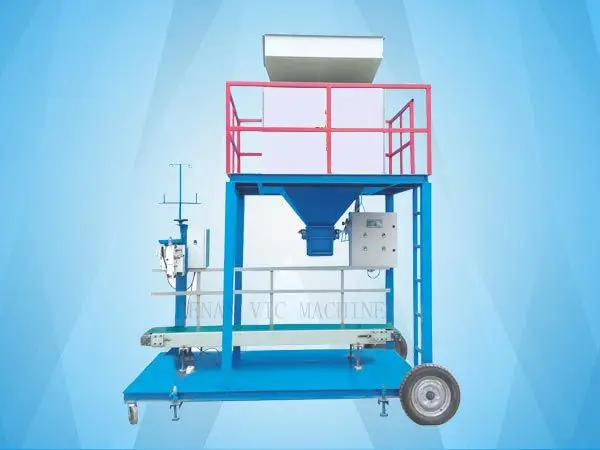

5. Pellet packing system
The system is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder material in the flour factory or other industry.

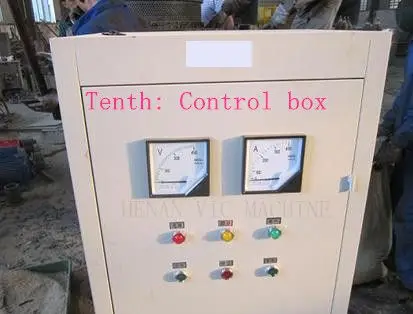

6. Control system
The control cystem can control the whole line work automatically.
If you need our complete wood pellet line/pellet making line/pellet making plant, pls confirm several informations as follows, then according to your need, we can give u exact quotation:
1. What is your raw material ?
2. What is your raw material biggest size ?
3. What is your raw material moisture ?
Photos of finished pellets :
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
