Semi-automatic stainless steel oil filling machine with heat sealer is ready to ship

08/11/2019

Characteristics

It is suitable for packing lubricate oil, edible oil, wine, oil and so on. It contains magnetic cylinder, oil jar and electronic elements. It is simple and takes little space. It adopts the measuring cup; the oil jar is driven through the magnetic cylinder to put the oil into the bottle. It packs the oil in two speeds, first quick and later slow. The quantity will be more correct. .The user put the bottle and take off the bottle by hand.

Characteristics

It is suitable for packing lubricate oil, edible oil, wine, oil and so on. It contains magnetic cylinder, oil jar and electronic elements. It is simple and takes little space. It adopts the measuring cup; the oil jar is driven through the magnetic cylinder to put the oil into the bottle. It packs the oil in two speeds, first quick and later slow. The quantity will be more correct. .The user put the bottle and take off the bottle by hand.

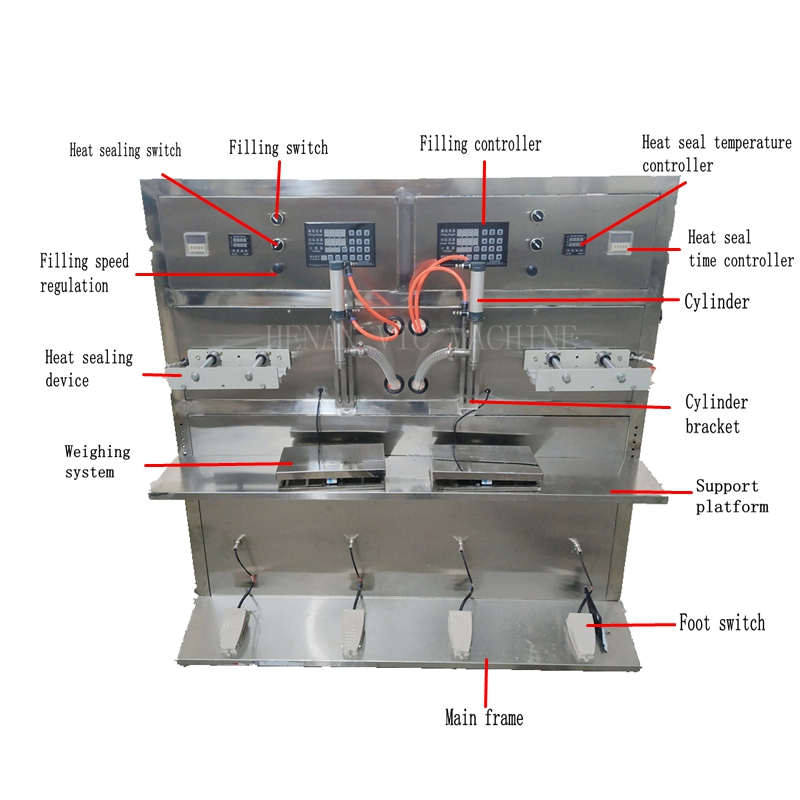

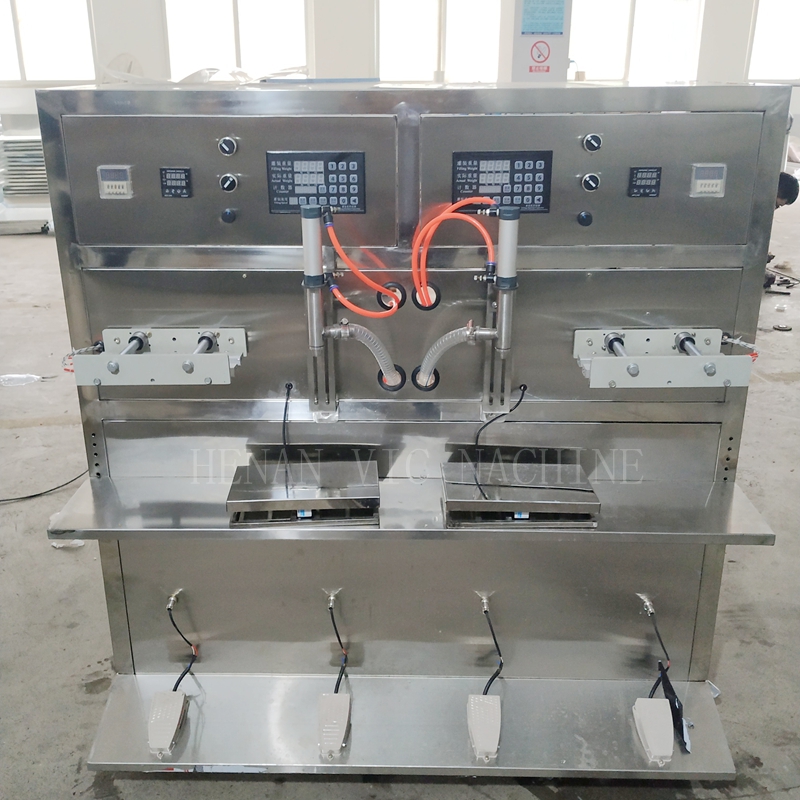

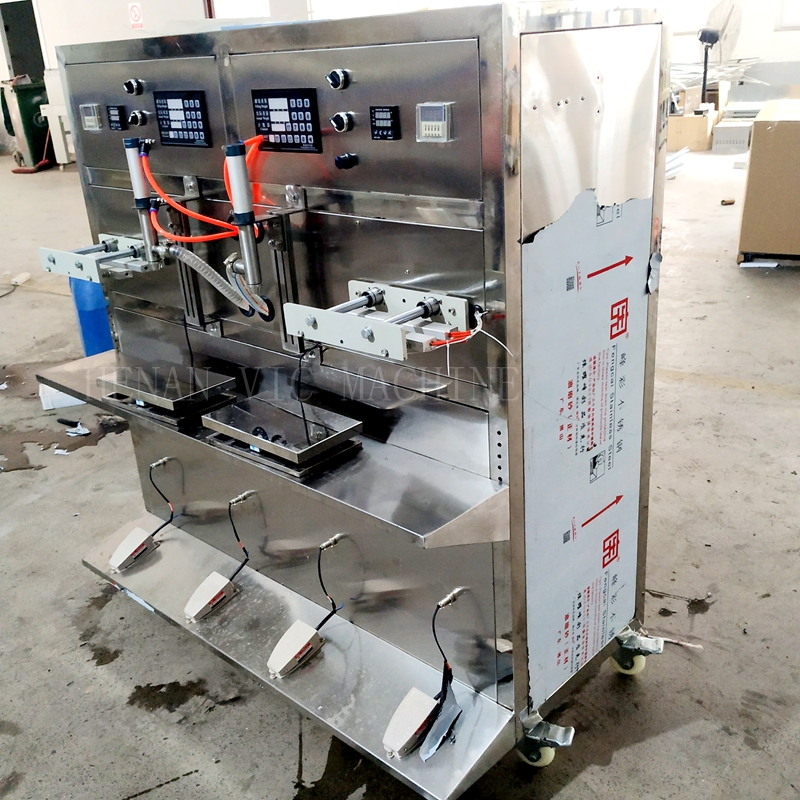

Double head semi-auto filling machine

Model YSD-10 filling machine(stainless steel)
Capacity  0.1-10L/Bottle (adjustment) or bag;
Error < 0.5%
Filling speed  200-400Bottle/head/hour(different depends on bottle liter and speed)
Voltage  220V,50HZ
Pressure 0.5-0.7Mpa
Size 600×598×1300mm
Weight 70KG

More picture and video
