- Place of Origin:CN;HEN
- Condition:New
- Type:Pellet cooler
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Brand Name:VIC
- Voltage:380V
- Dimension(L*W*H):3335*2636*4185 mm
- Weight:2430 kg
- Certification:CE

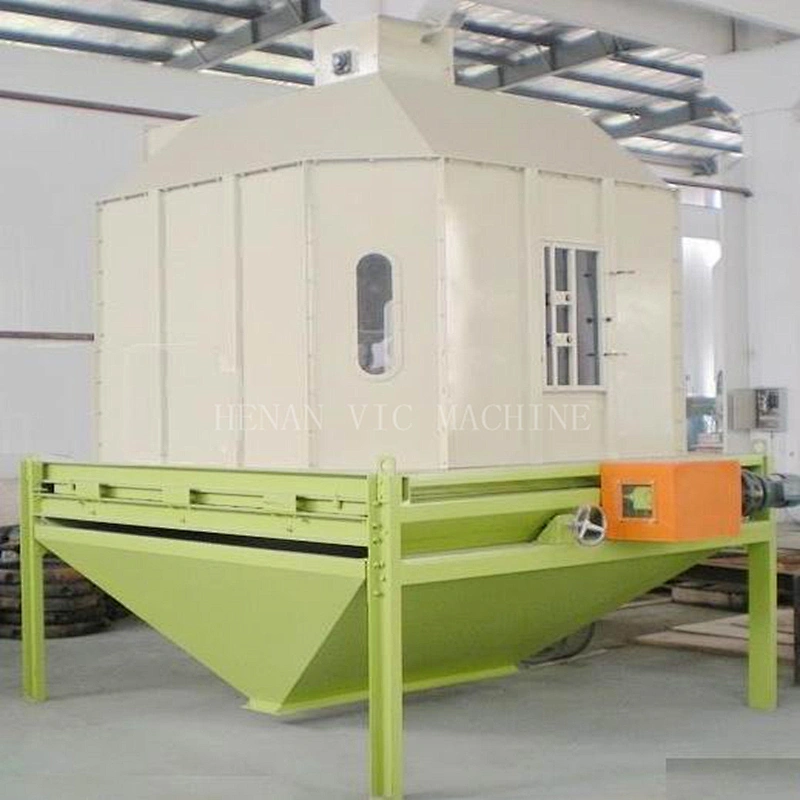

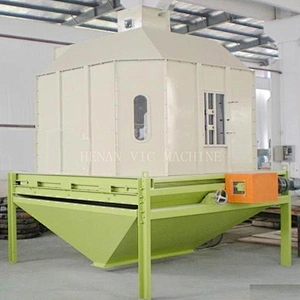

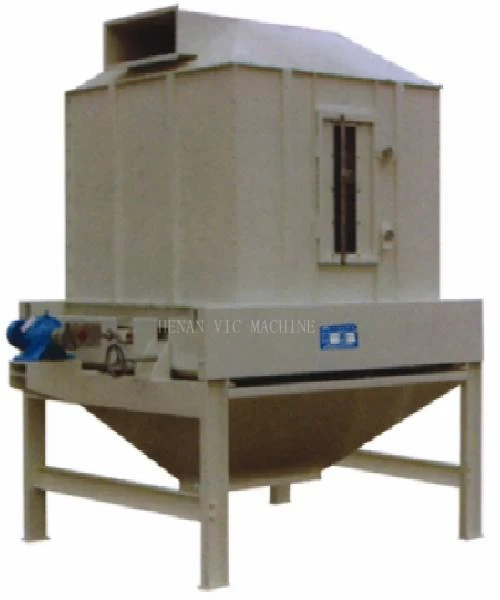

Pellet Cooler
Introduction:
1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
2. Slide reciprocating discharger has smooth and reliable discharging, low residue;
3. Low power consumption, easily operation;
4. Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
5. It is suitable for pellet cooling.
Main Technical Parameters:
| Model | SKLN 24×24 |
| Power | 1.5 kw |
| Capacity | 20 t/h |
| Vibration frequency | 25 times/min |
| Amplitude | 30 mm |
| Cooling time | ≤10 min |
| Sucking wind | 36000 m³/h |
| Wind pressure | 200 mmH2O |
| Outside size | 3335×2636×4185mm |
| Weight | 2430 kg |
Related models:
| Model | Power (kw) | Capacity(t/h) | Sucking wind(m³/h) | Vibration frequency |
| SKLN 11×11 | 0.75 | 2.5 | 4500 | 42 times/min |
| SKLN 14×14 | 0.75 | 5 | 9000 | 42 times/min |
| SKLN 16×16 | 0.75 | 7.5 | 13500 | 34 times/min |
| SKLN 19×19 | 1.1 | 10 | 18000 | 34 times/min |
| SKLN 22×22 | 1.5 | 17 | 36000 | 25 times/min |
| SKLN 24×24 | 1.5 | 20 | 36000 | 25 times/min |

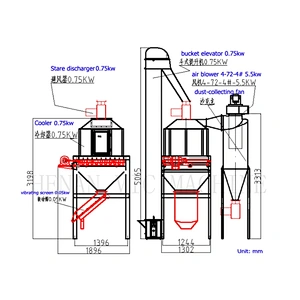

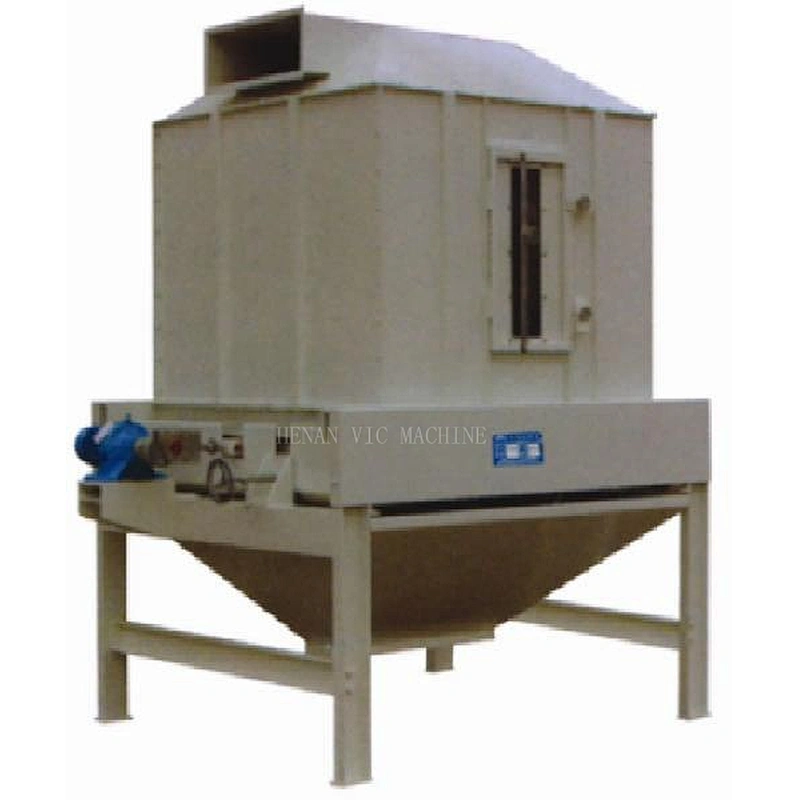

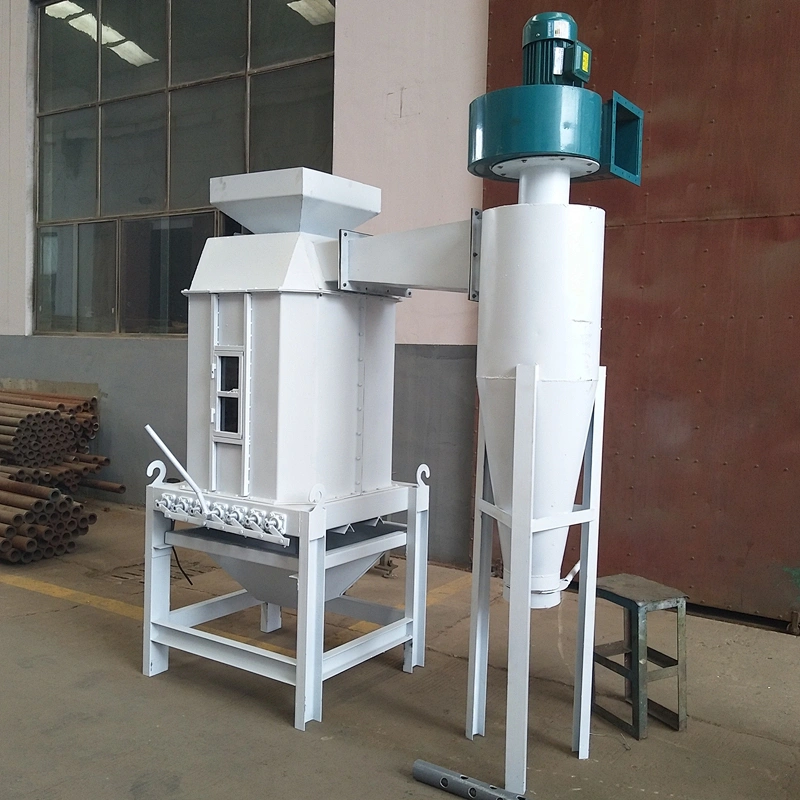

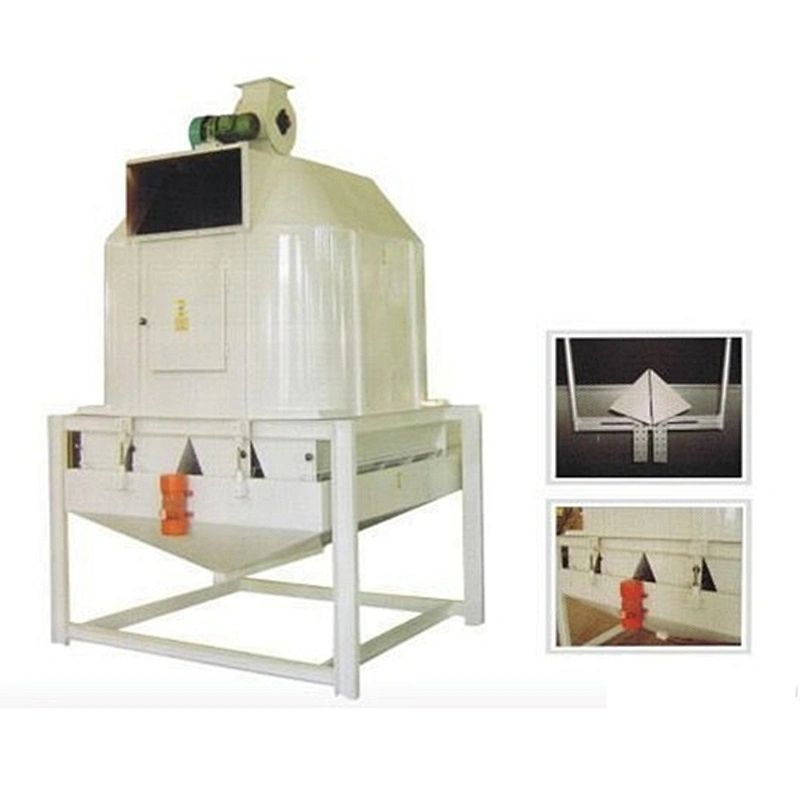

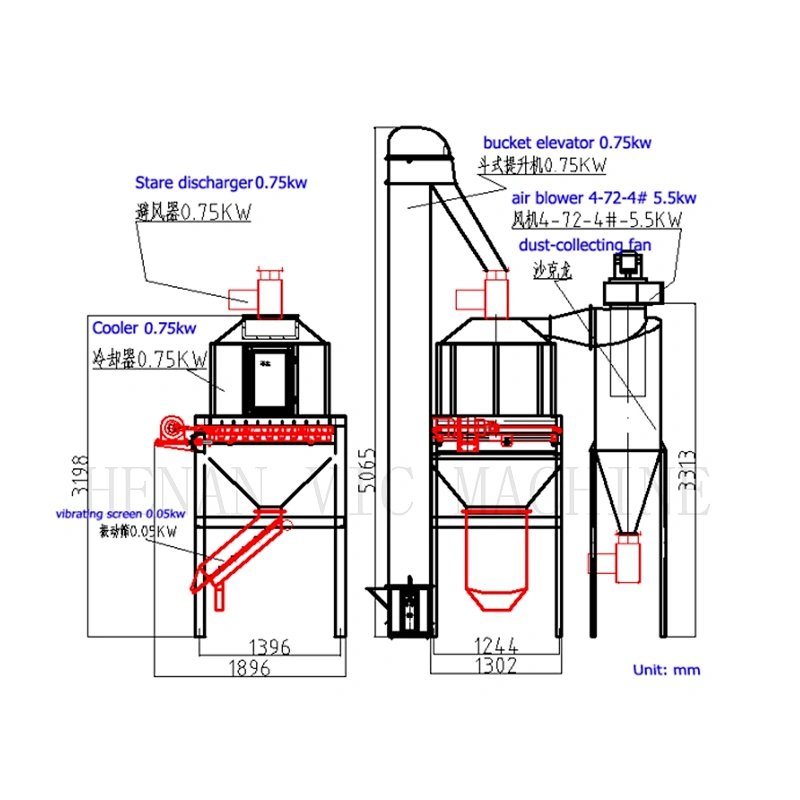

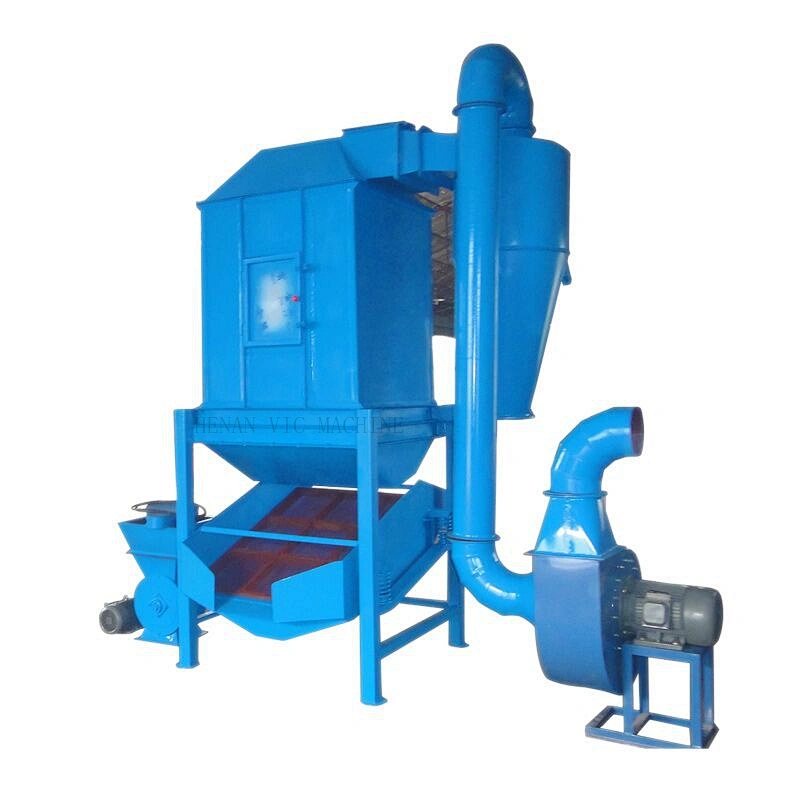

Pictures:
Package
| Model: | SKLN 24×24 |
| Packing material: | Wooden box |
| Packing Dimension: | 3335×2636×4185mm |
| Gross Weight: | 2430kg |
| 20' Container: | --- |
| 40' Container: | 2 Sets |
Shipping:
By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
