Stainless steel oil press 6YL-120S is ready for shipping

03/12/2020

1.Application:
It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame,teaseeds,  sunflowerseeds, olive, palm kernal etc, it's a perfect product for small-medium oil factory. This integrated oil press is with nice shape, highly structured, easy installation, high degree of automation, fast warn-up, and high oil output rate with pure scent.

2.Advantage of combined oil press machine:

  1. Integrated with oil pressing and oil filtering with automatic.
  2. It can auto control the raw materials pressing temperature
  3. Choose vacuum filter which is more efficient in filtering crude oil
  4. There's heating pipe on the pressing chamber, this can help the pressing chamber rise to fixed temperature in short time.
  5. The main parts are by heat treatment with very compact structure and strong wear resistance.
  6. All body is made of 304 stainless steel,the machine looks more beautiful and cleaner

3.Main data:

Model 6YL-80S 6YL-100S 6YL-120S
Processing capacity 120-150kg/h 200-250kg/h 300-350kg/h
Pressing screw dia Φ80mm Φ100mm Φ120mm
Pressing screw speed 60r/min 40r/min 36r/min
Round ring dia Φ82mm Φ102mm Φ122mm
Power Main power Y112M-6 5.5KW Y132M-6 7.5KW Y160M-6 11KW
Heating 3KW 3.5KW 4KW
Weight 780kg 980kg 1500kg
Size 1680x1300x1550mm 1950x1350x1610mm 2050x1550x1800mm

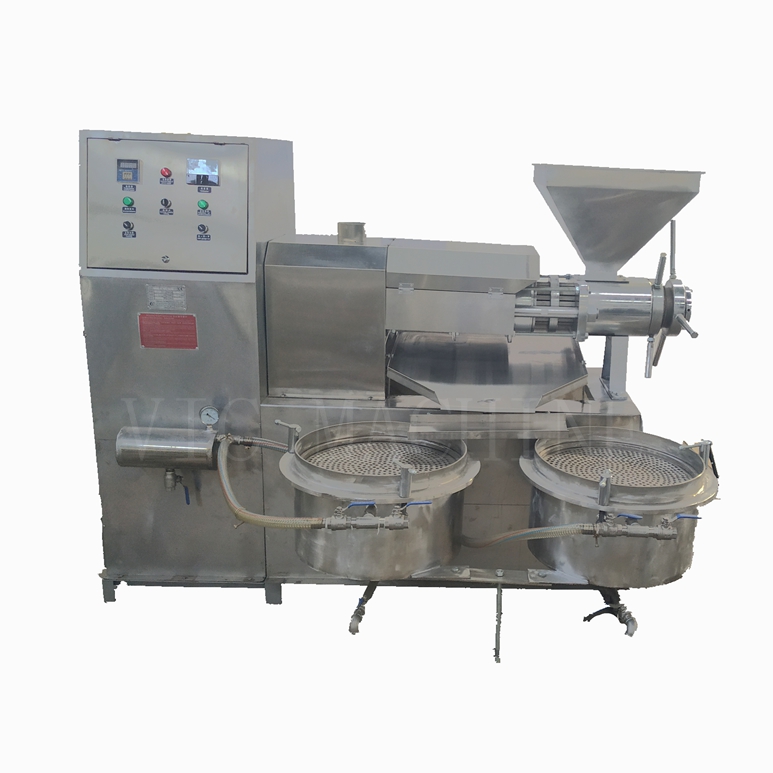

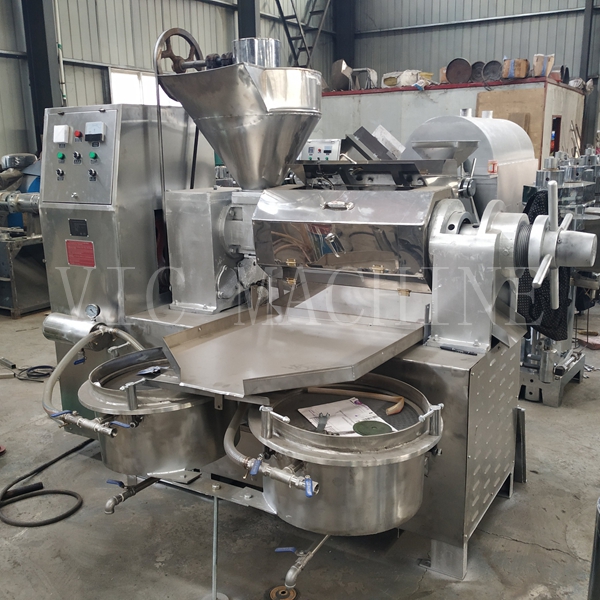

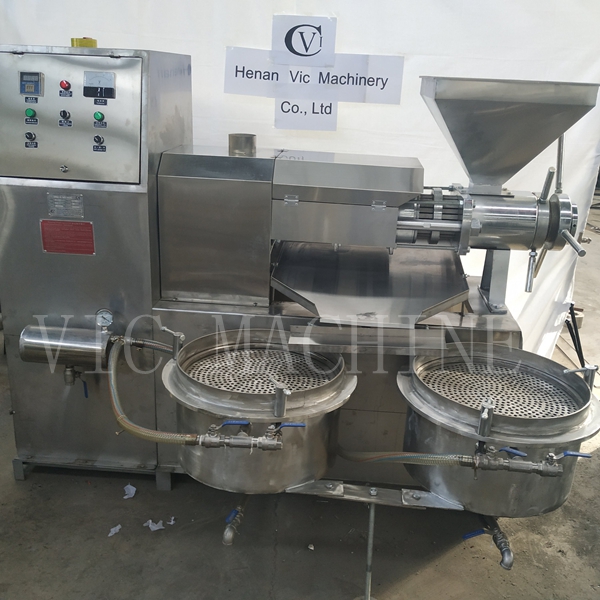

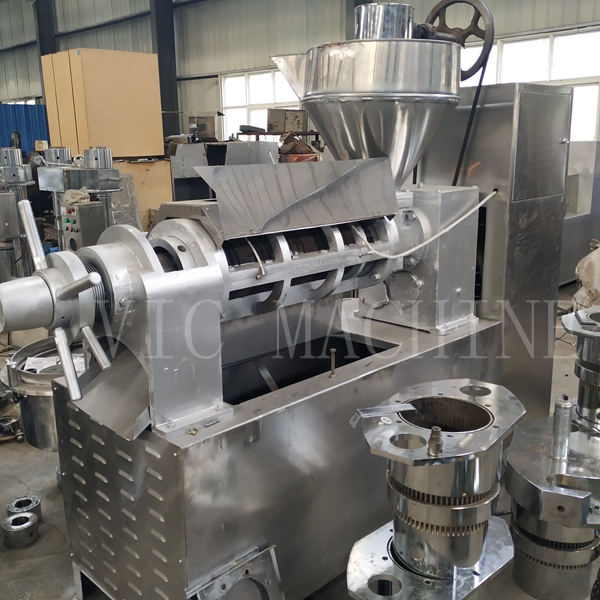

4.More pictures:
