Function:
It can be applied in medicine, food, chemical industry with wide usage.
Application:
1.Advantage:this filter press is with large filtering area, high flow, wide applicant
2.New type:this kind of machine is our new tpre environment protection filter press
3.Materials:this machine be made of stainless steel 304
4.Function:1).it can be applied to filter the liquid density below 50%, low viscosity, low slag content to reach the requirement of purify, sterilization, clear etc.
2). it adopt micropore filter membrane, and can reach sterile filtration without through micropore filter membrane filter.
5.Suitable place:this kind of machine is situable for small-medium factory and supermarket.
Main data:

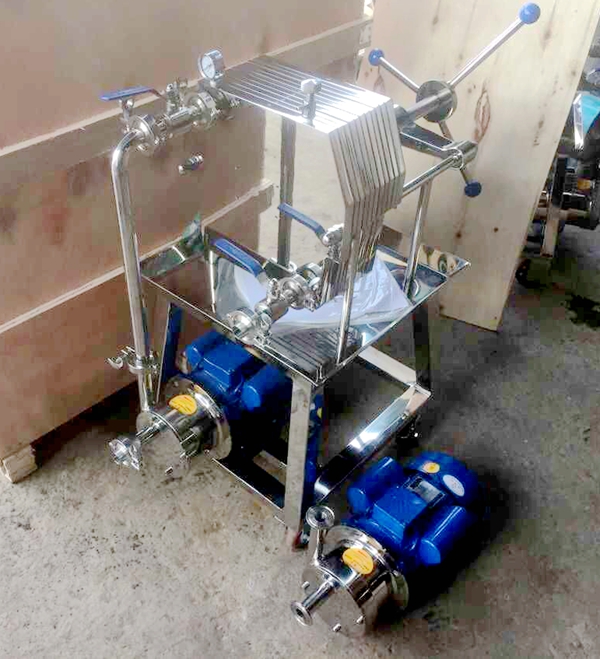

Model: FP-150 stainless filter press (304 stainless steel
Layer: 10 pcs
Filtering area: 0.170m2
Filter plate size: 150mm
Filter membrane hole dia: 0.8um
Filter pressure: 0.15mpa
Water flow capacity: 1.5T/H
Power: 0.55kw(380v/50hz/3p)
Size: 650x380x650mm
FP system filter press models:
|
Model |
Layer |
Filter area (m2) |
Filter plate size |
Filter media (um) |
Water flow (T/H) |
Power (kw) |
Size (m) |
|
FP-100 |
10 |
0.078 |
100 |
0.8 |
0.8 |
0.55 |
0.6x0.3x0.6 |
|
FP-150 |
10 |
0.17 |
150 |
0.8 |
1.5 |
0.55 |
0.65x0.38x0.65 |
|
FP-200 |
10 |
0.34 |
200 |
0.8 |
2.0 |
0.55 |
0.65x0.5x0.8 |
|
FP-300 |
10 |
0.7 |
300 |
0.8 |
4 |
0.75 |
0.7x0.3x0.6 |
|
FP-400 |
10 |
1.25 |
400 |
0.8 |
6 |
0.75 |
0.6x0.3x0.6 |
|
FP-400 |
16 |
2.0 |
400 |
0.8 |
9 |
0.75 |
0.6x0.3x0.6 |
