Instruction:
The whole automatic hydraulic oil press is the most convenient operable mini oil press with the highest oil rate and least wear spare parts.
The main processing raw material: sesame, walnut kernel, tea seed, almond kernel, peanut, pine nut( dehulled is best), purple perilla, flax etc with high oil content materials.
Advantage
1. Maximum pressing pressure up to 60Mpa
2. Advanced and reliable hydraulic systems power the equipment
3. The maximum capacity can reach 150KH/H
4. Both cold press and hot press are acceptable
5. Continuous intelligent automatic control system is more safe
6. Low-power motors save energy
7. Filtration system make healthier oil .
Capacity:
|
Oil seed |
Time/ one time |
Weight/one time |
The capacity of 10 hours |
Oil rate |
|
sesame |
4-6 minutes |
2-7.5kg |
450-750 kg |
42-52% |
|
Almond |
4-6 minutes |
2-6kg |
350-500 kg |
40-45% |
|
Walnut kernel |
4-6 minutes |
2-6 kg |
350-500 kg |
50-60% |
|
Pine nut |
4-6 minutes |
2-7 kg |
350-500 kg |
45-60% |
Note: The capacity is decided by the proficiency of the worker in some degree, and quality of the oil seed included its drying, purity is necessary for achieving the capacity above.
Main data:
Other model machine
|
Model |
6Y-180 |
6Y-230 |
6Y-300 |
|
Process capacity |
15-30kg/h |
50-80kg/h |
80-120kg/h |
|
Power |
1.5kw(380v/50hz) |
1.5kw(380v/50hz) |
2.2kw(380v/50hz) |
|
Heating collar power |
1kw |
2kw |
2kw |
|
Heating collar temperature control |
70-100℃ |
70-100℃ |
70-100℃ |
|
Nominal pressure |
1600KN |
2200KN |
3000KN |
|
Max pressure in working |
60MPA |
60MPA |
60MPA |
|
Overall size |
800x600x1100mm |
1000x800x1500mm |
1100x1000x2000mm |
|
Weight |
530kg |
880kg |
1320kg |
More picture
Hydraulic oil press 6Y-180
coconut shreds

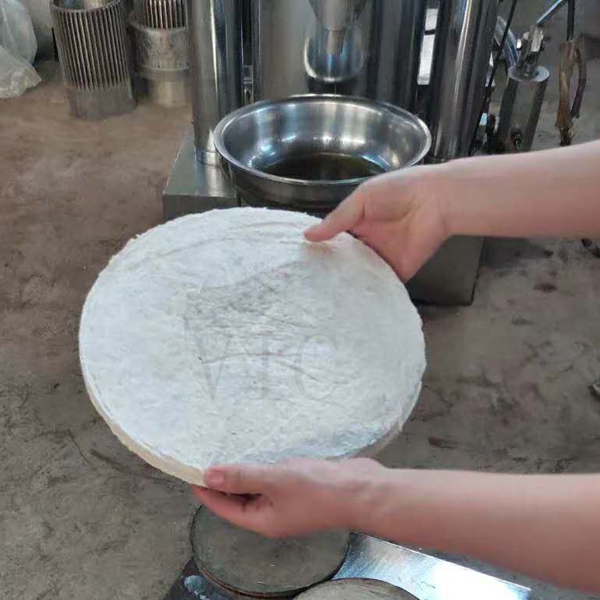

coconut cake after pressing
coconut oil
