- Place of Origin:CN;HEN
- Condition:New
- Automatic Grade:Automatic
- Usage:peanut
- Type:Cold & Hot Pressing and refining Machine
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 Year
- Production Capacity:15T/D
- Brand Name:VIC
- Voltage:380v
- Dimension(L*W*H):30m*12m*15m
- Weight:50T
- Certification:ISO,CE

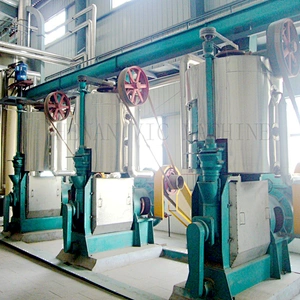

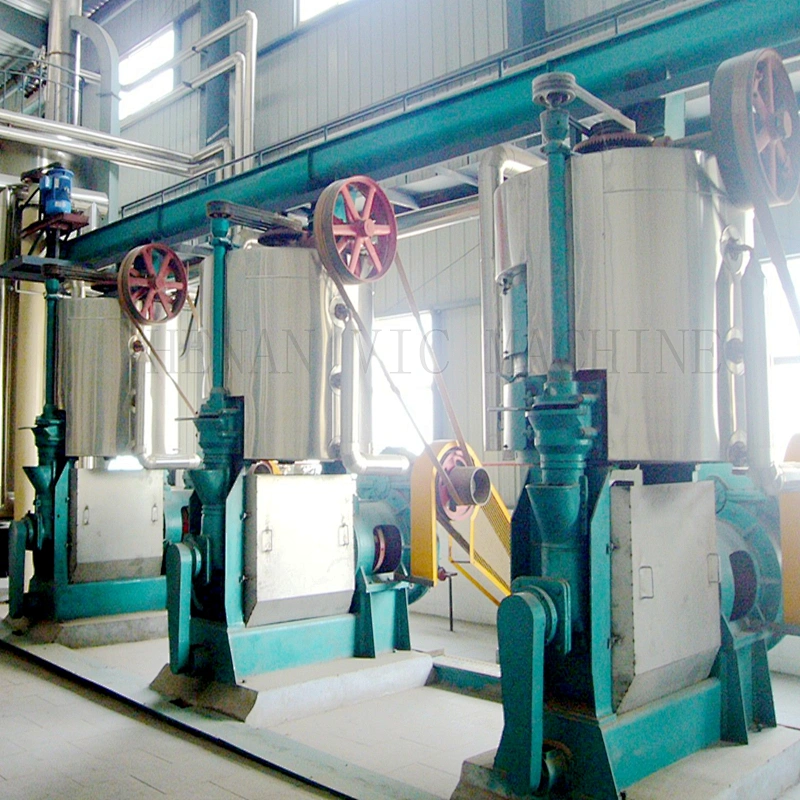

General flow chart of peanut oil pressing plant workshop
Peanutdehulling→Peanut kernel→
Cleaning→ Flaking →Cooking →Pressing →Crude Oil → (to tank to refinery)
↓
Pressed Cake → (to make pellet for feedstuff)
Main machine:
| No | Equipment Name | Qty |
| 1 | Peanut sheller | 1 |
| 2 | Bucket elevator | 1 |
| 3 | Cleaning screen | 1 |
| 4 | De-stoner | 1 |
| 5 | Dust collector | 1 |
| 6 | Bucket elevator | 3 |
| 7 | Crushing machine | 1 |
| 8 | Flaking machine | 1 |
| 9 | Steam-cooking pot | 1 |
| 10 | Screw conveyor | 1 |
| 11 | Screw oil press | 1 |
| 12 | Vibrating filter | 1 |
| 13 | Steam distributor | 1 |
| 14 | Electricity & Control | 1 |

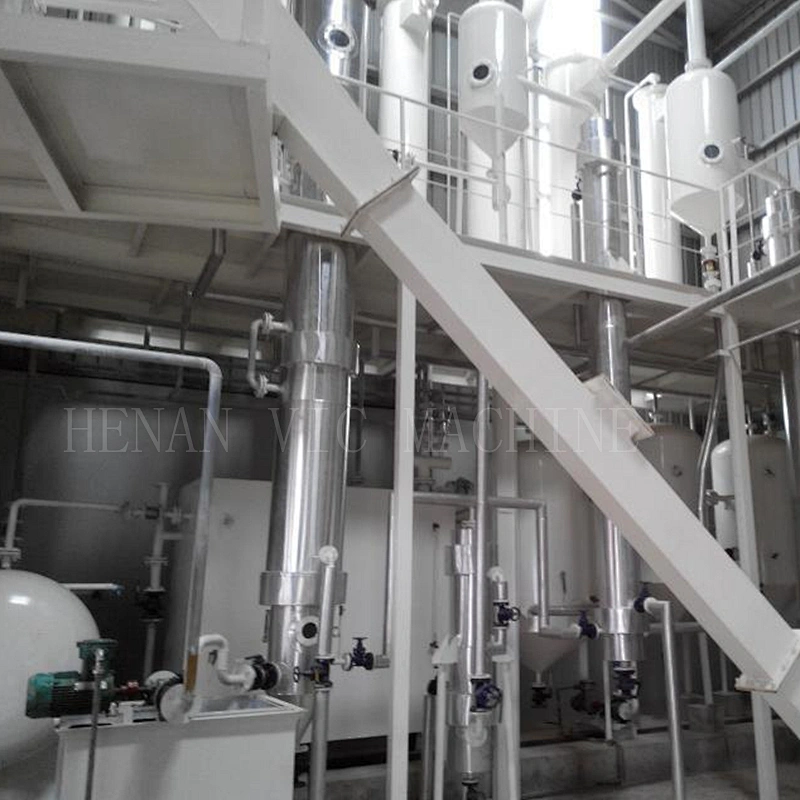

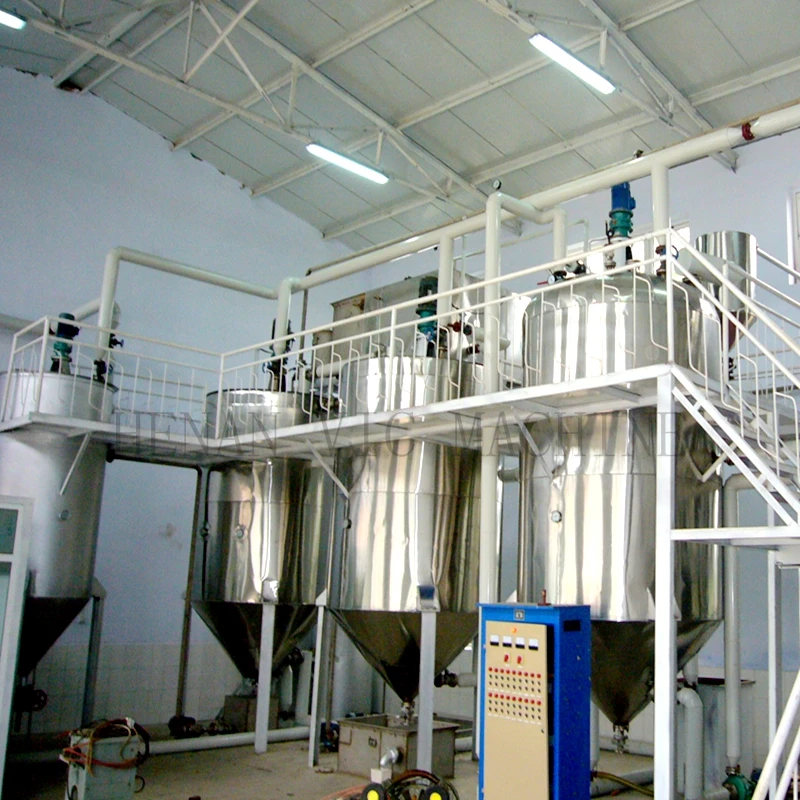

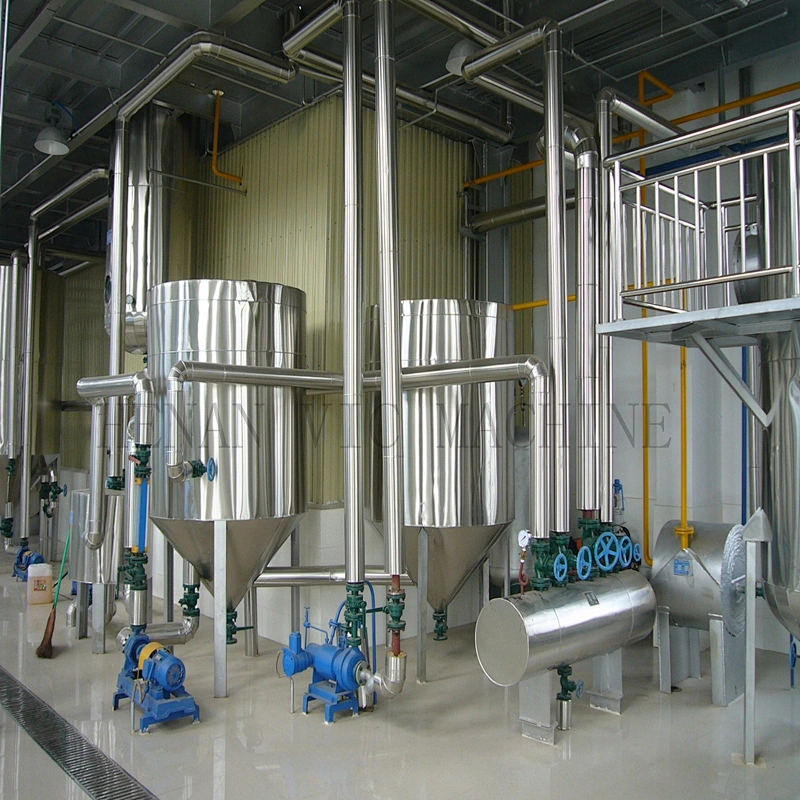

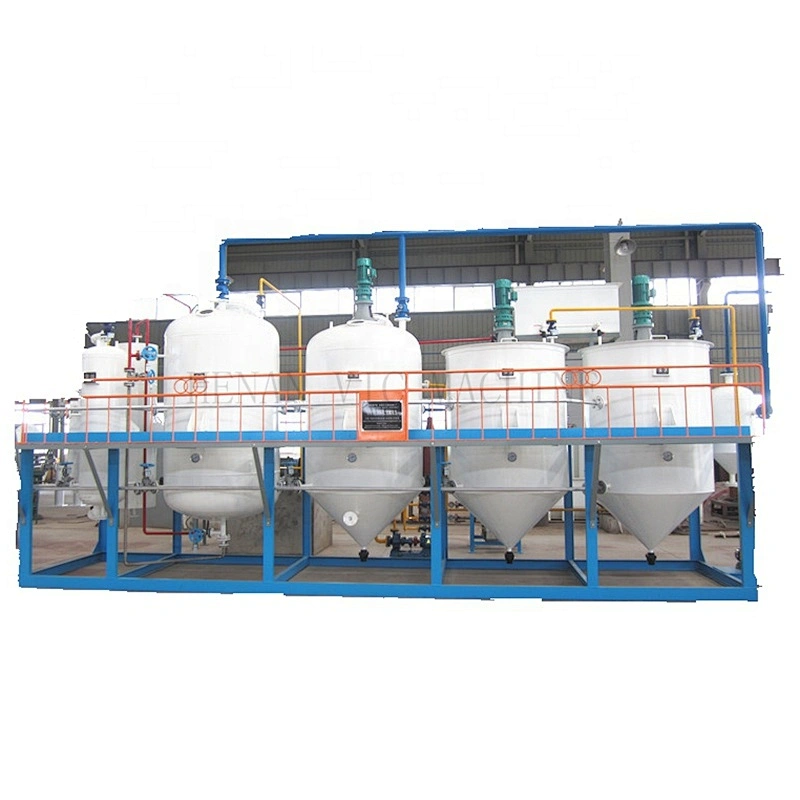

General flow chart of peanut oil refinery plant workshop
Crude oil–filtering–neutralizing-degumming-decolorizing-deodorizing-cooling -final oil
main machine:
| No. | Name | Qty |
| 1 | Decolorizer | 1 |
| 2 | Leaf vibrating filter | 1 |
| 4 | Steam superheater | 1 |
| 5 | Safety filter | 2 |
| 6 | Deordorizer | 1 |
| 7 | Fatty acid collector | 1 |
| 8 | Cooler | 1 |
| 9 | Polishing filter | 2 |
Introduction of main equipment:
Neutralization pot: For acid refining, alkali refining and water washing.
Decolorization pot: Bleach oil and remove pigment.
Deodorization pot: Remove odor of oil(Made of stainless steel).
Heat conduction oil furnace: Provide heat energy for production,the temperature can reach 280°C.
Vacuum pump: Provide vacuum degree for decolorization and deodorization,up to above 755mgHg.
Air compressor: Dry decolorization bleaching clay.
Filter press: Filter bleaching clay.
Steam generator: Provide steam for deodorization & distillation
Specification: 3T/D
General description of main machines
1.Refinery vessel---------Used to neutralizing, and water washing, to rid off the acid.
2.Decoloring vessel---------Used to get rid of the oil color
3.Deodorizing vessel-------Used to get rid off the smell of oil.
4.Boiler-----It’s used to supply for the heats required to the line, it could make the temperature up to 280 degrees.
5.Steam separator-----Separate the steams to oil refiner, decolorer, deodorizer, hot water tank, etc.
6.Press filter---------Used to filter the the decolored oil.
7.Water pump-----Used to pump cool water into water tank.
More pictures
We can do the complete oil production plant processing from Pre-pressing workshop to Solvent extraction workshop to Oil refinery workshop to Final oil bottling workshop. The raw materials are sunflower seeds, soybean, rapeseeds, olive, palm kernal, coconut, jatropha, cottonseeds, rice bran, corn embyro etc.
All the equipment we design, delivery, export, installation and after sale service whole life.
The whole turn key project processing capacity we can do from 1T/D to 500T/D, pls inform us the raw mateirals and processing capacity when inquiry, we can offer the whole project accordingly.
oil product:
Oil quality parameters
| Item | Quality Index | |
| Grade 1 | Grade 2 | |
| Color(color slot 133.4mm)≤ | Y15 R1.5 | Y25 R2.5 |
| Odor/Flavor | Good flavor and taste | Good flavor and taste |
| Transparency | Clear, transparent | Clear, transparent |
| Moisture and volatile matter(%)≤ | 0.05 | 0.05 |
| Insoluble impurities(%)≤ | 0.05 | 0.05 |
| Acid value ( mgKOH/g ) ≤ | 0.20 | 0.30 |
| Peroxide value ( mmol/kg ) ≤ | 5.0 | 5.0 |
| Smoke point(degree)≥ | 215 | 205 |
| Refrigeration test (store for 5.5h at 0 degree) | Clear, transparent | __ |
For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
