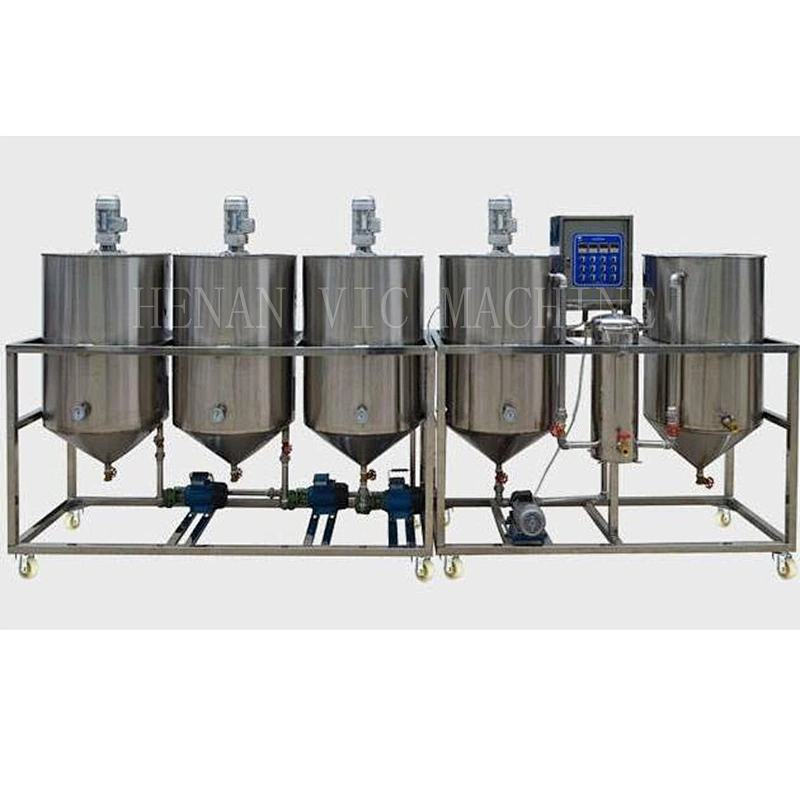

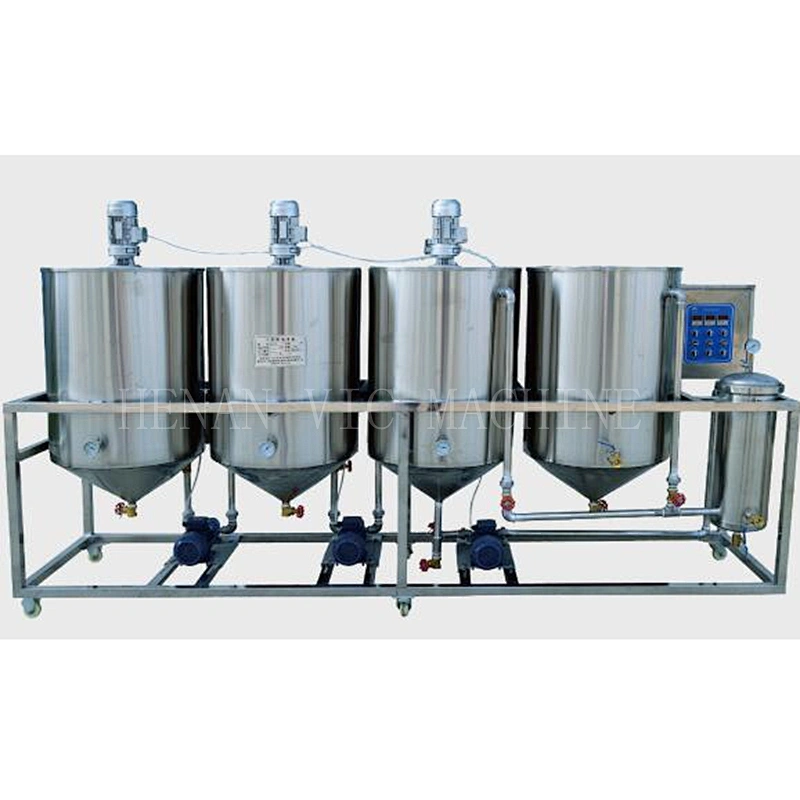

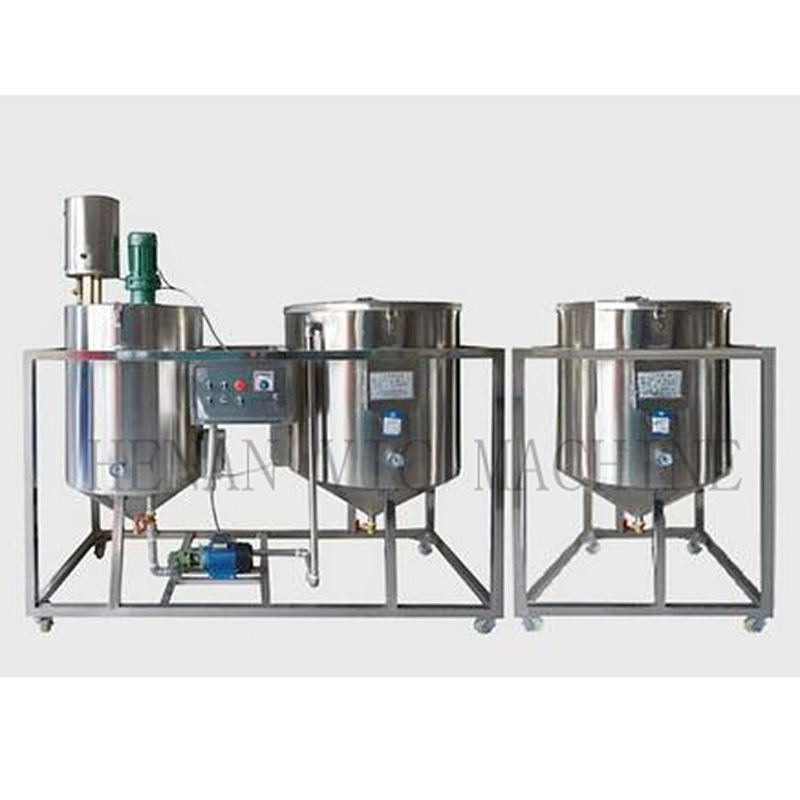

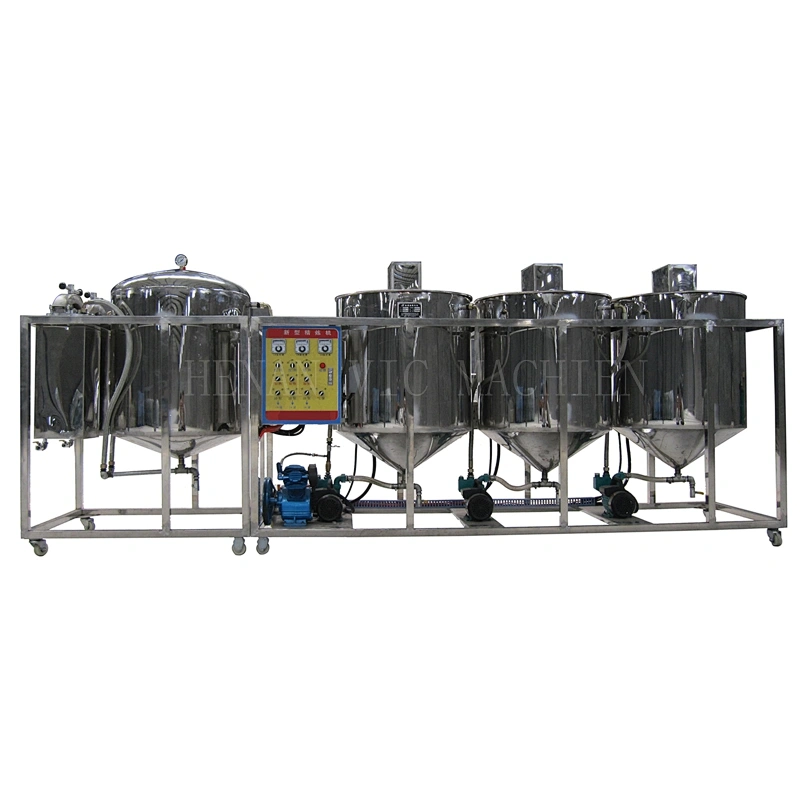

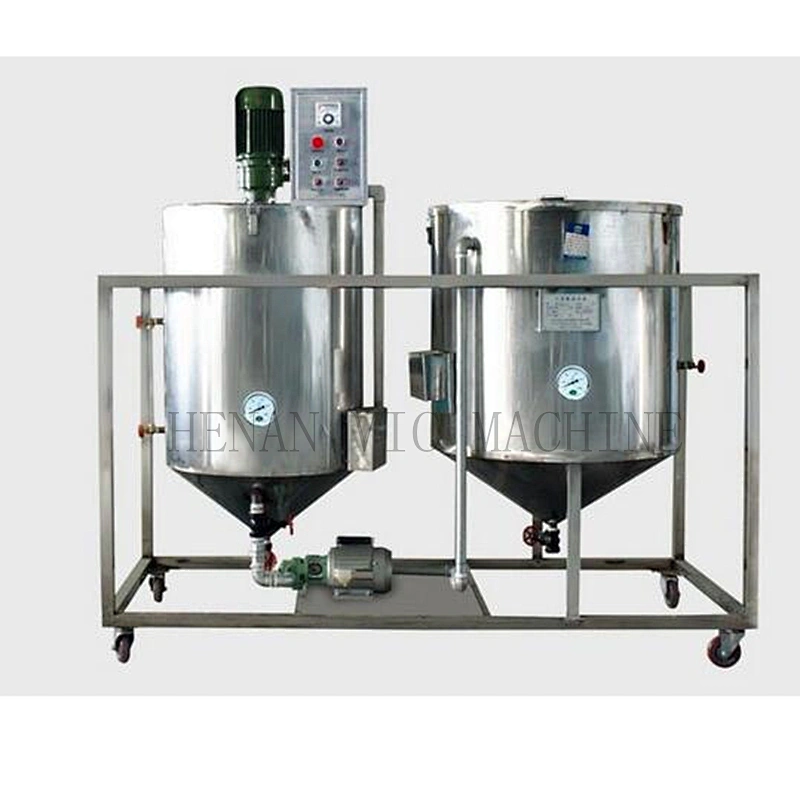

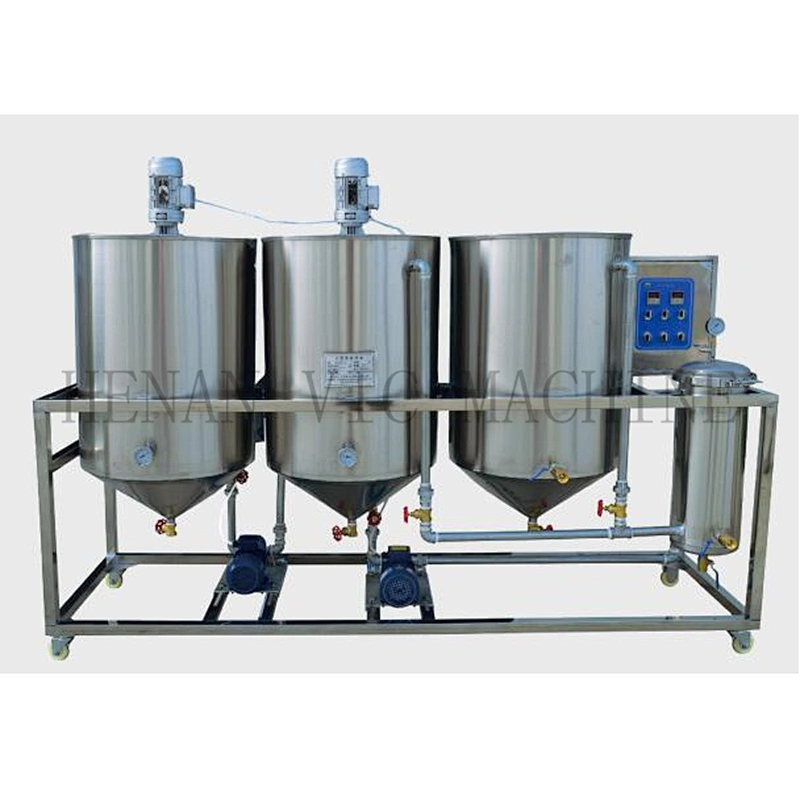

Mini crude oil refinery plant

• Applicable Industries:Manufacturing Plant
• Condition:New
• Usage:Sunflower Oil
• Automatic Grade:Automatic
• Place of Origin:CN
• After-sales Service Provided:Free spare parts
• After-sales Service Provided:Video technical support
• After-sales Service Provided:Online support
• Warranty:1 Year
• Applicable Industries:oil shop
• Type:oil refinery plant
• Production Capacity:98%
• Brand Name:VIC
• Voltage:220V/380V
• Dimension(L*W*H):3.15x0.83x1.65m
• Weight:300kg
• Certification:CE ISO
• Applicable Industries:Food & Beverage Factory
• Applicable Industries:Farms
• Applicable Industries:Restaurant
• Applicable Industries:Home Use
• Applicable Industries:Food Shop
• Applicable Industries:Food & Beverage Shops

Small crude oil refinery plant

Introduction:

oil refinery machine is consists of three parts:degumming pot,decoloring pot and hositing system. oil refinery machine for sale with automatic temperature control device to keep temperature and pressure. oil refinery machine is the best choice for oil processing factory.

Uniqueadvantage:

1.Work continuity, machine reasonable design, compact cohesion, midway don't need to stop.
2.Work efficiency, increase the air pressure tank, powerful, oil processing speed is fast.
3.Product effect is good, oil clear and bright, no phosphorus precipitation, the pot doesn't foam.
4.Simple and convenient operation, button only after operation, no cumbersome manual operation.

Technicial parameter of small crude oil refinery:

More picture:

VIC-50A picture:

1, stirring Motor, 2, stirring tank, 3, frame, 4, oil pump inlet valve 5, dumping valves, 6, moving wheel,

7, filtering tank return pipe, 8, gear oil pump, 9, 3-way valve, 10, air pump, 11, refined oil inlet pipe,

12, refined oil outlet valve, 13, refined oil tank, 14, control panel 15, exhaust valve,16, filtering tank,

17, pressure gauge 18, inlet air valve, 19, safety relief valve, 20, product identification

VIC-75B picture:

1,1# stirring Motor, 2, 1#stirring tank, 3,2#stirring tank, 4, frame,5.1#tank oil outlet valve 6, dumping valves, 7, moving wheel, 8, 1#stirring tank oil pump 9. dumping valves ,10,2#tank oil outlet valve,

11,pipe to 2# tank 12,filtering tank inlet pipe, 13, 2#stirring tank oil pump,14 ,3-way valve, 15, air pump, 16, refined oil outlet valve, 17, refined oil inlet pipe, 18, control panel 19, exhaust valve, 20, refined oil tank, 21, filtering tank, 22, pressure gauge 23, inlet air valve, 24, 2# stirring Motor,25, safety relief valve, 26, product identification

VIC-75C picture:

1,1# stirring Motor, 2, 1#stirring tank, 3,1#stirring tank dumping valve, 4, moving wheel,5.1#tank oil outlet valve 6, 1#stirring tank oil pump, 7,2#stirring tank dumping valve, 8,2#tank oil outlet valve 9, 2#stirring tank oil pump,10, control panel ,11,3#stirring tank dumping valve 12, 3#tank oil outlet valve 13,filtering tank inlet pipe, 14 , 1#stirring tank oil pump, 15, air pump, 16, 3-way valve,17,refined oil outlet valve, 18, refined oil inlet pipe, 19, refined oil tank, 20,exhaust valve, 21, pressure gauge,22, inlet air valve,23, 3# stirring Motor, 24, 3# stirring motor,25,2#filtering tank, 26, 2# stirring Motor,27, safety relief valve, 28,3#tank control panel,29, filtering tank inlet pipe,30, product identification

Other machine picture

Application scope of small scale crude oil refinery:

Refining crude oil : soybean oil, mustard seed oil, cottonseed oil, sunflower seed oil,

peanut oil, rice bran oil, safflower seed oil, corn germ oil, camellia seed oil, etc.

Steps and process:

1.First step:It is to purify the oil and remove the waste in the oil first time.

2.Scond step:It is to purify the oil and remove the waste again to make oil more clean.

3.Third step:It is to remove the bad smelling of the oil, so to make the oil better and no smelling.

4.Oil filter:It is to fil the oil to make purified oil arrive good quality oil, and can meet people edible need.

Compared oil before and after:

Package :

FAQ:

1.How does the machine fit our voltage?

before shipping the machine ,our sales will confirm with the customers abt the voltage.

2.When will you ship the machine?

normaly 15-20 working days .

3.How can i buy this machine?

first talk all machine details with our sales person, then talked abt the pice, after confirming the prices.

you can choose the payment terms TT/Escrow/Western Union/Paypal etc.

then you arrange deposit, after gettting the deposit, we produce the machine.

last, packing and shipping the machine for you.

4. How can I operate machine? is htere any manual instruction?

Yes, we will offer the manual instruction together with the machine. and there will be details for ur operation.
