The oil press with automatic loading and unloading is customized according to customer requirements to prepare packaging

13/05/2021

Application:

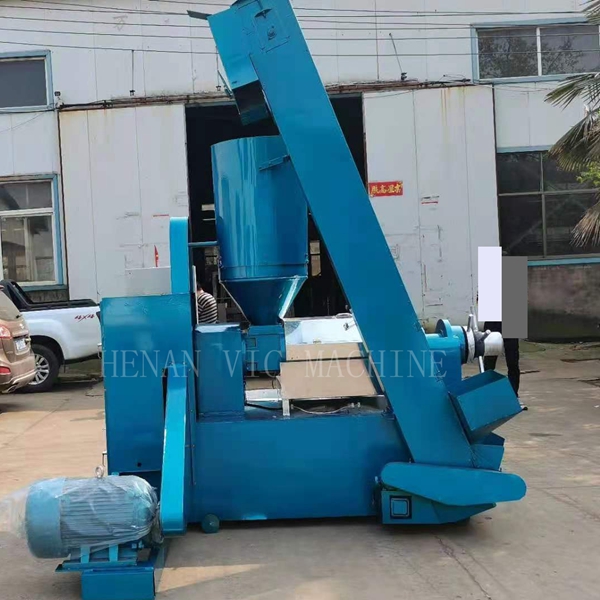

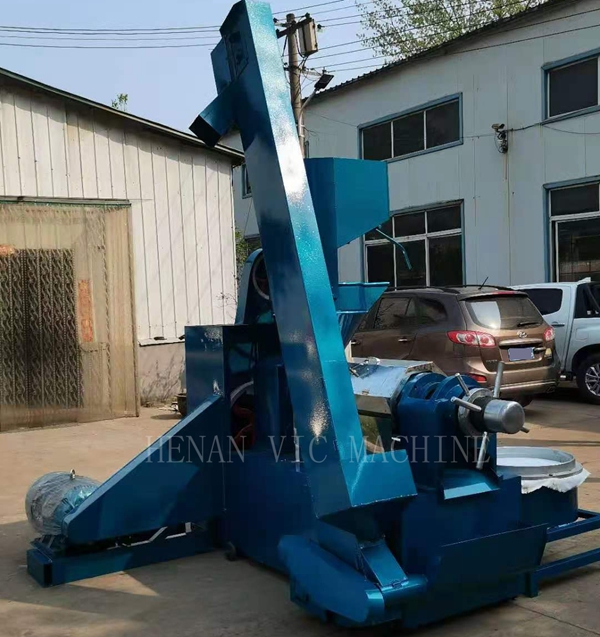

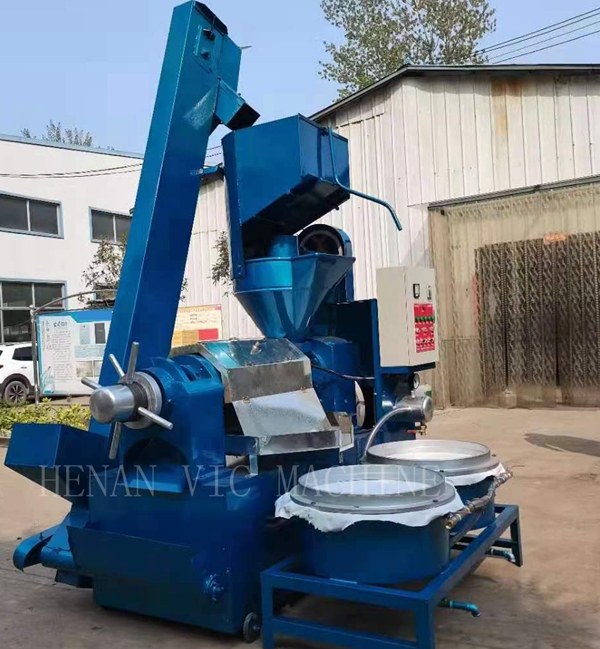

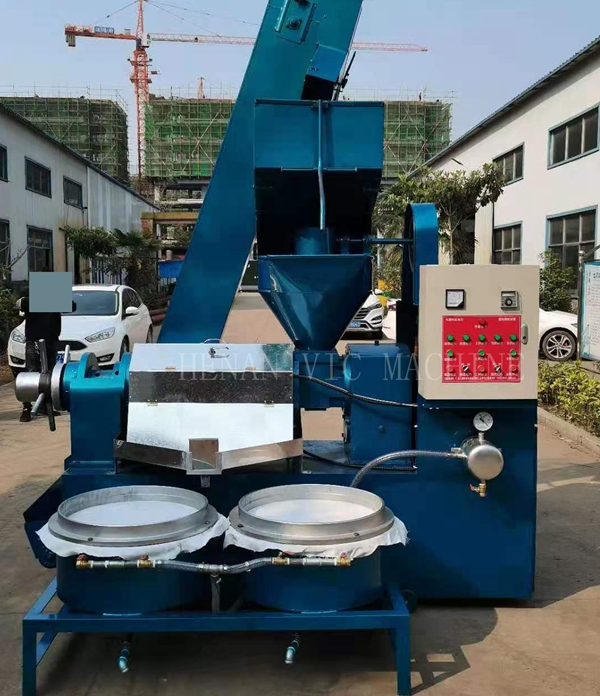

6YL-160TF auto conveying oilpress is produced according to customer's requirement about pressing and conveying combined together. This equipment can match with different model screw oil press, it can transport different oilseeds such as rapeseeds, peanut, soybean, sunflowerseeds, teaseeds etc , also can save labor and time with easy operation, the oil seeds is with high oil output rate and high quality oil, its especially suitable for continuous working of small and medium oil factory.

Flow chart:
Feeding materials--- materials into oilpress---filtering---final product
Technical data:

Model Capacity
(kg/h)		 Power(kw) Size(mm) Weight(KG)
6YL-80TF 100-150 5.5kw+0.75kw 1600x1100x1500 600
6YL-100TF 200-250 7.5kw+0.75kw 1970x1375x1700 1200
6YL-120TF 300-350 11kw+1.1kw 2150x1500x1800 1750
6YL-160TF 400-500 18.5kw+1.5kw 2350x1650x1930 2100
