- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Warranty:1 YEAR
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Energy saving
- Place of Origin:CN;HEN
- Production Capacity:15-30kg/h
- Brand Name:VIC
- Voltage:380v
- Dimension(L*W*H):1000x800x1500mm
- Weight:800kg

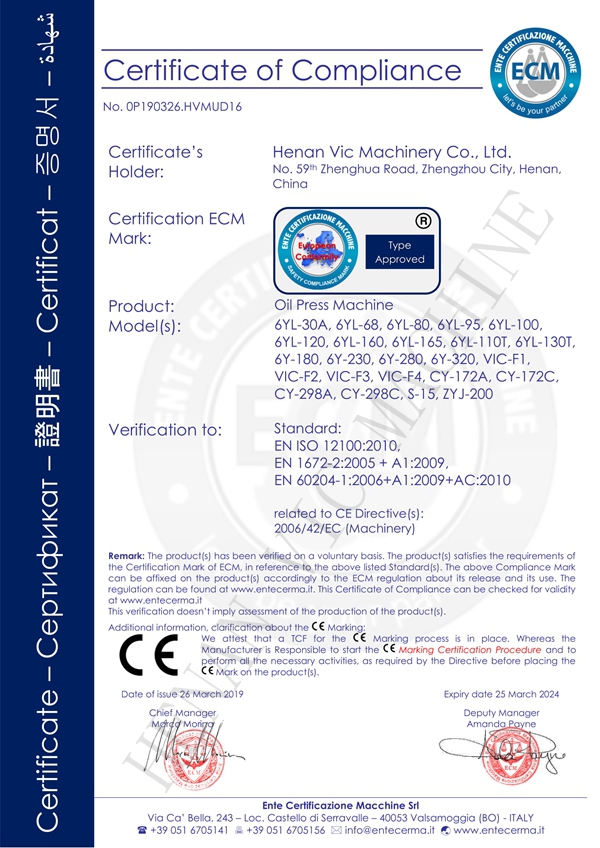

- Certification:CE, ISO
- Usage:Moringa,Sesame Oil
- After-sales Service Provided:Overseas third-party support available
- Raw material:moringa,olive,
Applying scope:
The whole automatic hydraulic oil press is the most convenient operable mini oil press with the highest oil rate and least wear spare parts.
The main processing raw material: sesame, walnut kernel, tea seed, almond kernel, peanut, pine nut( dehulled is best), purple perilla, flax etc with high oil content materials.
Capacity:
Oil seed | Time/ one time | Weight/one time | The capacity of 10 hours | Oil rate |
sesame | 4-6 minutes | 2-7.5kg | 450-750 kg | 42-52% |
Almond | 4-6 minutes | 2-6kg | 350-500 kg | 40-45% |
Walnut kernel | 4-6 minutes | 2-6 kg | 350-500 kg | 50-60% |
Pine nut | 4-6 minutes | 2-7 kg | 350-500 kg | 45-60% |
Note: The capacity is decided by the proficiency of the worker in some degree, and quality of the oil seed included its drying, purity is necessary for achieving the capacity above.
Main data:
Other model machine
Model | 6Y-180 | 6Y-230 | 6Y-300 |
Process capacity | 15-30kg/h | 50-80kg/h | 80-120kg/h |
Power | 1.5kw(380v/50hz) | 1.5kw(380v/50hz) | 2.2kw(380v/50hz) |
Heating collar power | 1kw | 2kw | 2kw |
Heating collar temperature control | 70-100℃ | 70-100℃ | 70-100℃ |
Nominal pressure | 1600KN | 2200KN | 3000KN |
Max pressure in working | 60MPA | 60MPA | 60MPA |
Overall size | 800x600x1100mm | 1000x800x1500mm | 1100x1000x2000mm |
Weight | 530kg | 880kg | 1320kg |

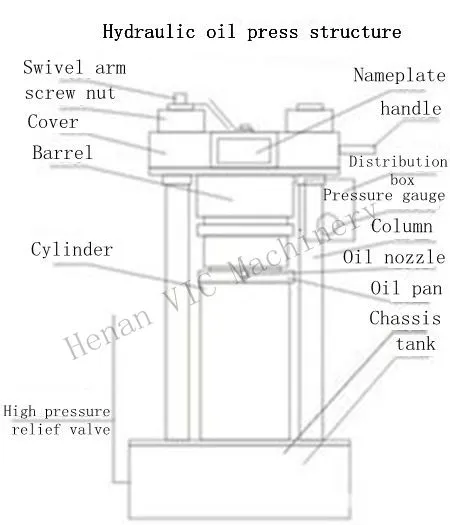

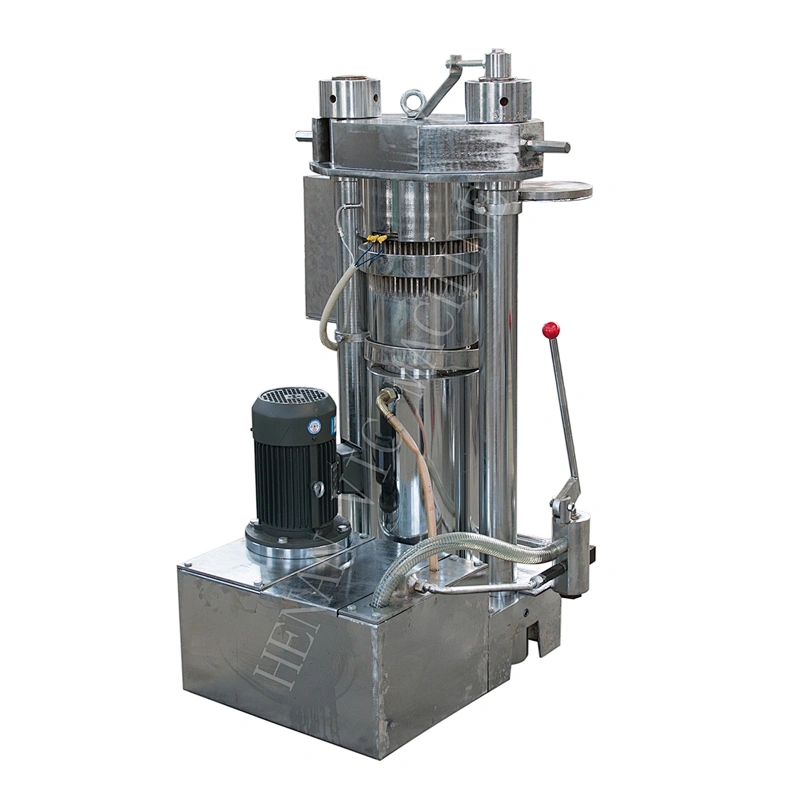

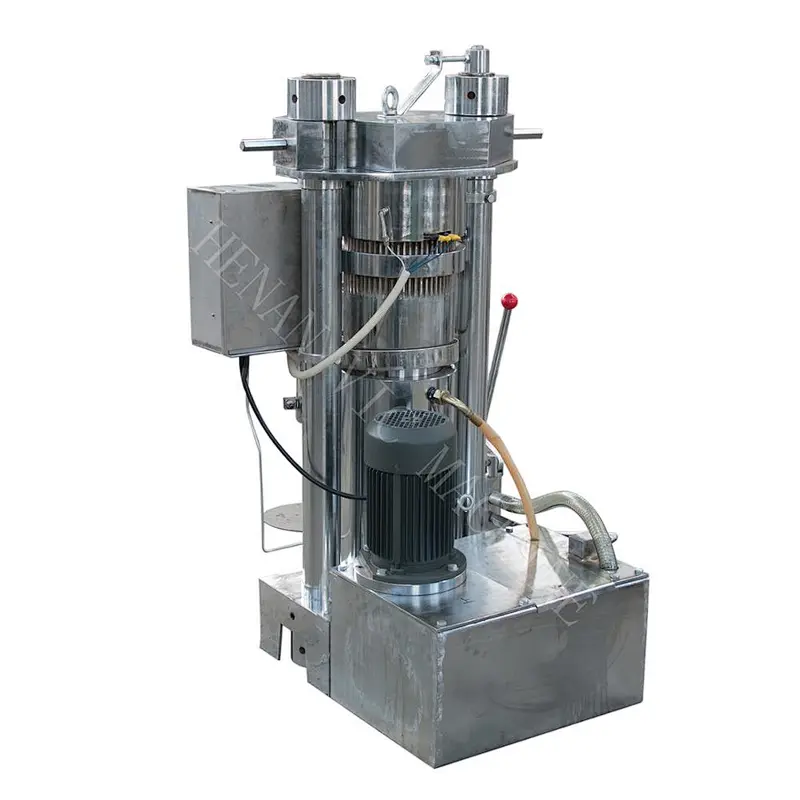

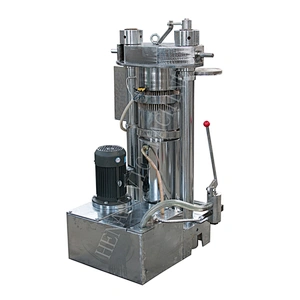

Main structure of the hydraulic oil press:

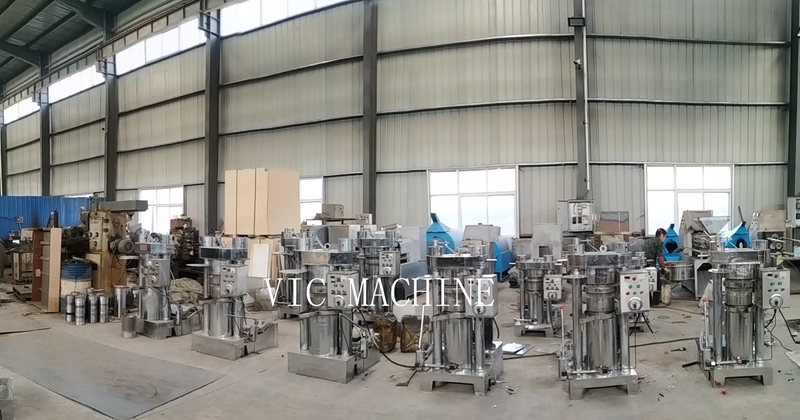

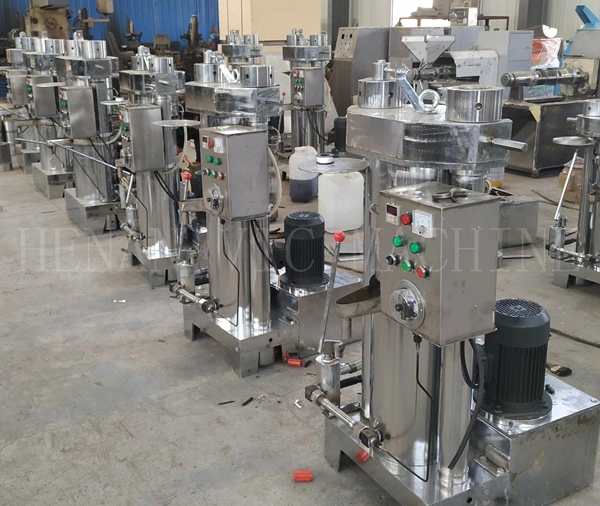

Workshop corner view

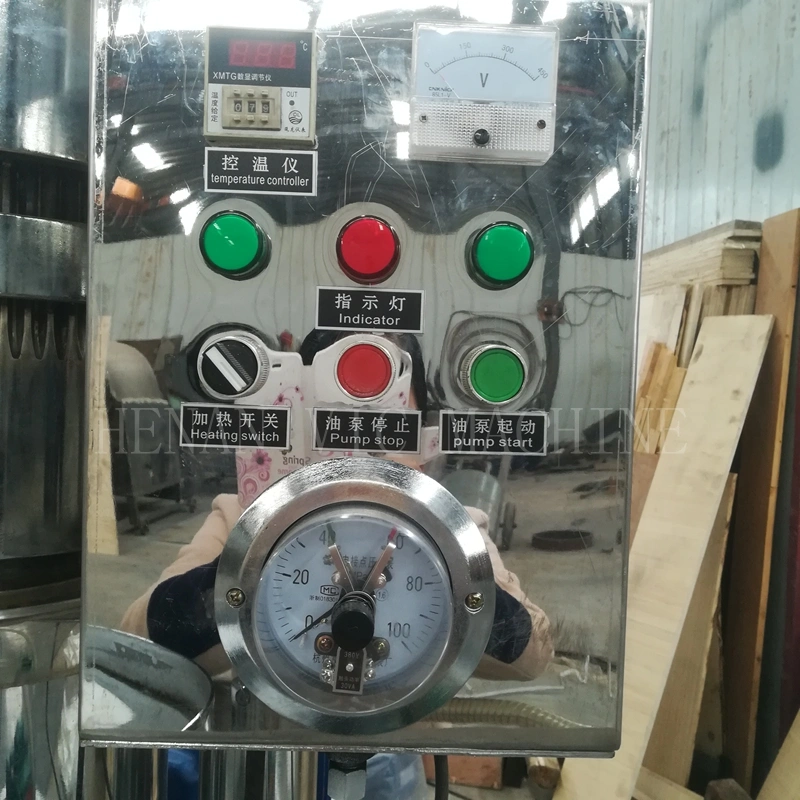

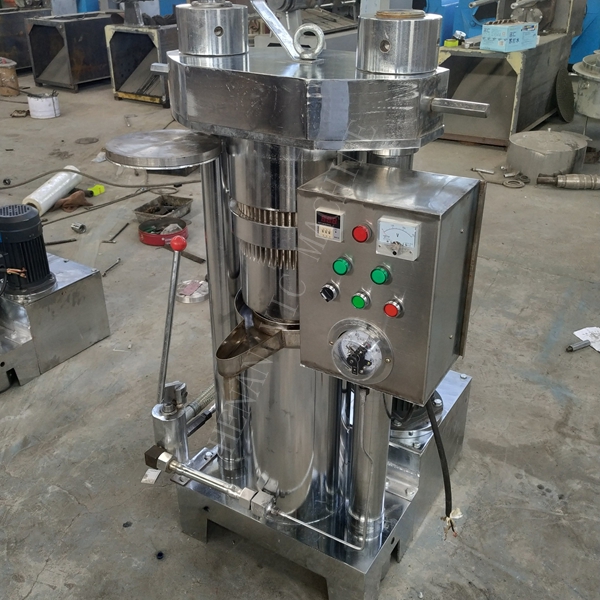

Easy to operate control system with pressure gage working to 60 mpa

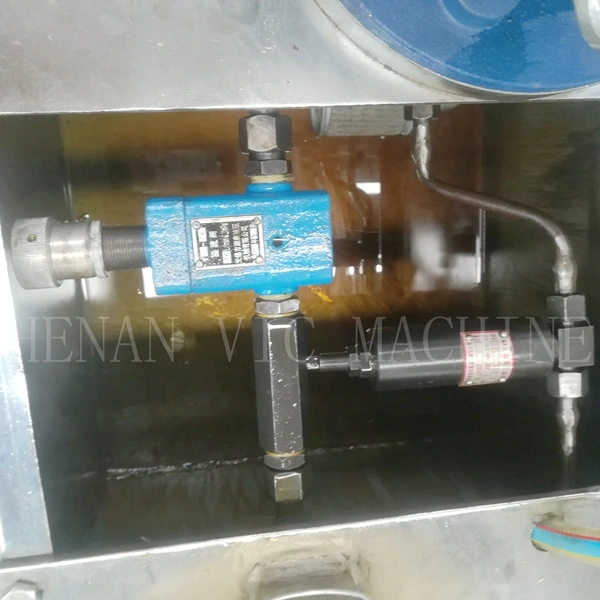

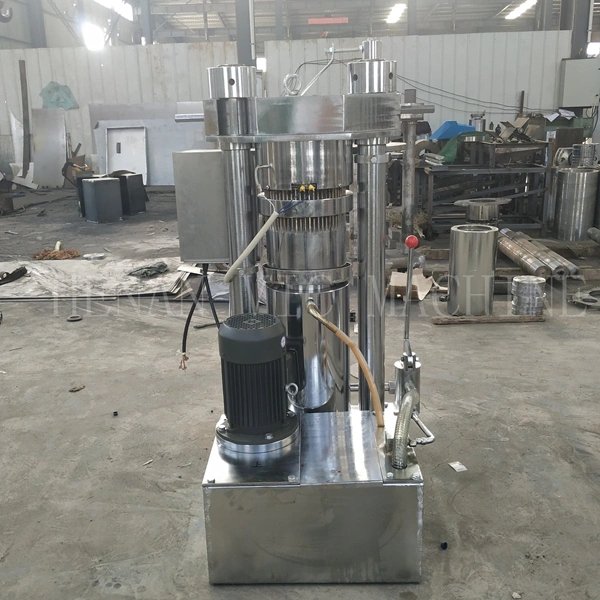

Reliable and stable hydraulic system

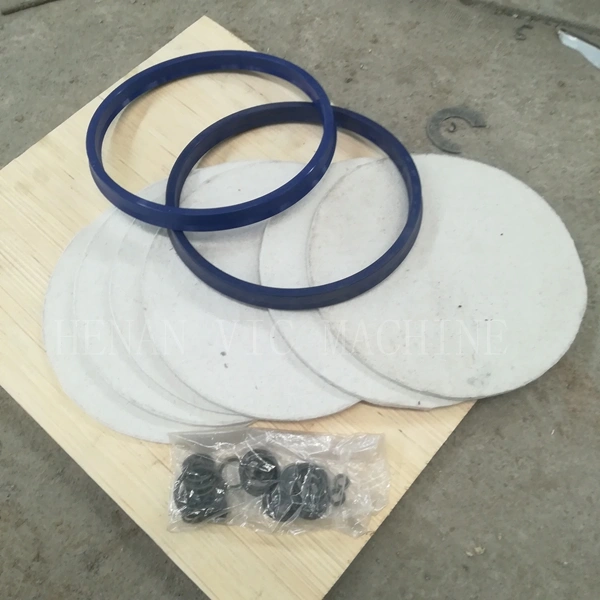

Sealing ring and filter pad

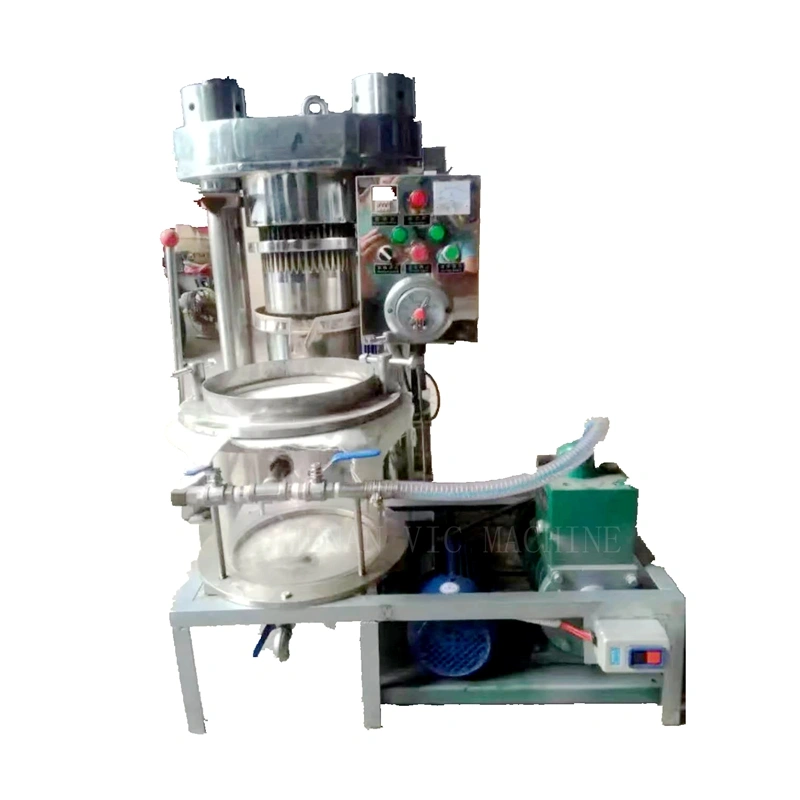

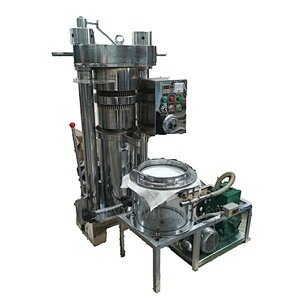

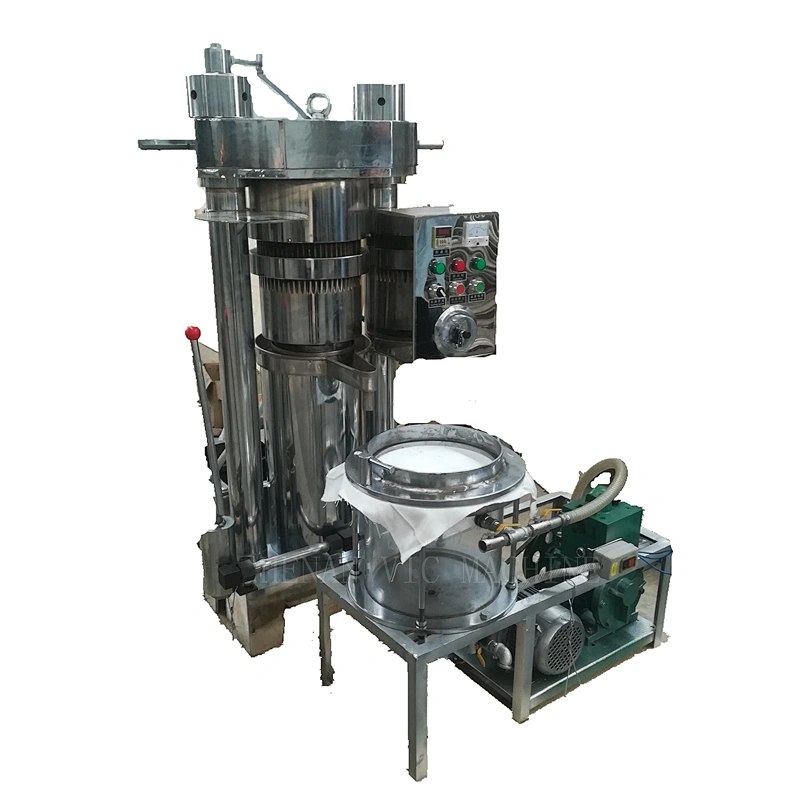

6Y-180 -1 With filter
Package:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Final oil:
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
