- Raw material:moringa,olive,
- Name:oil pressers
- Function:Press Oil Seeds
- Application:Edible Oil Press
- Product name:cooking oil
- Advantage:Energy Saving
- Material:Stainess Steel
- Keyword:Mini Oil Expeller
- Feature:High Oil Yield Efficiency
- Capacity:15-30kg/h
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Usage:Moringa,Sesame Oil
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Warranty:1 YEAR
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Multifunctional
- Marketing Type:Hot Product 2019
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 YEAR
- Core Components:Motor
- Core Components:Gearbox
- Place of Origin:CN;HEN
- Production Capacity:15-30kg/h
- Brand Name:VIC
- Voltage:380v
- Dimension(L*W*H):800x600x1100mm
- Weight:530kg

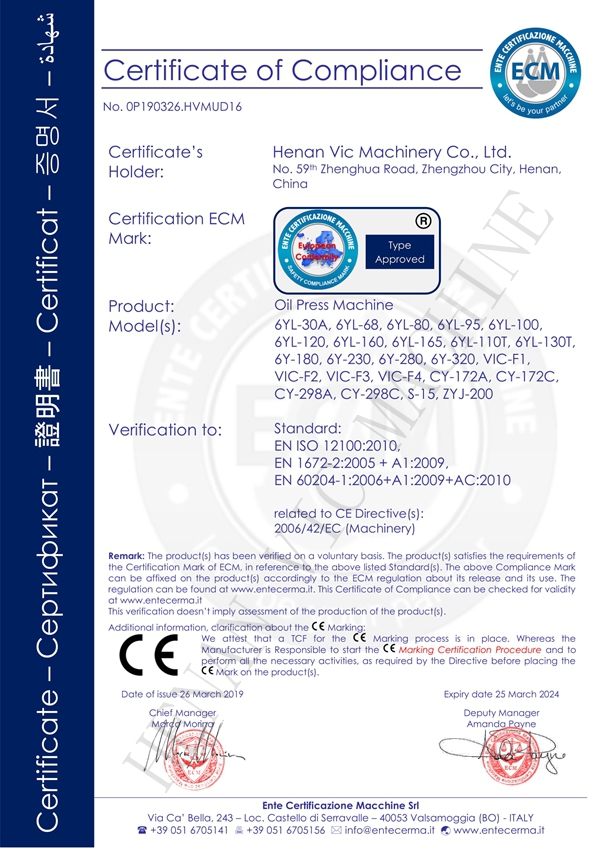

- Certification:CE, ISO
Applying scope:
The whole automatic hydraulic oil press machine is the most convenient operable mini oil press with the highest oil rate and least wear spare parts.
The main processing raw material: sesame, walnut kernel, tea seed, almond kernel, peanut, pine nut( dehulled is best), purple perilla, flax etc with high oil content materials.
Advantage about the sesame hydraullic oil press machine
1.Maximum pressing pressure up to 60Mpa
2.Advanced and reliable hydraulic systems power the equipment
3.The maximum capacity can reach 150KH/H
4.Both cold press and hot press are acceptable
5.Continuous intelligent automatic control system is more safe
6.Low-power motors save energy
7.Filtration system make healthier oil .
Capacity:
Oil seed | Time/ one time | Weight/one time | The capacity of 10 hours | Oil rate |
sesame | 4-6 minutes | 2-7.5kg | 450-750 kg | 42-52% |
Almond | 4-6 minutes | 2-6kg | 350-500 kg | 40-45% |
Walnut kernel | 4-6 minutes | 2-6 kg | 350-500 kg | 50-60% |
Pine nut | 4-6 minutes | 2-7 kg | 350-500 kg | 45-60% |
Note: The capacity is decided by the proficiency of the worker in some degree, and quality of the oil seed included its drying, purity is necessary for achieving the capacity above.
Main data:
Model | 6Y-180 | 6Y-230 | 6Y-300 |
Process capacity | 15-30kg/h | 50-80kg/h | 80-120kg/h |
Power | 1.5kw(380v/50hz) | 1.5kw(380v/50hz) | 2.2kw(380v/50hz) |
Heating collar power | 1kw | 2kw | 2kw |
Heating collar temperature control | 70-100℃ | 70-100℃ | 70-100℃ |
Nominal pressure | 1600KN | 2200KN | 3000KN |
Max pressure in working | 60MPA | 60MPA | 60MPA |
Overall size | 800x600x1100mm | 1000x800x1500mm | 1100x1000x2000mm |
Weight | 530kg | 880kg | 1320kg |

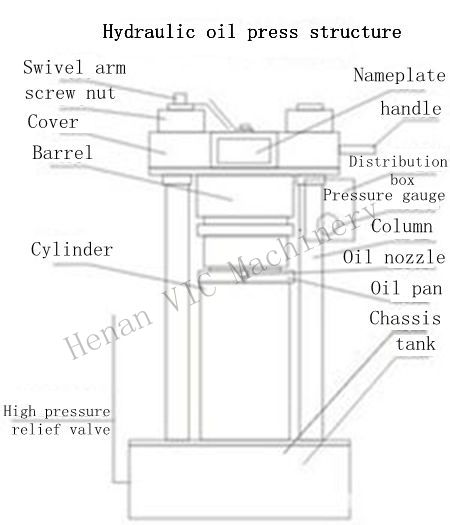

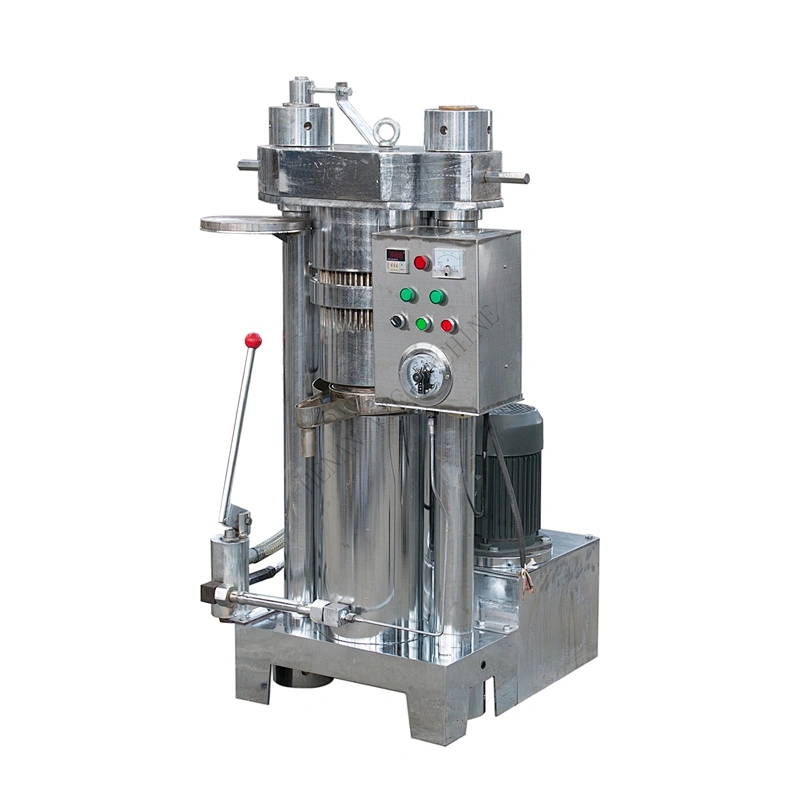

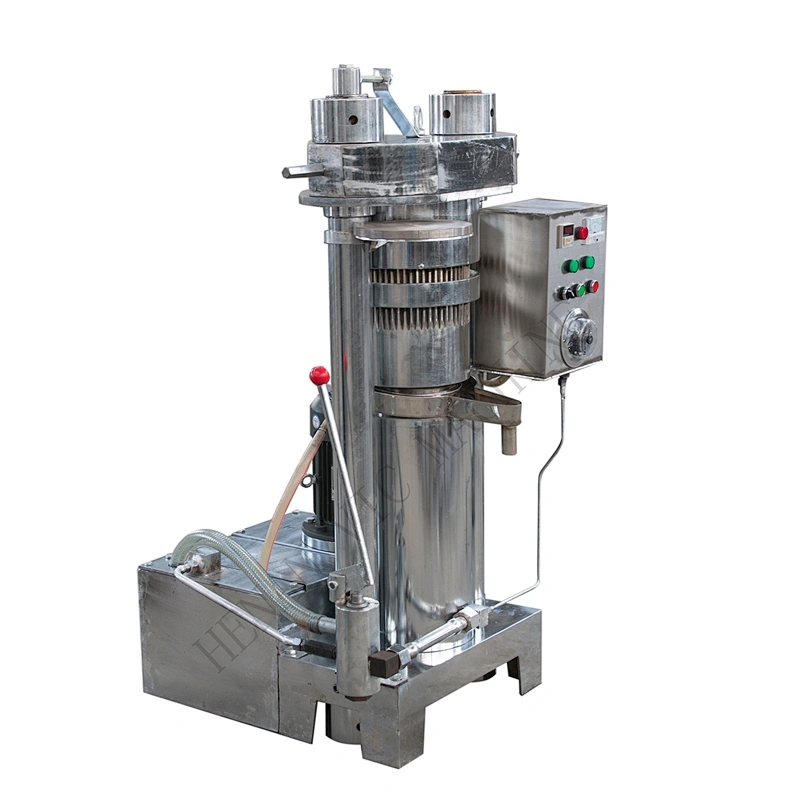

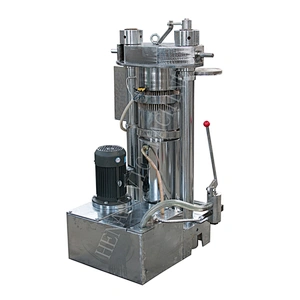

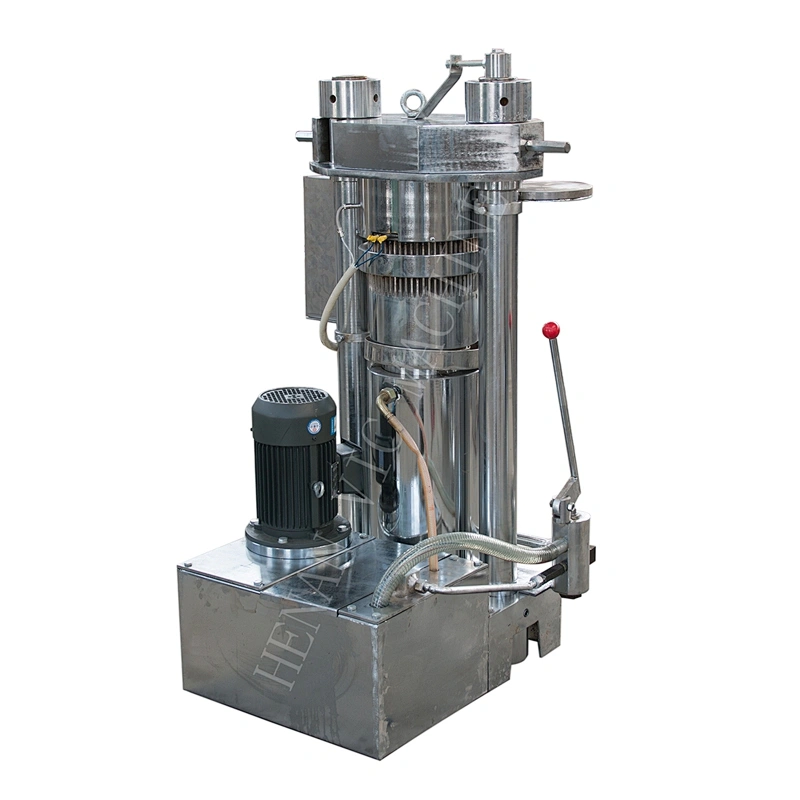

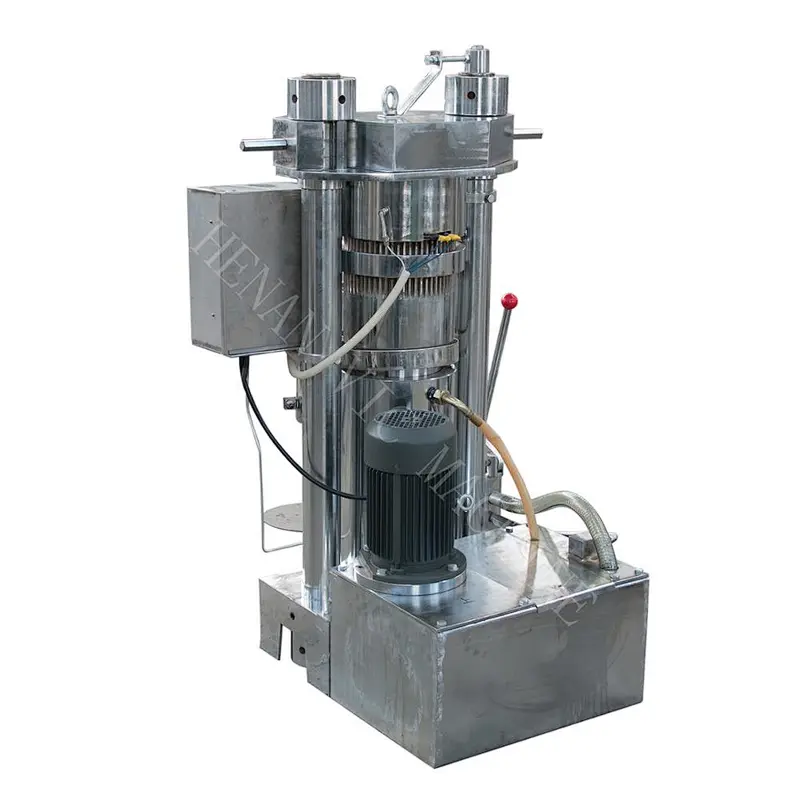

Main structure of the hydraulic oil press:

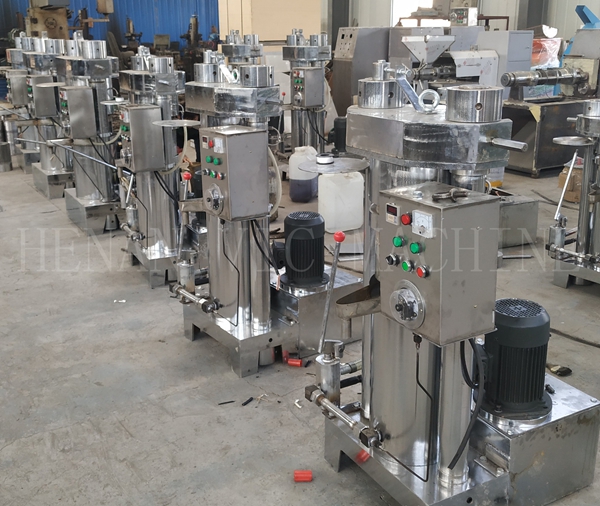

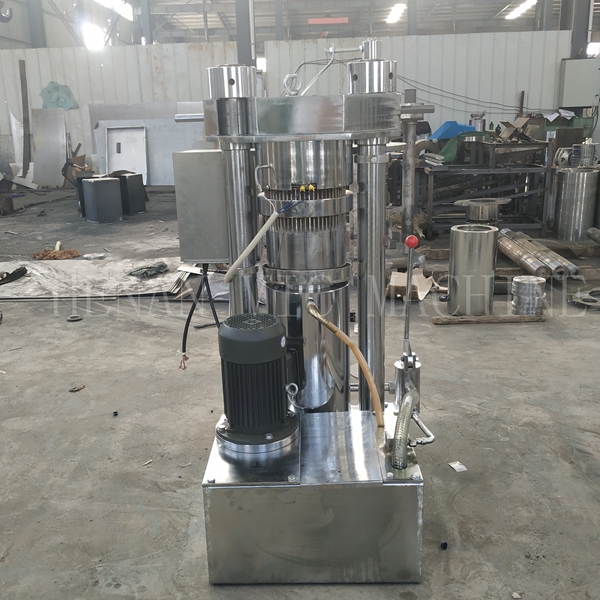

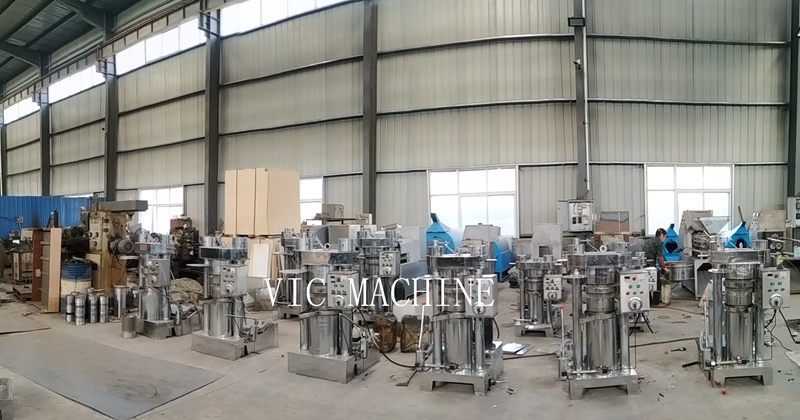

Workshop corner view

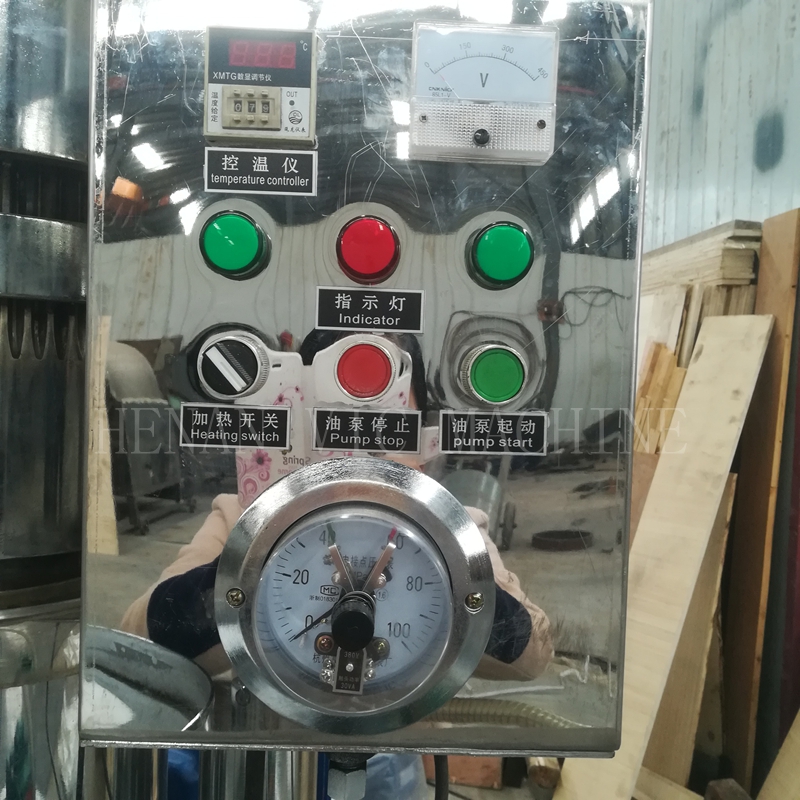

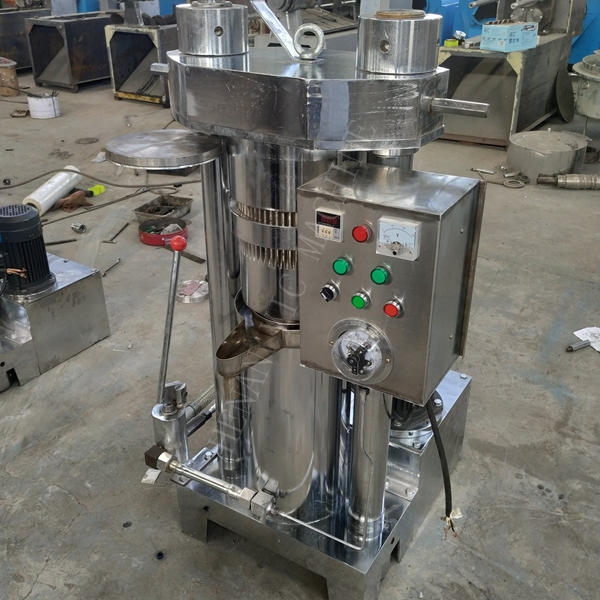

Easy to operate control system with pressure gage working to 60 mpa

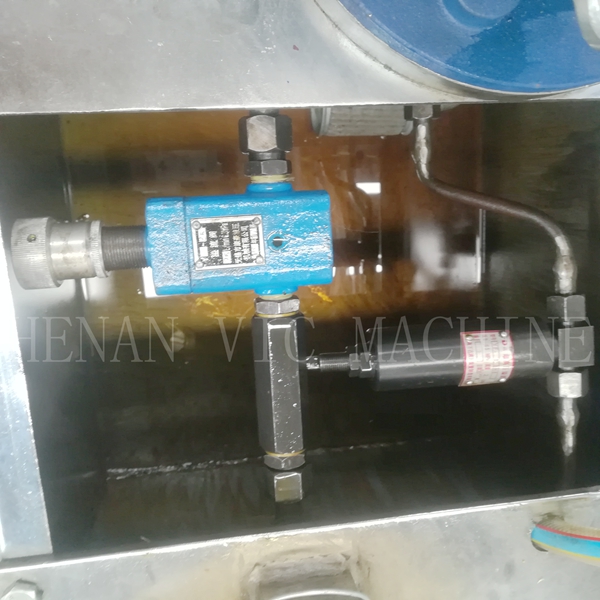

Reliable and stable hydraulic system

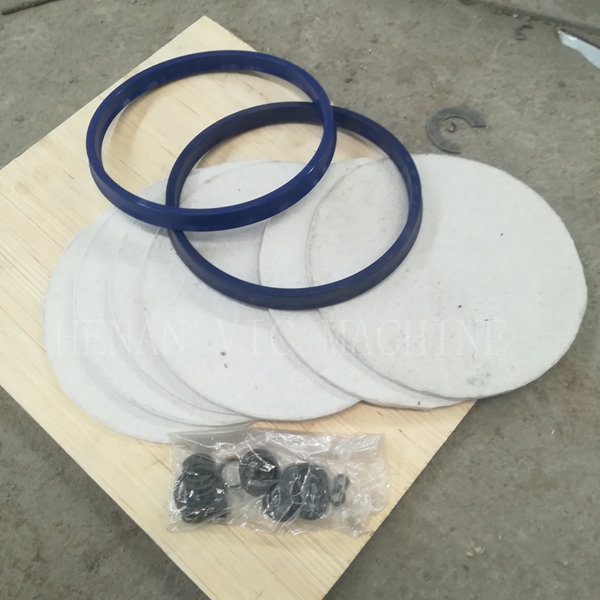

Sealing ring and filter pad

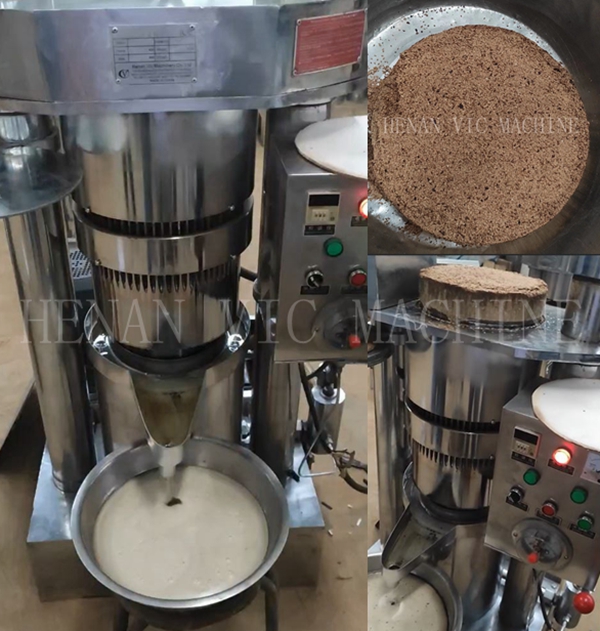

Sesame cold oil pressing
coconut oil pressing

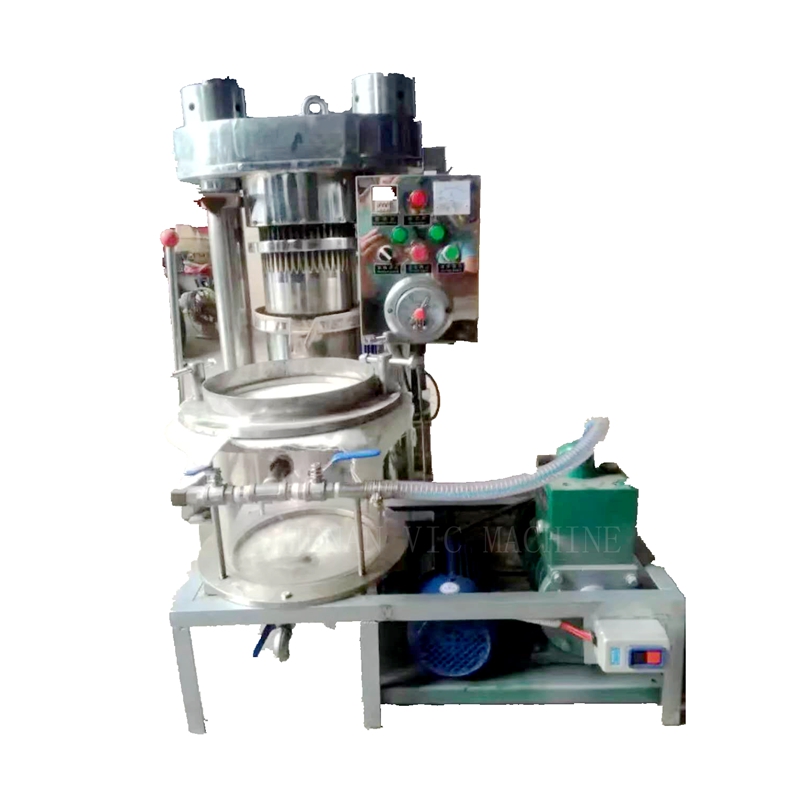

6Y-180 -1 With filter
Package:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Final oil:

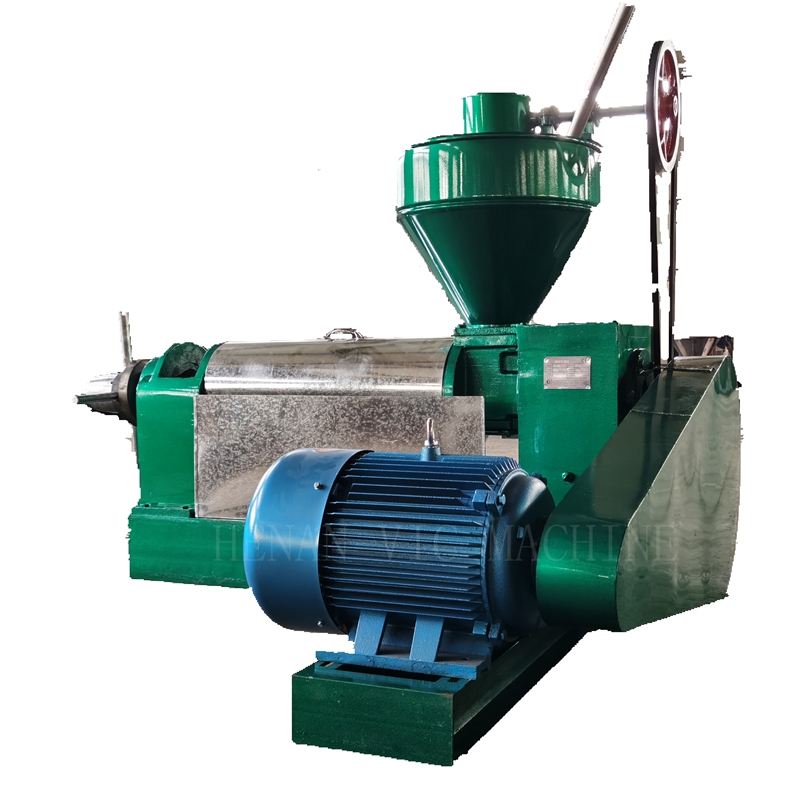

Other screw oil press 6YL-130

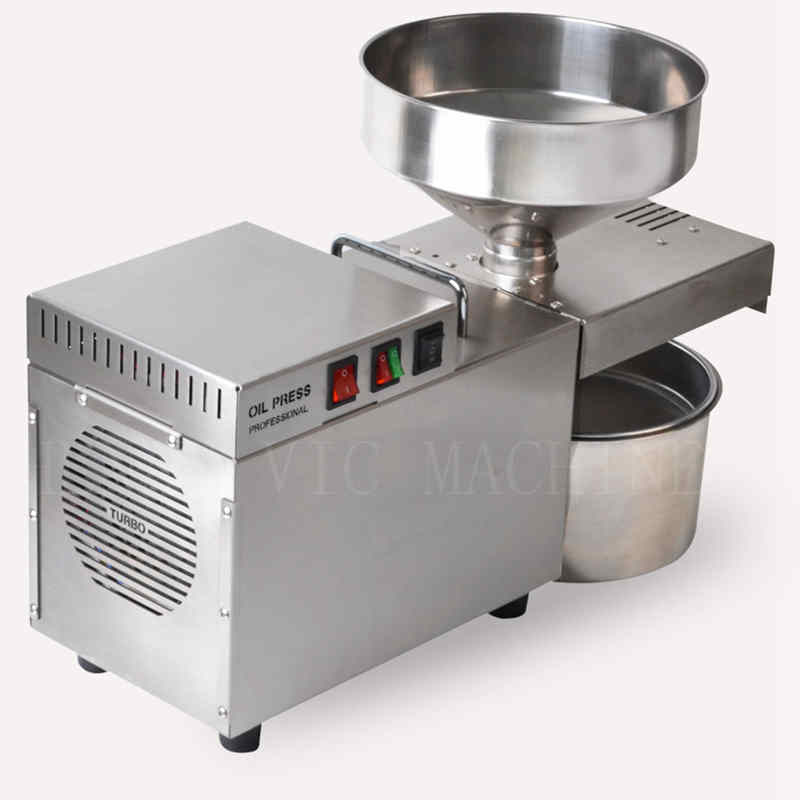

Mini oil press s10
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
