- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Usage:Sesame Oil
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Place of Origin:CN;HEN
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 Year
- Production Capacity:40kg/h for oil seeds
- Brand Name:VIC
- Voltage:220v
- Dimension(L*W*H):530x530x1030mm
- Weight:300
- Certification:CE, ISO
Applying scope:

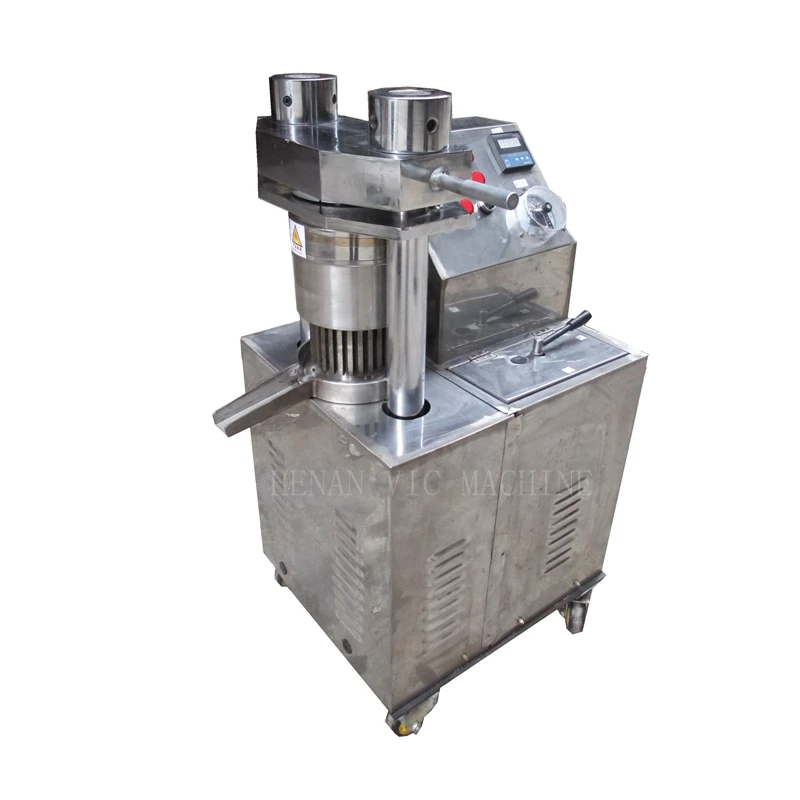

The whole automatic hydraulic oil press is the most convenient operable mini oil press with the highest oil rate and least wear spare parts.
The main processing raw material: sesame, walnut kernel, tea seed, almond kernel, peanut, pine nut( dehulled is best), purple perilla, flax etc with high oil content materials.
Capacity:
Oil seed | Time/ one time | Weight/one time | The capacity of 10 hours | Oil rate |
sesame | 4-6 minutes | 2-7.5kg | 450-750 kg | 42-52% |
Almond | 4-6 minutes | 2-6kg | 350-500 kg | 40-45% |
Walnut kernel | 4-6 minutes | 2-6 kg | 350-500 kg | 50-60% |
Pine nut | 4-6 minutes | 2-7 kg | 350-500 kg | 45-60% |
Note: The capacity is decided by the proficiency of the worker in some degree, and quality of the oil seed included its drying, purity is necessary for achieving the capacity above.
Main data:
| Model | 6Y-20 hydraulic oil press |
| Capacity | 20kg/h for oil seeds |
| Power | 1.5kw (220v/50hz) |
| Heating part | 700w (220v/50hz) |
| Pressing chamber dia | inner( 125mm), outer( 145mm), height: 250mm |
| Hydro-cylinder dia | inner( 160mm), outer(196mm), stroke: 250mm |
| Fix pressure | low 10MPA, high 40MPA |
| Total pressure | 70-80t |
| Size | 530x 530x1030mm |
| Weight | 310kg |

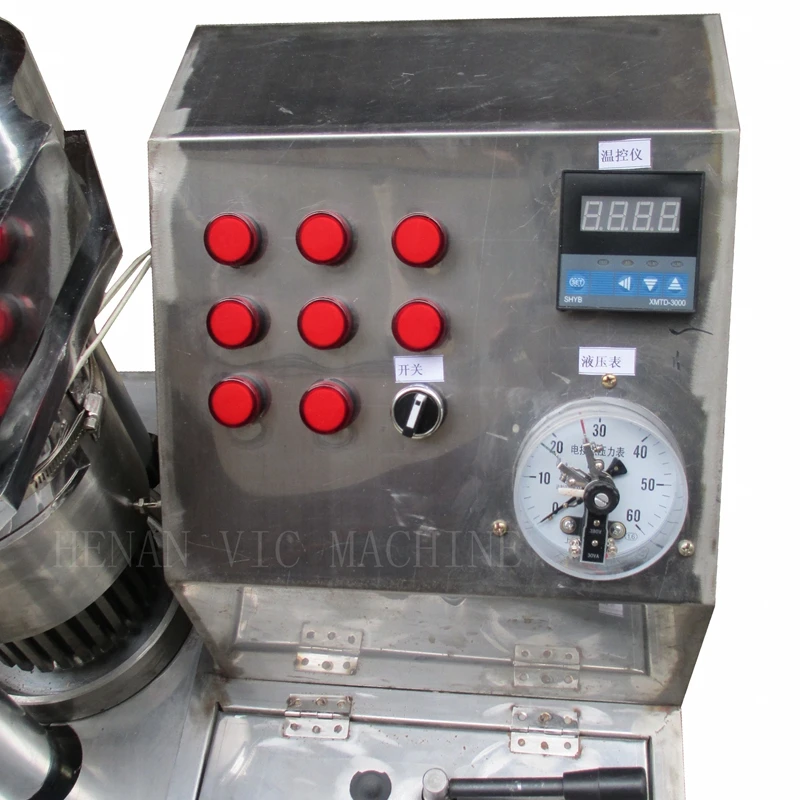

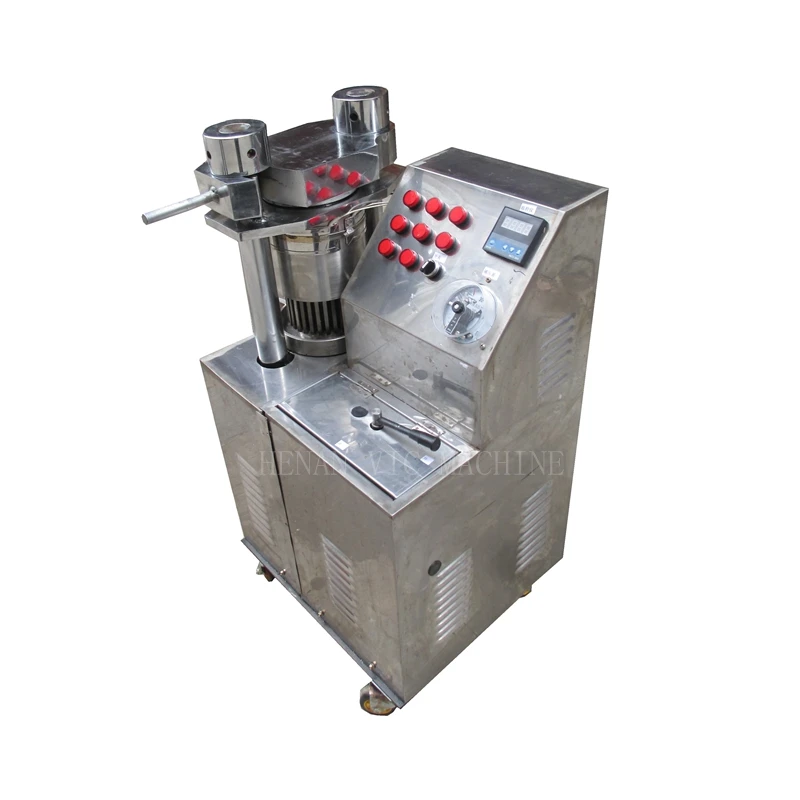

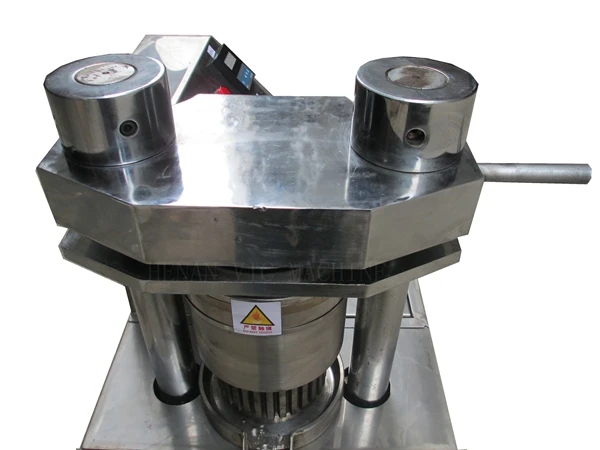

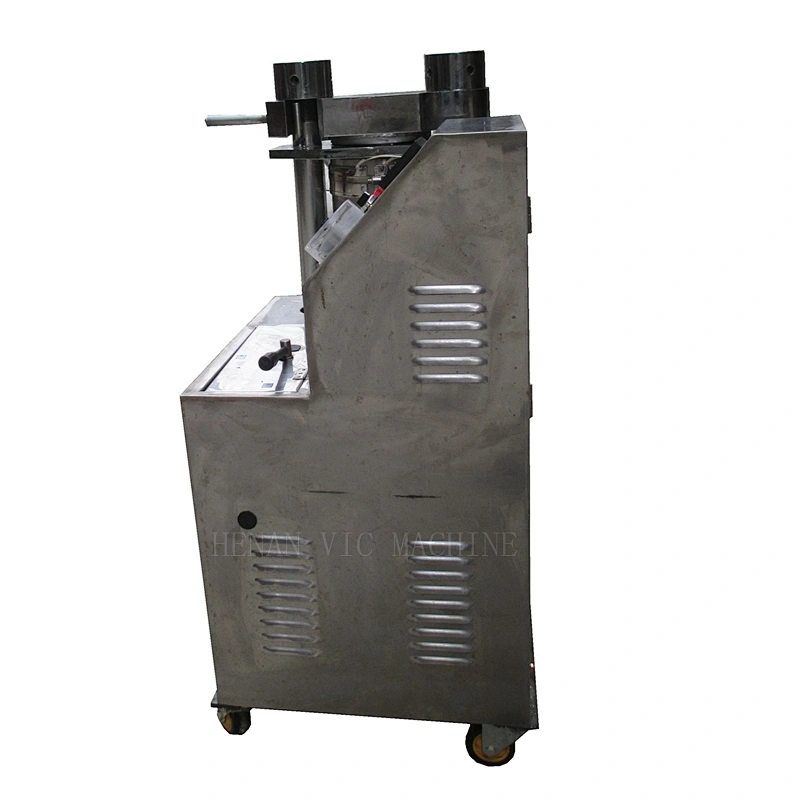

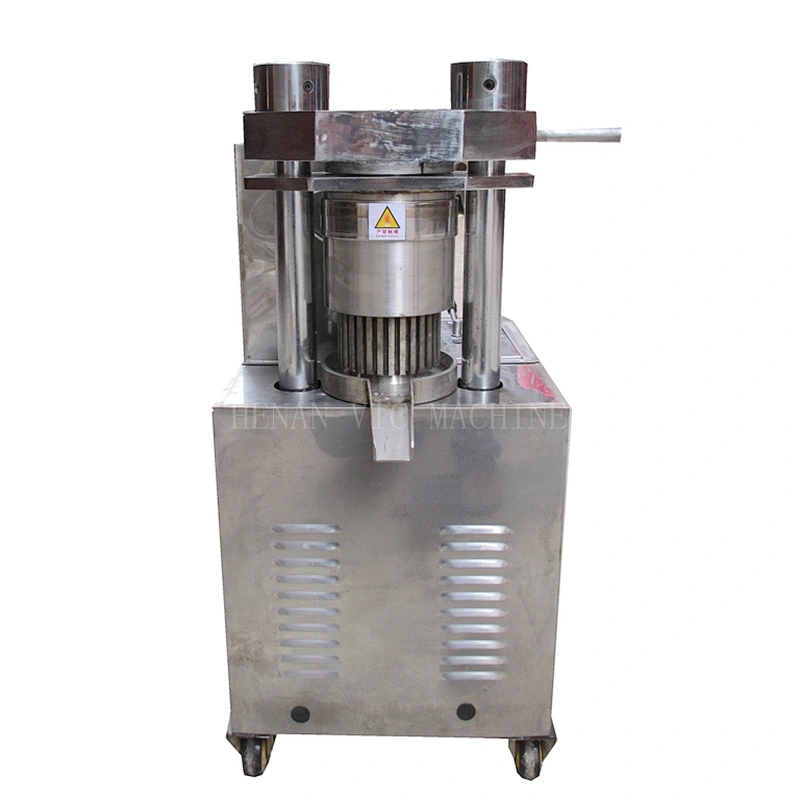

More picture:
Final oil
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
.
