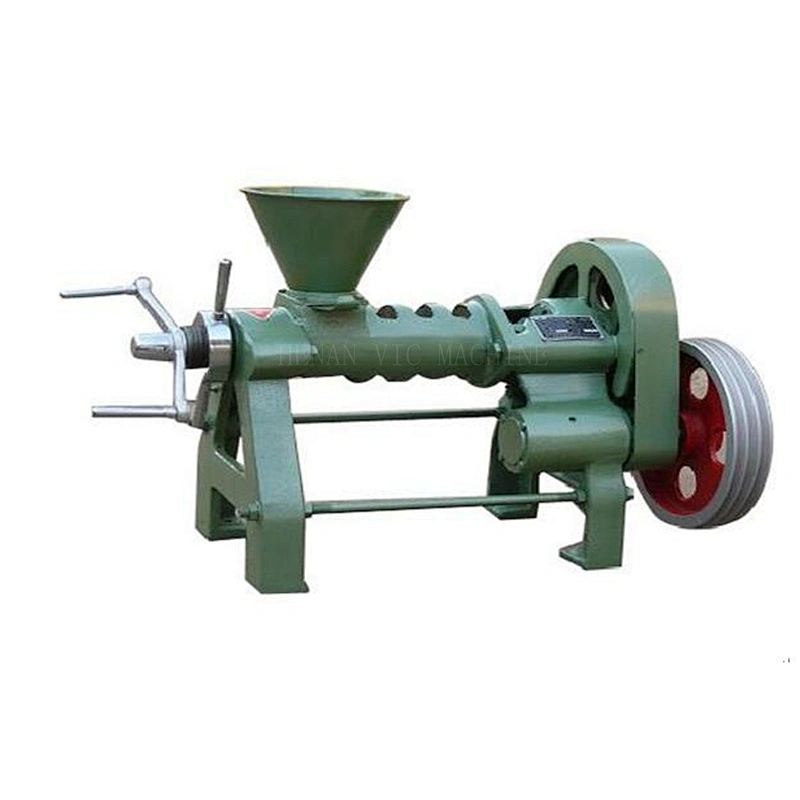

800 KG/H peanut oil press machine

Model NO.: 6YL-165
Price:: USD 4200.00-4280.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 200 set / Month
Country of Origin: Shanghai

Quantity:

Product Description

Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Restaurant
Applicable Industries:Home Use
Applicable Industries:Food Shop
Applicable Industries:Food & Beverage Shops
Condition:New
Usage:Peanut Oil
Type:Cold & Hot Pressing Machine
Automatic Grade:Semi-Automatic
Place of Origin:CN;HEN
After-sales Service Provided:Free spare parts
After-sales Service Provided:Video technical support
After-sales Service Provided:Online support
Warranty:1 Year
Production Capacity:700-800kg/h
Brand Name:VIC
Voltage:380v
Dimension(L*W*H):2200X850x1560mm
Weight:1100kg
Certification:CE,ISO

Product Description

Application:

1. The rods typeoil press machine is a new type oil press comparing to traditional ring type oil press.

2. The processing capacity biggerthan ring type oil press with high oil output rate, and save labor and power.

3. The final oil is much better than ring type oil press, its especially used to press peanut with hulland especially good for rape seeds,ground nuts ,soybean and so on

Main data:

Model: 6YL-165 screw oil press
Capacity: 700-800kg/h for oilseeds
Power: 30KW(380v/50hz/3p)
Residue oil in cake: Less than 7%
Size: 2150x680x890mm
Weight: 1300KG

Different models oil press technical data:

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg/h	5.5kw	930x490x820	150kg
6YL-68C	50kg/h	5.5kw	930x575x1055	150kg
6YL-68J	50kg/h	5.5kw	930x575x1055	150kg
6YL-80	100kg/h	5.5kw	1307x550x1102	300kg
6YL-95	200kg/h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg/h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg/h	11-15kw	2150x610x1300	700kg
6YL-130	450kg/h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg/h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg/h	22-30kw	2280x620x1680	1100kg

Oil output rate index:

Raw material		Raw material feeding(kg/h)	oil output per 100kg	Dry cake residue(%)
Rape seeds	Hot pressing	450--600	30-38	6.5
Rape seeds	Cold pressing	230--250	28—35
Ground nuts	Hot pressing	450--600	35-45	6
Ground nuts	Cold pressing	200--250	32—40
Sesame	Hot pressing	450--600	44-47	6.5

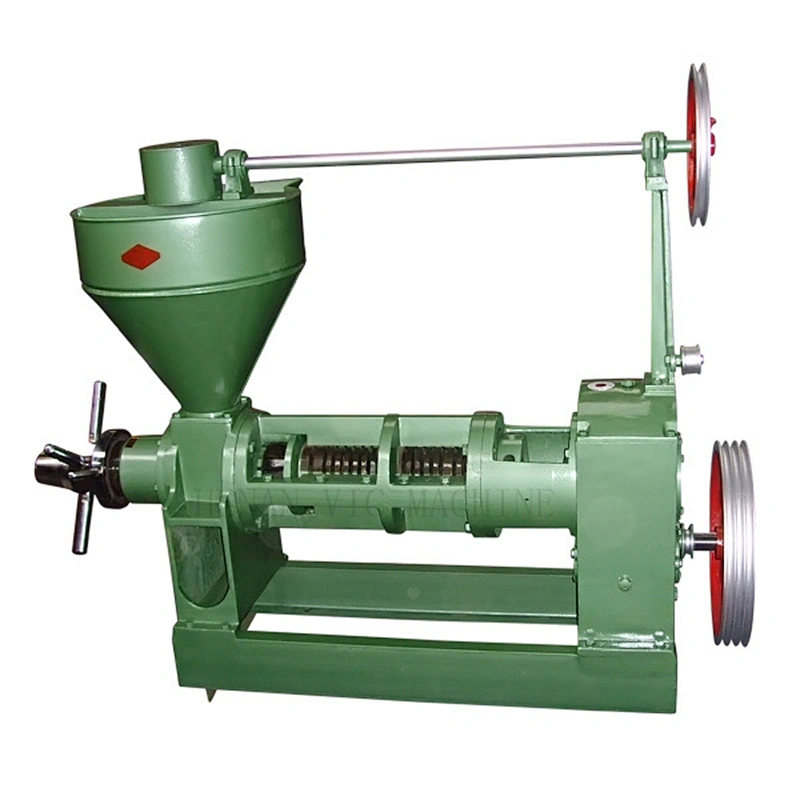

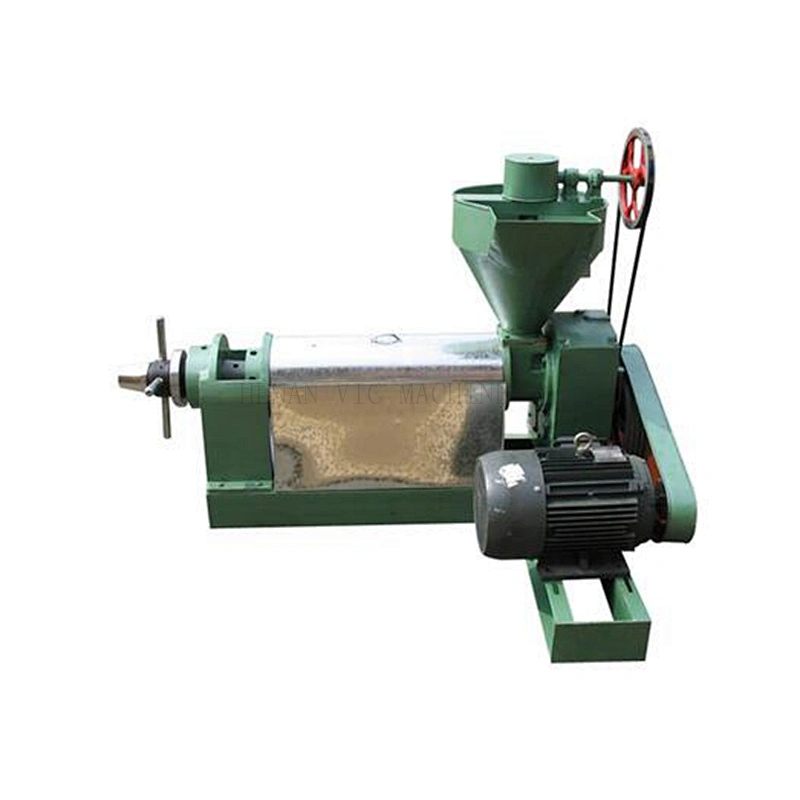

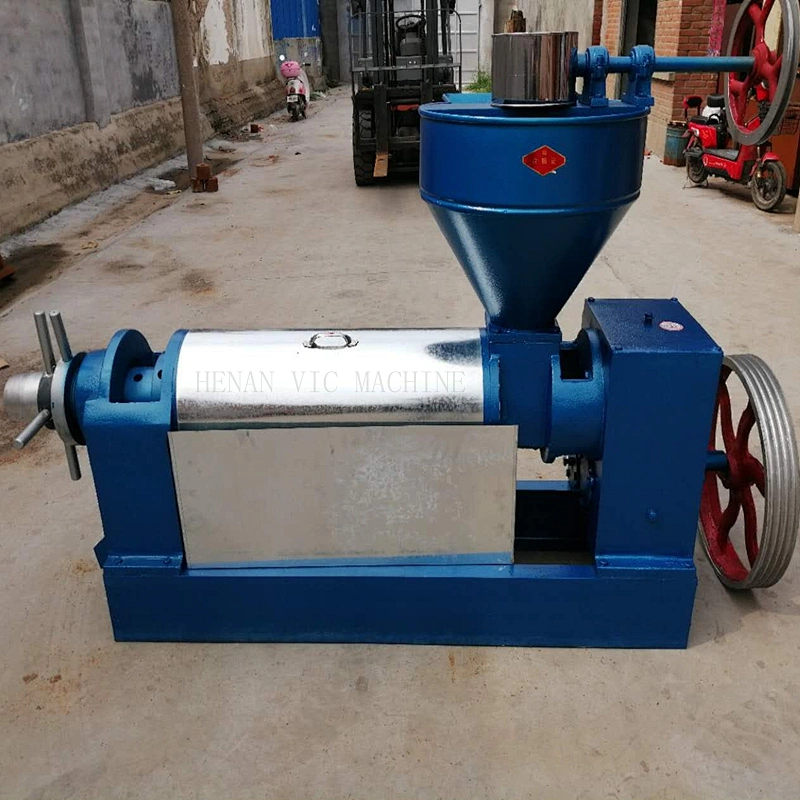

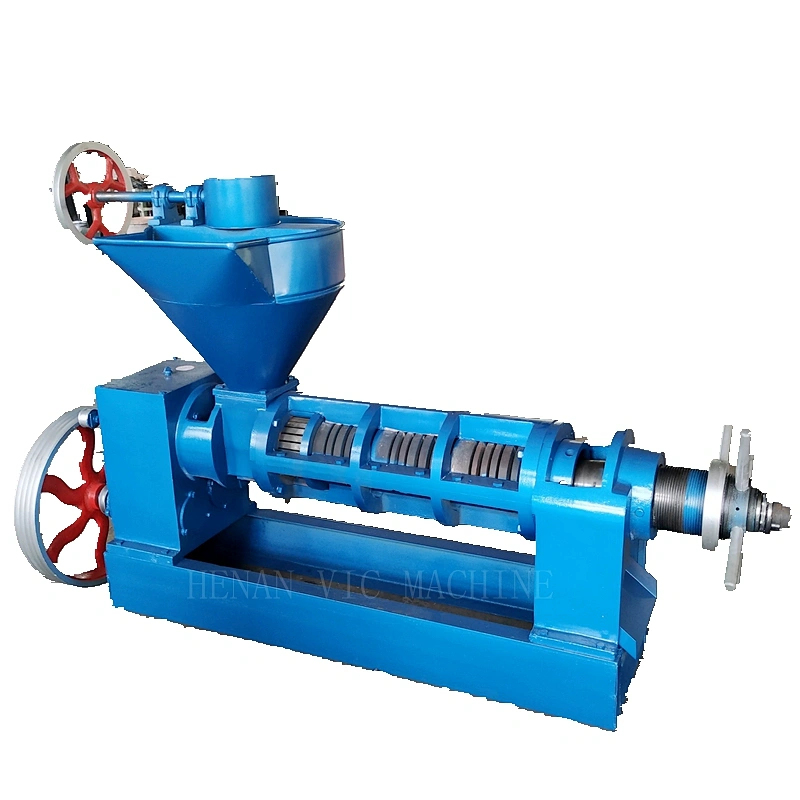

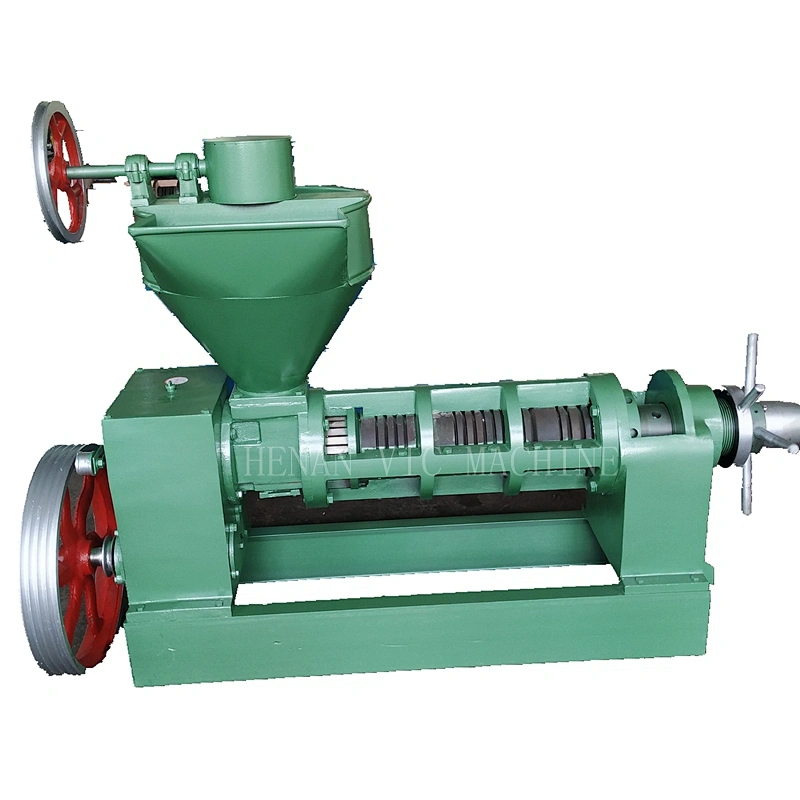

More pictures:

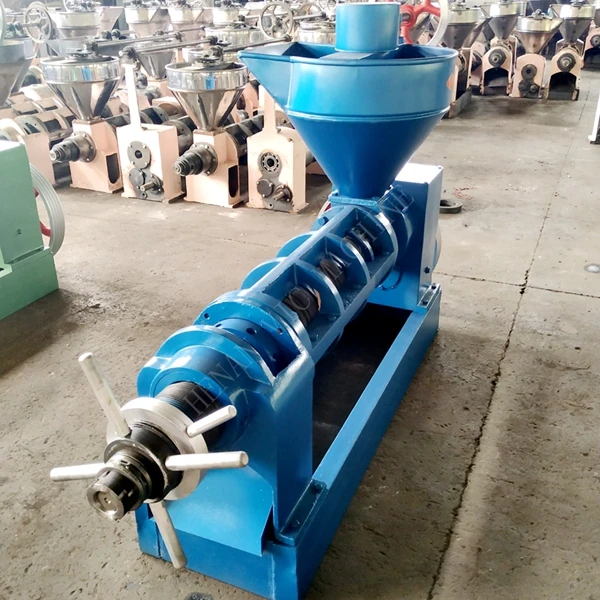

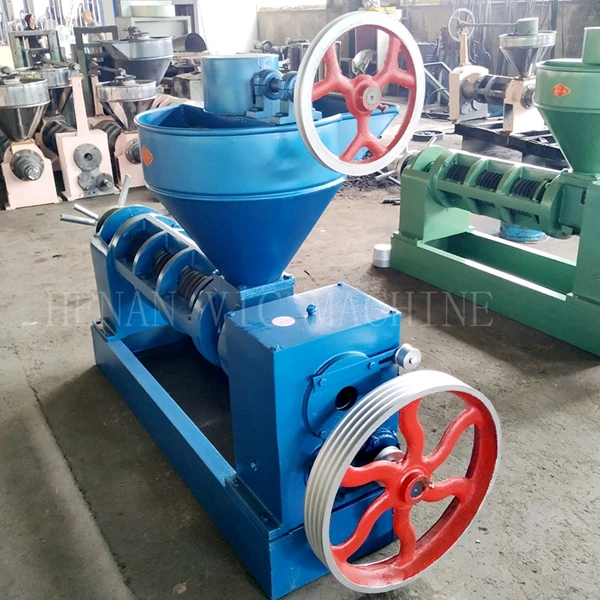

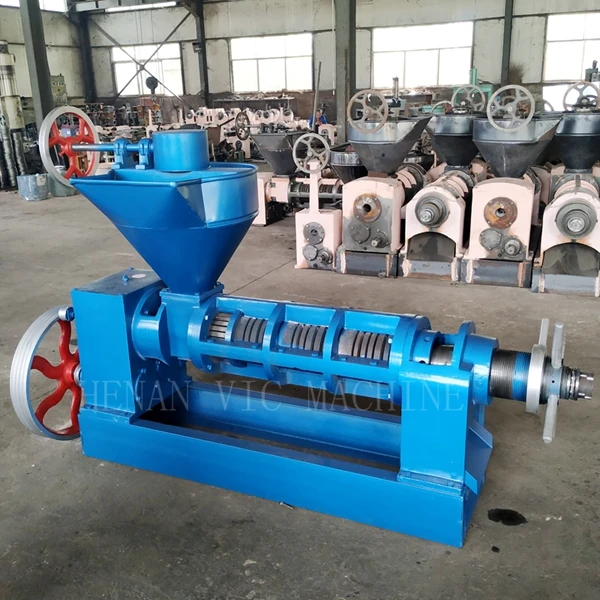

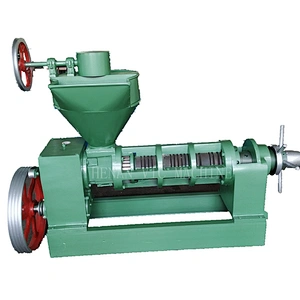

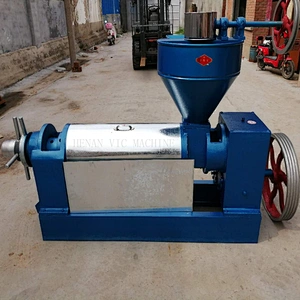

Different models oil press machine:

Oil seeds and final product:

Packaging & Shipping

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.

We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
