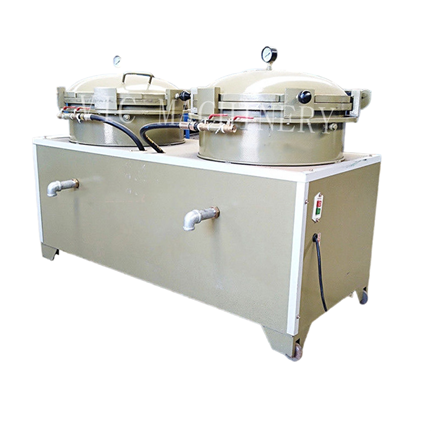

Automatic two barrel three filtering screen air pressure oil filter machine

Automatic two barrel three filtering screen air pressure oil filter machine

Model NO.: DQYF-500

Quantity:

Product Description

Instruction

The two barrel air pressure oil filter machine utilizes positive pressure, featuring convenient slag removal, no oil storage requirements, high operational efficiency, and the ability to produce clear, high-quality grease. It is mainly used to filter various crude oils extracted by screw oil presses, as well as other oils containing solid impurities.

Advantage

1.Superior Filtration and Exceptional Clarity
The air pressure oil filter machine employs high-pressure air to enable swift removal of solid suspensions, sludge, and other impurities from oils. The resulting filtered oil is exceptionally clear and free of sediment, making it ideal for applications demanding high oil quality standards.

2.Intuitive Operation and Hassle-Free Maintenance
Designed with the user in mind, the system ensures straightforward operation and easy maintenance. Its advanced automation capabilities allow for efficient and partially automated control.

3.Space-Saving Design and Versatile Application
The air pressure oil filter machine boasts a compact and space-efficient structure, making it perfect for use in tight workspaces. It is well-suited for filtering a variety of edible oils, including vegetable oils and premium-grade oil products.

4.Economical and Efficient Performance
With low energy consumption and high filtration efficiency, the air pressure oil filter machine minimizes oil waste and loss, offering a cost-effective solution for oil filtration needs.

Main data about the two barrel air pressure oil filter machine

Model	DQYF-500 Double barrel air pressure air pressure oil filter
Processing capacity	80-120kg/h
Working pressure	0.1-0.5mpa
Power	2.2kw 380v
Filter area	0.4㎡
Size	1400x800x900mm
Weight	200kgs
