VIC-50A Stainless steel crude oil refinery machine

• Applicable Industries:Food Shop
• Condition:New
• Automatic Grade:Automatic
• Place of Origin:CN
• After-sales Service Provided:Online support
• Warranty:1 Year
• Usage:purify crude oil
• Type:crude oil filter
• Production Capacity:160KG/TIME
• Brand Name:VIC
• Voltage:380v
• Dimension(L*W*H):1.5x0.6x1.4m
• Weight:140kgs
• Certification:CE,ISO
• Applicable Industries:Manufacturing Plant
• Applicable Industries:Food & Beverage Factory
• Applicable Industries:Farms
• Applicable Industries:Restaurant
• Applicable Industries:Home Use
• Applicable Industries:Food & Beverage Shops
• After-sales Service Provided:Free spare parts
• After-sales Service Provided:Video technical support

Application:

This is mini oil refinery have the decolorizing port,refinery port,refined oil pot,with the auto temperature equipment,can achieve crude oil degumming, deacidification, drying and decolorization function.

The final oil reach national edible oil standard, directly filling to sale for small-scale processing and oil processing plant.

Refining crude oil : soybean oil, mustard seed oil, cottonseed oil, sunflower seed oil,

peanut oil, rice bran oil, safflower seed oil, corn germ oil, camellia seed oil, etc.

Advantages:
1.Work continuity, machine reasonable design, compact cohesion, midway don't need to stop.
2.Work efficiency, increase the air pressure tank, powerful, oil processing speed is fast.
3.Product effect is good, oil clear and bright, no phosphorus precipitation, the pot doesn't foam.
4.Simple and convenient operation, button only after operation, no cumbersome manual operation.

Technical data:

More picture

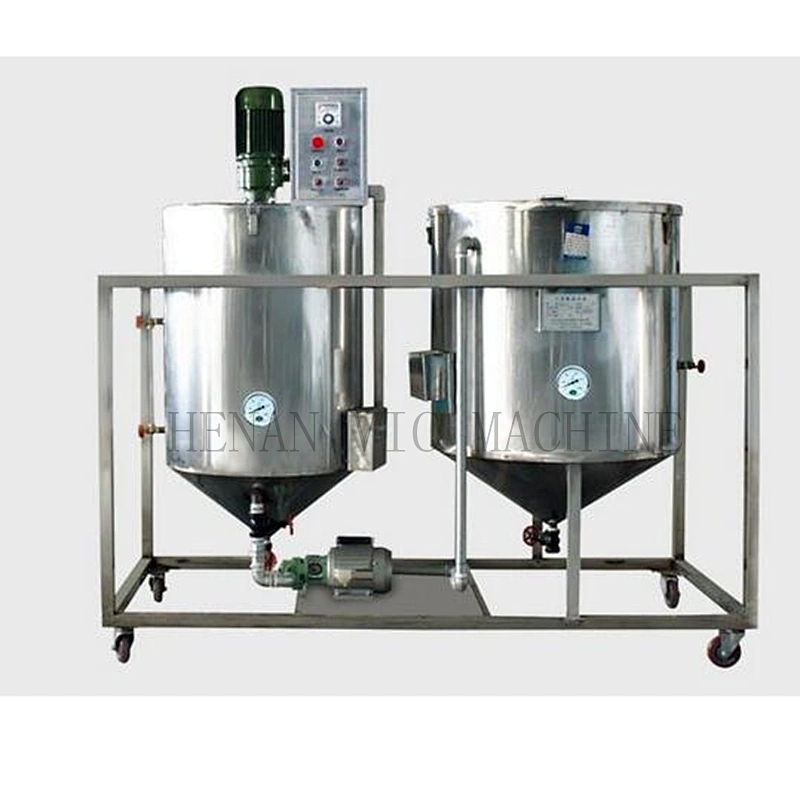

VIC-50A

1, stirring Motor, 2, stirring tank, 3, frame, 4, oil pump inlet valve 5, dumping valves, 6, moving wheel,

7, filtering tank return pipe, 8, gear oil pump, 9, 3-way valve, 10, air pump, 11, refined oil inlet pipe,

12, refined oil outlet valve, 13, refined oil tank, 14, control panel 15, exhaust valve,16, filtering tank,

17, pressure gauge 18, inlet air valve, 19, safety relief valve, 20, product identification

VIC-75B

1,1# stirring Motor, 2, 1#stirring tank, 3,2#stirring tank, 4, frame,5.1#tank oil outlet valve 6, dumping valves, 7, moving wheel, 8, 1#stirring tank oil pump 9. dumping valves ,10,2#tank oil outlet valve,

11,pipe to 2# tank 12,filtering tank inlet pipe, 13, 2#stirring tank oil pump,14 ,3-way valve, 15, air pump, 16, refined oil outlet valve, 17, refined oil inlet pipe, 18, control panel 19, exhaust valve, 20, refined oil tank, 21, filtering tank, 22, pressure gauge 23, inlet air valve, 24, 2# stirring Motor,25, safety relief valve, 26, product identification

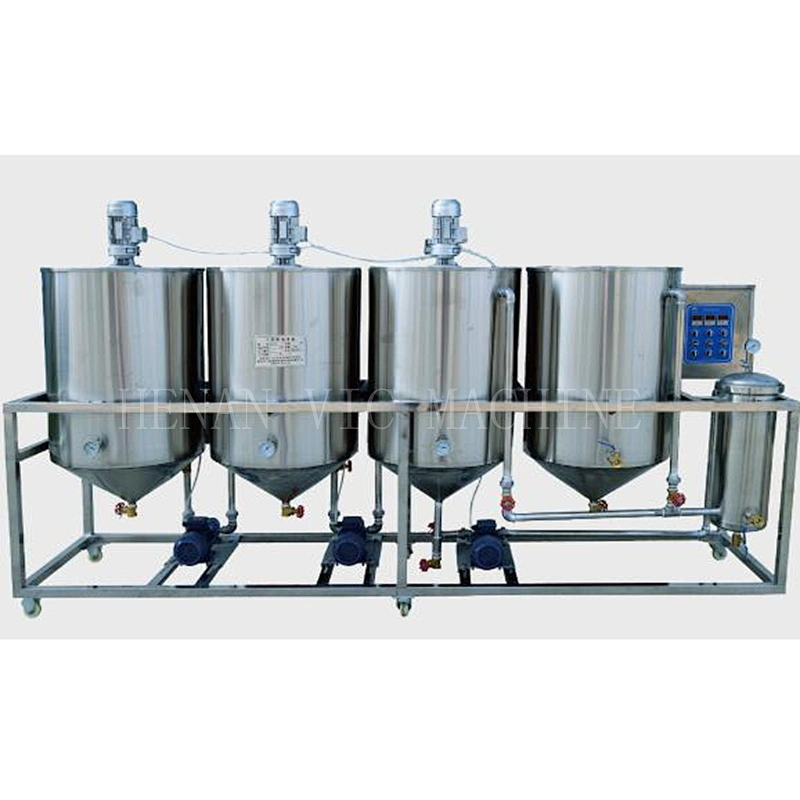

VIC-75C

1,1# stirring Motor, 2, 1#stirring tank, 3,1#stirring tank dumping valve, 4, moving wheel,5.1#tank oil outlet valve 6, 1#stirring tank oil pump, 7,2#stirring tank dumping valve, 8,2#tank oil outlet valve 9, 2#stirring tank oil pump,10, control panel ,11,3#stirring tank dumping valve 12, 3#tank oil outlet valve 13,filtering tank inlet pipe, 14 , 1#stirring tank oil pump, 15, air pump, 16, 3-way valve,17,refined oil outlet valve, 18, refined oil inlet pipe, 19, refined oil tank, 20,exhaust valve, 21, pressure gauge,22, inlet air valve,23, 3# stirring Motor, 24, 3# stirring motor,25,2#filtering tank, 26, 2# stirring Motor,27, safety relief valve, 28,3#tank control panel,29, filtering tank inlet pipe,30, product identification

Packaging & Shipping

Shipping:

Delivery time: In 15 days after paid deposit.

Packing: wooden case package.

Partial shipment:not allowed

Transshipment:allowed

Our Services

For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
