CE approved CY-282A Small cold press oil machine

CE approved CY-282A Small cold press oil machine

Price:: USD 2000.00-4000.00 / set
Minimum order quantity: 1 set
Supply Ability: 1000.0 set / Year
Country of Origin: Shanghai Tianjin,Qingdao

Quantity:

Product Description

Main shaft speed:38-44rpm
Color:Different according to requirement
Control box:Yes
Raw material:Oil Seeds
Name:Small cold press oil machine
Function:Making Edible Oil
Product name:Edible Oil
Application:Screw Oil Expeller
Advantage:Energy Saving
Keyword:temperature controled
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Restaurant
Applicable Industries:Home Use
Applicable Industries:Food & Beverage Shops
After Warranty Service:Video technical support
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Condition:New
Usage:all kinds of seeds
Type:Cold & Hot Pressing Machine
Automatic Grade:Automatic
Warranty:1 YEAR
After-sales Service Provided:Field maintenance and repair service
After-sales Service Provided:Video technical support
After-sales Service Provided:Online support
Key Selling Points:Multifunctional
Marketing Type:Ordinary Product
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 YEAR
Core Components:Motor
Core Components:Gear
Core Components:Bearing
Core Components:Gearbox
Place of Origin:CN;HAI
Production Capacity:100-130kg/h
Brand Name:VIC
Voltage:380v,220v
Dimension(L*W*H):1300*960*1420mm
Weight:560

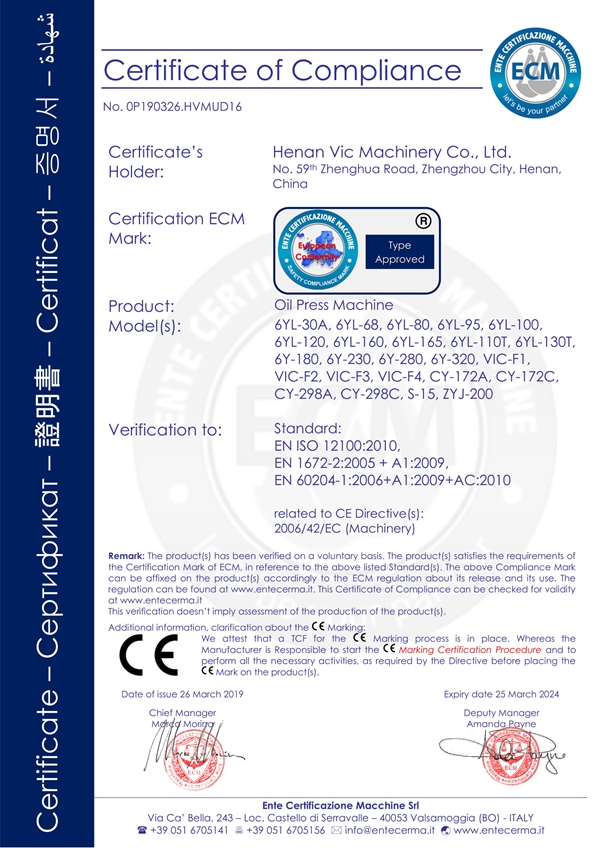

Certification:CE,ISO

Product Description

Raw amterials:

Such as copra, cottonseeds, soybean, rapeseeds, peanut, sunflower seeds, tea seeds, olive,etc.

All kinds of raw materials oil content

Raw material	Oil content
Camellia	58-60%
Peanut	44-55%
Castor seed	50-70%
Soybean	18-21%
Cottonseed	33-40%
Rapeseed	33-40%
Sesame	45-50%
Sunflower	45%
Safflower	29-45%
Rice bran	18-20%
Corn embryo	30-40%
Walnut	40-65%
Flaxseed/linseed	29-44%
Palm	50-55%
Coconut	35-45%

Feature:

1.Advantage: high efficiency, low consumption, low energy consumption and high oil output.

2.New type:this kind of machine is an advanced oil press with vacuum filter part,automatic temperature control part and gearbox.

3.Before pressing:some parts of the press such as the press chamber, press screw and press ring will be pre-heated

4.During pressing:he press can filter the oil in due time. only one time press can get edible oil 3% higher than normal oil press.

5.Function:both hot press and cold press can be available.

6.Especially:for the filtering part is with glass steel filter for better observation of the oil.

Main data:

Model:CY-282Amperature control oil press

Capacity:100-130kg/h

Power:5.5kw

Size:1300x960x1420mm

Weight:560kg

CY-A oil press main data:

Model	Capacity(kg/h)	Power(kw)	Size(mm)	Weight(kg)

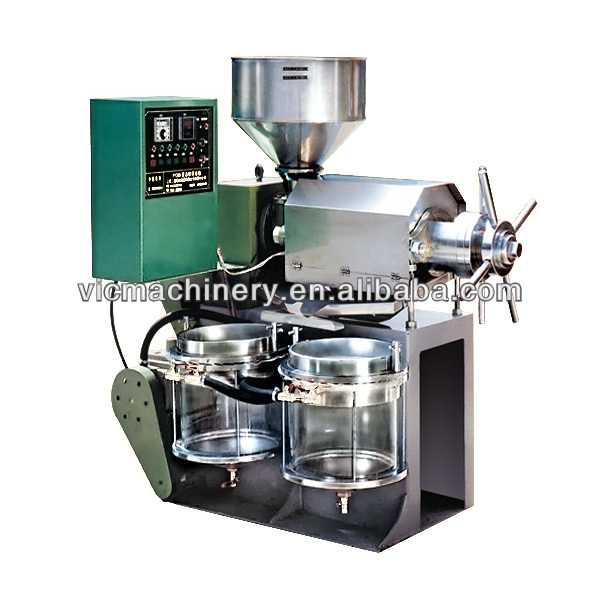

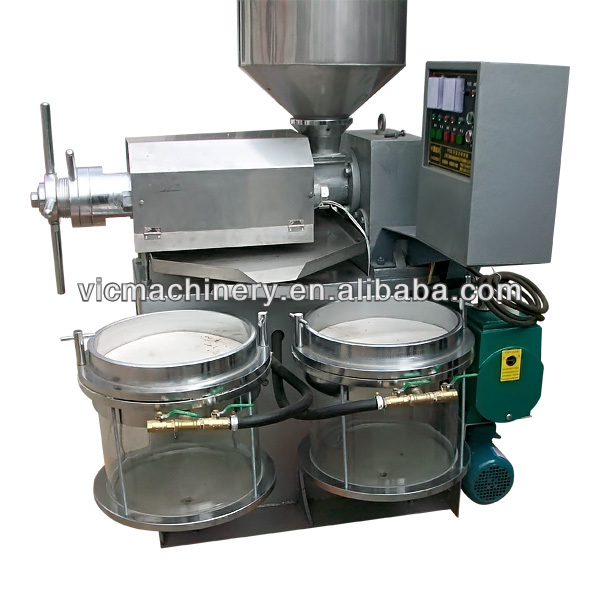

CY-172A	70-85kg/h	3kw+0.75kw	1080x920x1400mm	350kg
CY-282A	100-130kg/h	5.5kw+1.1kw	1300x960x1420mm	560kg
CY-298A	180-240kg/h	7.5kw+1.5kw	1500x1000x1600mm	790kg

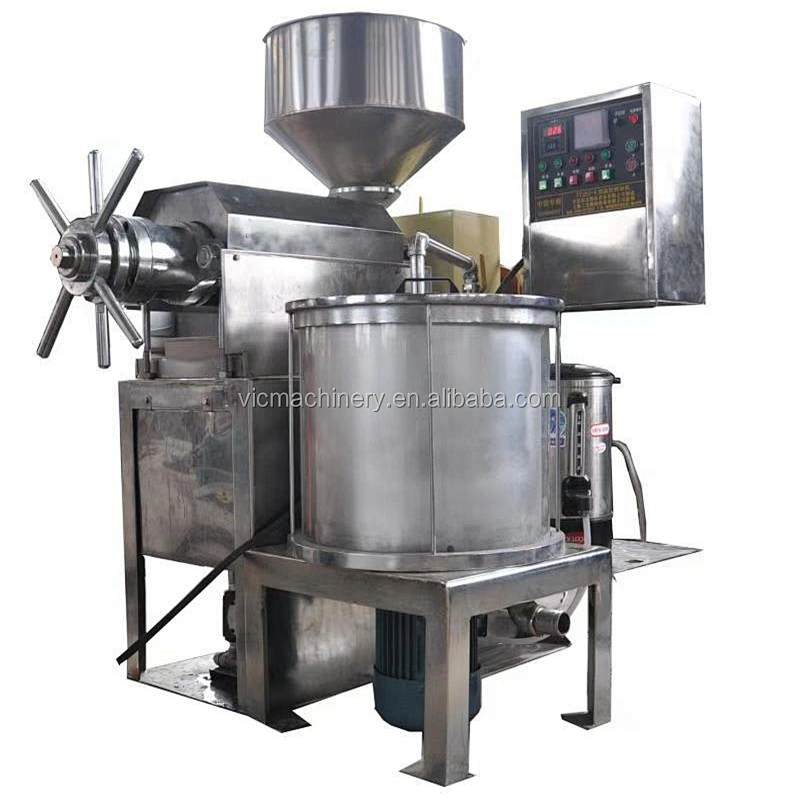

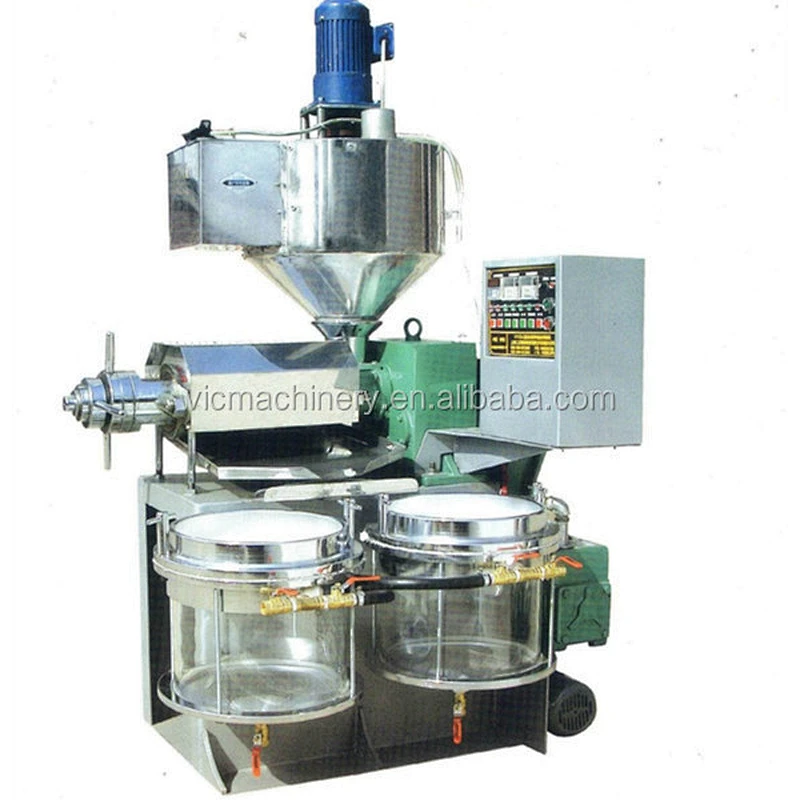

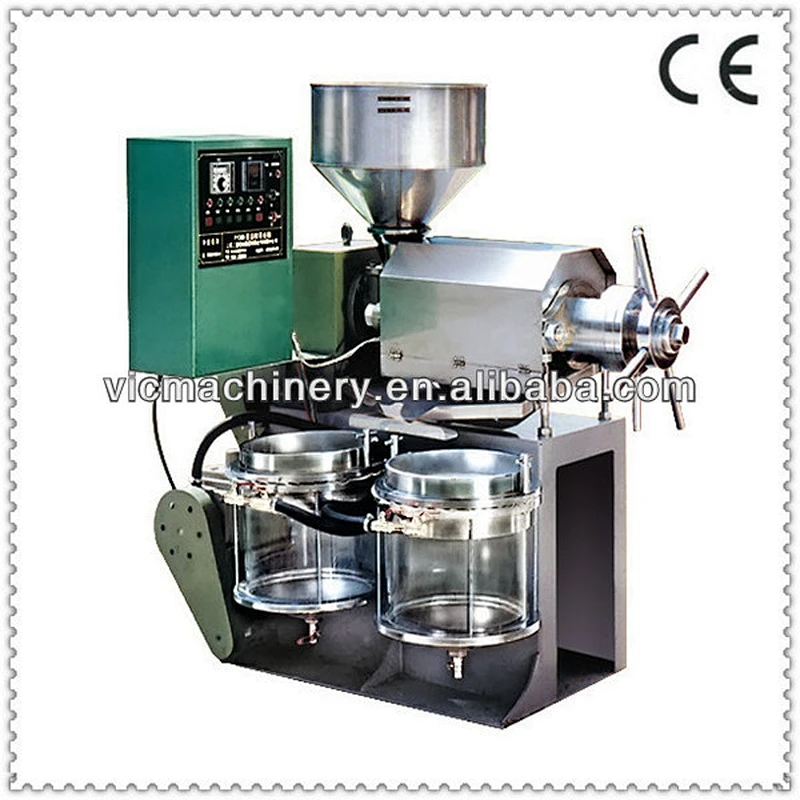

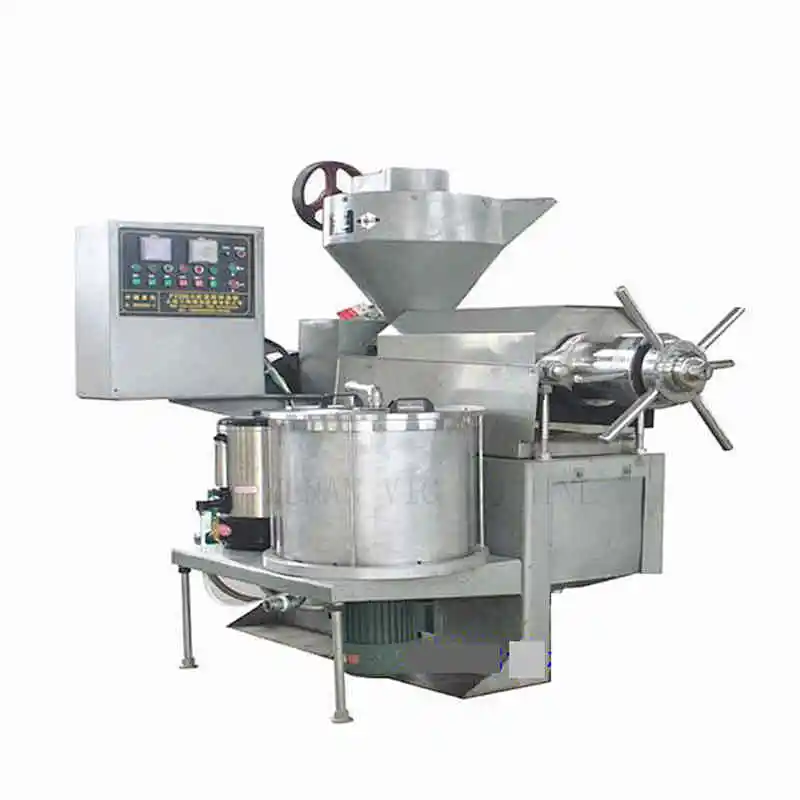

Picture of CY-282A

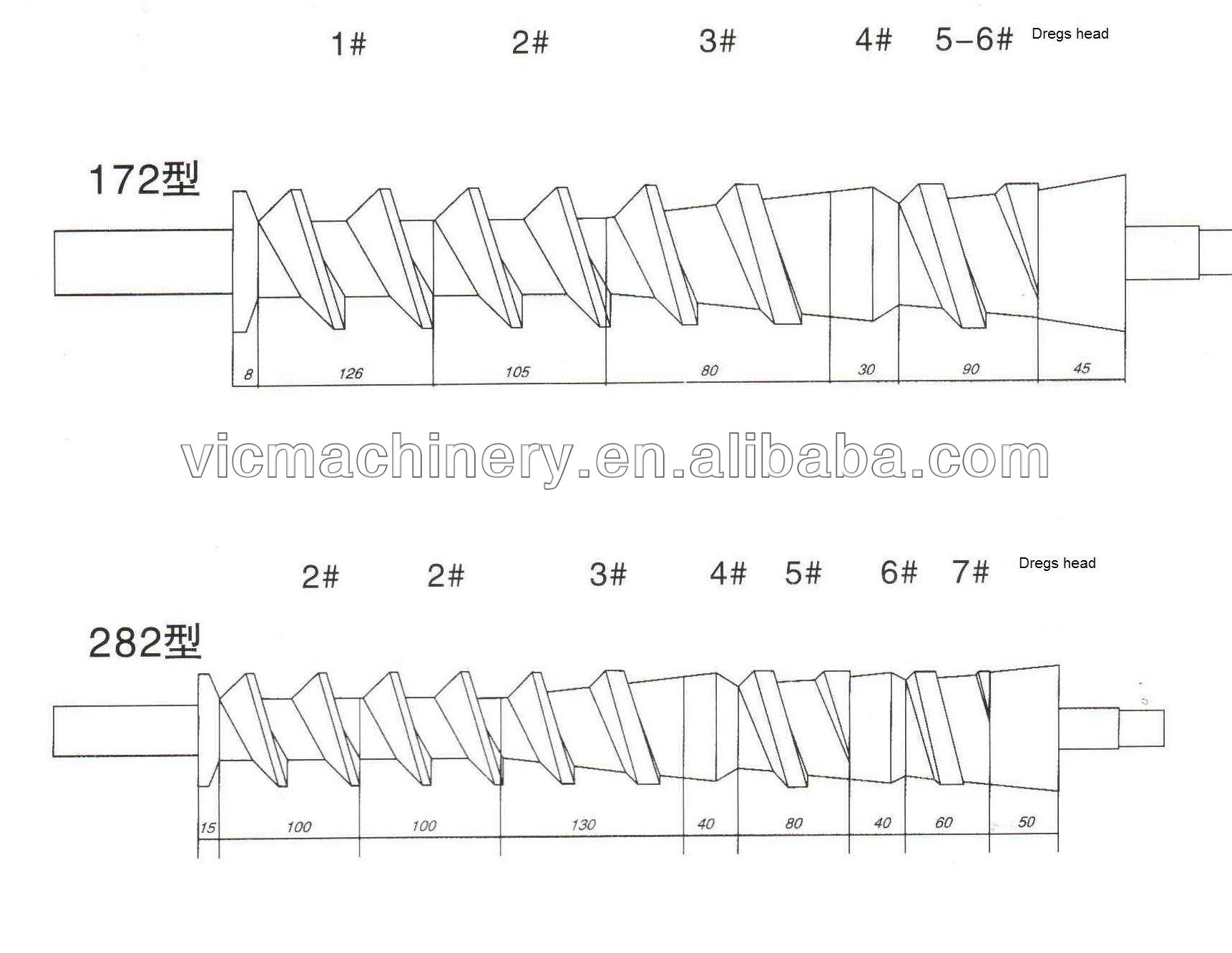

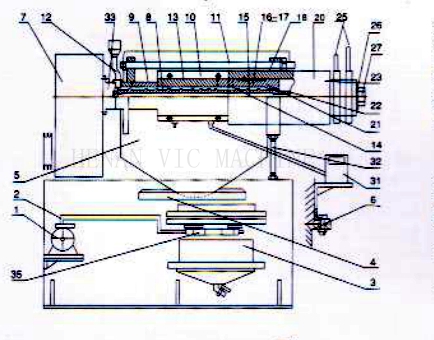

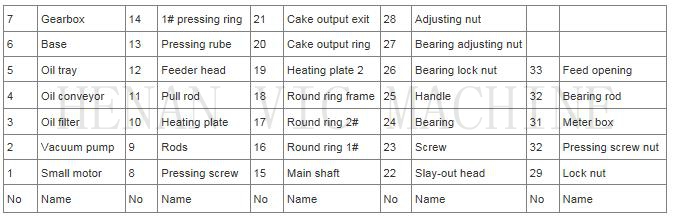

CY-282A Pressing screw

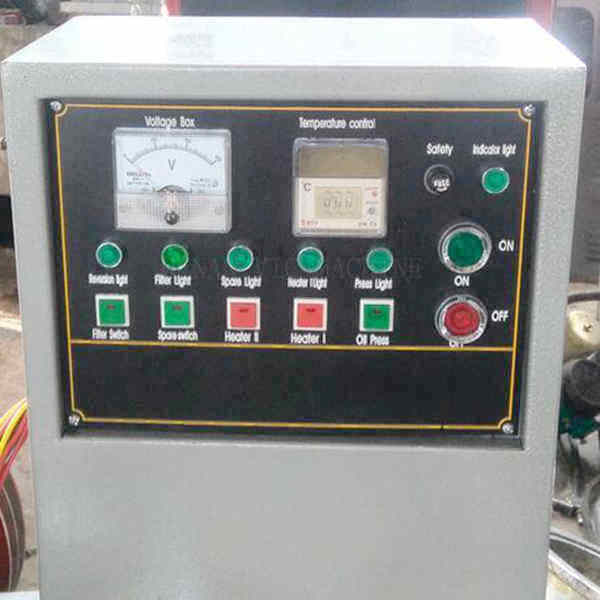

Picture of control panel

Packaging & Shipping

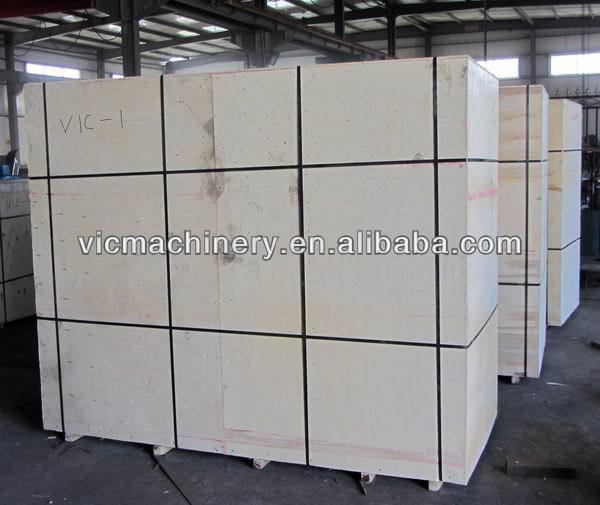

Packing picture

Shipping:

Delivery time: In 15 days after paid deposit.

Packing: wooden case package.

Partial shipment:not allowed

Transshipment:allowed

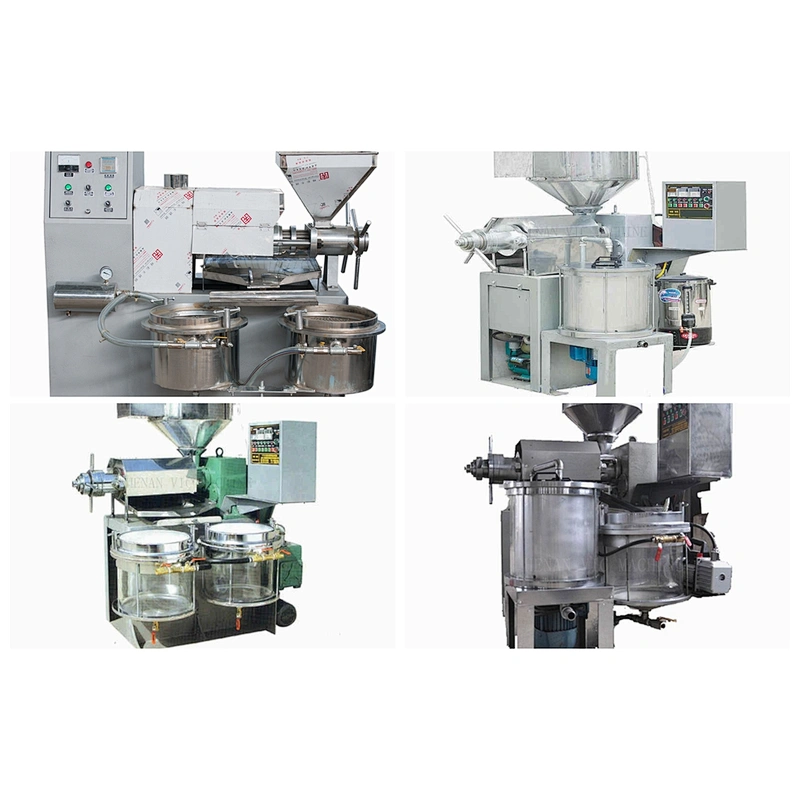

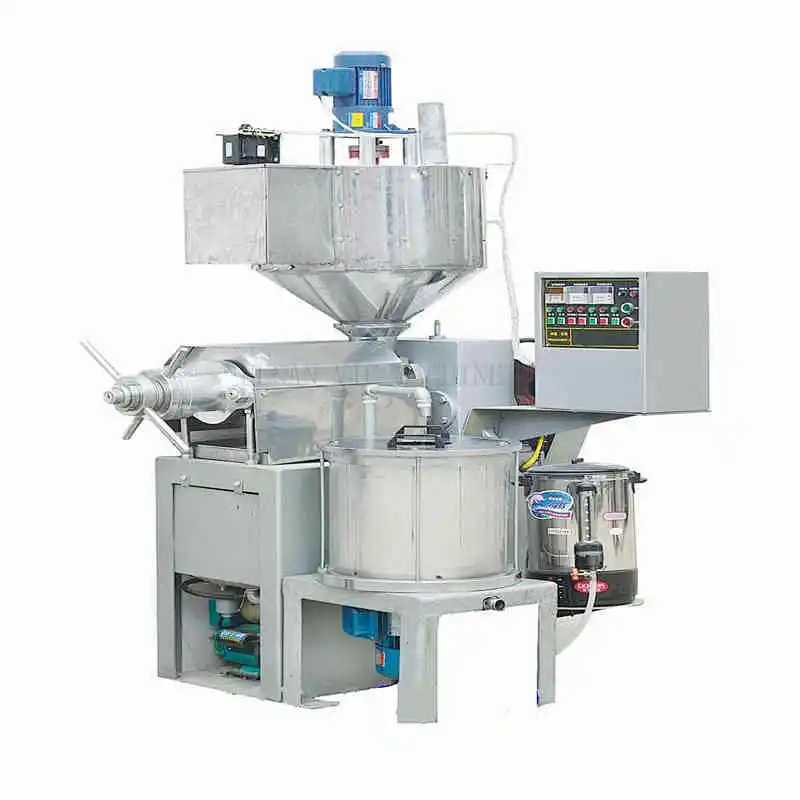

Other type combined oil press machine

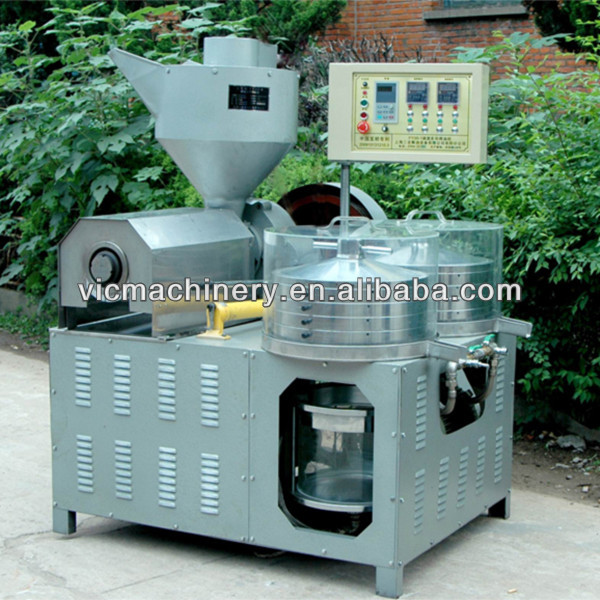

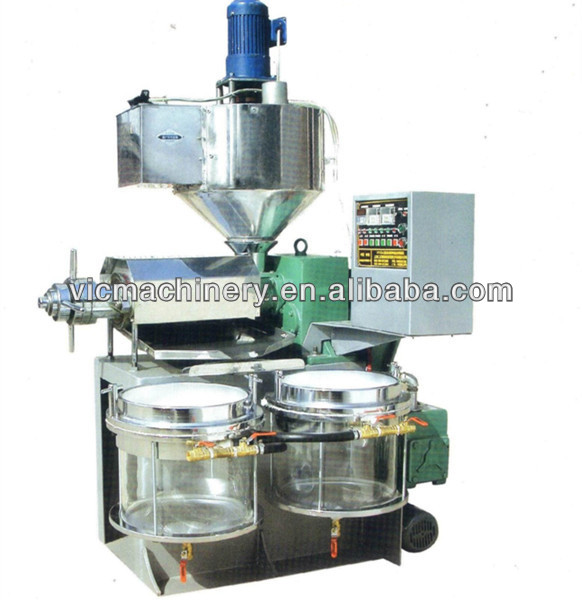

CY-300 Combined oil press	CY-172C Combined oil press

Capacity: 3.5t-8.5t/D Power: 11kw	Capacity: 40-65kg/h Power: 3kw

Our Services

For warranty parts and service:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
