- Place of Origin:CN;HEN
- Condition:New
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:5 years
- After-sales Service Provided:Online support
- Brand Name:VIC
- Voltage:380V
- Power(W):7500
- Dimension(L*W*H):1150x530x75mm
- Weight:250
- Certification:CE ISO

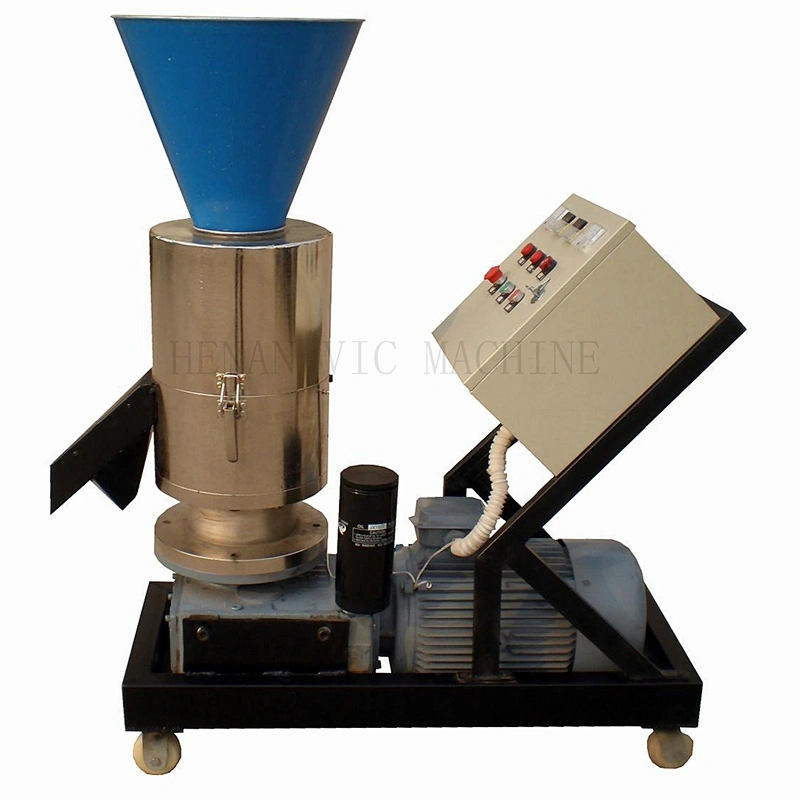

VIC-K System Wood Pellet Machine /Wood Pellet Mill
Raw material ,raw material size and raw material moisture:
The raw material scope: all kinds of sawdust, straws, cotton stalk, rice husk, crop stalks , paddy straw, sunflower stalk, forestry wastes, wood chips, chemical waste, city garbage , agricultural waste, solid powder material and other different wastes.
Raw material size: no more than 5mm. if not, please frist crushed.
Raw material moisture: normal it is 13%-22%
Brief introduction of VIC-K system pellet machine :
1. This VIC-K pellet machine has installed with KAF three-level transmition reduction gear box, which can not only press usual wood and feed pellets, but also good for pressing from low-bonding and unformed materials.
2.Use the cold press forming technique, polishing craft, good apperance, compact structure;
3.High capacity, low consumption, low noise, little trouble, high efficiency , continuous work, economic and durable;
4.Whole machine main parts are used the high quality alloy steel with durable material, use the Germany vacuum stove hot principle, lifetime is bigger 5-7 times than common pellet mill.
Main data:
Model | Motor (KW) | Capacity (kg/h) | Weight(kg) | Machine size (mm) |
VIC-200K | 7.5 | 80-100 | 250 | 1150*530*750 |
VIC-250K | 15 | 100-150 | 300 | 1250*600*850 |
VIC-300K | 22 | 150-200 | 350 | 1300*600*900 |
VIC-350K | 30 | 350-500 | 600 | 1300*850*1300 |
VIC-400K | 30 | 400-600 | 700 | 1400*800*1400 |
VIC-450K | 45 | 700-1000 | 800 | 1600*1400*800 |
VIC-550K | 55 | 1000-1500 | 1000 | 1700*850*1600 |
VIC-800K | 110 | 1500-2000 | 4500 | 2000*1050*2050 |

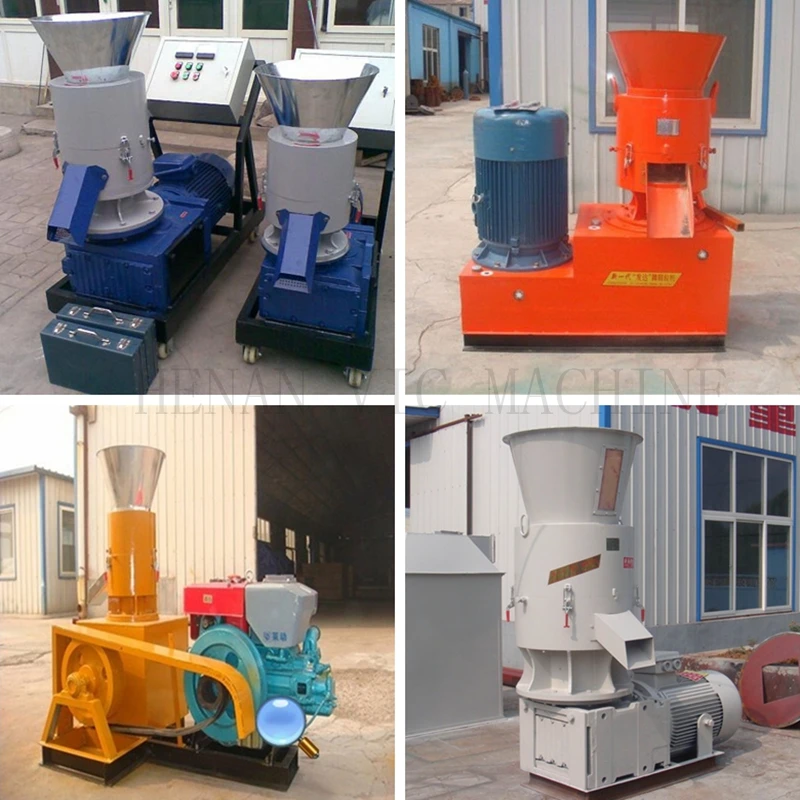

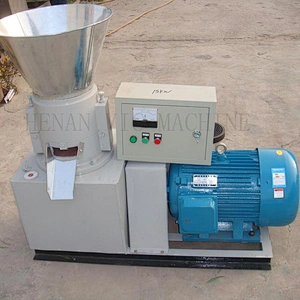

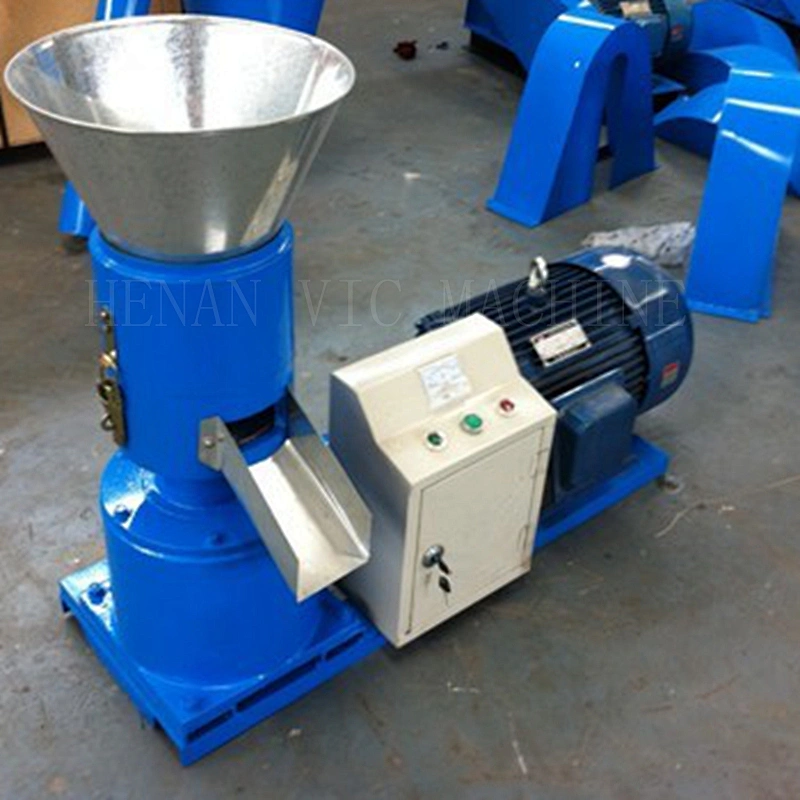

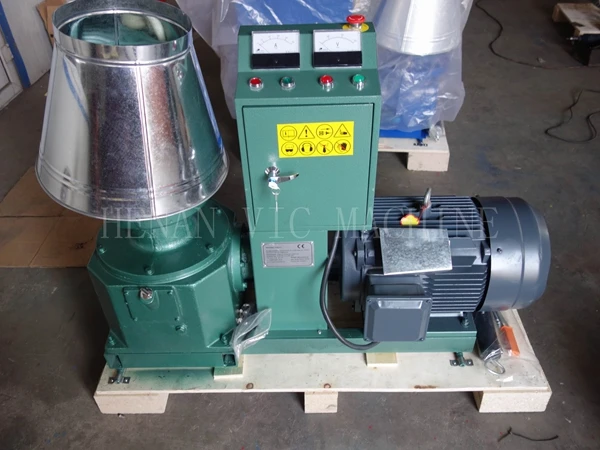

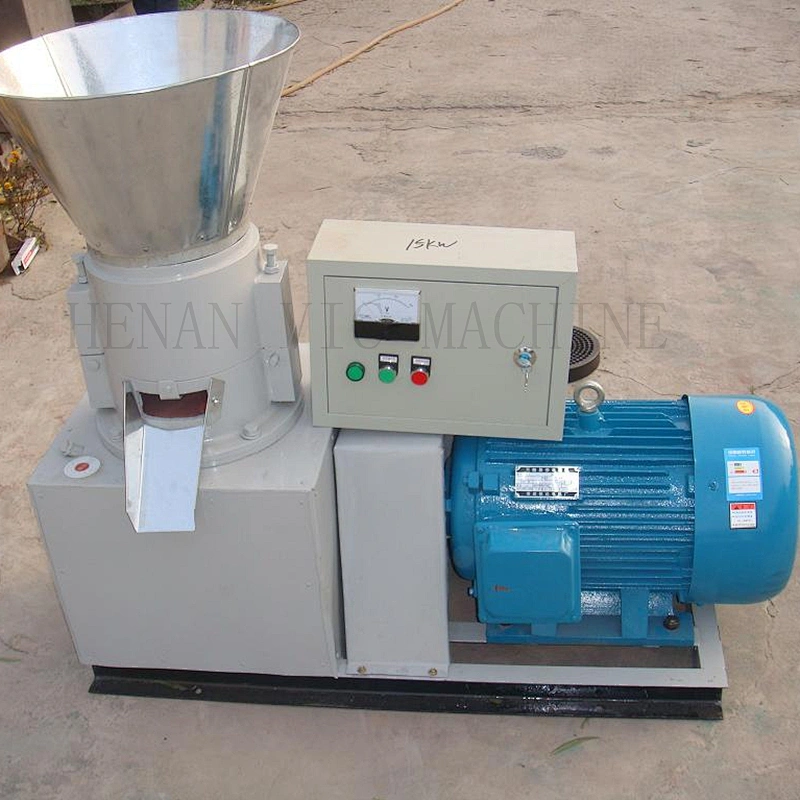

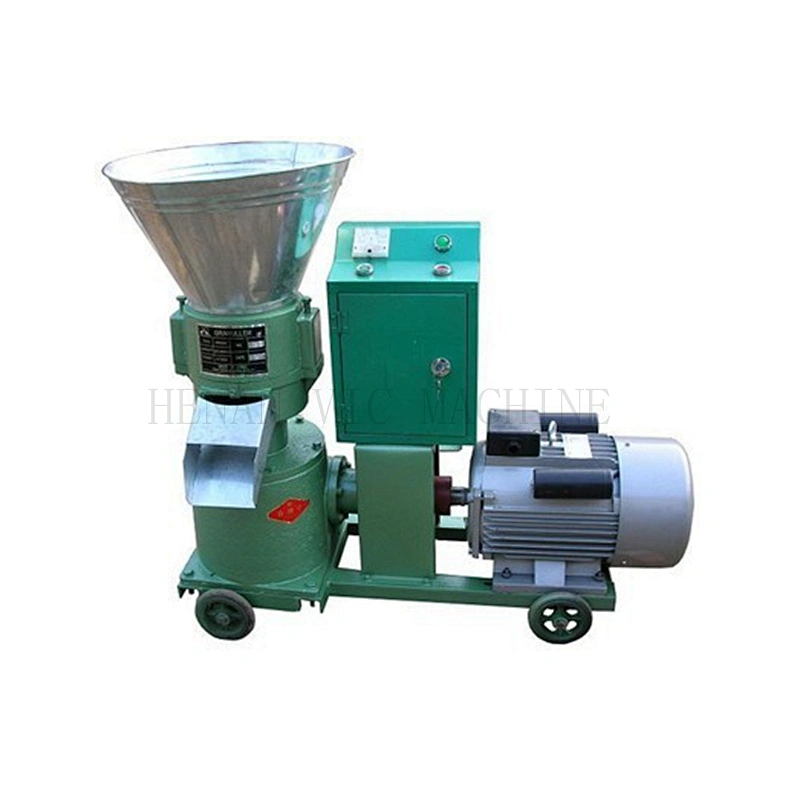

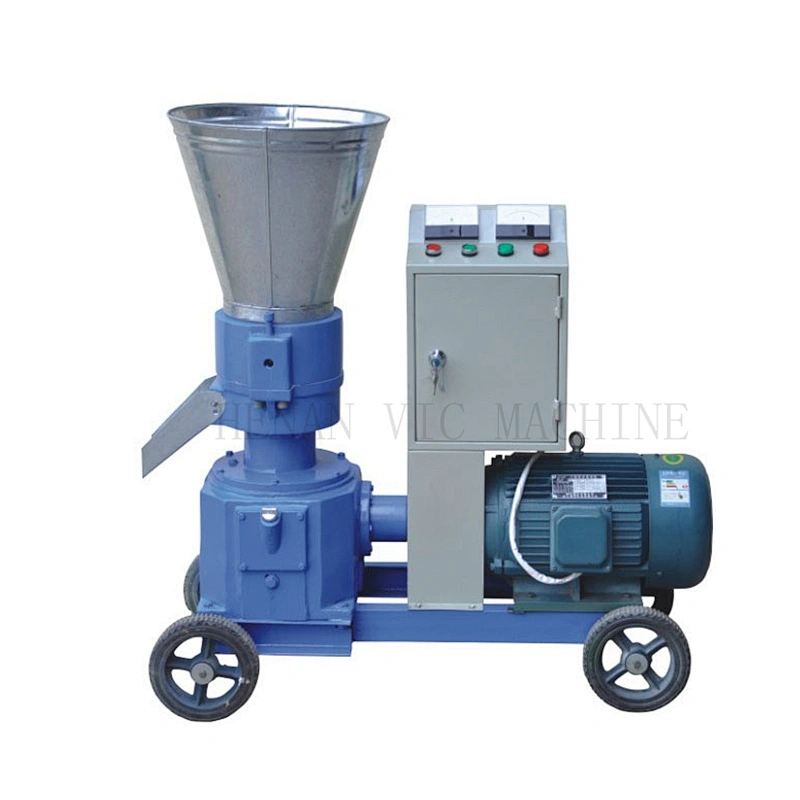

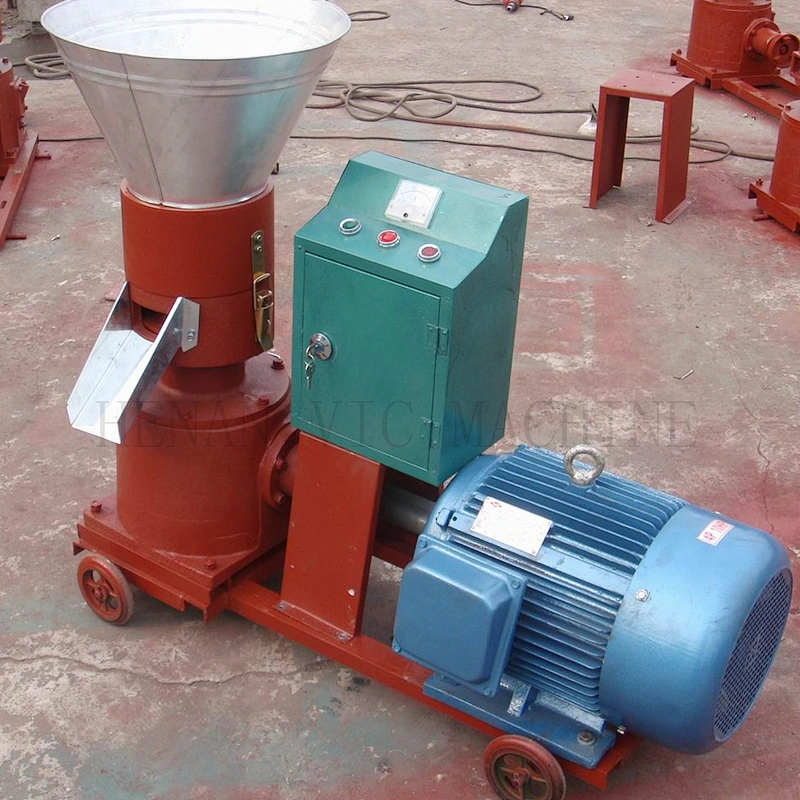

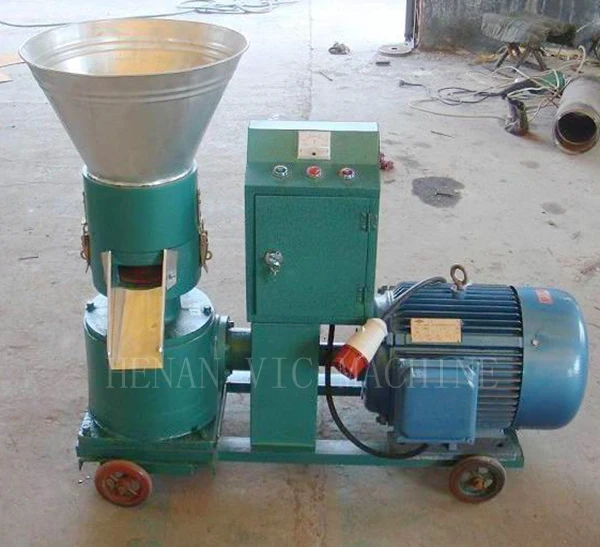

Machine Photos:
Spare parts :

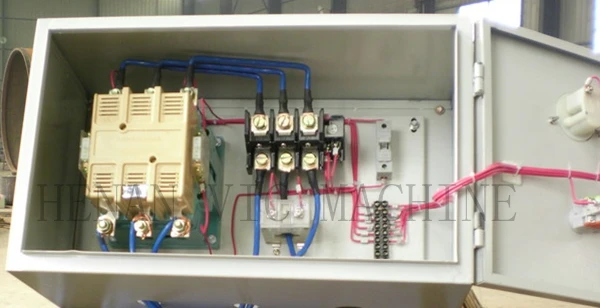

Control box :
Photos of finished pellets :
(Wood pellets)
(Feed Pellets)
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
