- Place of Origin:CN;HEN
- Condition:New
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Warranty:1 Year
- After-sales Service Provided:Online support
- Application:Fish feed
- Brand Name:VIC
- Voltage:380V,50HZ, 3 Phase
- Power(W):37+0.6+0.8KW
- Weight:960KG
- Dimension(L*W*H):1100*750*980mm
- Certification:CE, SGS
Floating Fish Pellet Making Machine
Application:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it’s with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.
Main data:
Model | Capacity(t/h) | Main power(KW) | Feeder power(KW) | Screw diameter(mm) | Cutting power(KW) | Packing weight(kg) |
DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 | 280 |
DGP50-C | 0.06-0.08 | 7.5-11 | 0.4 | Φ50 | 0.4 | 360 |
DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | 386 |
DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 | 640 |
DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 | 750 |
DGP90-B | 0.32-0.35 | 37 | 0.6 | φ90 | 0.8 | 1050 |
DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 | 1880 |
DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 | 2100 |
DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 2.2 | 2500 |
DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 | 3000 |

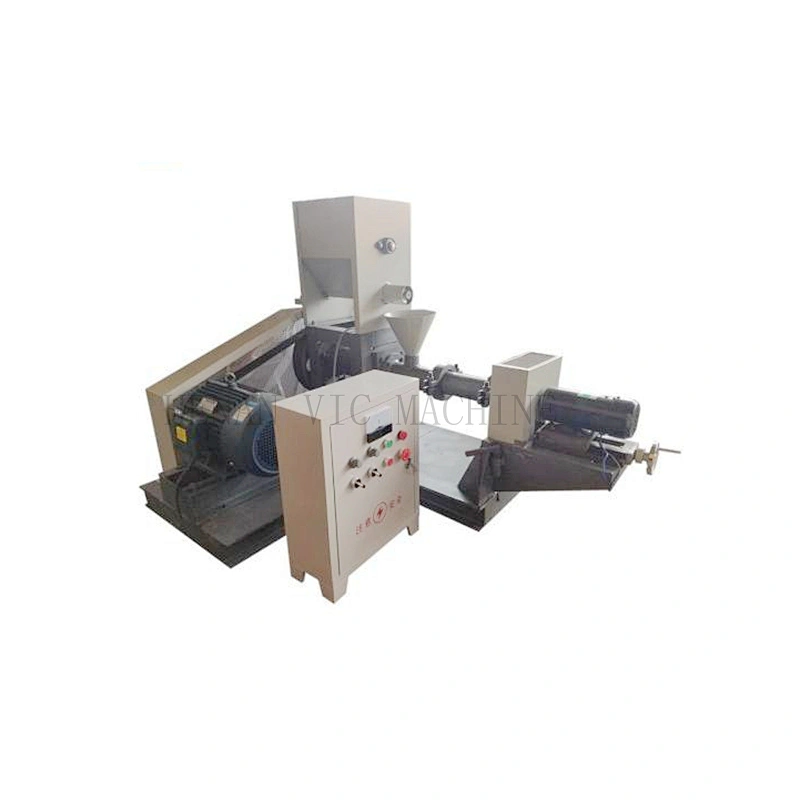

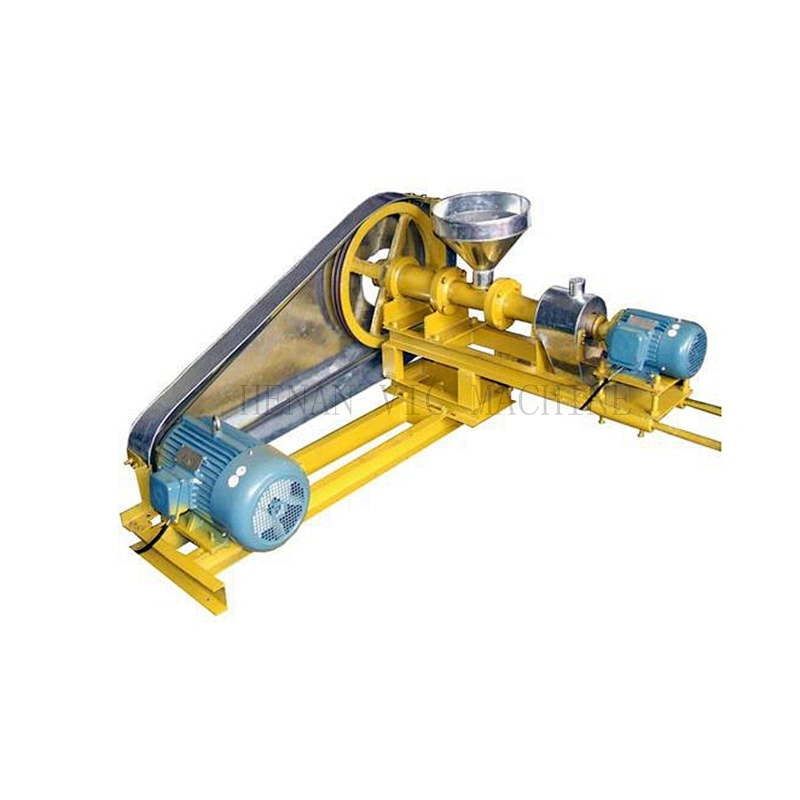

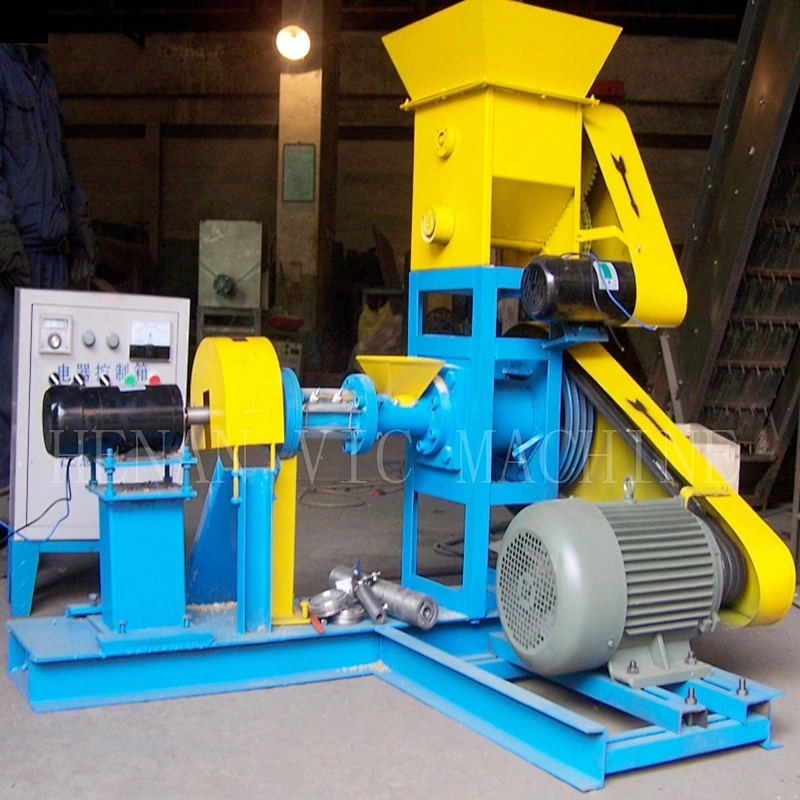

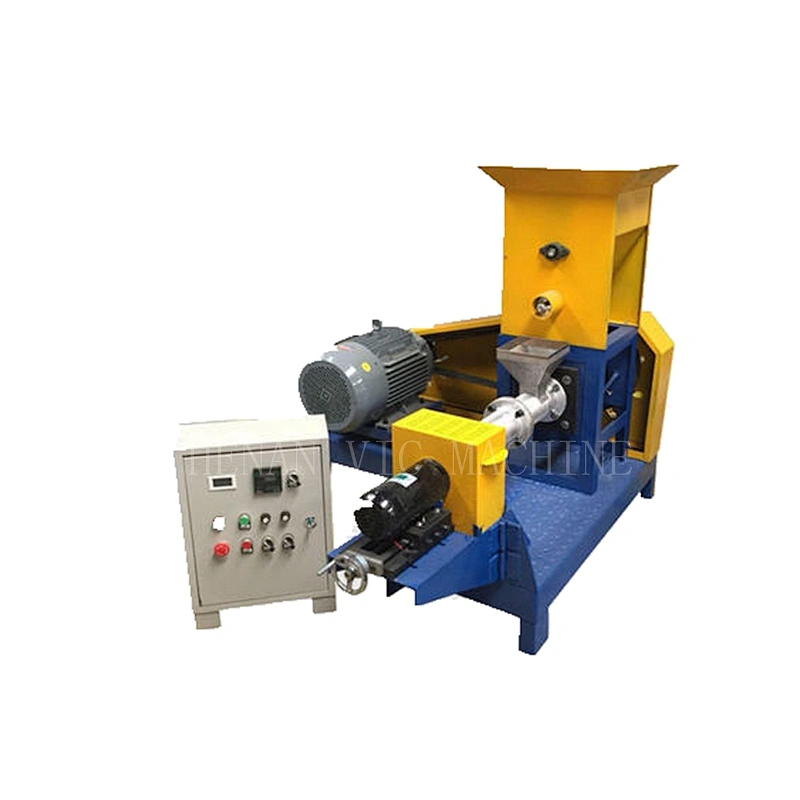

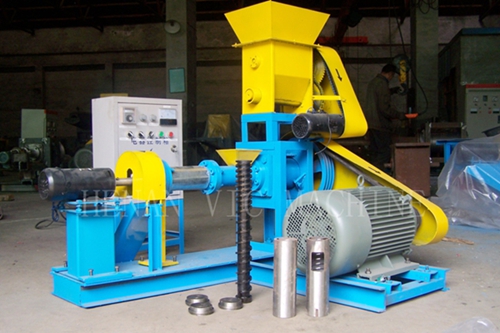

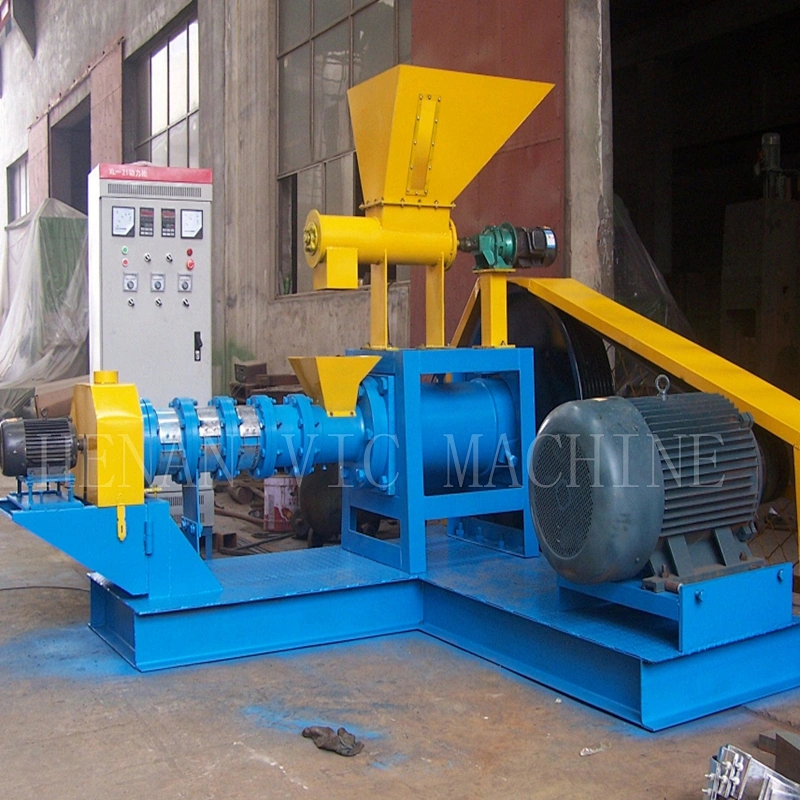

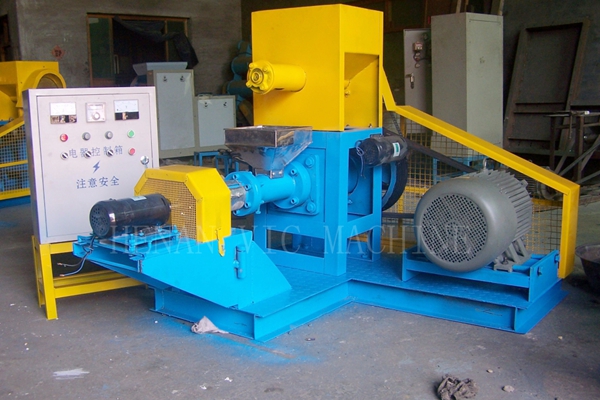

Machine photos :

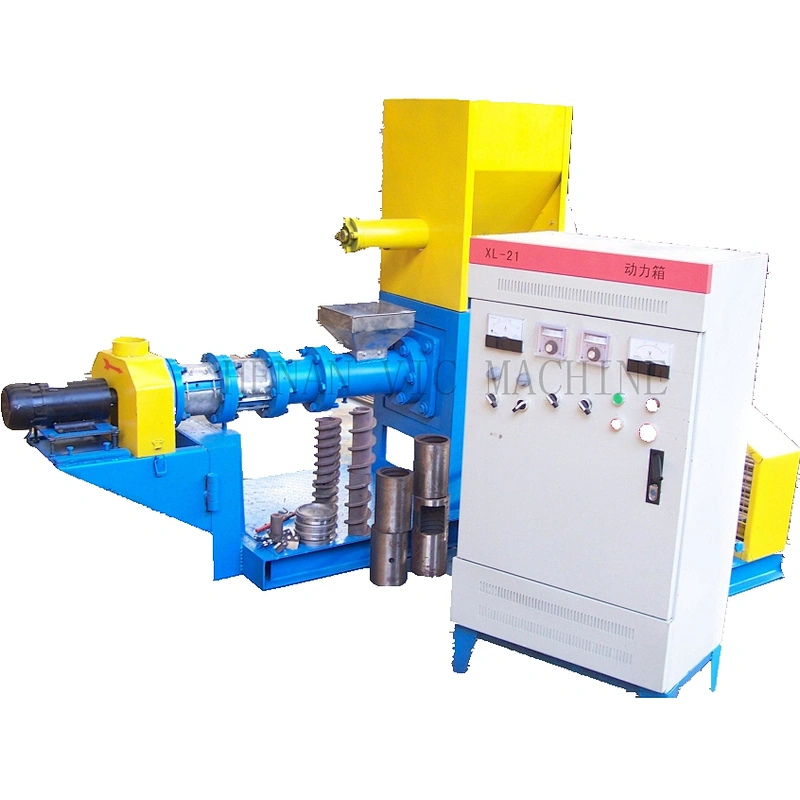

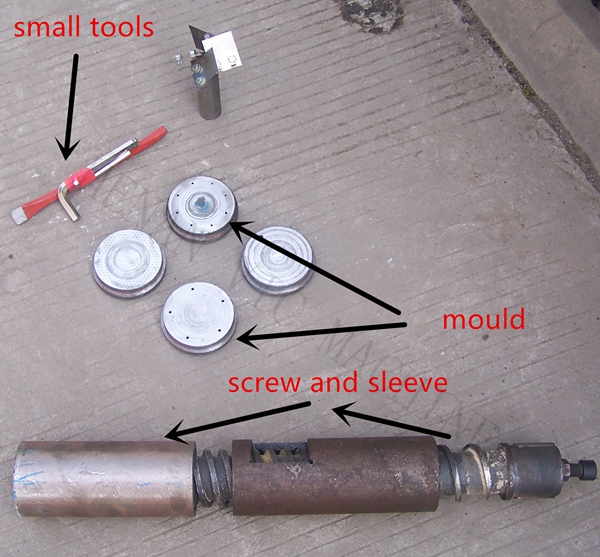

Spare parts:

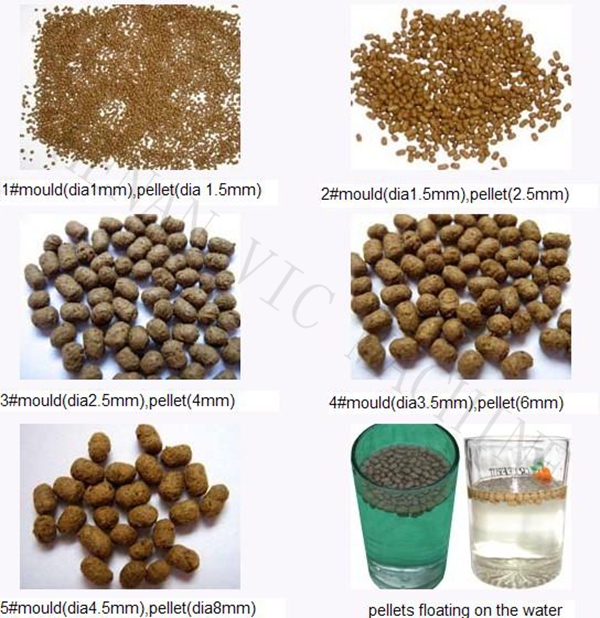

Final products:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

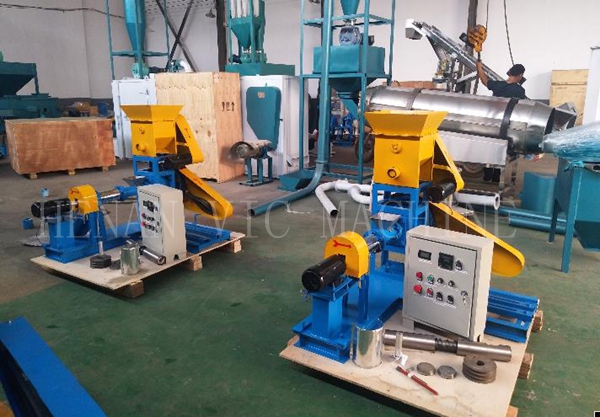

Our factory:
