- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Automatic Grade:Automatic
- Place of Origin:CN;HEN
- Warranty:2 years
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:High Productivity
- Production Capacity:1.5T/H
- Brand Name:VIC
- Voltage:220V,110V,380V
- Dimension(L*W*H):650x460x650mm
- Weight:50kg

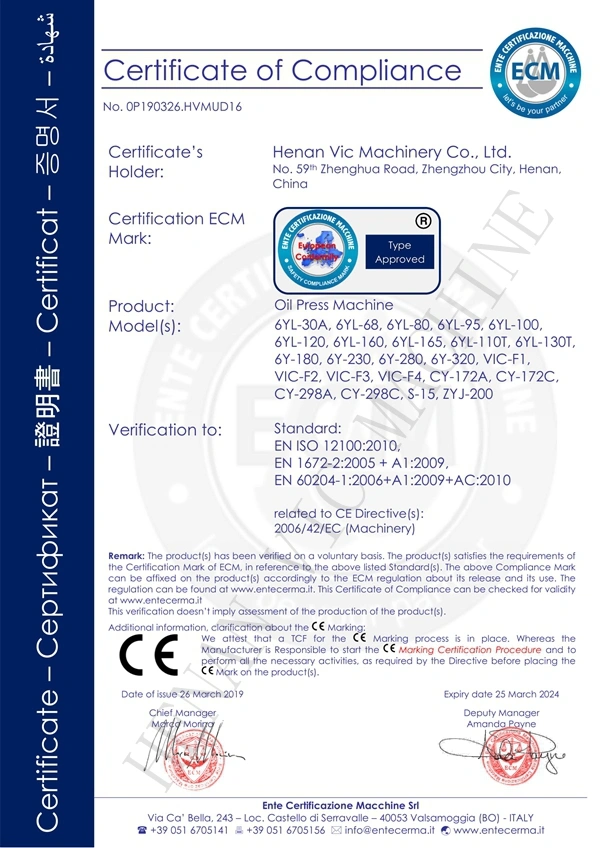

- Certification:ISO, CE
- Usage:filter different edible oil or water
- Type:oil filter, filter press
- Raw material:Crude Oil

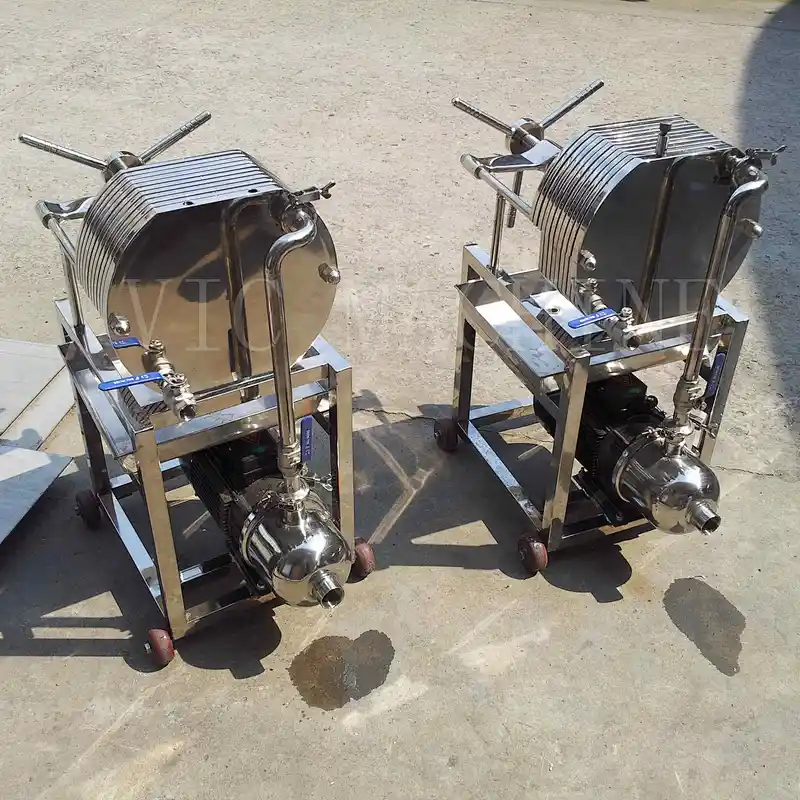

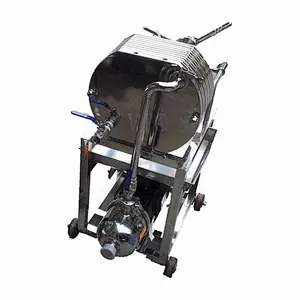

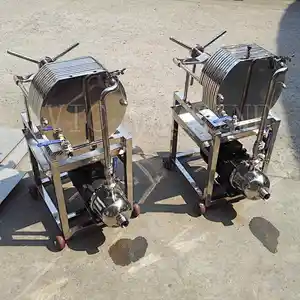

- Name:stainless steel filter press
- Function:filter
- Product name:filter oil
- Application:oil filter
- Advantage:High Productivity
- Material:304 Stainless Steel
- Keyword:stainless steel filter press
- Capacity:1.5t/h
- Used for:Oil Processing
Application and advantage:
1. This filter press can be widely used in the solid-liquid separation of different kinds of suspension; it can be applied in medicine, chemical, environment protection, water treatment etc.
2. Adopt flat screw thread mesh type with advanced structure, non-deforming and easy cleaning, can increase different filter membrane life effectively and reduce production cost.
3. All sealed parts installed (milky silicon rubber seal ring without poison and high temperature resistance) no leakage, which is on both face of the filter frame installed round seal ring.
4. Afferent canal part sealed strongly by double twist clasp, easy to discharge and clean.
5. This filter press can add or reduce filter materials according to different production capacity and different production technology ((first filter, semi-fine filter, fine filter
6. When filtering, pressing strongly seal ring, and no consumption of liquid, the liquid cleanness is good.
7. Filtering media are: filter membrane, filter paper, filter cloth .

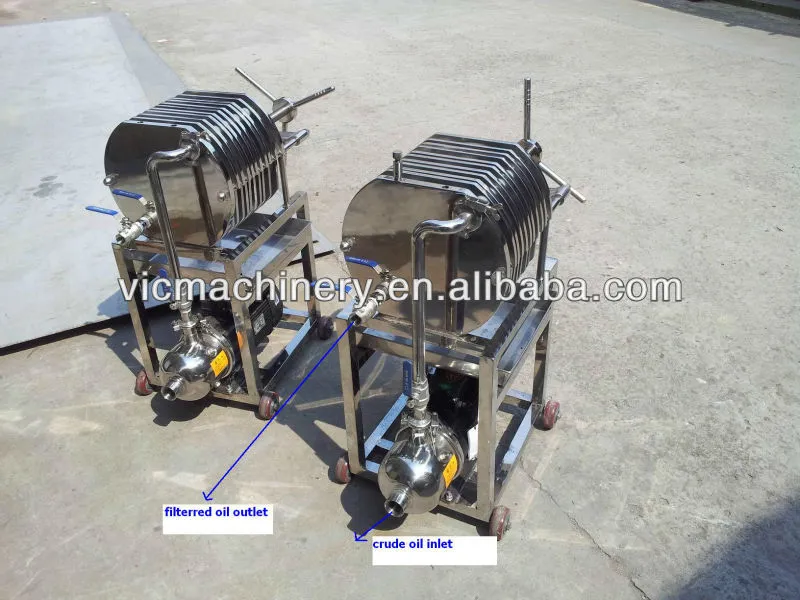

Main data:

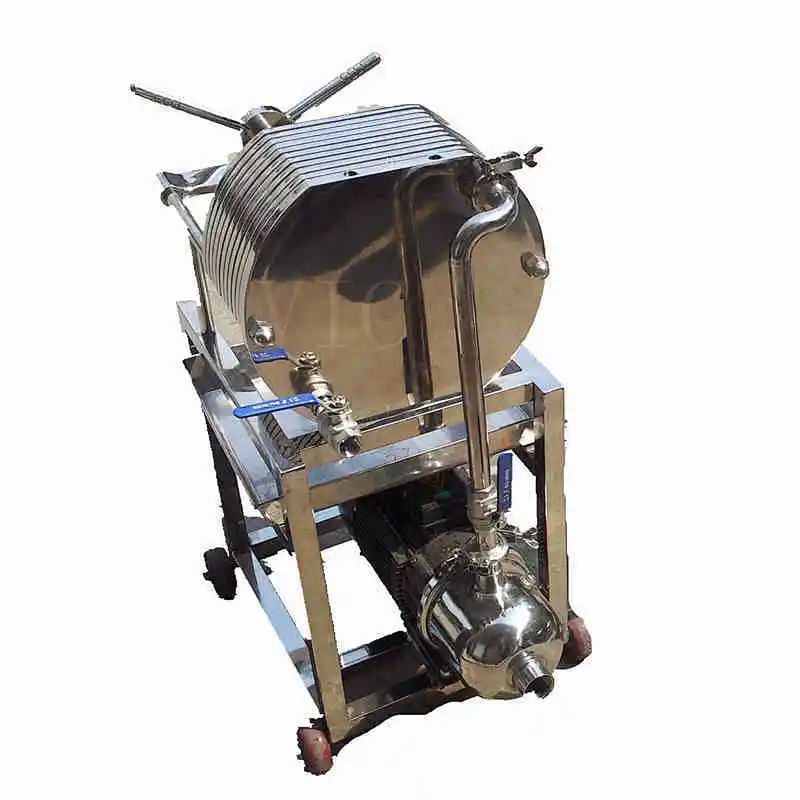

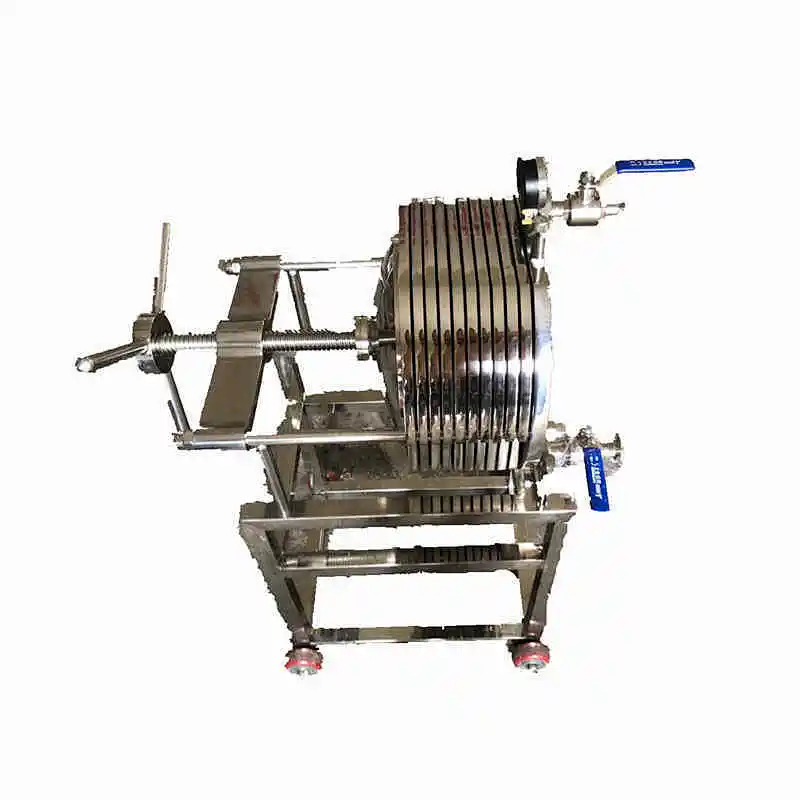

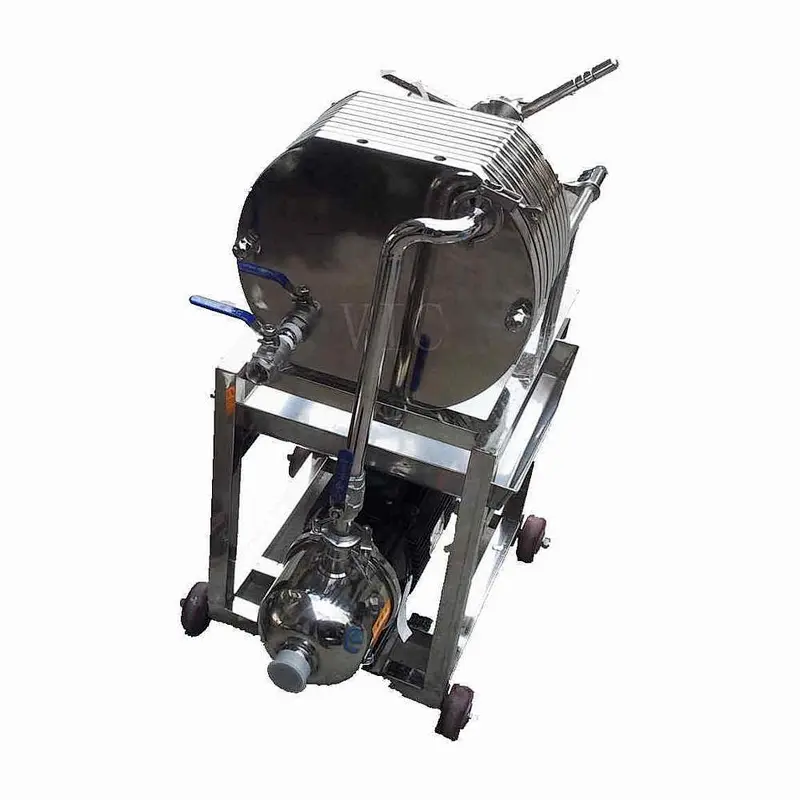

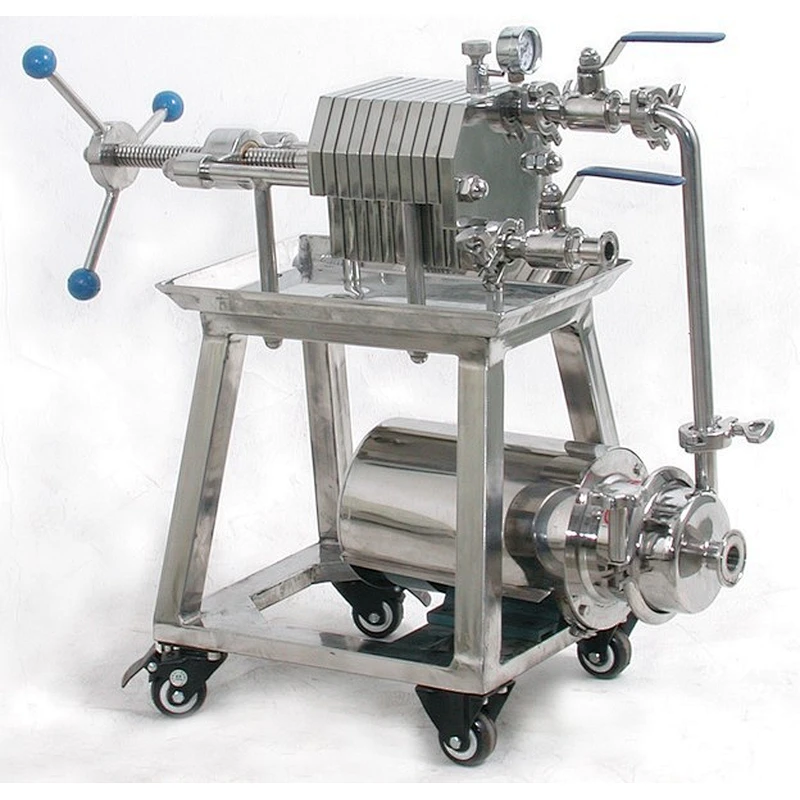

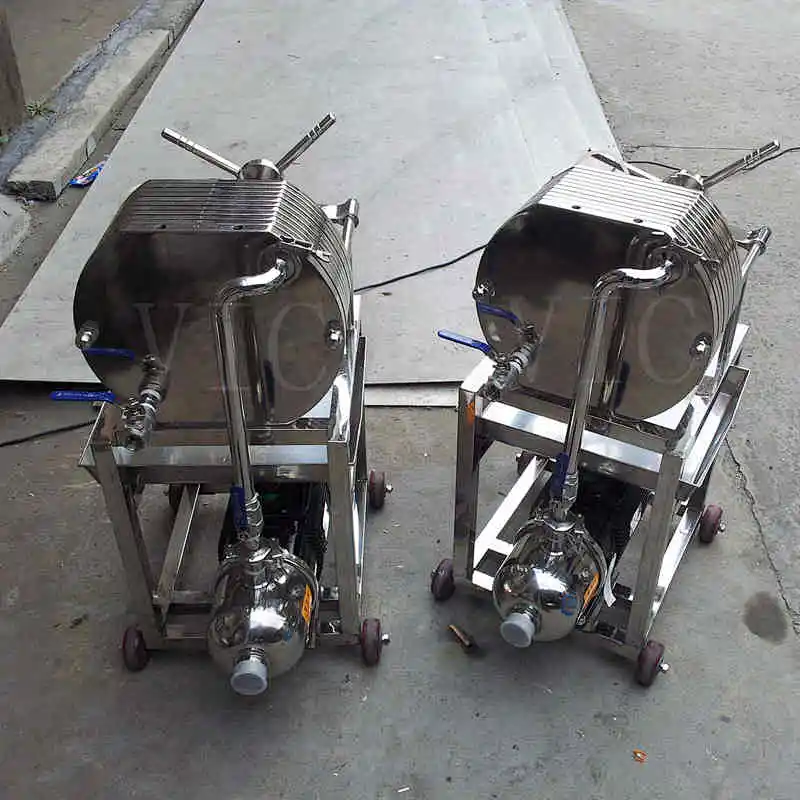

| Model | FP-150 stainless filter press |
| Filtering area | 0.170m2 |
| Filter plate size | 150mm |
| Filter membrane hole dia | 0.8um |
| Filter pressure | 0.15mpa |
| Water flow capacity | 1.5T/H |
| Power | 0.55kw |
| Size | 650x380x650mm |
Different models FP system filter press
Model | Layer | Filter area(m2) | Filter plate size | Filter media(um) | Water flow (T/H) | Power (kw) | Size (m) |
FP-100 | 10 | 0.078 | 100 | 0.8 | 0.8 | 0.55 | 0.6x0.3x0.6 |
FP-150 | 10 | 0.17 | 150 | 0.8 | 1.5 | 0.55 | 0.65x0.38x0.65 |

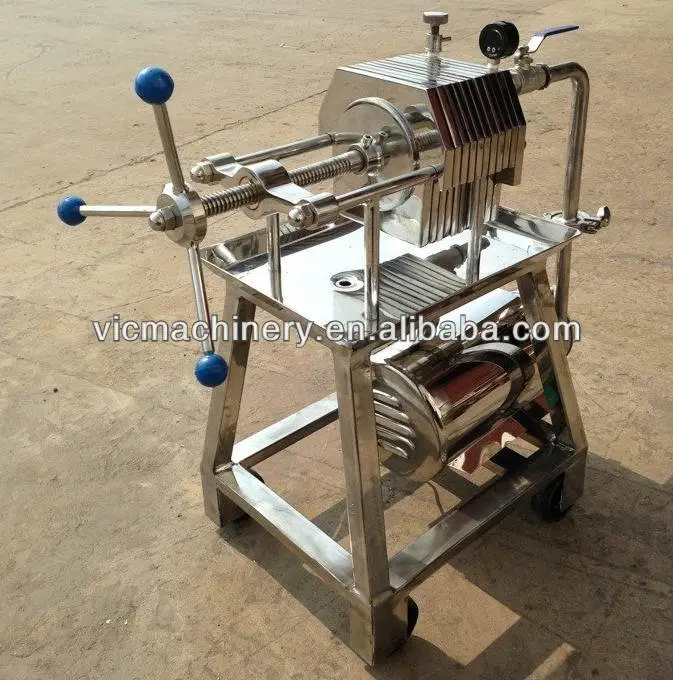

FP-200 | 10 | 0.34 | 200 | 0.8 | 2.0 | 0.55 | 0.65x0.5x0.8 |
FP-300 | 10 | 0.7 | 300 | 0.8 | 4 | 0.75 | 0.7x0.3x0.6 |
FP-400 | 10 | 1.25 | 400 | 0.8 | 6 | 0.75 | 0.6x0.3x0.6 |
FP-400 | 16 | 2.0 | 400 | 0.8 | 9 | 0.75 | 0.6x0.3x0.6 |

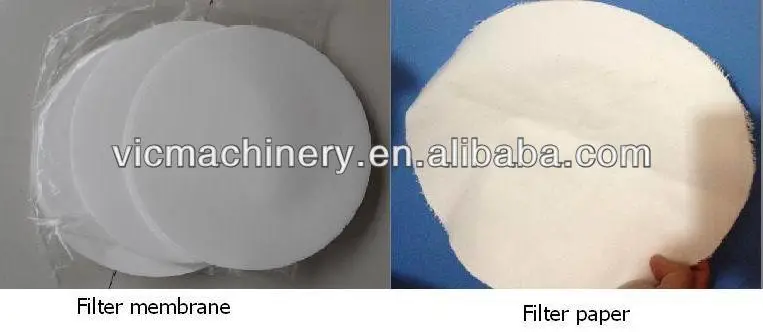

Filtering media:

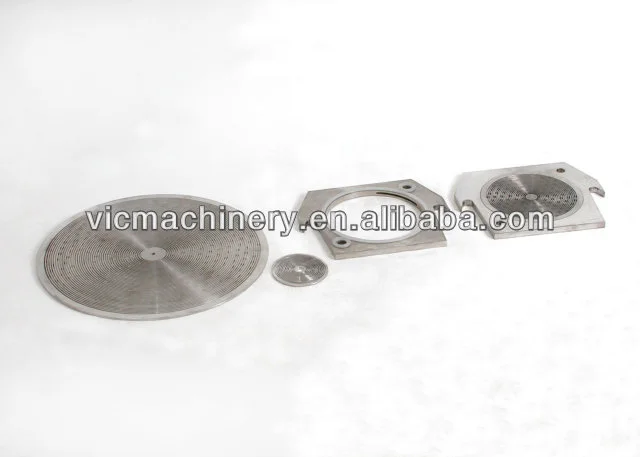

Filter plate:

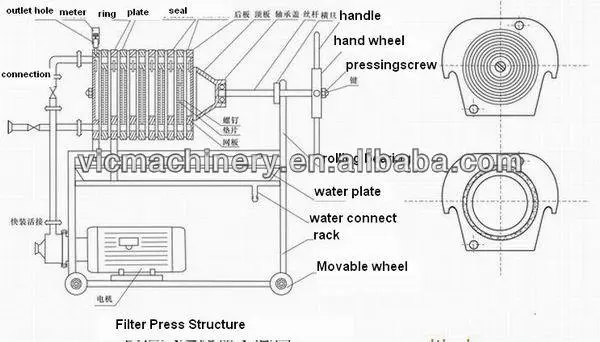

Main structure:

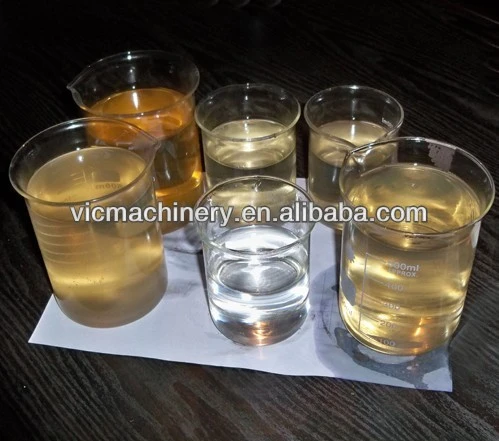

Final filtered oil quality:

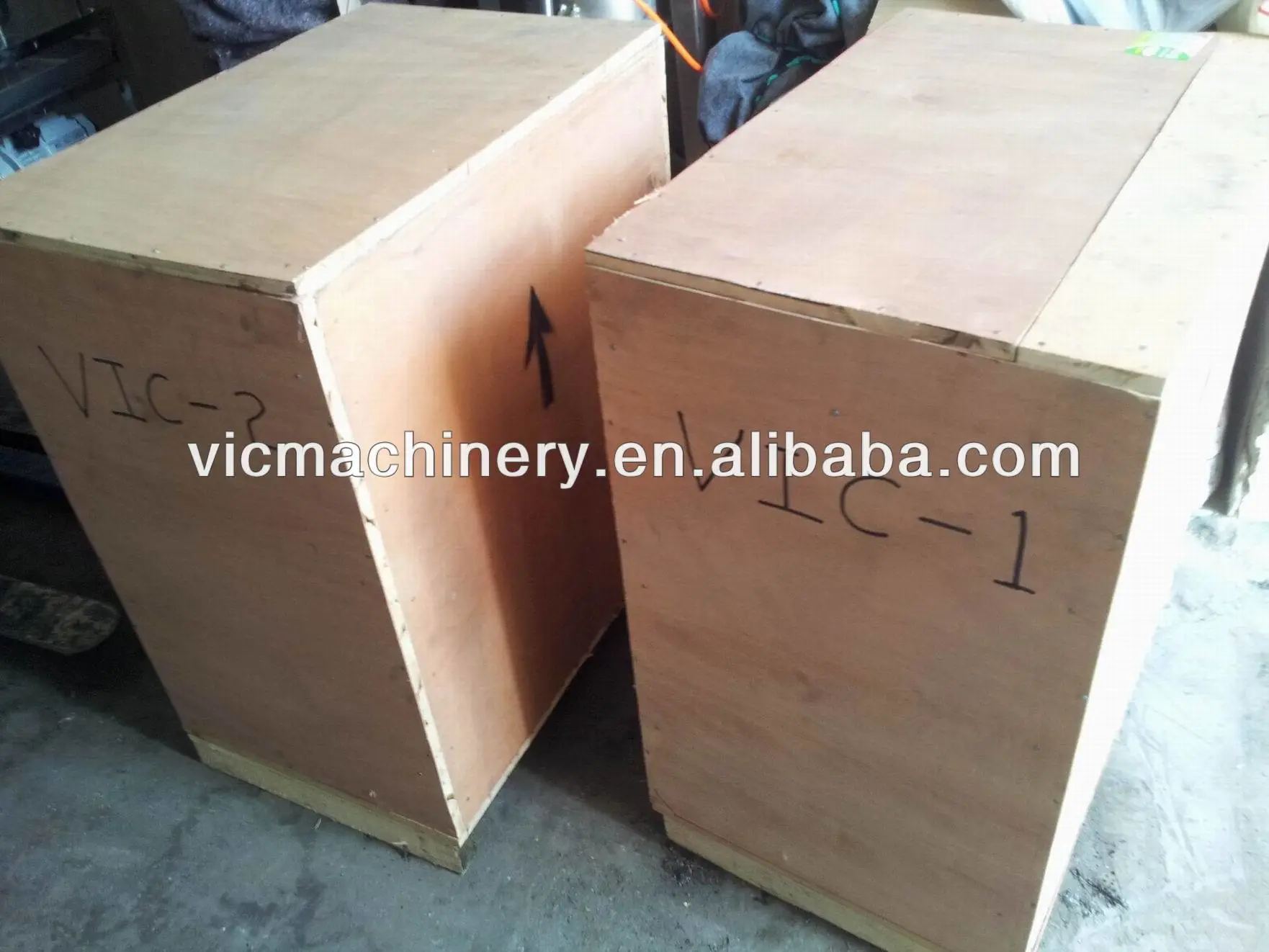

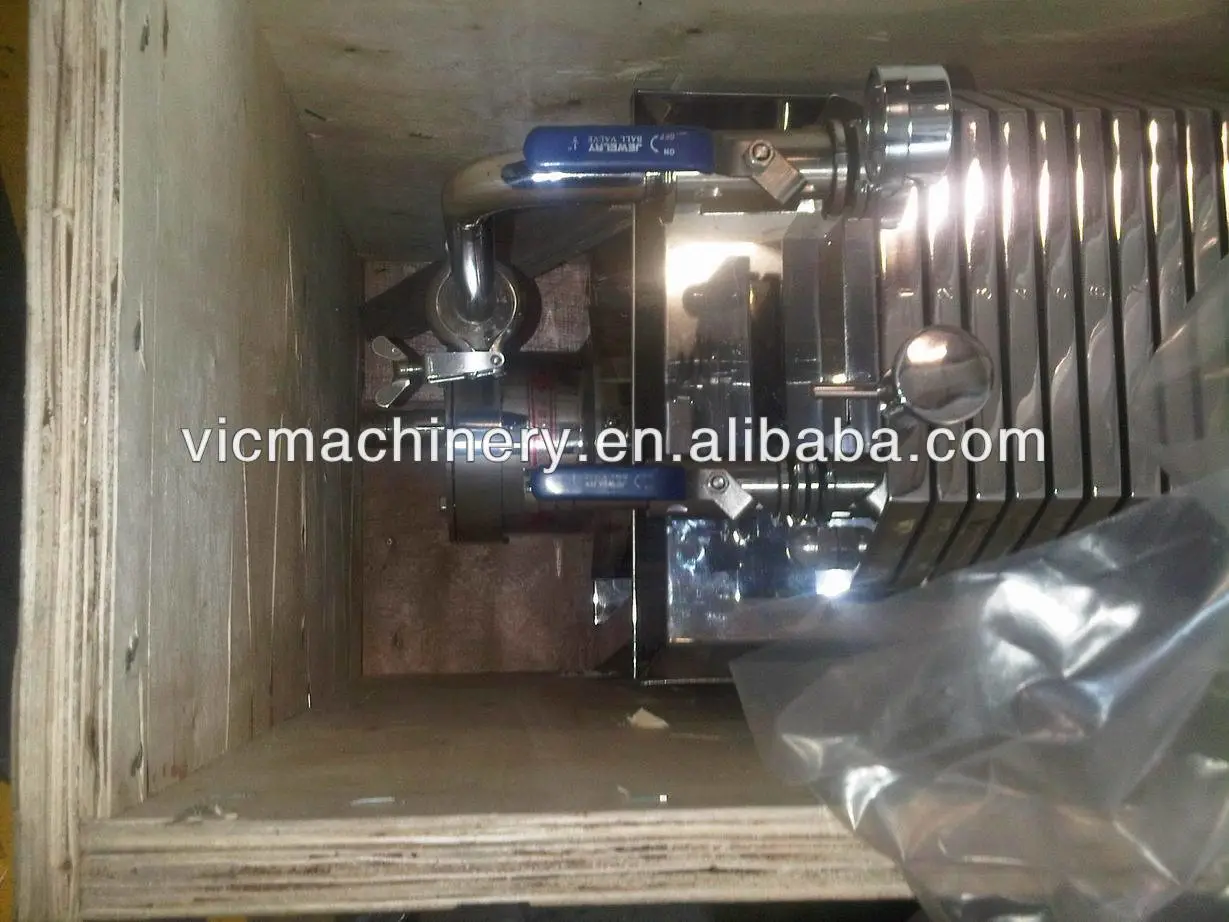

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
