- Condition:New
- Place of Origin:CN
- Type:Feed Pellet Machine
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Brand Name:VIC
- Voltage:380V/50Hz
- Dimension(L*W*H):780*460*920
- Weight:80 kg
- Certification:CE
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Warranty:5 years

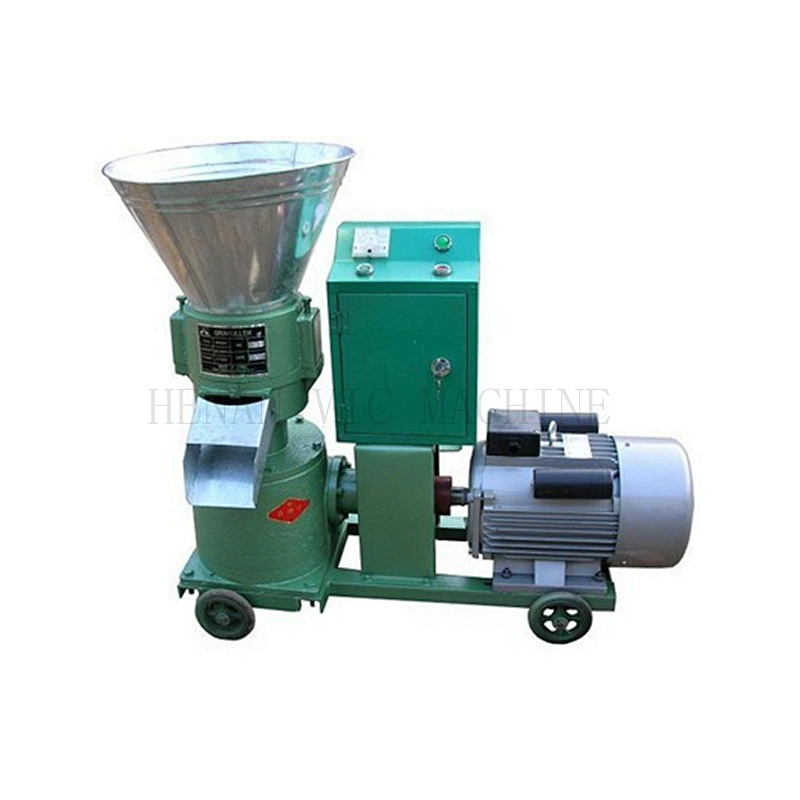

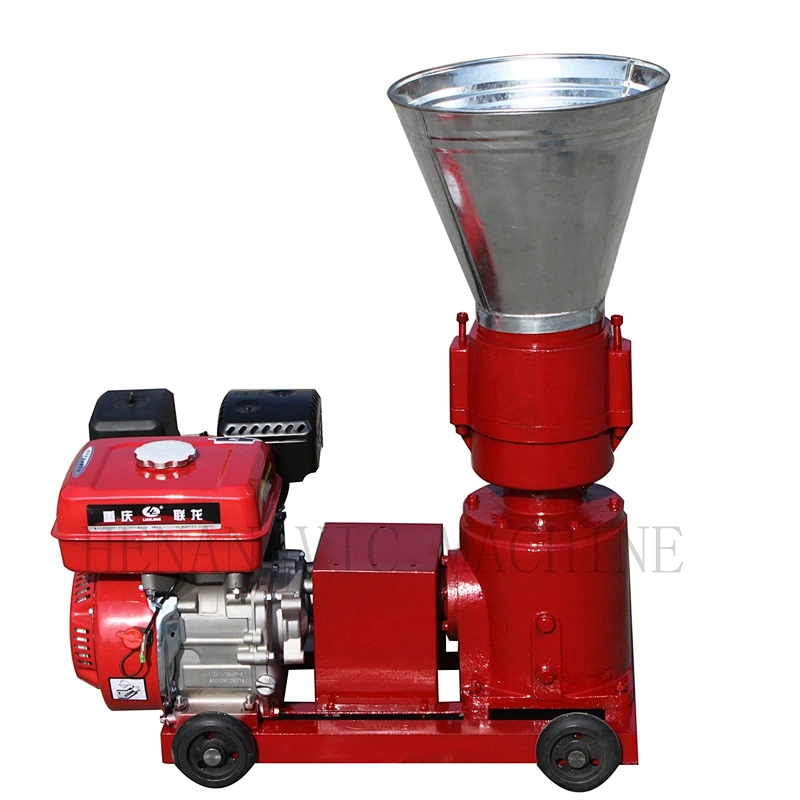

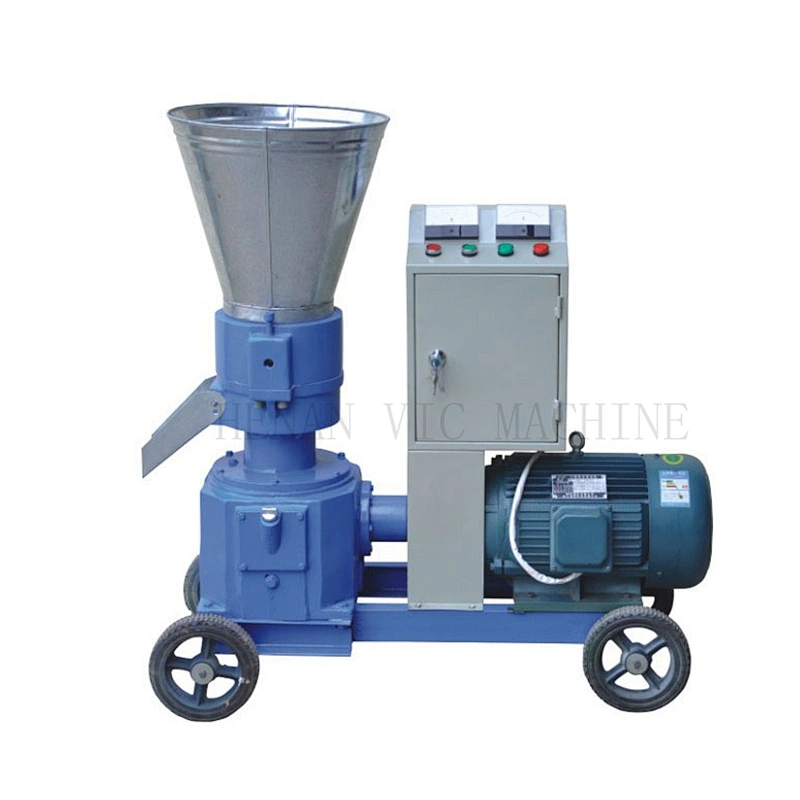

9PK-105 pellet machine
1. Introduction:
This is one kind of small flat die home use pellet machine, it is driven by strap and can extrude feedstuff pellets from all kinds of oil cake, grains for animal food.
2. Main data:
| Model | Power(KW) | Capacity(kg/h) | Weight(kg) | Dimension(mm) |
| 9PK-105 | 2.2 | 20-30 | 60 | 780×460×920 |

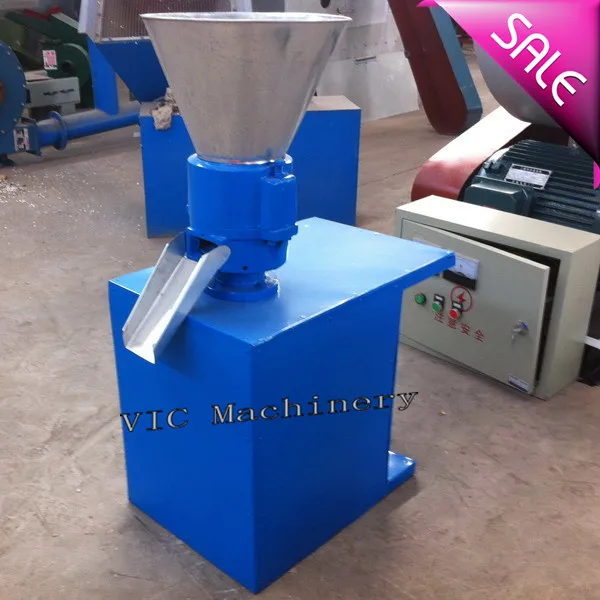

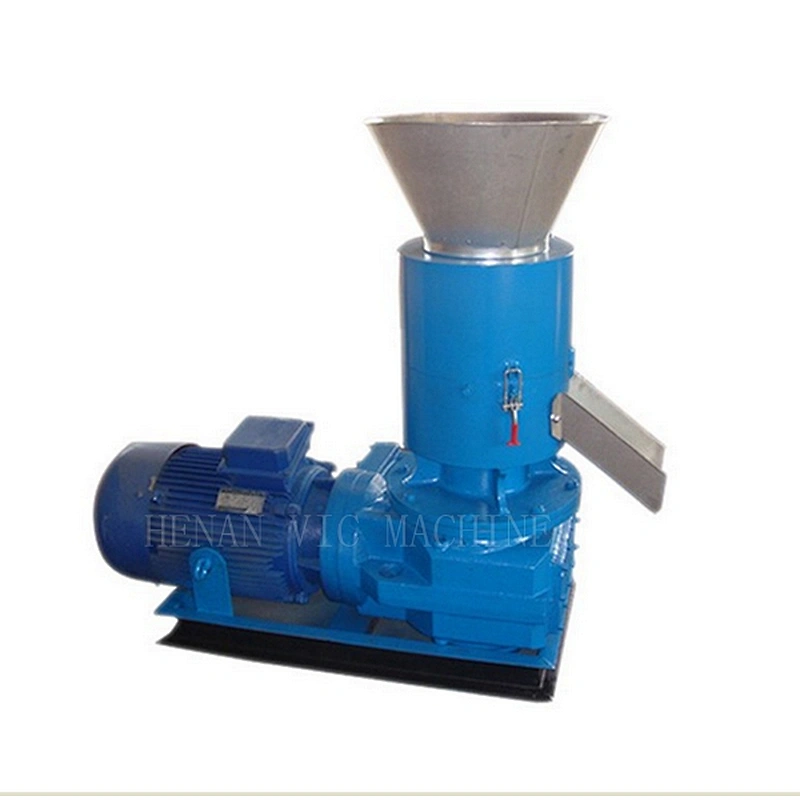

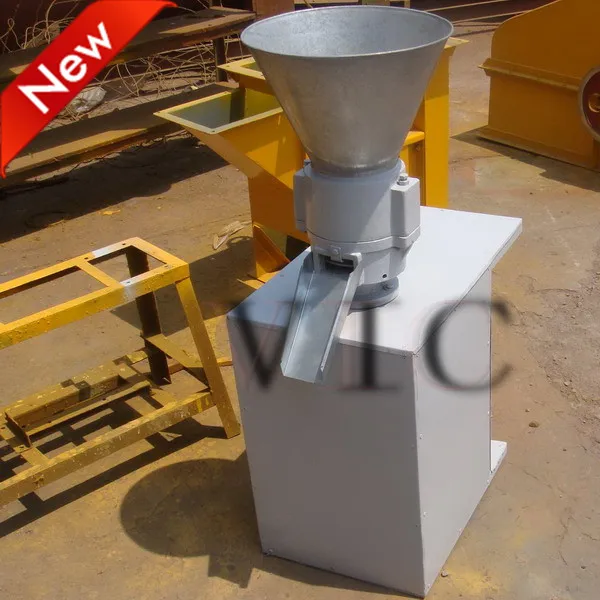

3. Machine details:

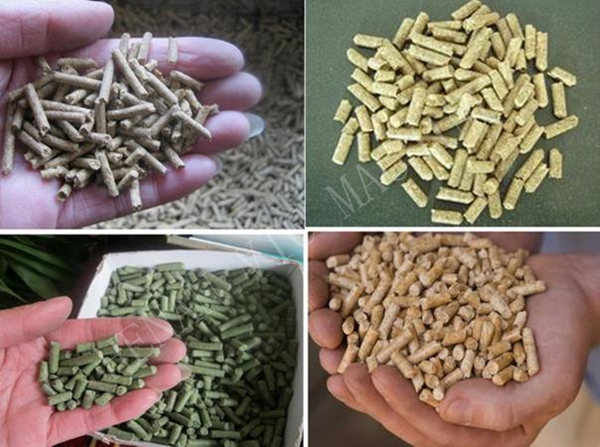

4. Finished pellet samples:

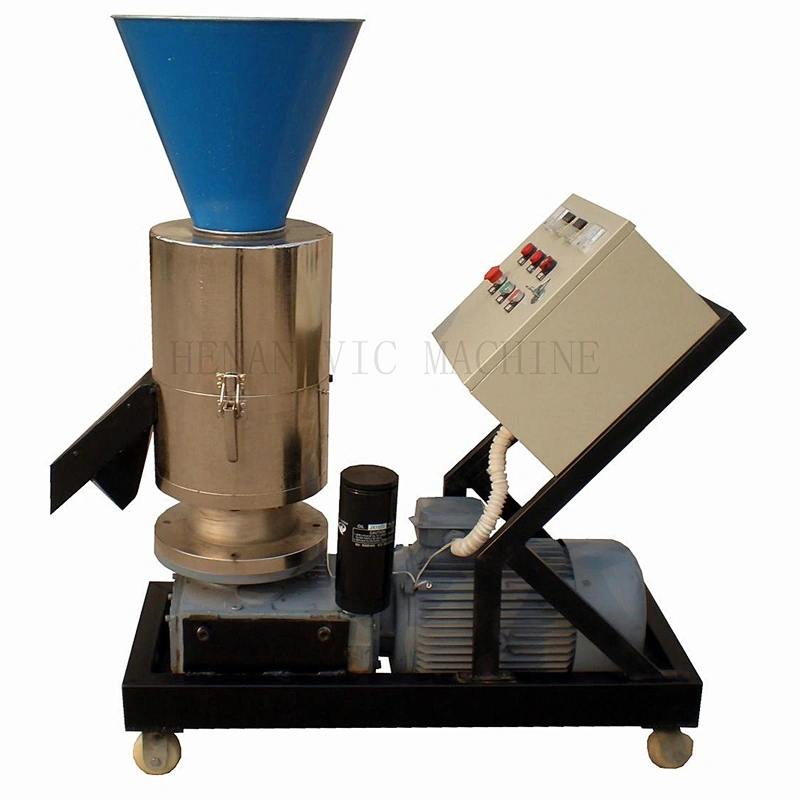

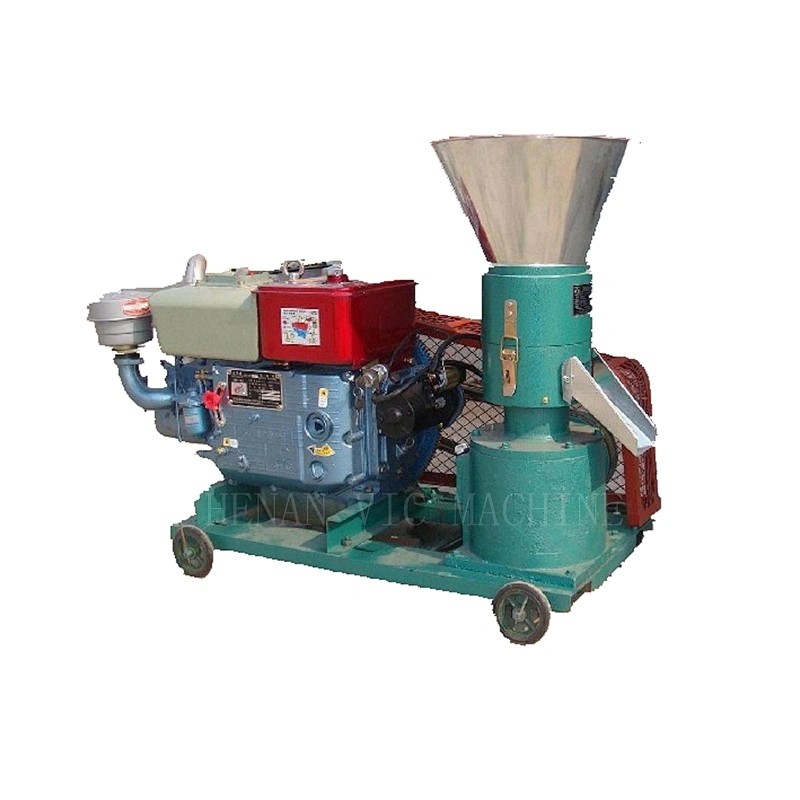

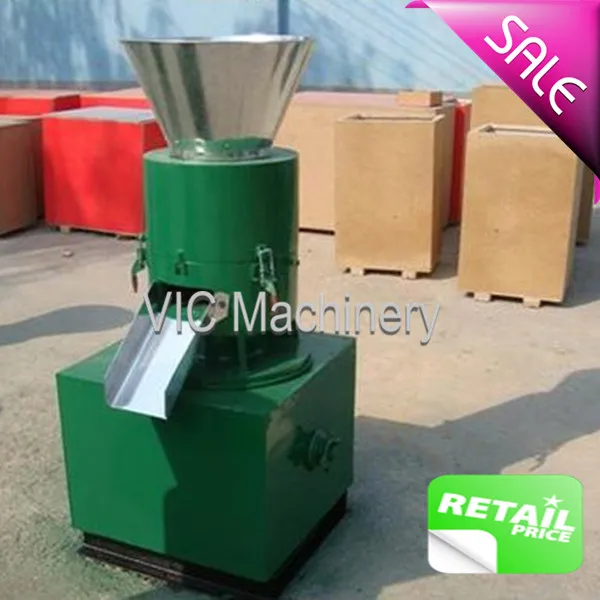

5. Related models:
| Model | Power(KW) | Capacity(kg/h) | Weight(kg) | Dimension(mm) |
| 9PK-105 | 2.2 | 20-30 | 60 | 780×460×920 |
| 9PK-120 | 3 | 35-40 | 60 | 780×460×920 |
| 9PK-150 | 3 | 70-80 | 100 | 800×500×1000 |
| 9PK-200 | 7.5 | 150-200 | 250 | 1000×450×1100 |
| 9PK-250 | 15 | 250-300 | 450 | 1550×500×1250 |
| 9PK-300 | 22 | 300-400 | 550 | 1150×700×1350 |
| 9PK-350 | 30 | 450-550 | 750 | 1150×700×1350 |
6. More pics:

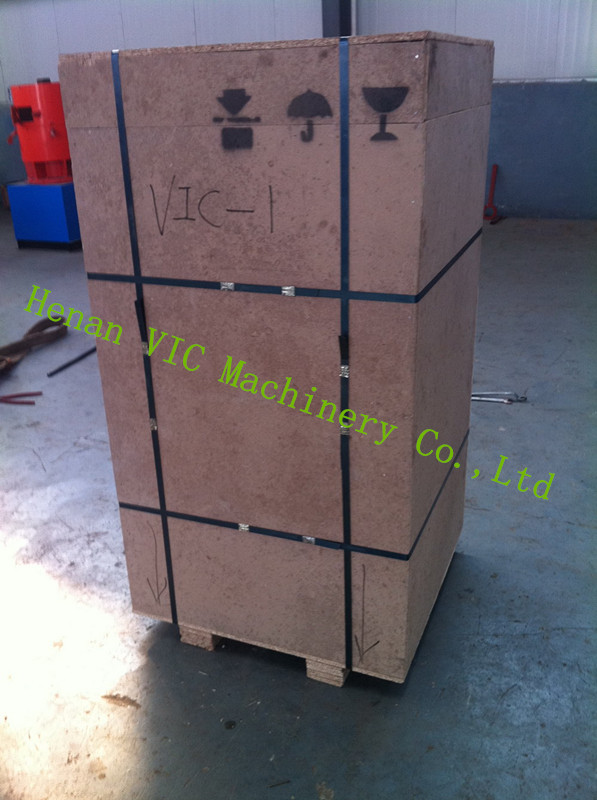

Packaging: In wooden case
Package samples:
Shipping: By sea
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts please notify when place order.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make feed pellets only, it is too small to make wood pellets. If you want to make both feed pellets and wood pellets, please choose the 9PK-200 and above or VIC-K series pellet machine.
Q2. What are the spare parts for the 9PK series pellet machine?

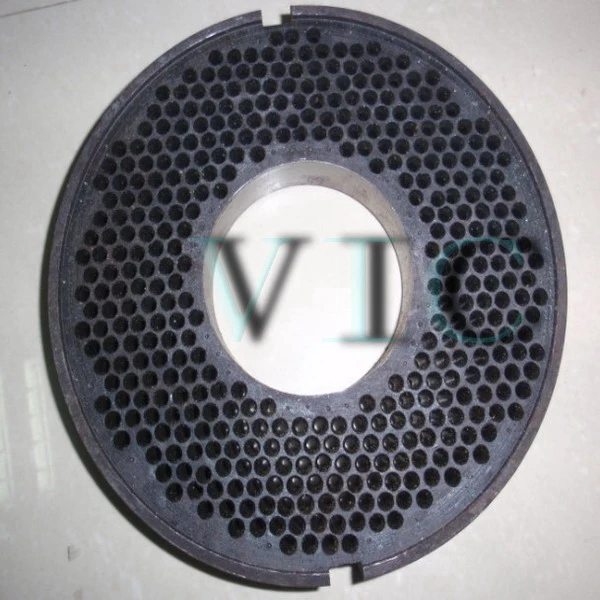

Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The longlife time of the die and rollers is 1500 hours at least. It needs to change the easy weared parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
Q6. What's the warrantee time?
Answer: One year for main machine, except the spare parts.
Problem investigation and trouble shooting:
Q1. I want to make feed pellet for chicken, what's the proper diameter of the pellets?
Answer: Diameter of pellets and application(for your reference)
| Applications: | Fish | Piglet | Rabbit/ chicken/pig | Sheep | Cow | Pellet stove | Charcoal briquette |
| Diameter(mm) | 1.5-2.8 | 3.2 | 4.2 | 5-6 | 7 | 8 | 10-20 |
Q2: The machine works well, but it can not make pellets, it is hard to form pellets. What can I do?
Answer: If the moisture is too high or too low, it is hard to form pellets. It would be better if the moisture is between 13-25%, and the moisture depends on the raw materials. Different raw materials, different moisture.
Q3. How can I make shining wood pellets without any additive?
Answer: Control the moisture of raw material. Proper moisture can help you make beautiful pellet. Or try to add some waste oil, the oil can help the pellets forming and make the pellet machine life longer.
Q4. The capacity becomes smaller after a period of time use, why?
Answer: Probably because the gap between die and rollers is too big. Please decrease the gap between die and rollers. Or it is because the moisture of raw materials is too low. Add some water to increase water content.
Q5. The machine stops suddenly during working.
Answer: There must be a big, hard foreign object or metal enter the machine, please cut off the power and get the object or metal out of machine.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in the responsible of buyers and we will help to solve by video ASAP, if big problem we will send engineer to working site within 1 week.
