- Machine Type:Granulator
- Place of Origin:CN;HEN
- After-sales Service Provided:Engineers available to service machinery overseas
- Brand Name:VIC
- Condition:New
- Voltage:380V
- Certification:CE
- Power(W):3000
- Dimension(L*W*H):1260*750*1150mm
- Model Number:YK160C
- Weight:450kg
- Product Type:sugar

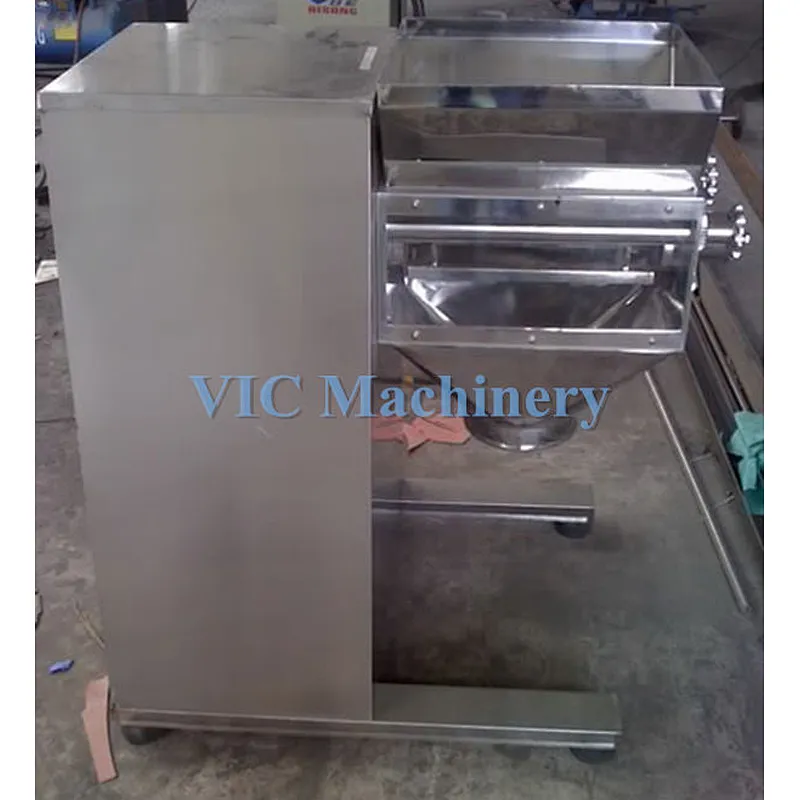

YK160C Swaying Granulator
1. Introduction:
1.1) The machine is a special equipment to make particles from moisture powder mixture, in positive and negative rotation of the rotating drum, made mandatory by the sieve particles of this equipment. It also can be used to agglomerate the dried raw materials and make pellets.
1.2) It is mainly used in pharmaceutical, chemical, food and other industries in manufacturing all kinds of particles, after drying for repression of molding products, the machine can also be used to crush material condenses into massive dry.
1.3) Material contact points are made of stainless steel, elegant appearance, easy to clean, simple operation, low power consumption advantages. This machine has three functions, granulation, crushing, feeding, and can be achieved by a multi-use purposes.
2. Technical Parameters:
Model | YK100 | YK160C |
Capacity (kg/h) | 30-200 | 150-300 |
Powder(kw) | 1.1 | 3 |
Rollerdiameter(mm) | 120 | 160 |
Rotation Speed (r/min) | 65 | 65 |
Swing angle (°) | 360° | 360° |
Dimension(mm) | 700×400×1050 | 1260×750×1150 |
Weight(kg) | 280 | 450 |
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts please notify when place order.
Quality guarantee terms: Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in the responsible of buyers and we will help to solve by video ASAP, if big problem we will send engineer to working site within 1 week.
