Multifunctional automatic walnut shelling machine walnut sheller
Introduction about the walnut sheller machine
The walnut shelling machine is used for the shelling of hard walnuts, macadamia nuts，hazelnuts and other hard-shelled dried fruits.
Due to the different walnut varieties, the yield and the integrity rate of the nuts are different: a structure controls the speed of the motor to make the speed of the speed and the internal wind force appropriate.
The other is to achieve the best shelling effect by adjusting the gap between the stator and the rotor.
The shelling machine is fed from the upper hopper, rotated and extruded by the stator and rotor, and shelled and discharged internally.
This machine is made of high carbon steel and consists of feeding hopper, chain drive, conical patterned plate spindle and rotor, 1.1KW motor driven cycloid reducer, etc. It has a compact structure, high output, low crushing rate, and maintenance convenience and so on.
Advantage about the walnut sheller machine
1. Adopt box design, easy installation, easy maintenance, low noise, safe and reliable
2. Adopt chain drive, high efficiency and no slippage.
3. The cycloid reducer is small in size and large in transmission torque.
Main data about the walnut sheller machine

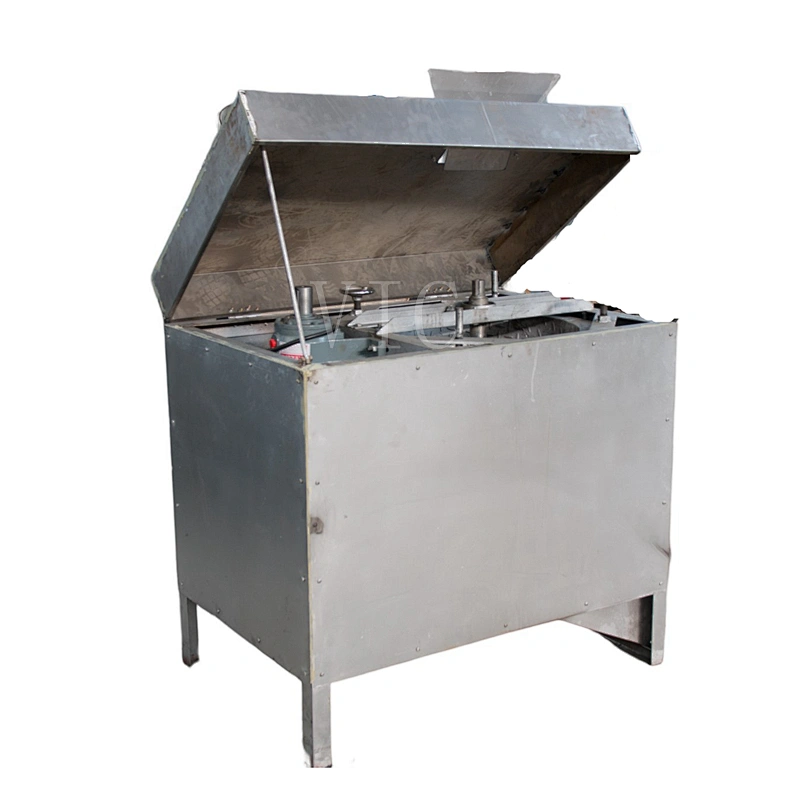

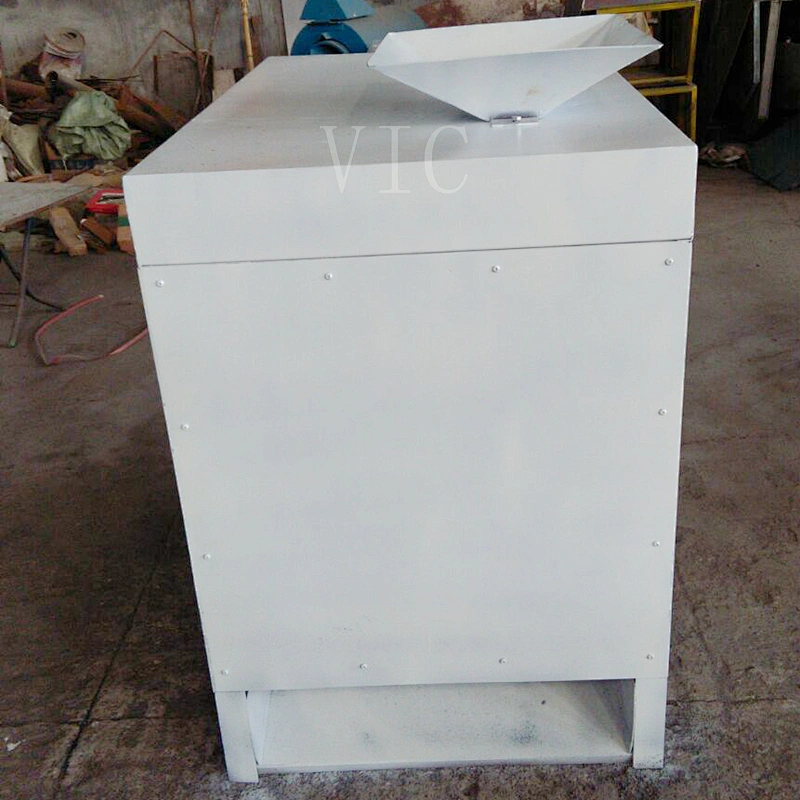

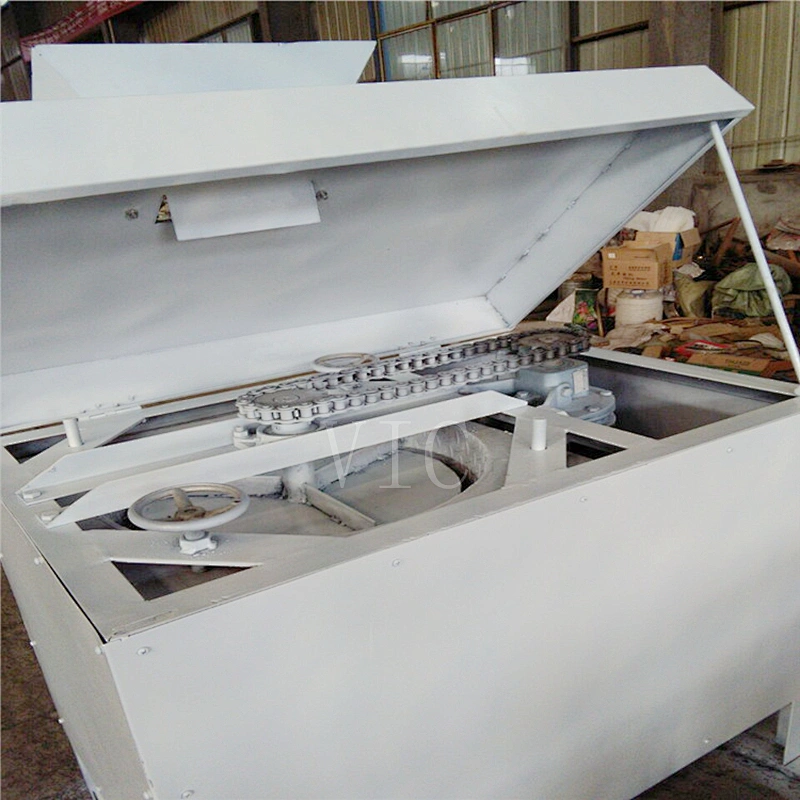

More pictures and details about the walnut sheller machine
Introduction about the walnut sheller machine
The walnut shelling machine is used for the shelling of hard walnuts, macadamia nuts，hazelnuts and other hard-shelled dried fruits.
Due to the different walnut varieties, the yield and the integrity rate of the nuts are different: a structure controls the speed of the motor to make the speed of the speed and the internal wind force appropriate.
The other is to achieve the best shelling effect by adjusting the gap between the stator and the rotor.
The shelling machine is fed from the upper hopper, rotated and extruded by the stator and rotor, and shelled and discharged internally.
This machine is made of high carbon steel and consists of feeding hopper, chain drive, conical patterned plate spindle and rotor, 1.1KW motor driven cycloid reducer, etc. It has a compact structure, high output, low crushing rate, and maintenance convenience and so on.
Advantage about the walnut sheller machine
1. Adopt box design, easy installation, easy maintenance, low noise, safe and reliable
2. Adopt chain drive, high efficiency and no slippage.
3. The cycloid reducer is small in size and large in transmission torque.
Main data about the walnut sheller machine
| Model | HTB-20 |
| Power | 1.1kw |
| Capacity | 200-900kg/h |
| Voltage | 220/380v |
| Breakage rate | 3-5% |
| Size | 1100x750x1300mm |
| Weight | 250kg |
More pictures and details about the walnut sheller machine
