6YZ-150 mini hydraulic cold press oil machine
6YZ-150 mini hydraulic cold press oil machine
6YZ-150 mini hydraulic cold press oil machine
6YZ-150 mini hydraulic cold press oil machine
6YZ-150 mini hydraulic cold press oil machine

6YZ-150 mini hydraulic cold press oil machine

Model NO.
6YZ-150
Quantity:

1. Application:

The automatic mini hydraulic cold press oil machine is a new developed oil expeller which is pressing oil from most oil raw materials with super high pressure 60mpa. Automatic mini hydraulic cold press oil machine can be applied for oilseeds such as walnuts, sesame, peanut, coconut, cocoa butter,  and pine nuts, etc.
With lower power consumption and noise, it can be fed with 8-12kg of oil material every time and completely squeeze in 6-8min. The final oil is good edible oil. You can use the sesame oil to cook directly.
The hydraulic system is set before it leaves the factory, so you can use it with confidence.  In the case of oil addition, after pressing starts, it will automatically press several times until you press the stop button.
Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 200KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). You can choose vacuum filtration system to make healthier oil .


2. Technical data:

Model

6YZ-150

6YZ-180

6YZ-230

6YZ-260

Process capacity

8-12kg/h

16-20kg/h

32-40kg/h

44-55kg/h

Motor power

0.75kw(220v/

50hz/single)

1.5kw(220v/

50hz/single)

 1.5kw(220v/

50hz/single)

 1.5kw(220v/

50hz/single)

Heating power

600w

720w

850w

950w

Heating temperature

50-70

50-70

50-70

50-70

Nominal pressure(KN)

1100KN

1700KN

2700KN

3400KN

Max working pressure

60MPa

60MPa

60MPa

60MPa

Overall size

700X800X

780mm

800X900X

1050mm

900X1000

X1400mm

1050X1100

X1550mm

Weight

240kg

450kg

850kg

1250kg




Model

6YZ-320

6YZ-360

6YZ-415

6YZ-460

Process capacity

60-70kg/h

80-90kg/h

90-120kg/h

150-200kg/h

Motor power

2.2kw(380V

50Hz3p)

2.2kw(380V

50Hz3p)

2.2kw(380V

50Hz3p)

3kw(380V

50Hz3p)

Heating power

1100w

1250w

1500w

2000w

Heating temperature

50-70

50-70

50-70

50-70

Nominal pressure(KN)

4800KN

6400KN

8000KN

9900KN

Max working pressure

60MPa

60MPa

60MPa

60MPa

Overall size

1120X1200

X1650mm

1200X1200

X1680mm

1250X1250

X1700mm

1450X1450

X1950mm

Weight

1800kg

2100kg

2300kg

3000kg

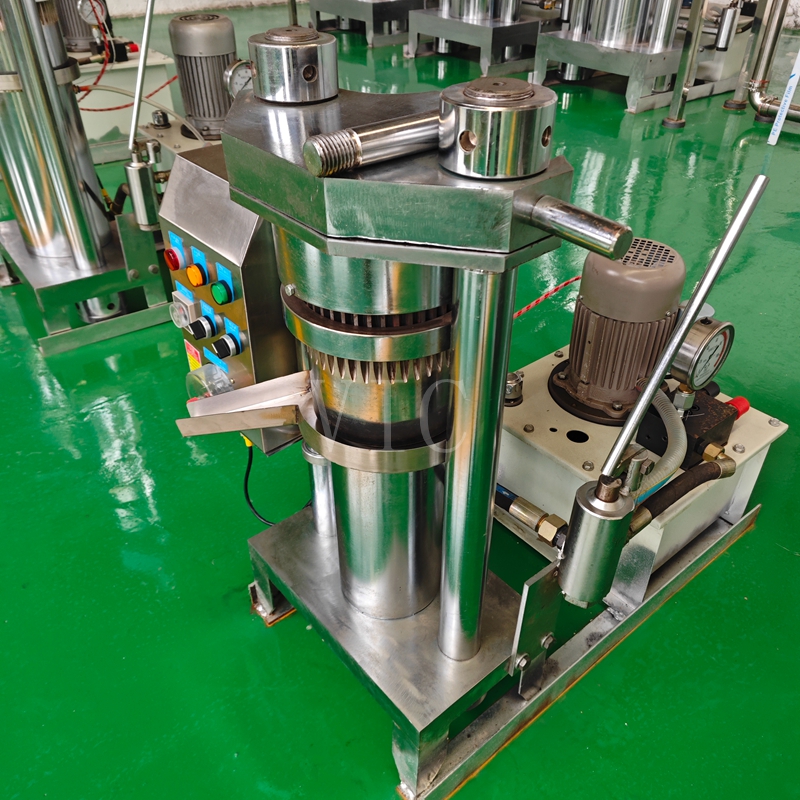

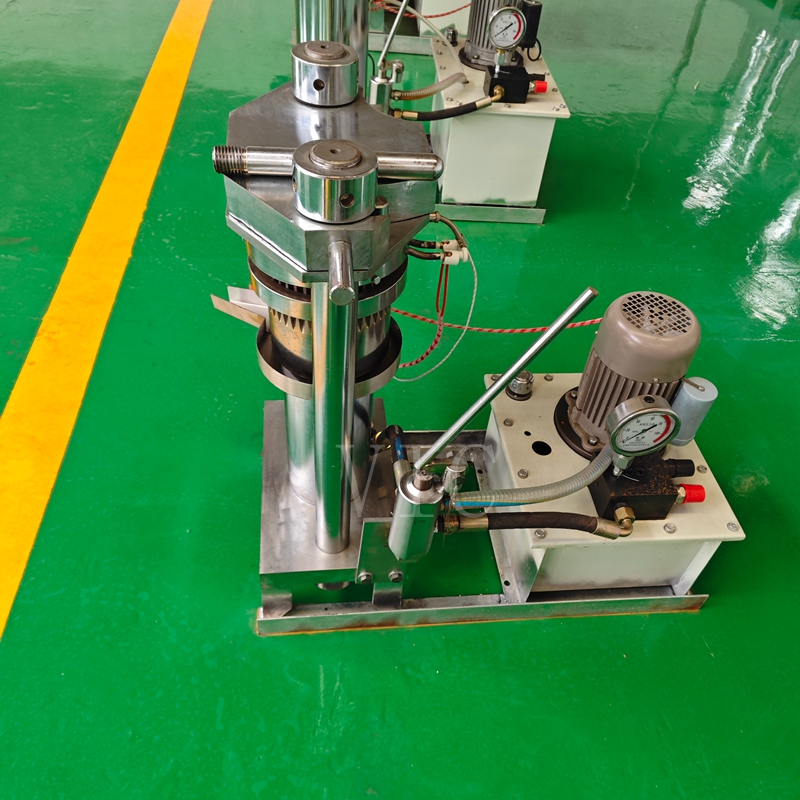

3.  Automatic mini hydraulic cold press oil machine pictures and more details

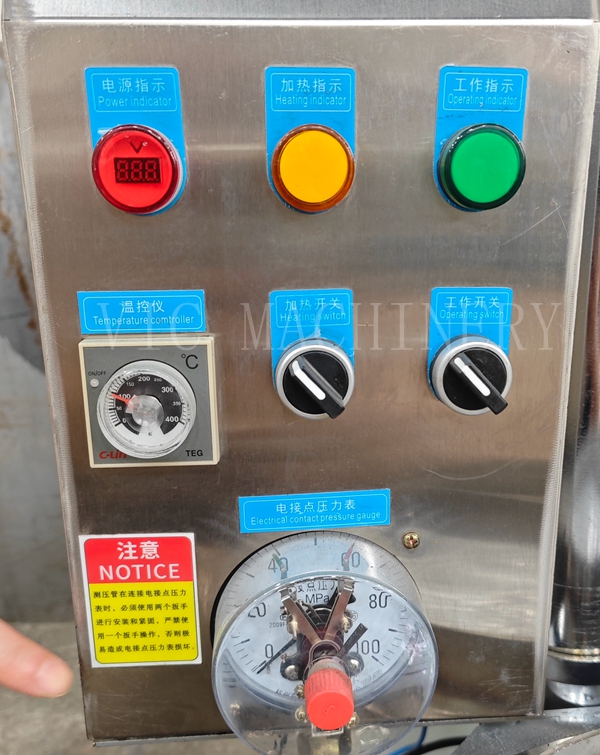

Contral box with double scale pressure

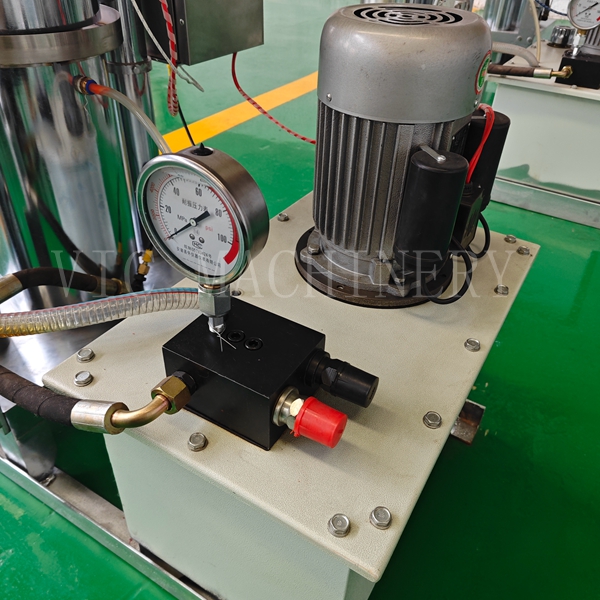

Hydraulic systerm with high pressure valves to 60 mpa

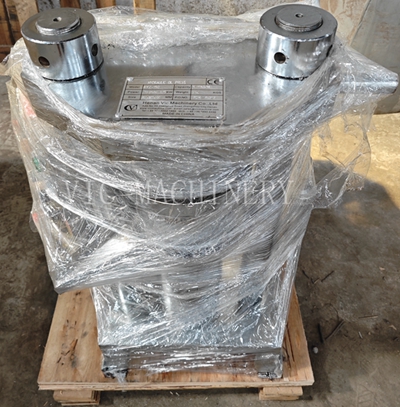

Package

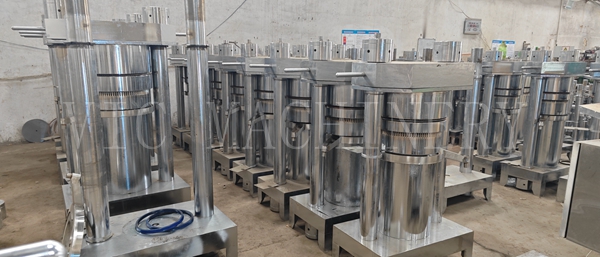

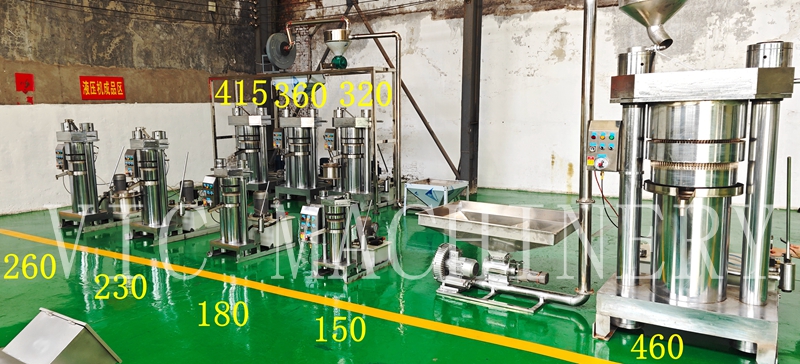

Factory corner
