Instruction:
The new developed advanced touch screen controlled automatic hydraulic oil press machine is improved based on introduced Korean technology and won high praise from users.
This hydraulic oil press machine has touch screen automatic control and knob automatic control function, customers can choose by themselves.
The hydraulic oil mill automatic control functions include: automatic start, automatic open/close and rotation of the upper cover, automatic rise and fall of the cylinder piston, in addition to the pressing time setting, the pressing time display and the total working time display, which have a good reference role for the use and management of the equipment.
The hydraulic oil press machine can be applied for oilseeds such as coconut, palm, flaxseed, sesames, walnuts and pine nuts, etc.
With lower power consumption and noise, it can be fed with12kg of material every time and completely squeeze in 4-5min.
The final oil is good edible oil.
This hydraulic oil press machine has touch screen automatic control and knob automatic control function, customers can choose by themselves.
The hydraulic oil mill automatic control functions include: automatic start, automatic open/close and rotation of the upper cover, automatic rise and fall of the cylinder piston, in addition to the pressing time setting, the pressing time display and the total working time display, which have a good reference role for the use and management of the equipment.
The hydraulic oil press machine can be applied for oilseeds such as coconut, palm, flaxseed, sesames, walnuts and pine nuts, etc.
With lower power consumption and noise, it can be fed with12kg of material every time and completely squeeze in 4-5min.
The final oil is good edible oil.
Advantage:
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 150KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safer
6). Low-power motors save energy
Main data:
Model | 6Y-190 | 6Y-220 | 6Y-270 | 6Y-300 |
Process capacity | 30-40kg/h | 40-50kg/h | 80-100kg/h | 120-150kg/h |
Power | 1.5kw(380V/50Hz) | 1. 5kw(380V/50Hz) | 2.2kw(380V/50Hz) | 3.0kw(380V/50Hz) |
Nominal pressure | 1700KN | 2270KN | 3430KN | 4250KN |
Max pressure in working | 60MPa | 60MPa | 60MPa | 60MPa |
Overall size | 1200X990X1610mm | 1290X1120X1740mm | 1350X1210X1730mm | 1310X1170x1730mm |
Weight | 1050kg | 1350kg | 1650kg | 1650kg |
More details:

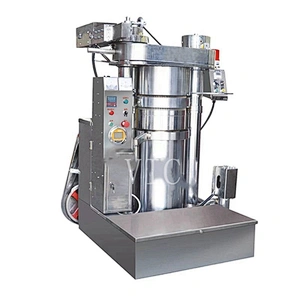

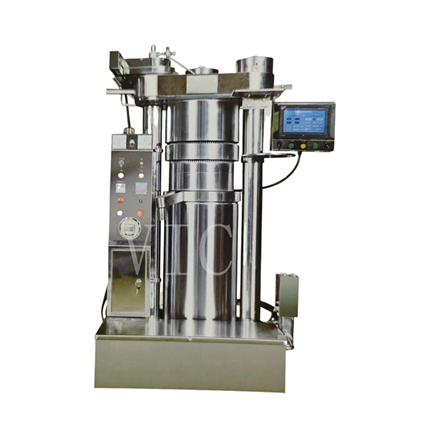

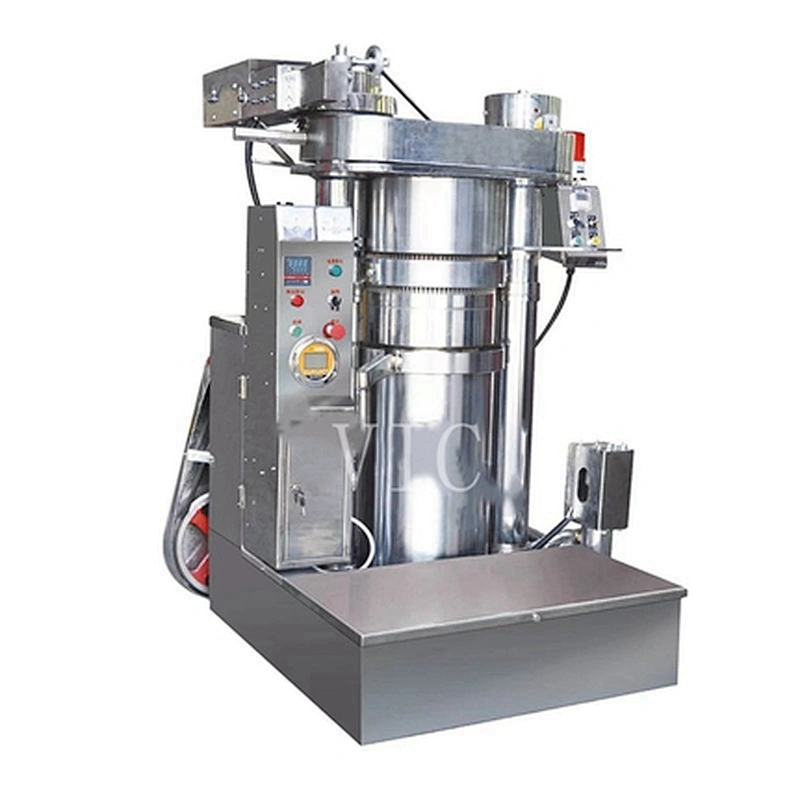

Touch screen models
Smart control model

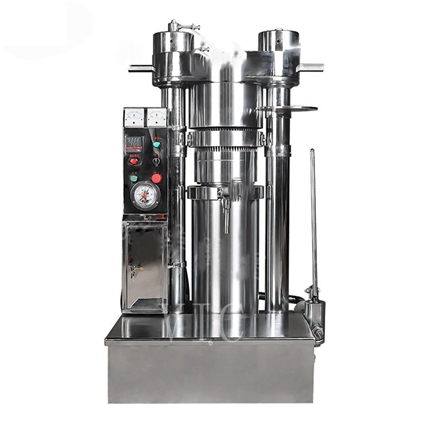

Ordinary model
Touch screen and button dual control system
Sesame and oil cakes
