Grain flaker soybean flaking mill machine oat flaking mill

Application:

This hydraulic grian flaker is mainly applicable in edible oil processing industry, oil seeds such as soybeans, peanuts, rapeseeds, sunflower seeds, and cottonseeds, which have been screened, stone-removed, crushed, and softened, are uniformly entered between two relatively rotating rollers with a certain pressure and gap, and are extruded into flakes that meet the requirements of the oil-extraction process.

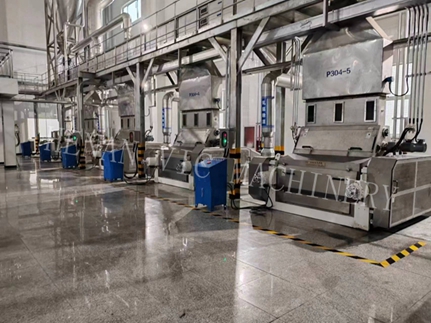

The bean flaking mill machine is the core equipment in the pretreatment of the first process of oil extraction in the oil industry. The quality of the flakes directly affects the oil yield of the oil factory.

Main feature about the flaking mill:

1. The roll control adopts square bearing housing, which makes the operation more stable and reliable, and makes the noise lower;

2. The design structure is unique, it is convenient to directly adjust the thickness of the flakes, and it has a reliable anti-collision function for the rollers;

3. Composite feeding with equalizing roller and toothed roller can be used to ensure more uniform feeding, and the feeding amount can be controlled by frequency conversion;

4. Centrifugal cast high-alloy rolls are adopted, and the through-shaft assembly process has strong rigidity. The heat-conducting oil can be filled in the roll body, and the work stability is good;

5. The electric pump of the hydraulic system adopts intermittent automatic operation, the pressure is constant and reliable, and the energy saving effect is obvious;

6. Humanized design, strong operability, more stable rolling blanks and longer service life;

7. Electrically realize PLC automatic control.

8. The whole machine has compact structure, reduced height, increased strength, good stability, low noise, convenient operation, and low failure rate, so the users use it without any worries.

Main data about the flaking mill machine:
