- Place of Origin:CN
- Condition:New
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Usage:all kinds of seeds
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 Year
- Production Capacity:100kg/h
- Brand Name:VIC
- Voltage:380v,220v
- Dimension(L*W*H):1480x1030x1520mm
- Weight:620kg
- Certification:CE,ISO
Raw materials and oil for the vegetable oil press machine:
Such as copra, cottonseeds, soybean, rapeseeds, peanut, sunflower seeds, tea seeds, olive,etc.
All kinds of raw materials oil content:
Raw material | Oil content |
Camellia | 58-60% |
Peanut | 44-55% |
Castor seed | 50-70% |
Soybean | 18-21% |
Cottonseed | 33-40% |
Rapeseed | 33-40% |
Sesame | 45-50% |
Sunflower | 45% |
Safflower | 29-45% |
Rice bran | 18-20% |
Corn embryo | 30-40% |
Walnut | 40-65% |
Flaxseed/linseed | 29-44% |
Palm | 50-55% |
Coconut | 35-45% |
Application about the vegetable oil making machine:
1.Advantage:nice shape, highly structured, easy installation, , fast warn-up and high oil output rate
2.New type:this kind ofvegetable oil press machine is our latest environment protection oil press.
3.Main feature:this kind of combined vegetable oil making machinemainly has 3 parts: electric control box to control the machine working, oil pressing part, and vacuum filtering part for clearing oil.
4.Function: the vegetable oil expeller hot press and cold press are available.
5.Structure:6YL-T series integrated vegetable oil press machines are designed on the basis of the advantage of 6YL-series vegetable oil expeller
6.Suitable place:this kind of vegetable oil expeller machine is situable for small-medium factory and supermarket.
Main data about the vegetable oil expeller :
Model | Capacity (kg/h) | Power(kw) | Size(mm) | Weight(KG) |
6YL-80T | 100-150 | 5.5kw+0.75kw | 1600x1100x1500 | 600 |
6YL-100T | 200-250 | 7.5kw+0.75kw | 1970x1375x1700 | 1200 |
6YL-120T | 300-350 | 11kw+1.1kw | 2150x1500x1800 | 1750 |
6YL-160T | 400-500 | 18.5kw+1.5kw | 2350x1650x1930 | 2100 |
More pictures and details about the vegetable oil press machine

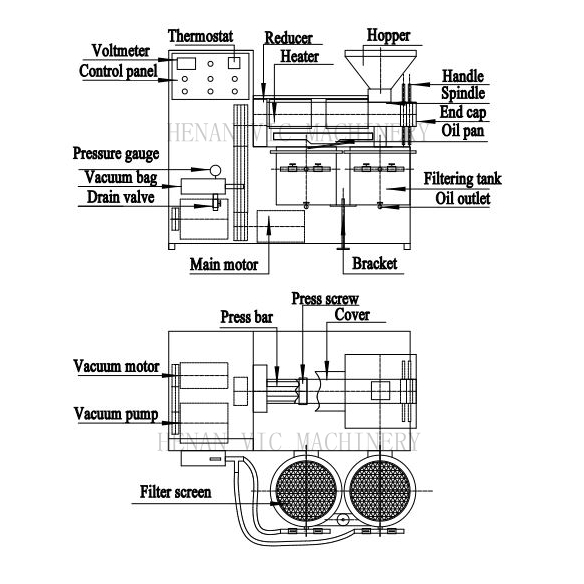

Schematic diagram of the vegetable oil making machine

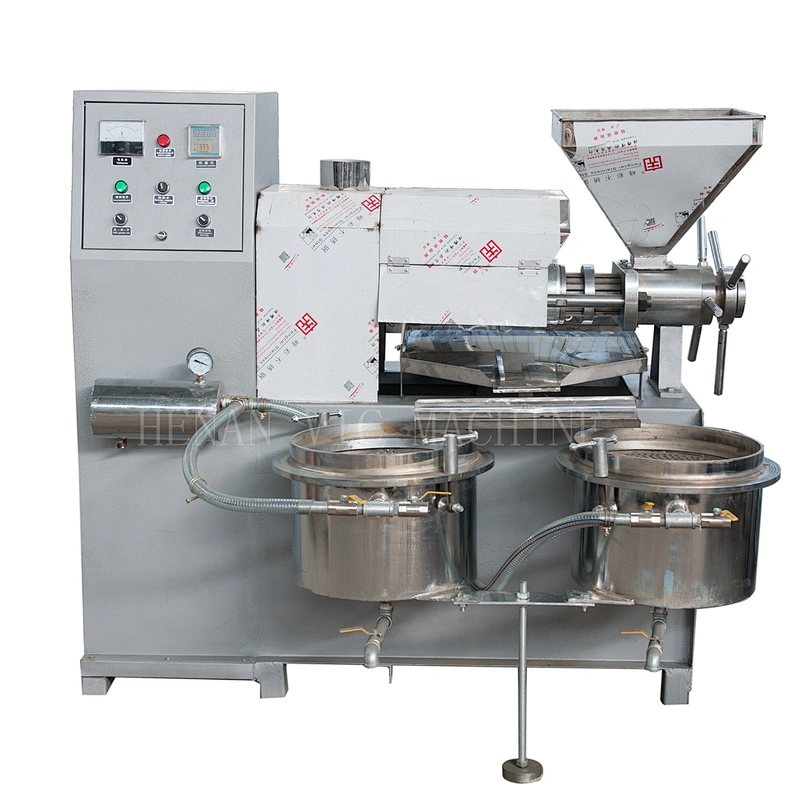

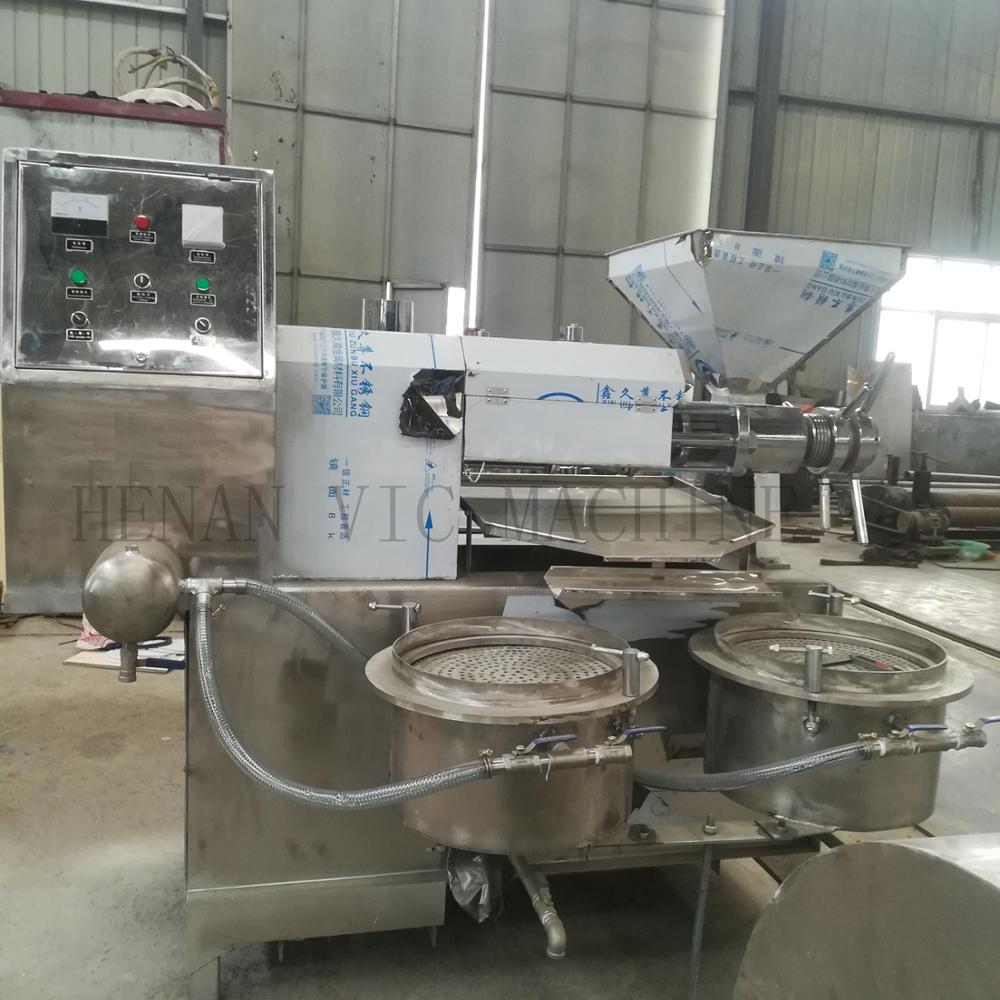

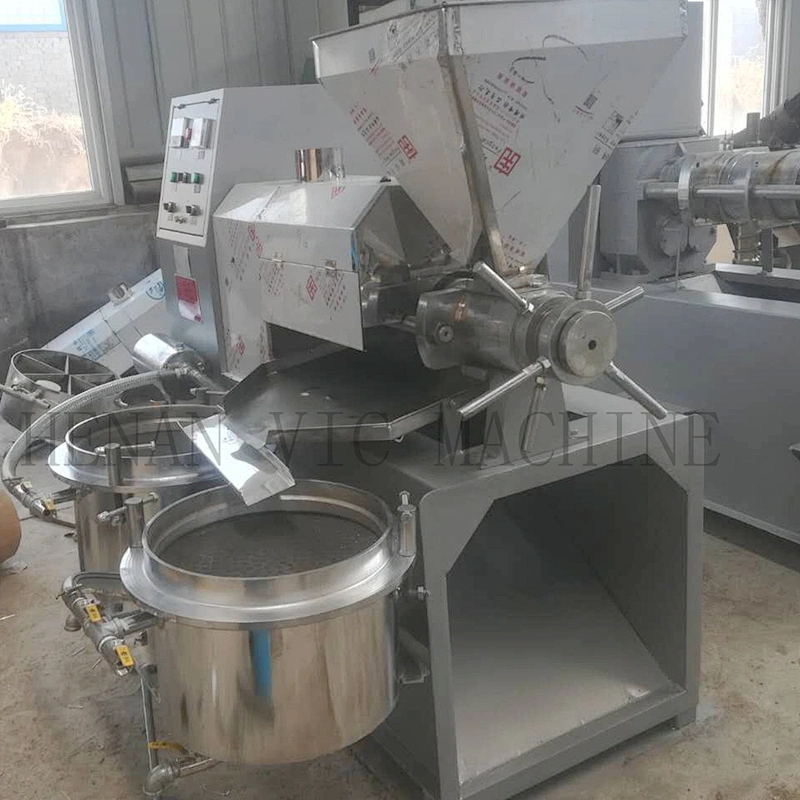

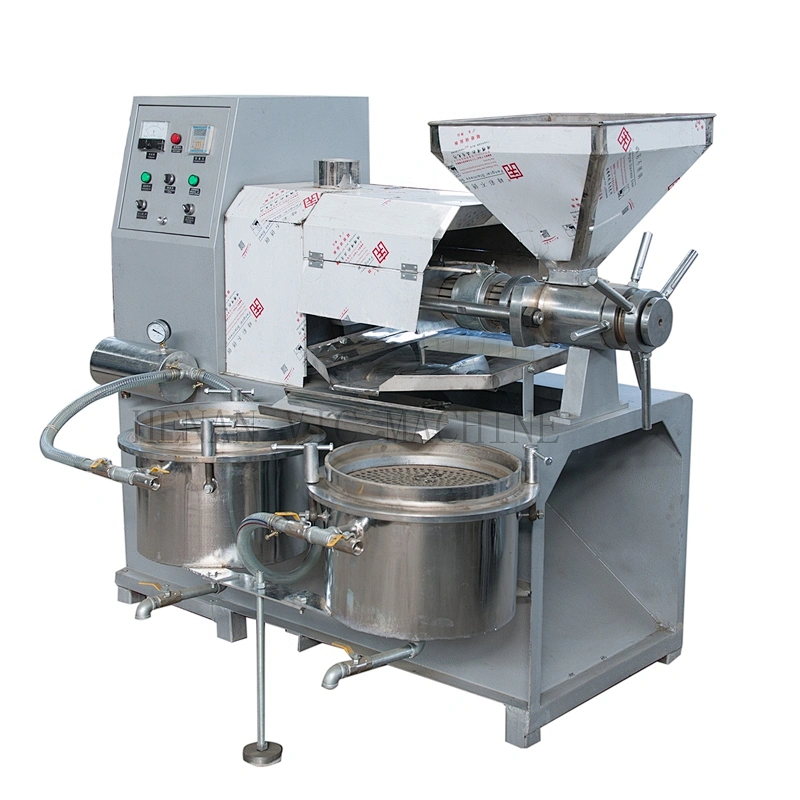

Main machine photos about the vegetable oil making machine

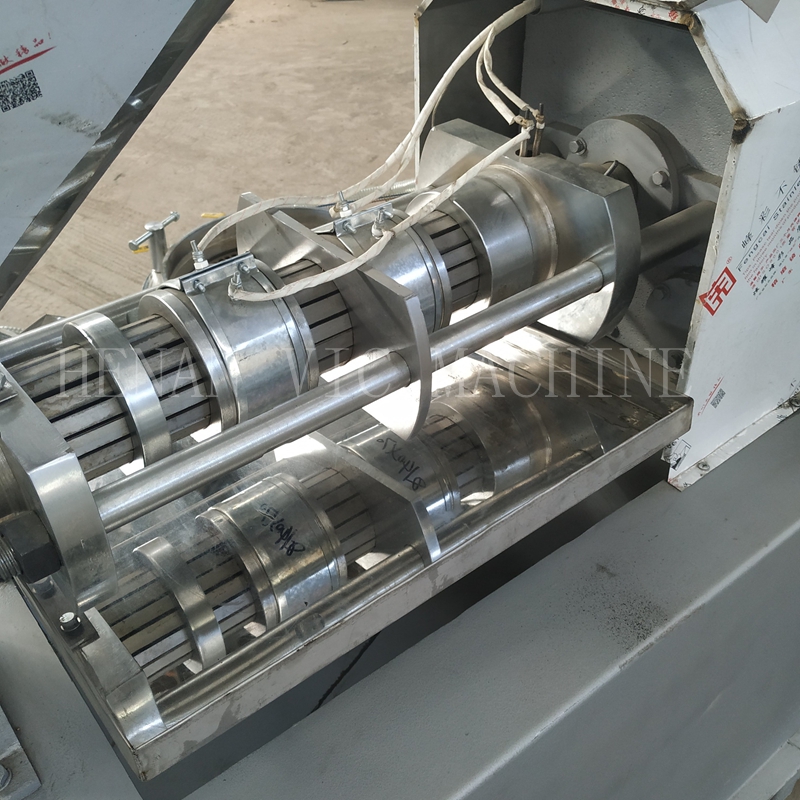

Precisely assembled

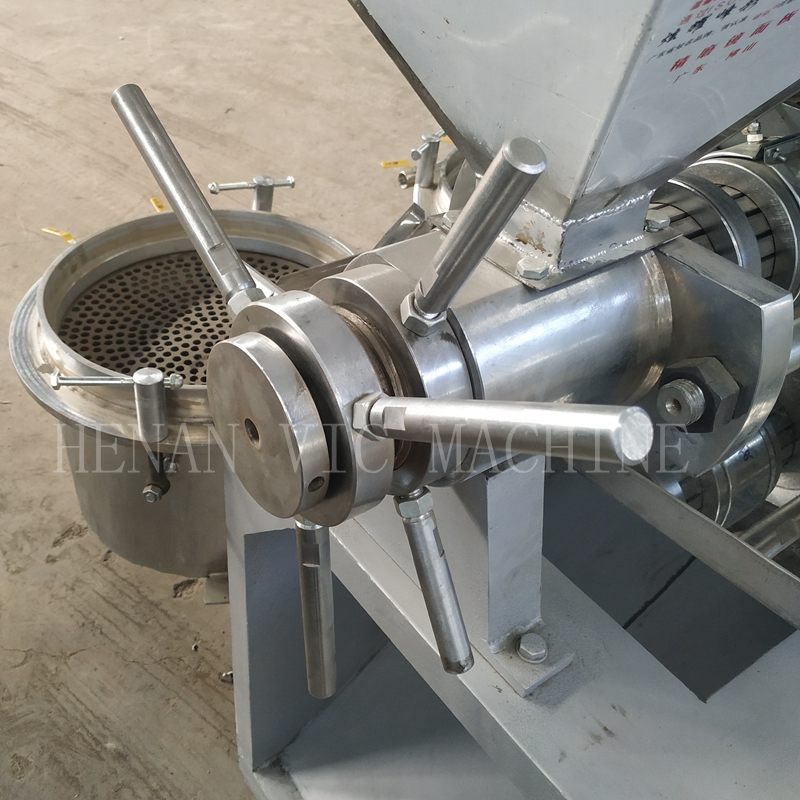

Extended stainless steel handle for easy pressure adjustment

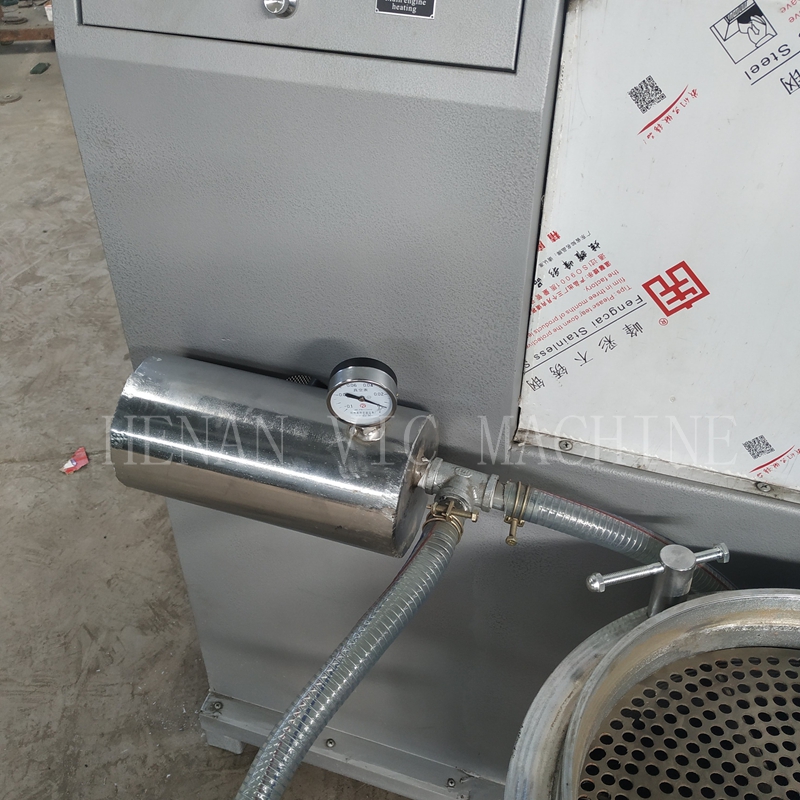

Vacuum pump and the pressure gauge

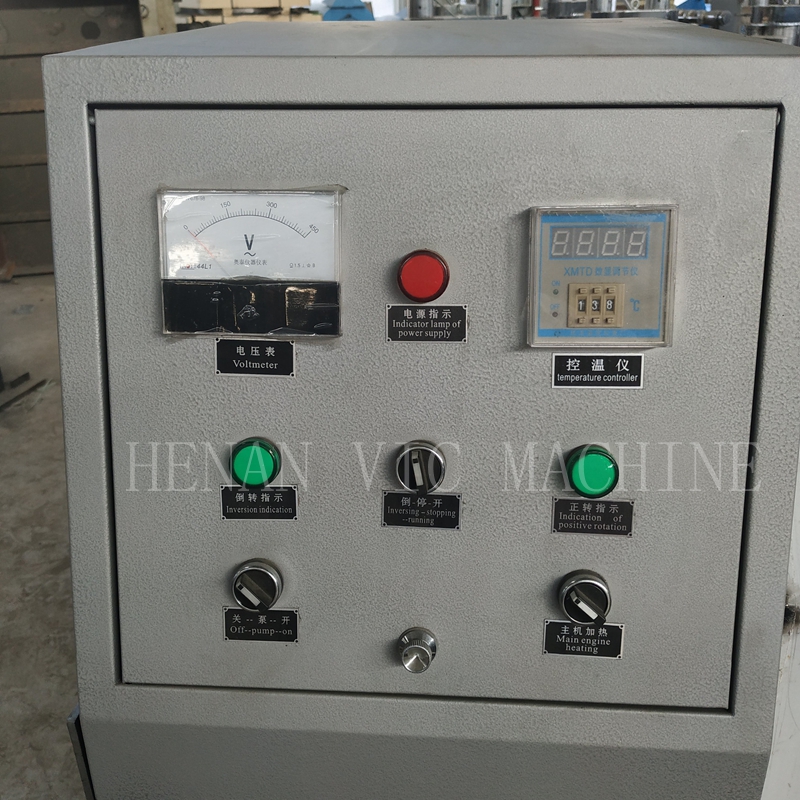

Control systems is simple and easy to operate

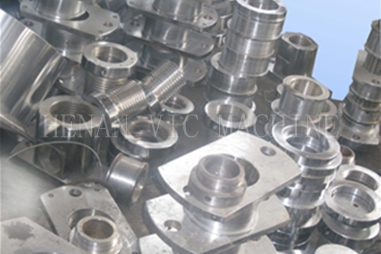

Main parts about the vegetable oil press machine
Package for the vegetable oil making machine
Delivery time: In 15 days after paid deposit.
Packing: wooden case package.
Partial shipment:not allowed
Transshipment:allowed
For warranty parts and service for the vegetable oil expeller:
**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer

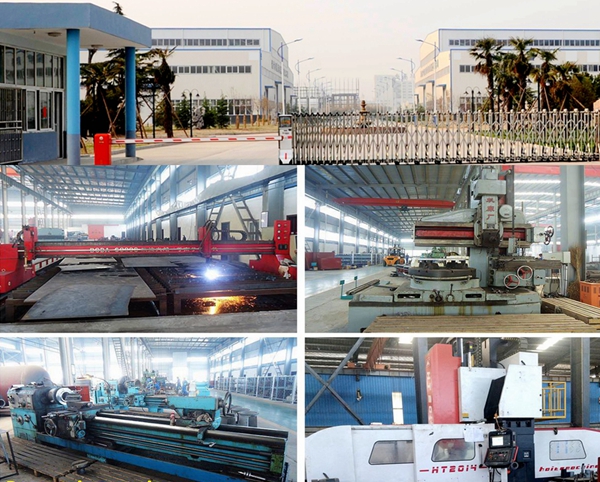

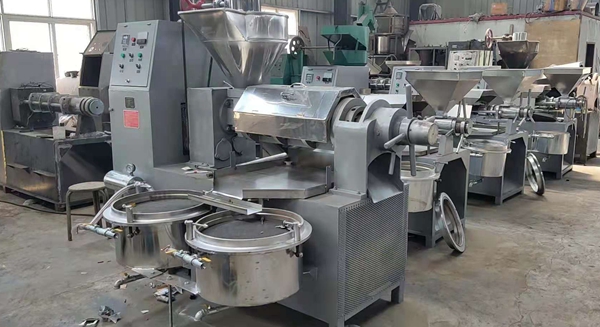

Our factory:
