- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Place of Origin:CN
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 Year
- Usage:all kinds of oil seeds
- Production Capacity:150kg/h-200kg/h
- Brand Name:VIC
- Voltage:380v,220v
- Dimension(L*W*H):1650x1200x1600mm
- Weight:810kg
- Certification:CE, ISO

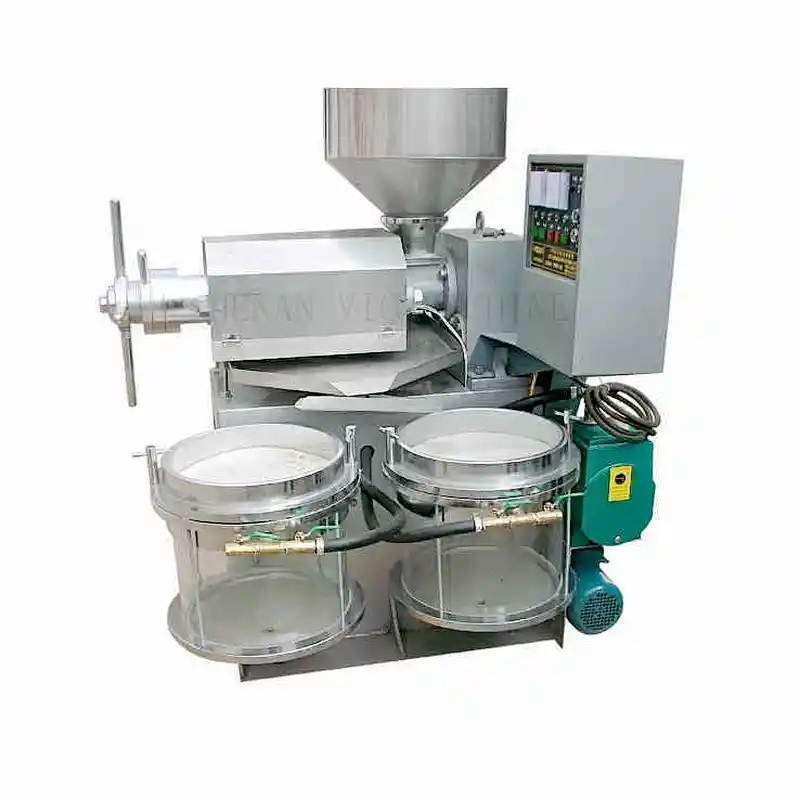

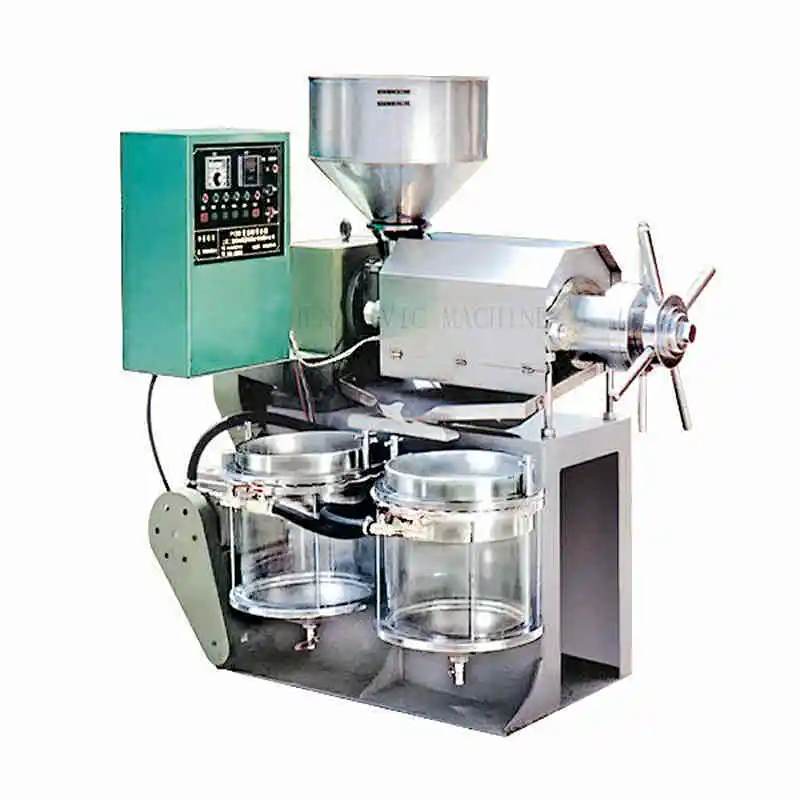

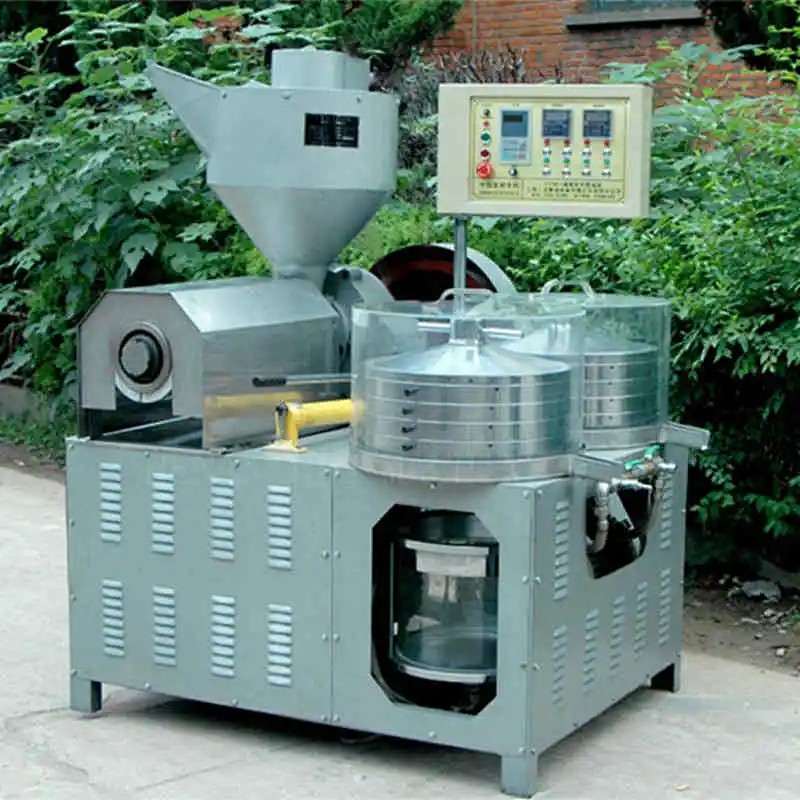

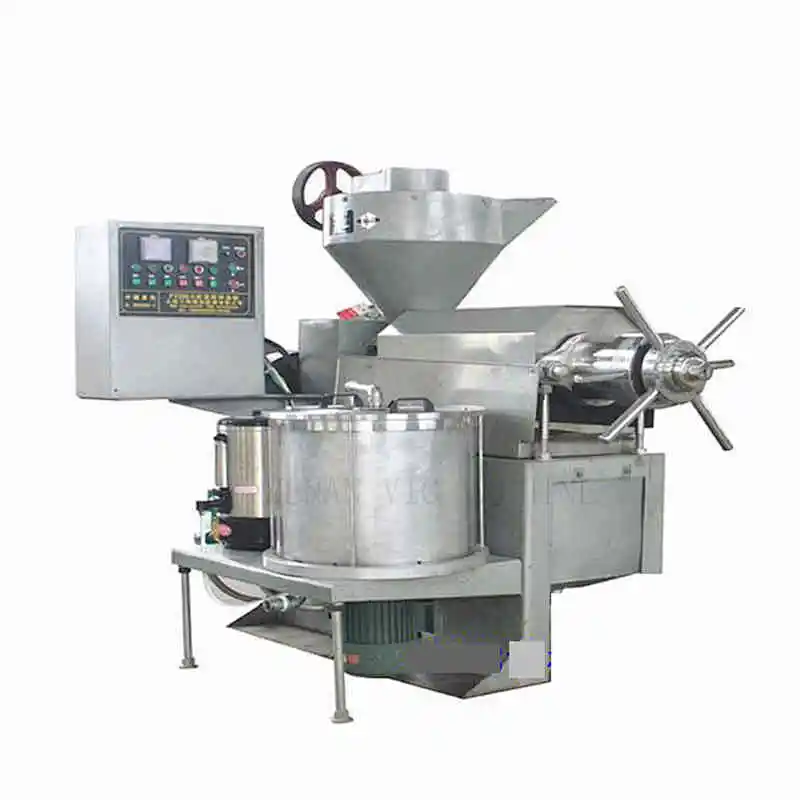

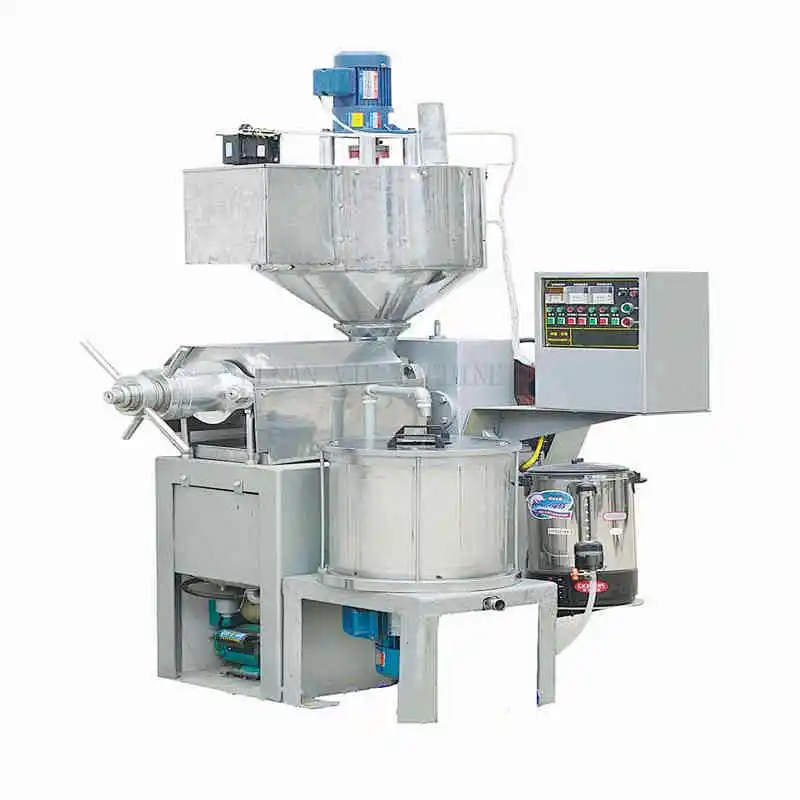

CY-C oil press can press different materials such as sesame, peanut, rapeseeds, sunflower seeds, soybean, tea seeds etc with high oil output rate and low energy consumption. This machine is our latest oil press with new technology and structure.
Feature:
- CY- C oil press choose centrifugal filter, the filtering can control with button, and the phospholipids, waxiness can be threshed once.
- This machine choose advanced technology in the world, the oil outlet are all in the bottom of the end of the pressing filter, and in the production will not have oil splash.
- The product oil is very clear, no foam when cooking with pure flavor, its more health for cooking, and also with high automatic, just one person can operation.
- This machine is with compact structure, oil tray and oil cover and control box are all stainless steel for easy cleaning.
- This machine can be applied to use in small-medium factory, also can be widely used in supermarket for fresh pressing and fresh oil selling. The automatic working, low noise and environment protection all can meet requirement.
Main model and data:

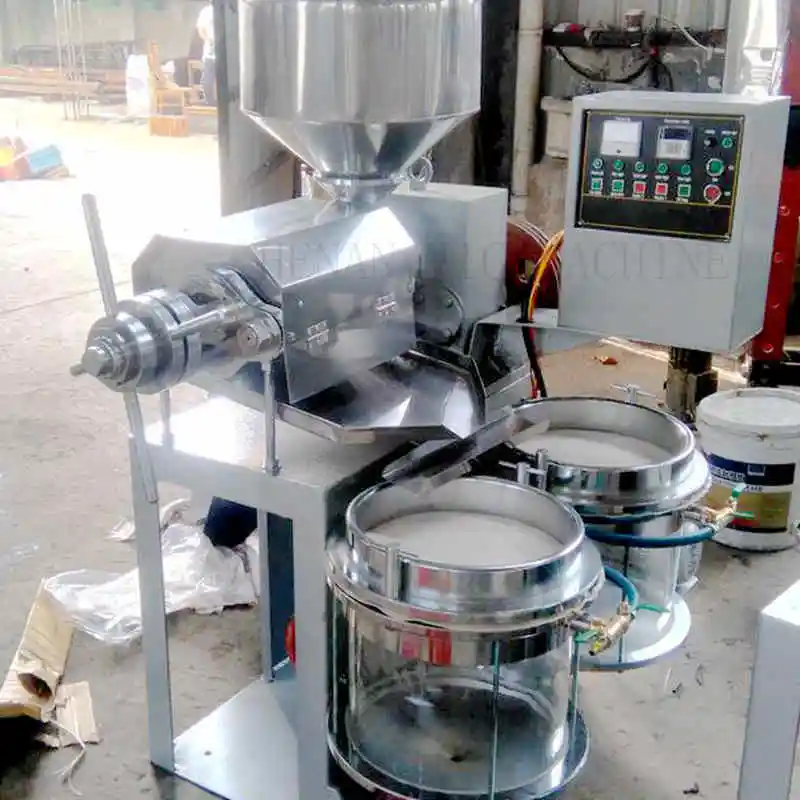

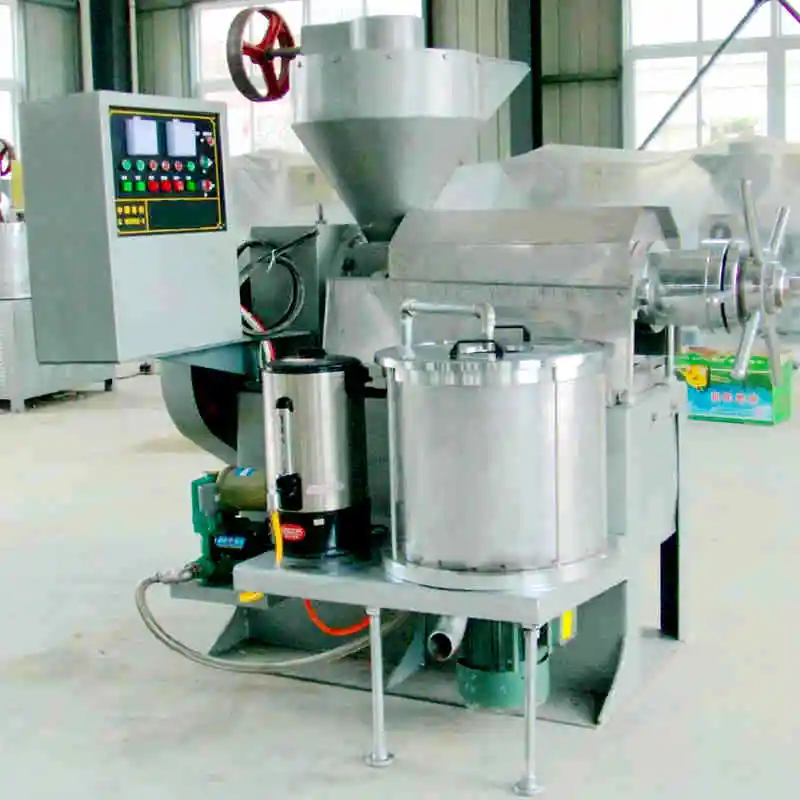

Model | CY-172C integrated oil press | CY-298C integrated oil press |
Processing capacity | 60-100kg/h | 150-200kg/h for oil seeds |
Power | 3kw(220v/single,380v/3p) | 7.5kw(380v/3p/50hz) |
Pressing screw speed | 45rpm | 38-44rpm |
Pressing screw diameter | 70mm | 96mm |
Pressing chamber inner dia | 72mm | 98mm |
Residue oil in cake | Less than 6% | Less than 6% |
Size(mm) | 1080x920x1550mm | 1650x1200x1600mm |
Weight(kg) | 350kgs | 810kgs |
Different models combined oil press machine:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
