- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Place of Origin:CN
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Warranty:1 Year
- Usage:all kinds of oil seeds
- Production Capacity:10-20kg/h
- Brand Name:VIC
- Voltage:220v,380v
- Dimension(L*W*H):700x700x94mm
- Weight:126kgs
- Certification:CE, ISO
Application:

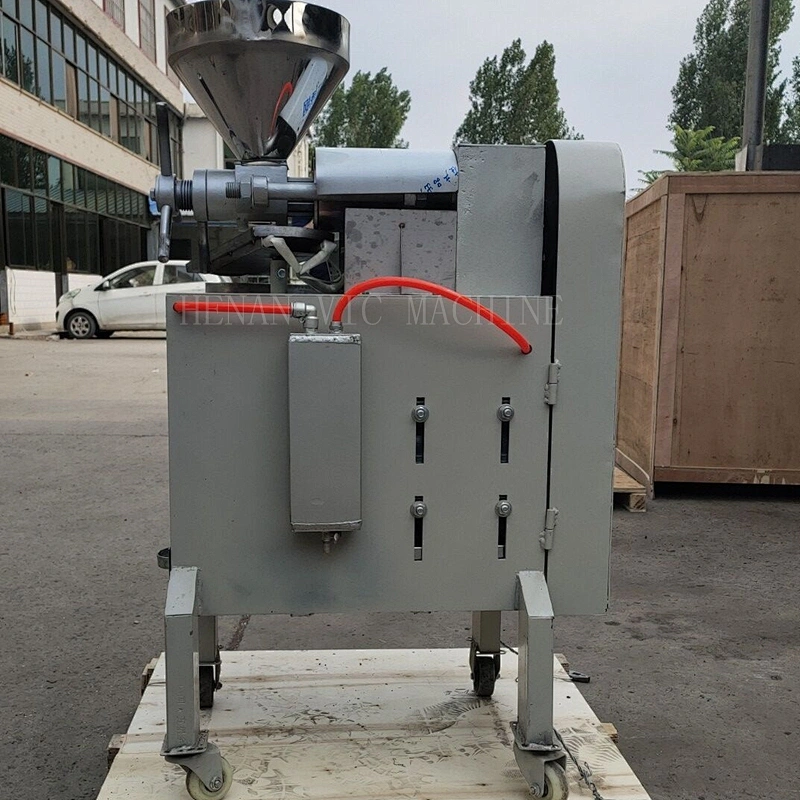

1. 6YL-30A is a small family use combined oil press with single vacuum filter
2. It can be applied to press Rape seed, Tea seed, Soybean, Peanut, Pepper seed, Sunflower seed, Cotton seed, Tung tree seed, Sesame, Jatropha etc.
3. This machine is with automatic operation and need small space, only one people can operate the machine.
4. The final oil is widely used for home use edible oil, industry, cosmetics and other field.
Main data:

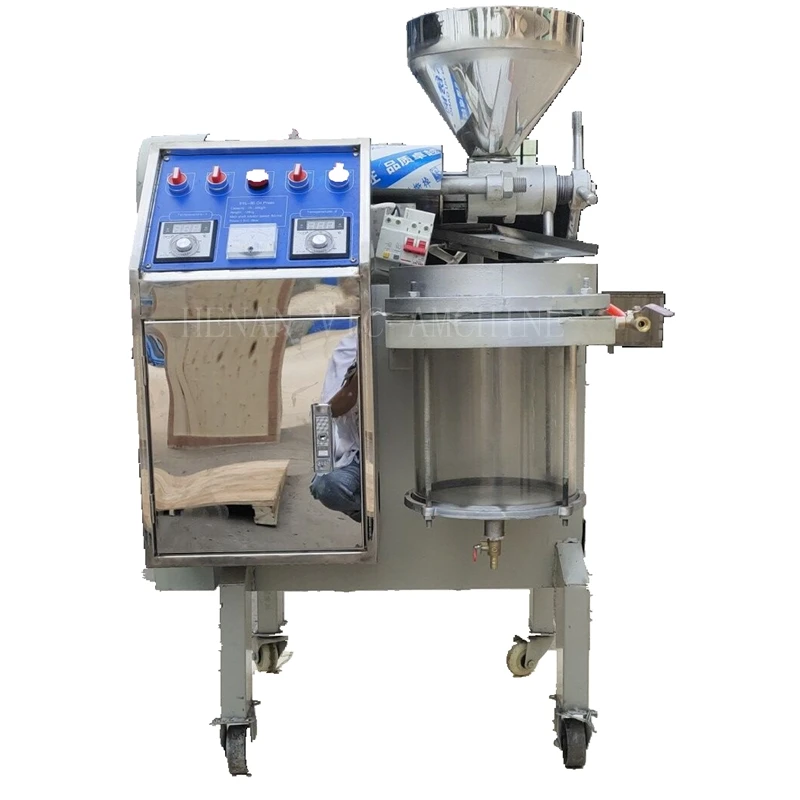

Model: 6YL-30A home use mini oil press
Capacity: 10-20kg/h for oil seeds
Oil output rate: 42-50% (different according to materials)
Power: 1.5kw (220v/50hz/single phase)
Vacuum pump: 180w/1.5L
Pressing screw dia: 37mm
Shaft speed: 60-70r/min
Residue oil in cake: less than 3%
Outer size: 700x700x900mm
Net Weight: 126kgs
Oil capacity ref.:
| Oil seeds | Oil ouptput rate(%) | Thickness of oil cake(mm) | Remarks |
| Rapeseeds | 33-42% | 0.4-1 | ---------- |
| Tea seeds | 30-36% | 0.8-1.5 | 20-26% with shell |
| Soybean | 8-12% | 0.6-0.8 | ---------- |
Peanut | 35-40% | 0.3-0.6 | 28-32% with shell |
| Sesame | 38-50% | 0.4-0.6 | ---------- |
| Cottonseeds | 10-15% | 0.4-0.6 | ---------- |
| Tung seeds | 45-52% | 0.6-0.8 | ---------- |
| Sunflower seeds | 45-50% | 0.3-0.6 | ----------- |
Note: The above technical parameter is for normal operation of cleaning, crushing and pressing process.

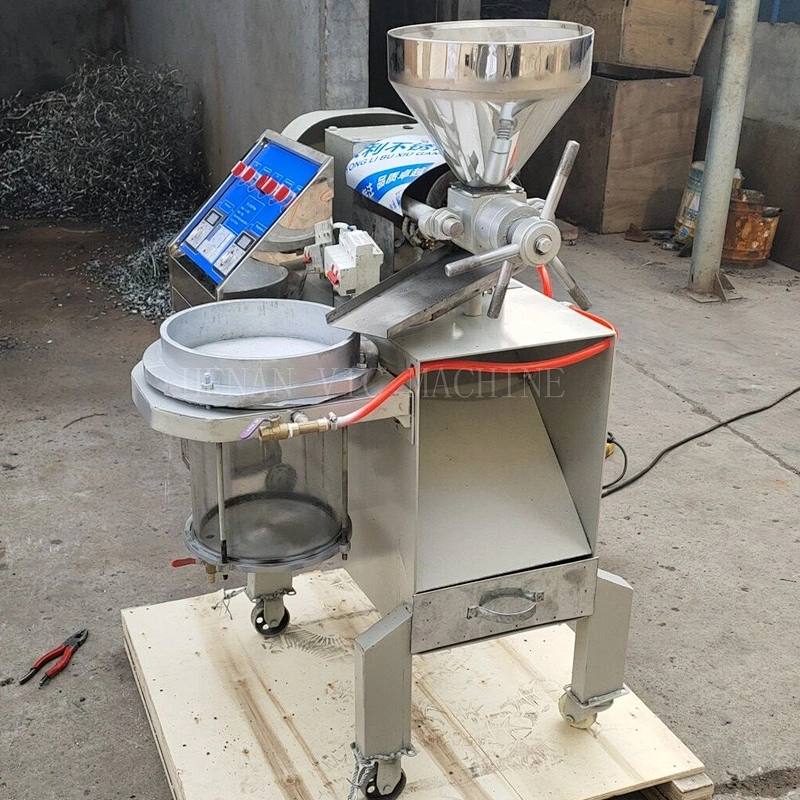

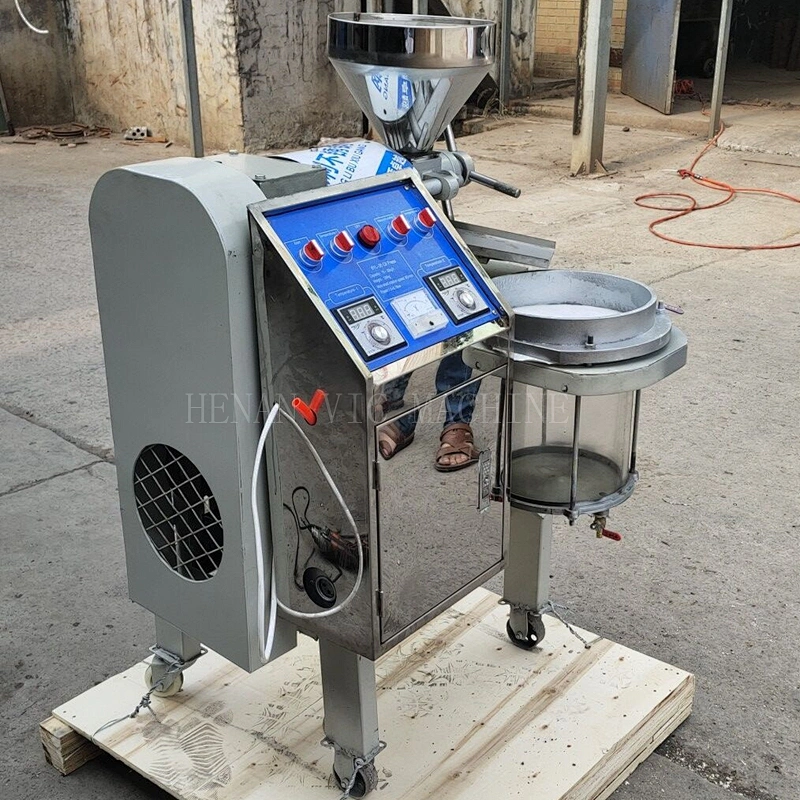

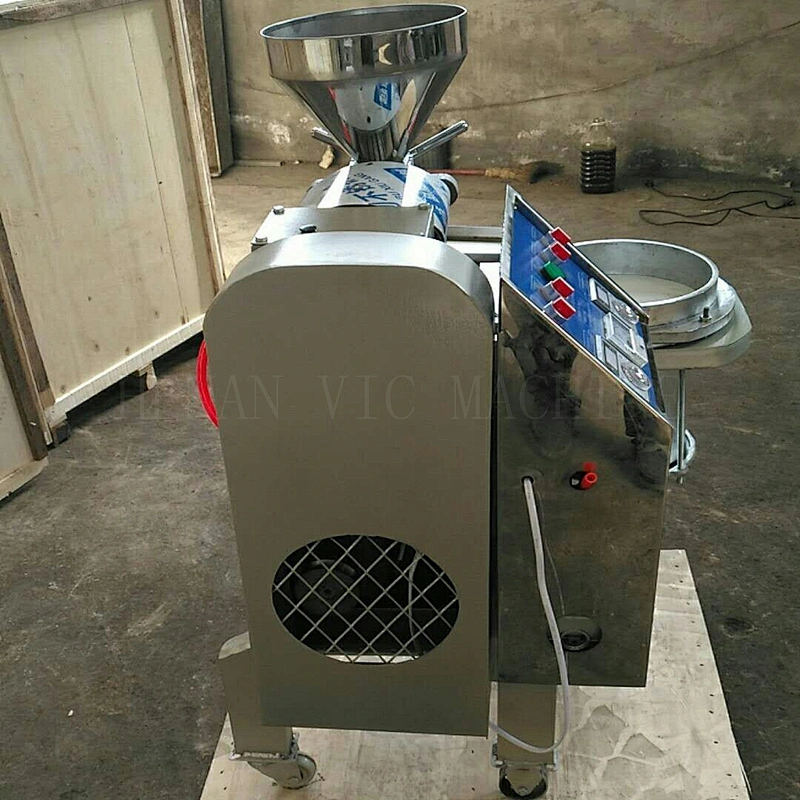

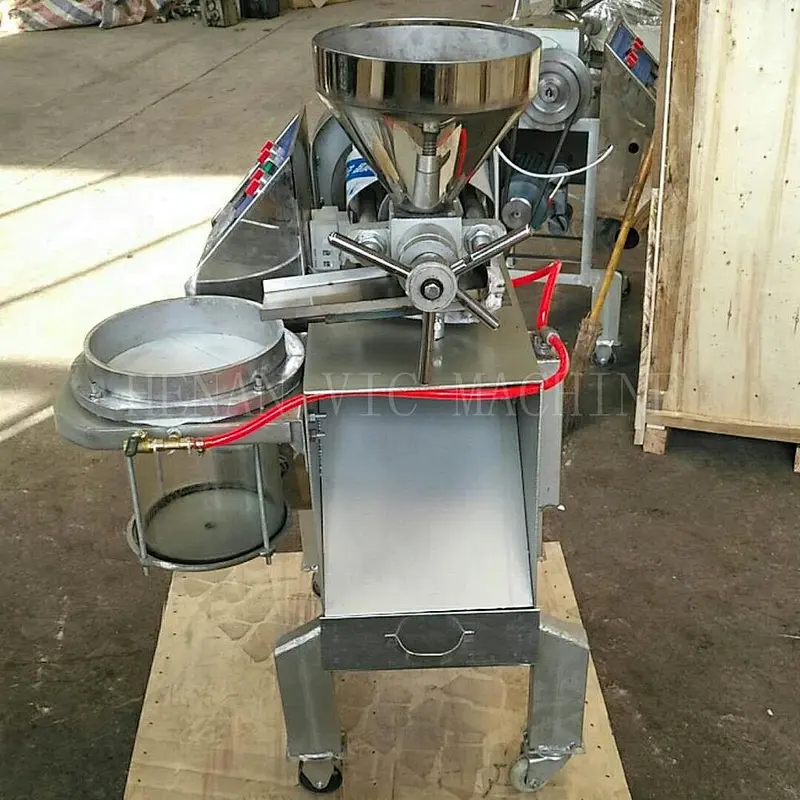

More picture

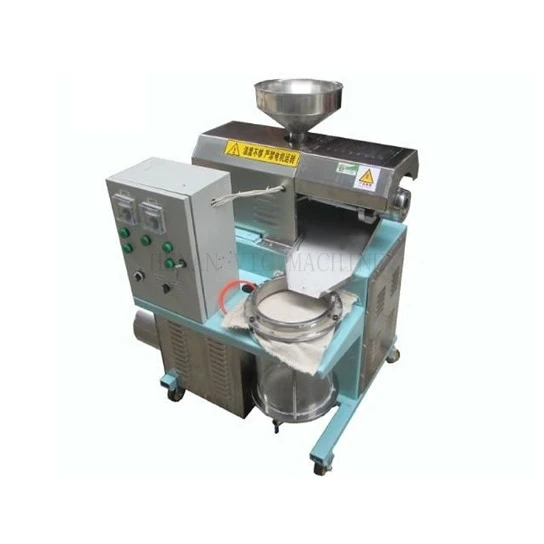

Different small oil press machine VIC-F3A:
Spare parts:

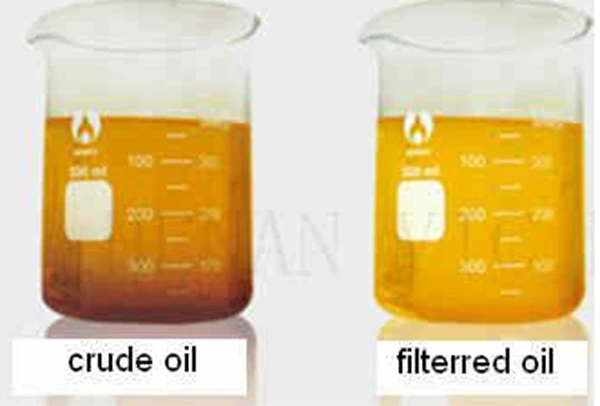

Final oil :
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
