- Raw material:Oil Seeds
- Name:Oil Press Machine
- Function:processing filtered oil
- Product name:filtered oil
- Application:Family
- Advantage:Energy Saving Low Residual
- Material:Partial stainless steel
- Keyword:with filter
- Capacity:20-30kg/h
- Power:1.5+0.18KW
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Food Shop
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Usage:ALL SEEDS
- Type:Cold & Hot Pressing Machine
- Automatic Grade:Automatic
- Warranty:1 YEAR
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Multifunctional
- Marketing Type:New Product 2020
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 YEAR
- Core Components:Motor
- Core Components:Pump
- Place of Origin:CN;HEN
- Production Capacity:20-30KG/H
- Brand Name:VIC
- Voltage:220V
- Dimension(L*W*H):800x800x1200mm
- Weight:160kgs
- Certification:CE
Application:

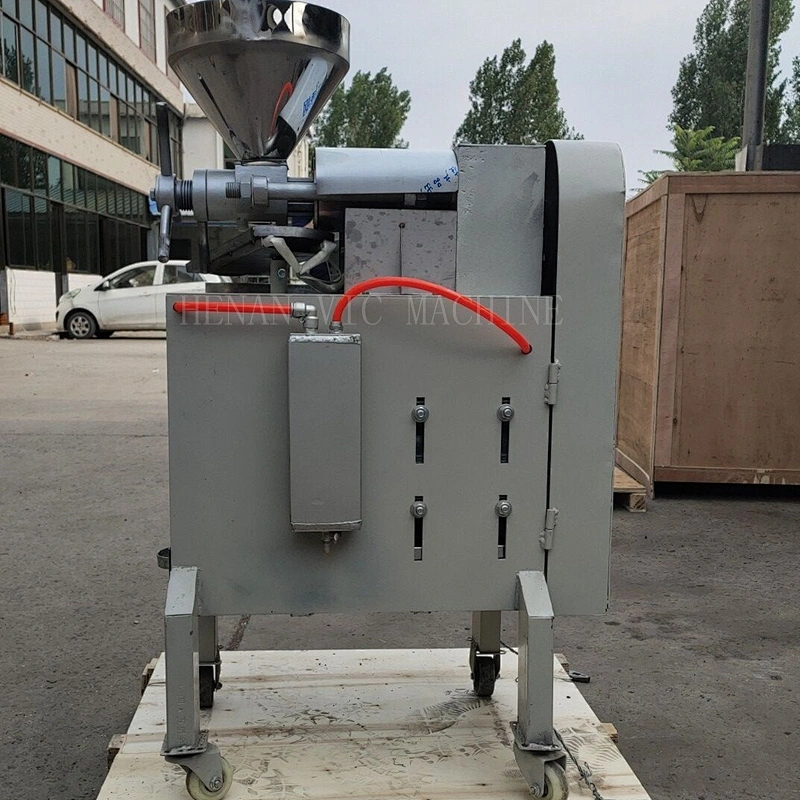

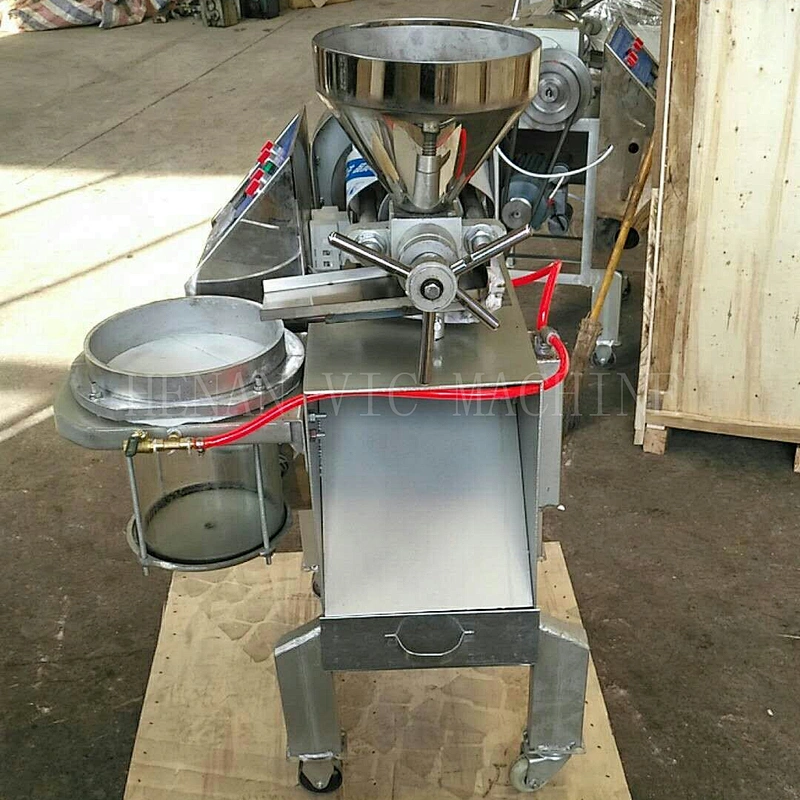

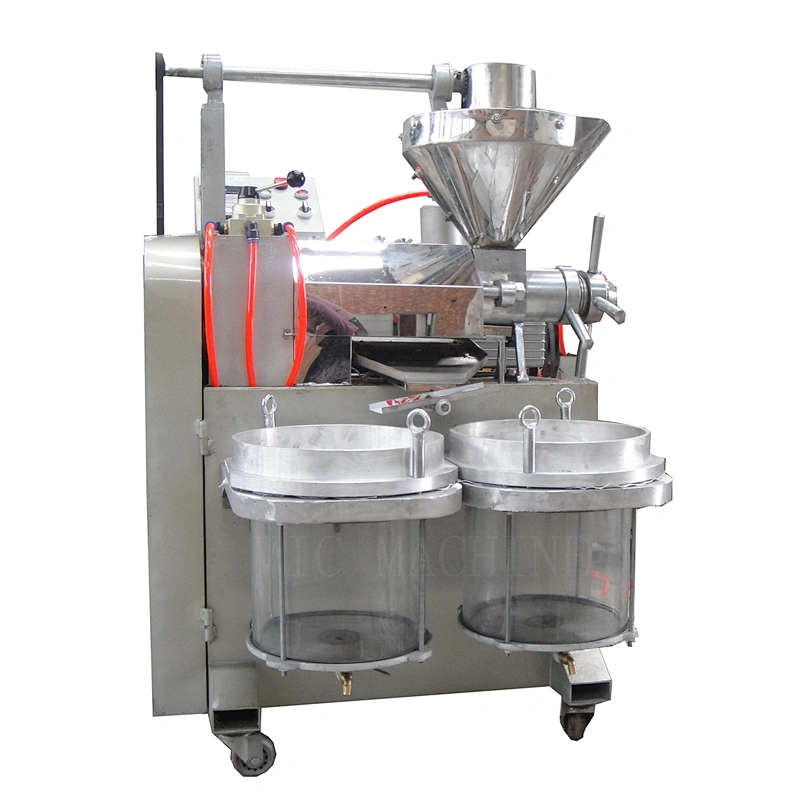

This machine is upgrade type based on traditional type screw oil press, it's combined with transparent double vacuum filter and control box; It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame, teaseeds, sunflowerseeds, etc
Advantage:
- Choose rods type pressing rods, which is with higher pressure in pressing chamber, higher oil extraction rate, and lower oil slags rate;
- Both hot press and cold press are available to meet different user;
- Pressing screw, rods, pressing shaft etc core parts all through carburization and hardening, so that with high wear-resistance;
- Match with transparent vacuum filtering system, which can realize pressing and filtering same time and observe filtering anytime;
- Inside feed-in hopper match with agitating auger, which can realize forced feeding and solve blocking materials problem;
- With cake adjustable handle, which can control cake thickness anytime;
- With control box which is more easier to control and operation machine;
- This oil press can do continuous work with high oil extraction rate.
Technical data:
| Model | Capacity (kg/h) | Power(kw) | Size(mm) | Weight(KG) |
| 6YL-30R | 20-30 | 1.5kw+0.18kw | 800x800x1200 | 160 |
| 6YL-60B | 30-50 | 2.2kw+0.18kw | 1000x900x1200 | 200 |
| 6YL-70B | 50-80 | 4kw+0.18kw | 1000x1000x1250 | 260 |
Shipping: We can deliver the machines to port within 7-10 days after payment.
Packing: wooden box package as international standard.
Delivery port: Shanghai port or qingdao port of china.
Warranty: one year excluding wearable parts.
We can also supply kinds of screw oil presses with different capacity. We also can supply comined oil press with vacuum filter and complete set of edible oil processing plant in turkey basis.
Our target is make the best qualified oil press machine and in time service for you, long-term win-win cooperation. Customers all over the world and agents are always welcome
More picture

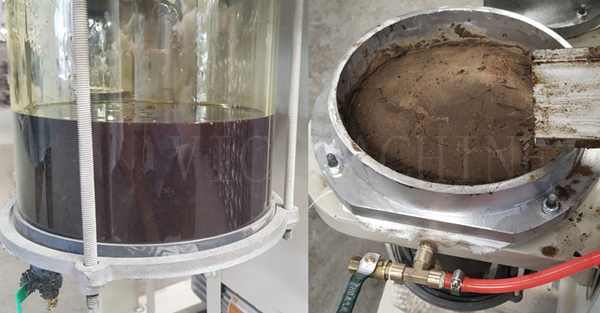

Final oil and residue

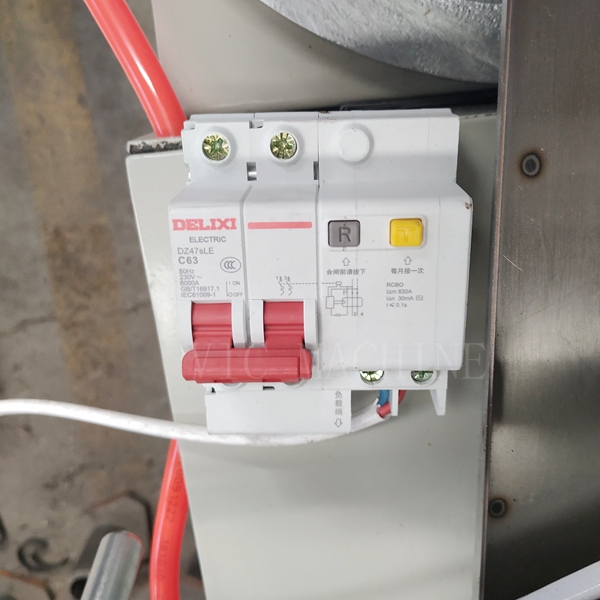

The wiring of the leakage protector presented by the randomizer is safer

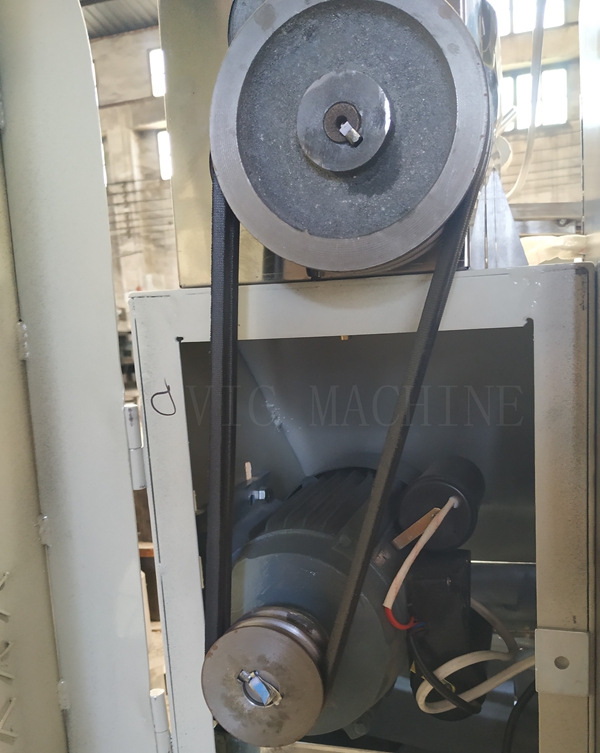

Two V-belts drive more powerful;Strong magnetic door connection is secure to open the door and it is convenient without screwing

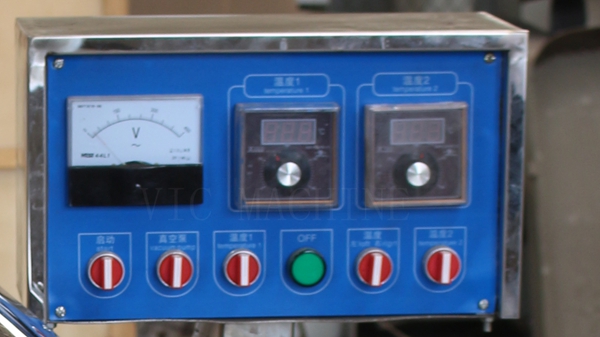

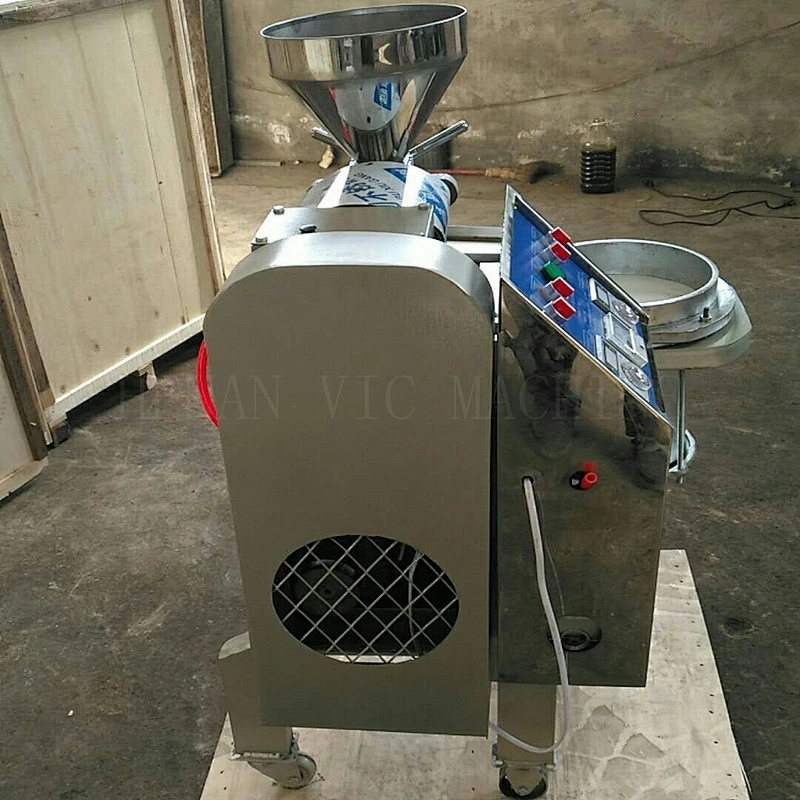

Simple operation electronic control system with temperature controller

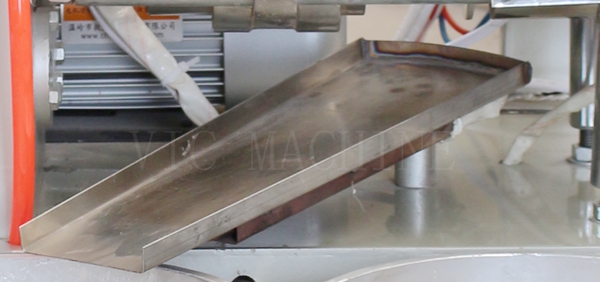

Stainless steel oil pan clean and sanitary

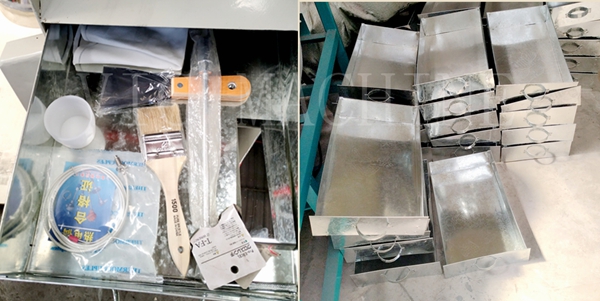

The stainless steel cake drawer and the small tool in it

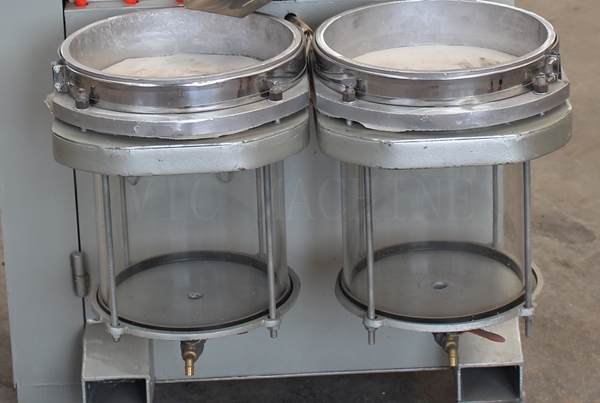

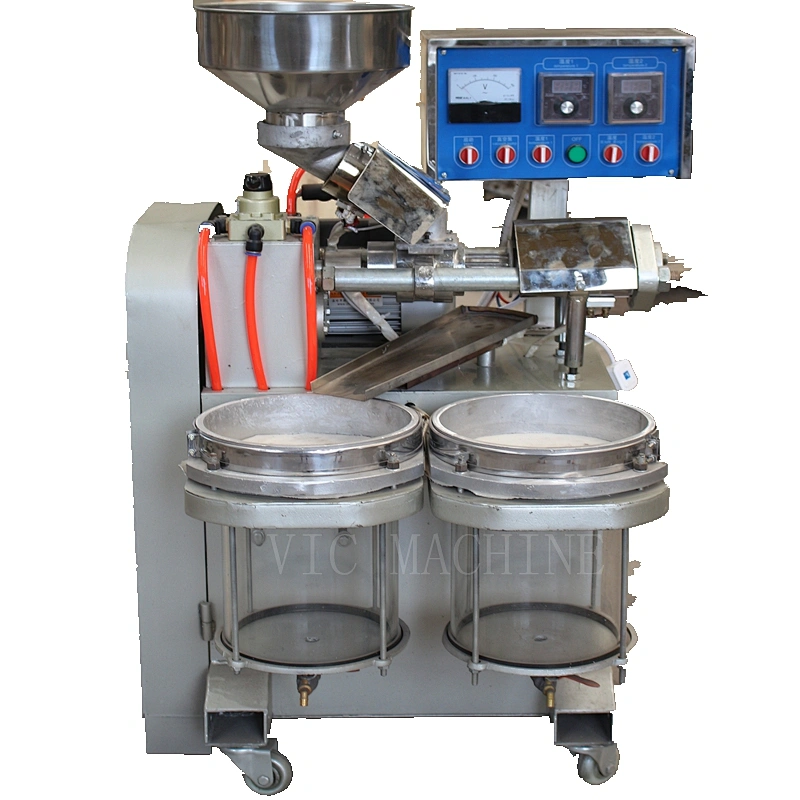

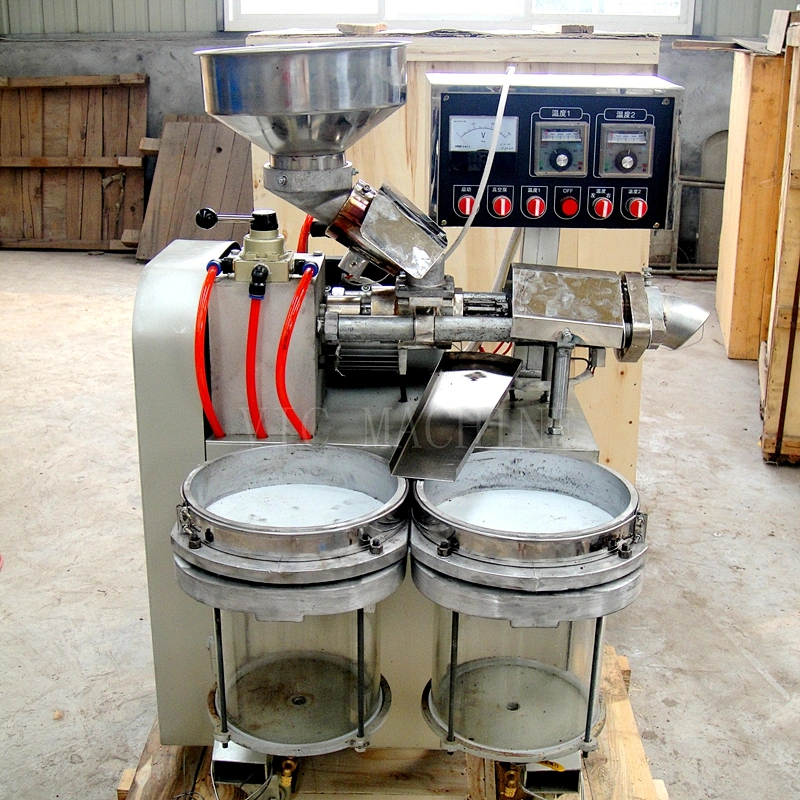

Double glass filters are easy to observe and clean
Other mini oil press S10

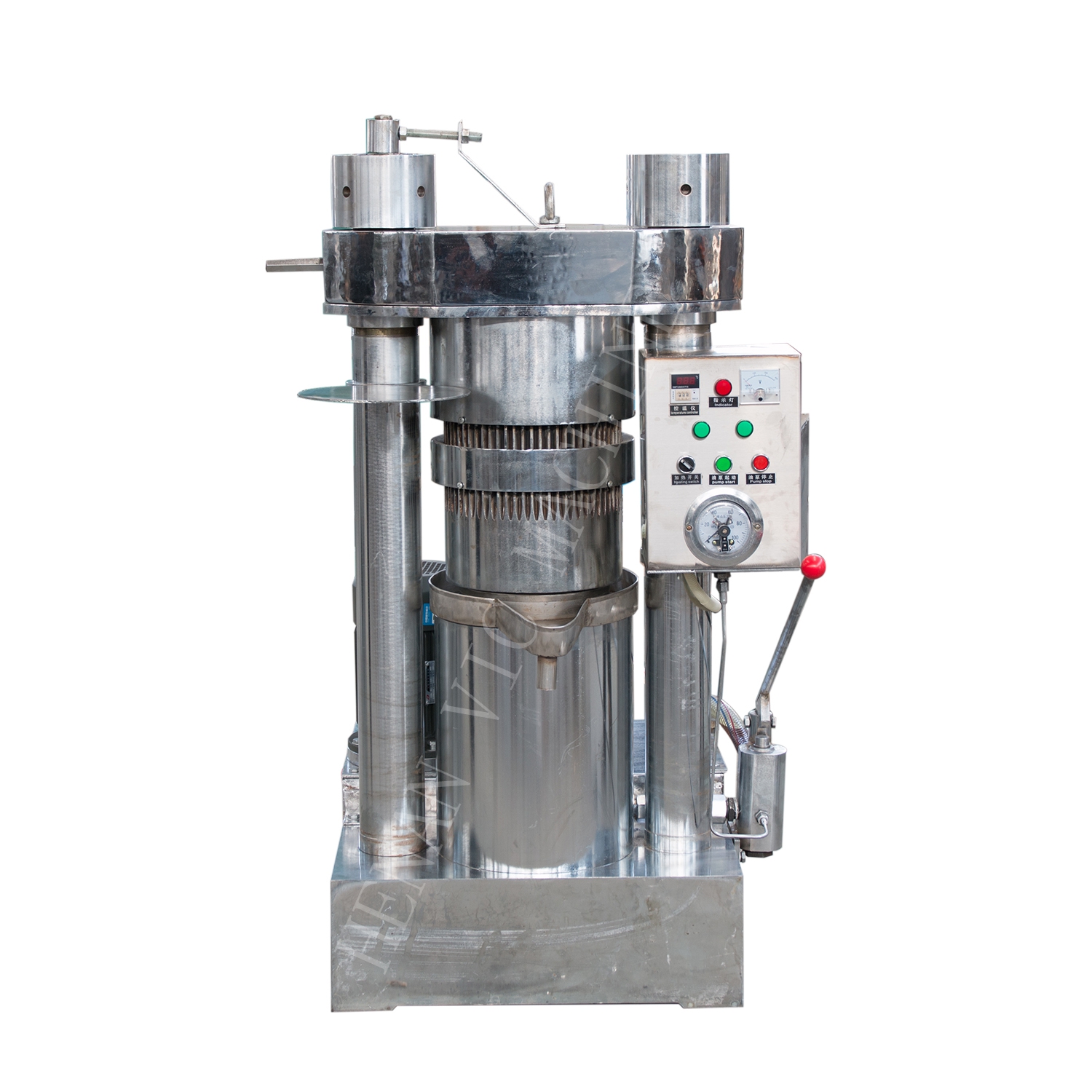

Other hydraulic oil press 6Y-180

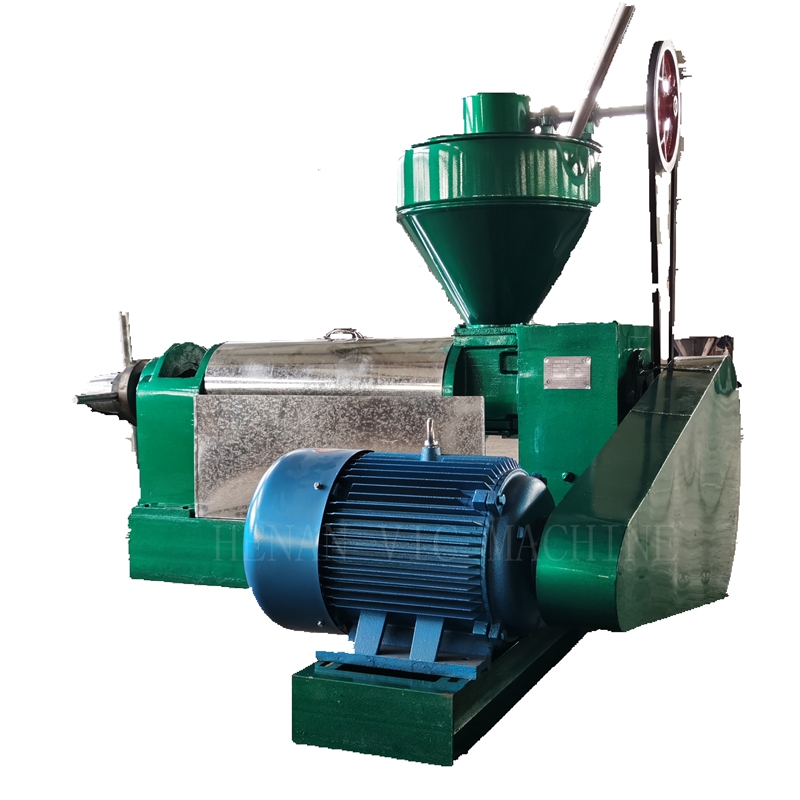

Other screw oil press 6YL-130

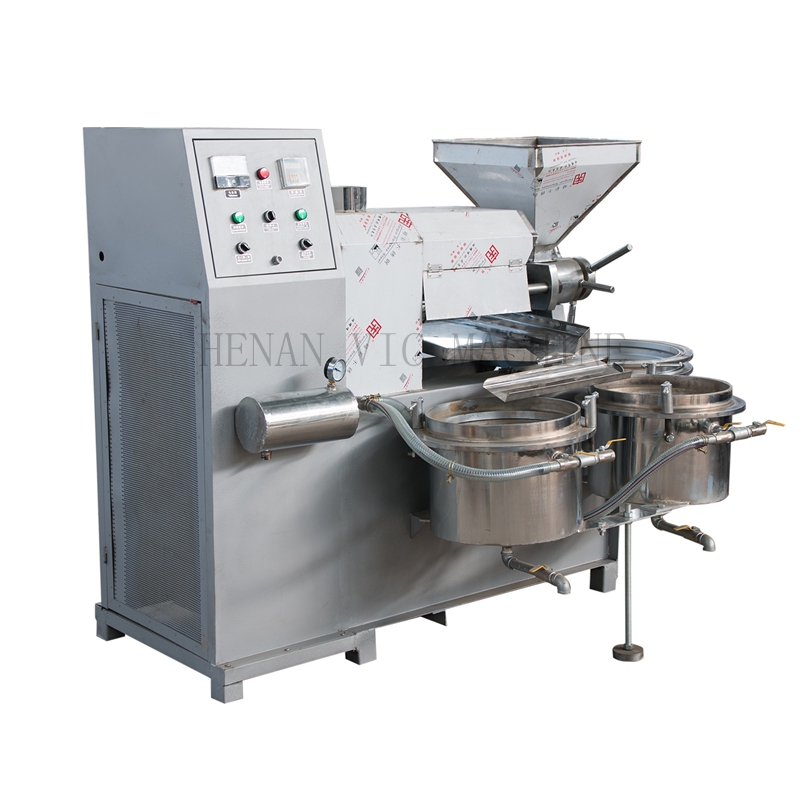

Other combined oil press 6YL-80B

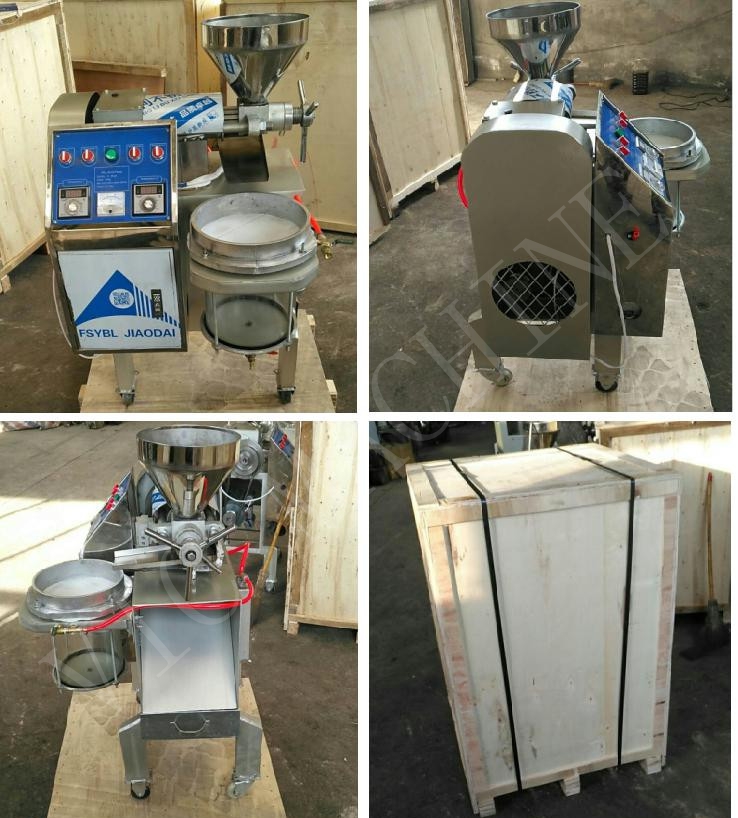

Package:in wooden box
shipping :by sea
